Description

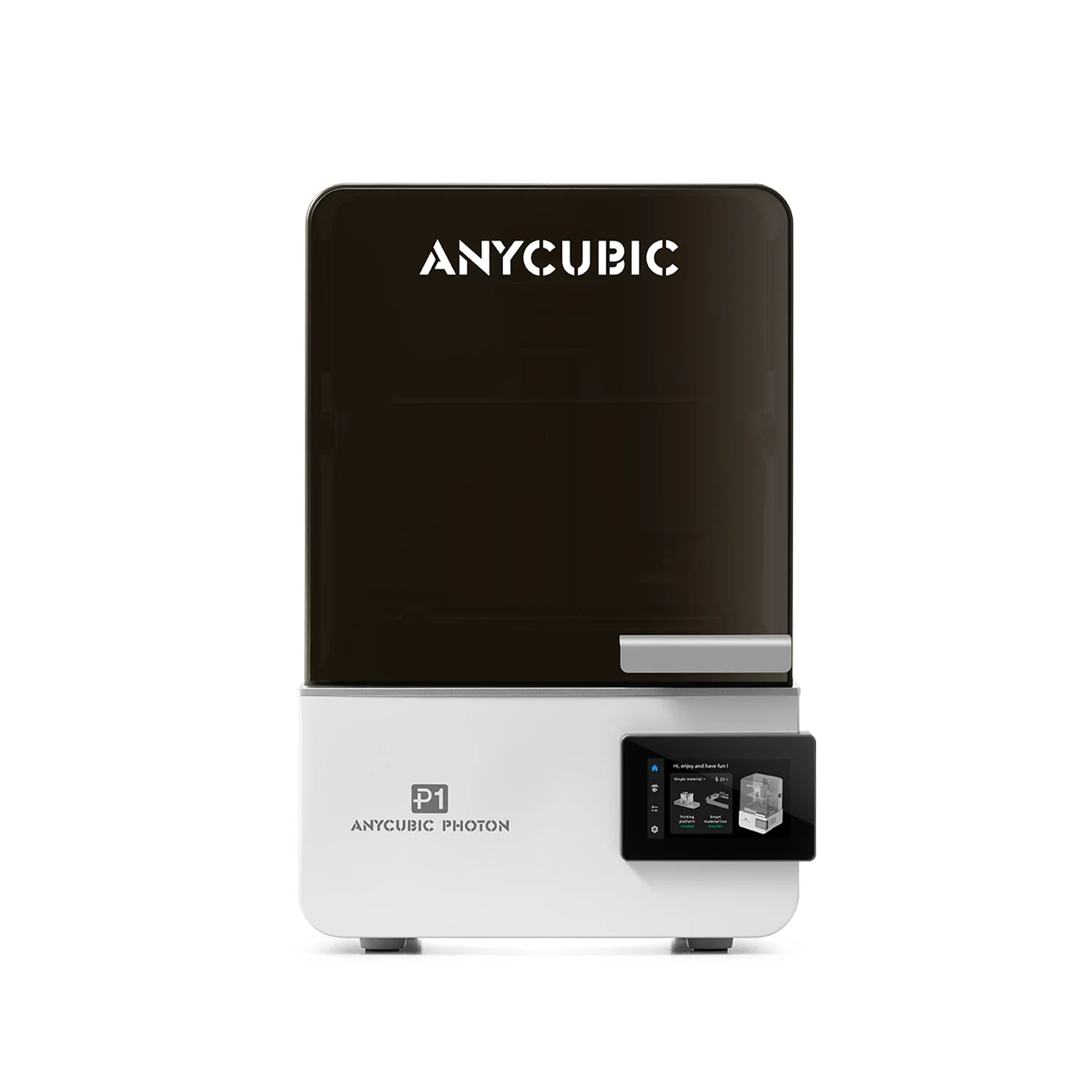

Anycubic Photon P1 is positioned as a desktop resin printer that brings industrial style precision into a more accessible format. It is built for users who need consistent print quality, better platform stability, and a cleaner workflow for both single material and advanced dual material projects.

The printer features a 10.1 inch 14K monochrome LCD and delivers 16.8 x 24.8 um XY resolution. This level of detail helps produce sharp edges, fine textures, and accurate small features across the print area. With a build size of 223 x 126 x 230 mm and a 6.5 L print volume, Photon P1 is suitable for full size prototypes, detailed figures, and batch production of smaller models.

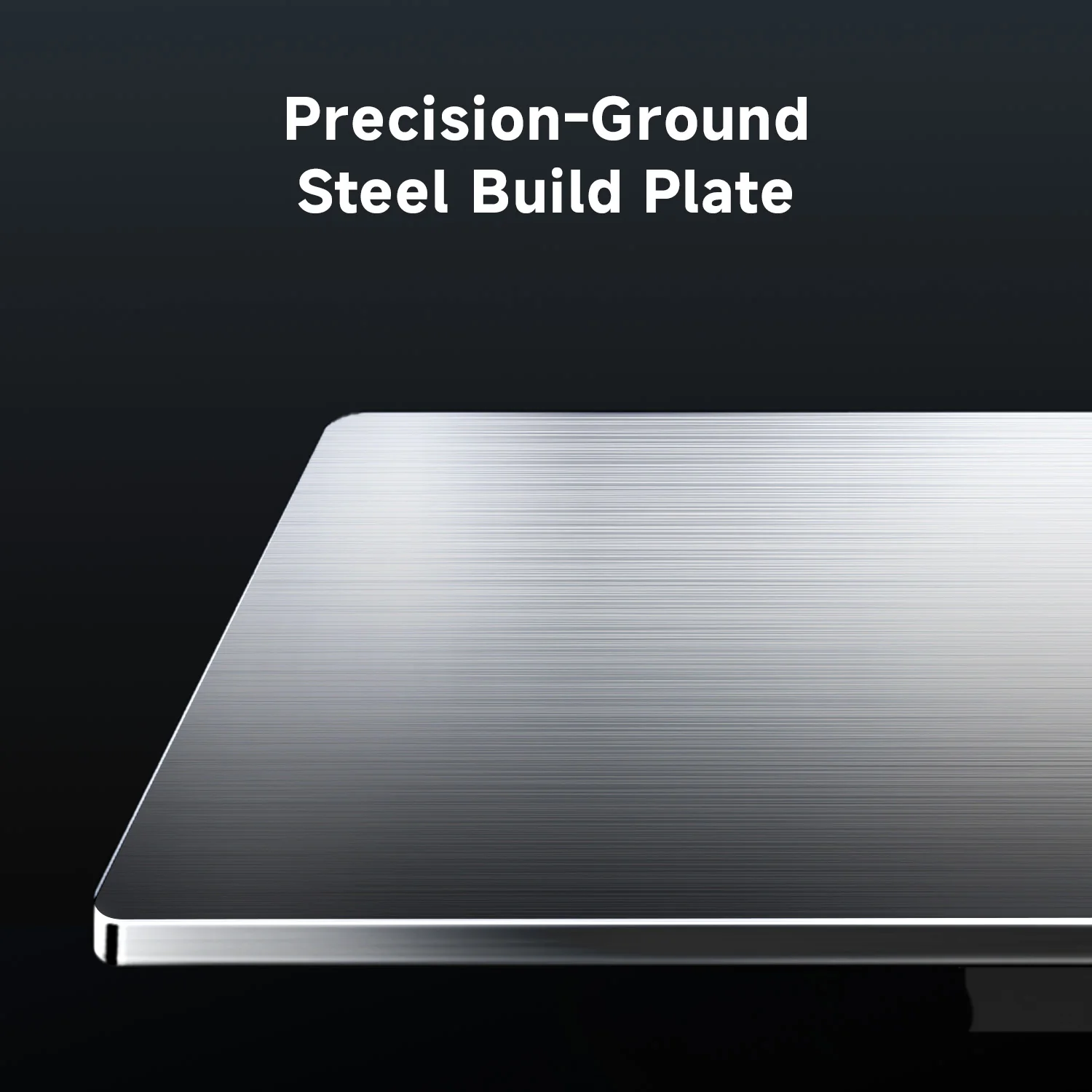

For motion accuracy and long term stability, Anycubic uses a dual rail and ball screw Z axis structure together with a precision steel build platform. The steel platform is presented as a more durable and stable solution for repeatable printing performance, while the leveling system is supported by Auto-Leveling 3.0 with Feedback and factory calibration.

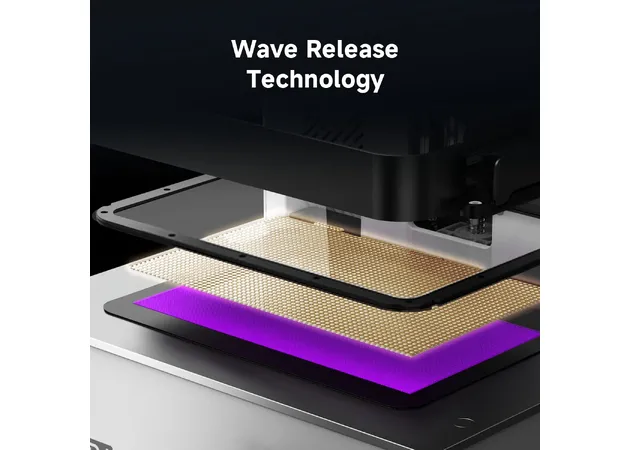

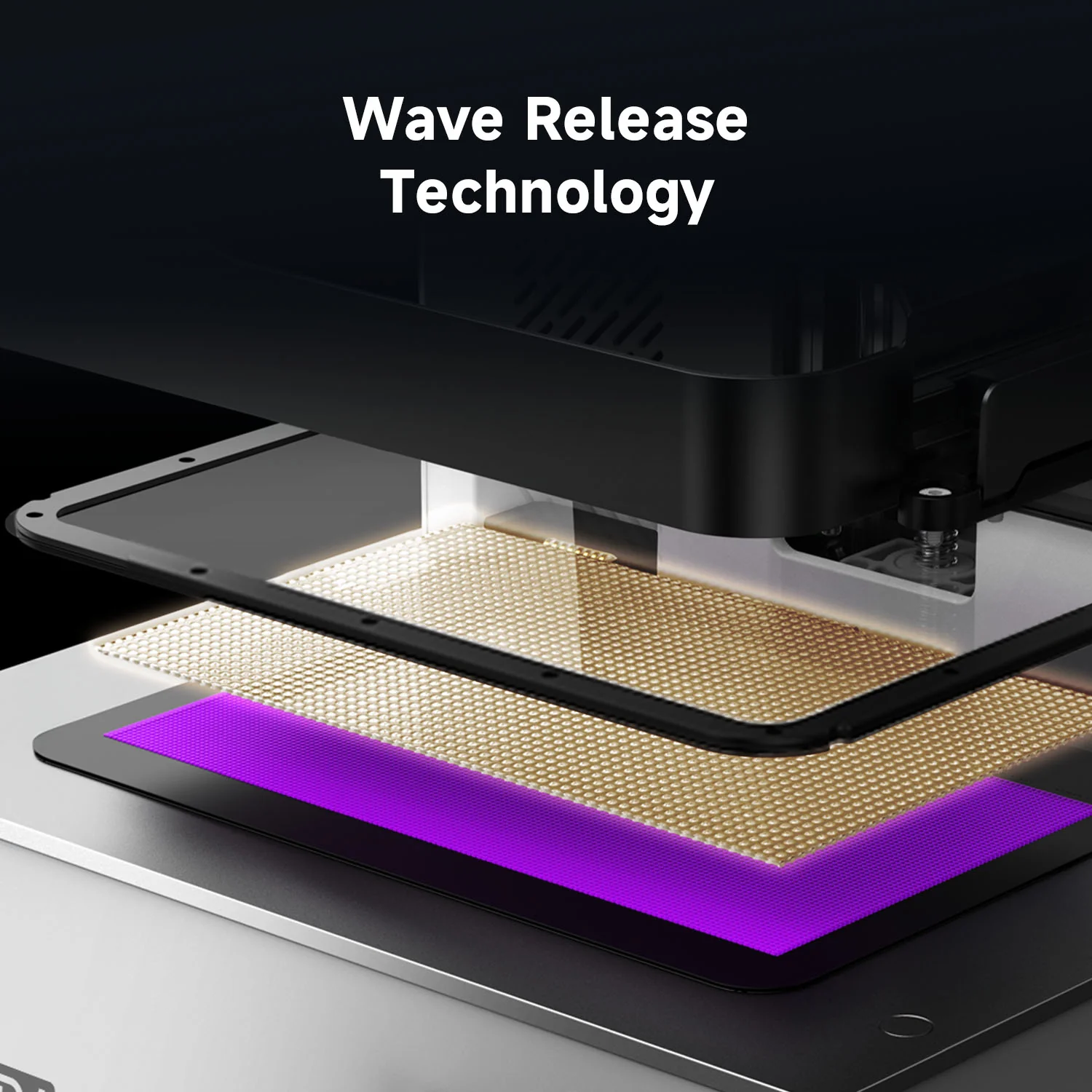

Photon P1 also introduces Wave Release Technology, which is designed to reduce peel force and improve model release behavior. This helps lower stress on the print and the resin tank, supports smoother surfaces, and contributes to quieter and more stable printing.

Another important advantage is material flexibility. The printer is compatible with all Anycubic resins and is described as capable of handling standard, flexible, transparent, and high viscosity industrial materials up to 8000 cps. The Dynamic Temperature Control Resin Vat helps support more stable printing conditions, and the adjustable heating range is listed from 20 to 40 C.

For users who want more advanced workflows, Photon P1 supports dual color and dual material printing through an optional Dual Material Print Kit. This add on uses two independent resin tanks and matching build plates so two colors or two resin types can be assigned in one printing job.
