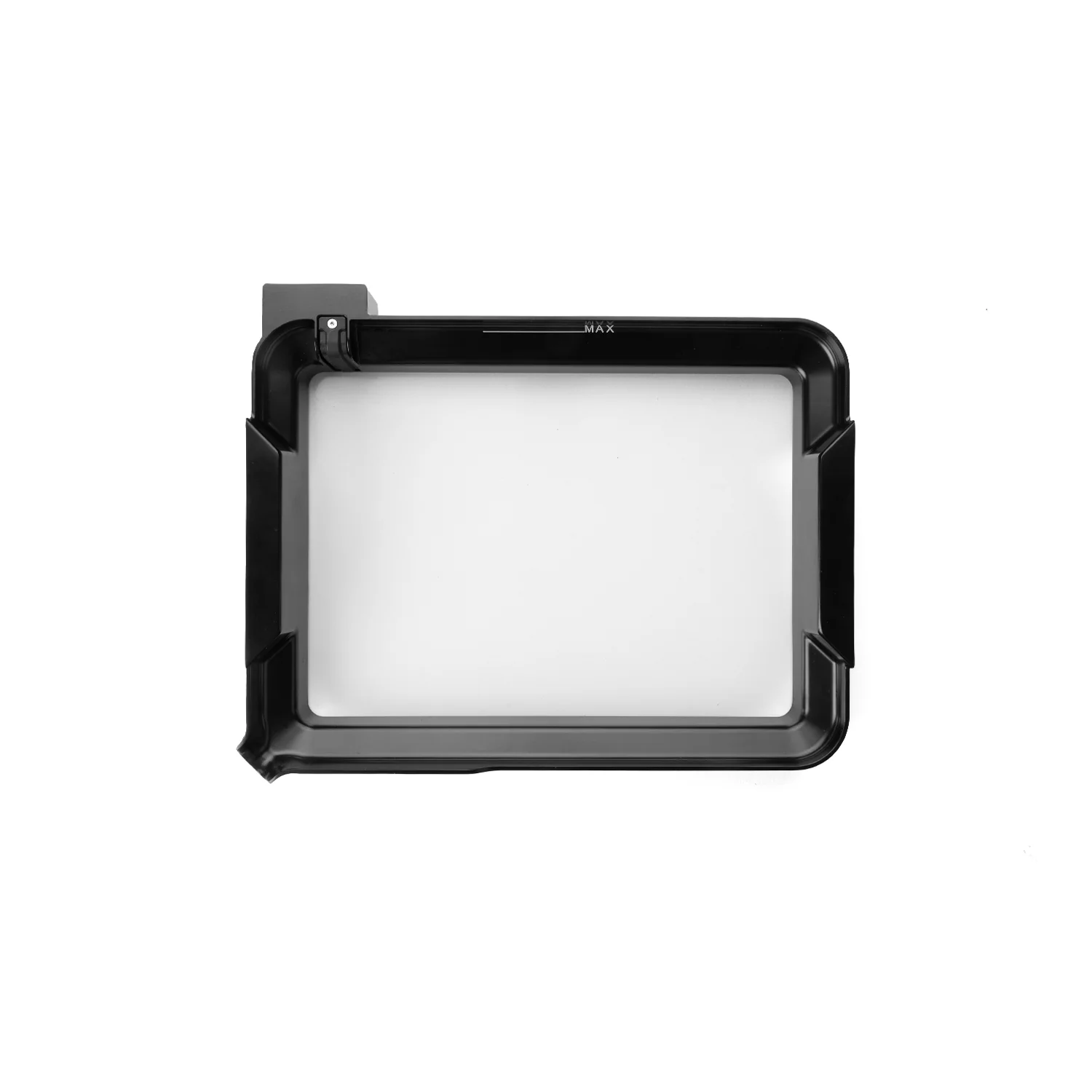

Resin Vat for Anycubic Photon P1
Resin Vat for Anycubic Photon P1 is an original resin tank designed specifically for the Anycubic Photon P1 resin 3D printer. It holds photopolymer resin during printing and forms an essential part of the printer's layer exposure and release system.
The Photon P1 version supports the printer's resin heating and dynamic temperature control system. A pre-installed NFEP release film is fitted to the vat, allowing the assembled vat to be installed and used without fitting a new release film before initial operation.
Key Advantages
- Designed specifically for Anycubic Photon P1.
- Supports the Photon P1 resin heating system.
- Supports dynamic resin vat temperature control.
- Pre-installed NFEP release film.
- Quick-release design for convenient installation and maintenance.
- Suitable as a replacement for the original resin vat.
- Useful as an additional vat for different resin colors or material types.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Resin Vat / Resin Tank |
| Compatibility | Anycubic Photon P1 |
| Release Film Type | NFEP |
| Release Film | Pre-installed |
| Resin Heating | Supported |
| Dynamic Temperature Control | Supported by Photon P1 |
| Photon P1 Resin Vat Capacity | Up to 1 L |
| Weight | 1101 g |
| Package Dimensions | 345 × 284 × 83 mm |
| Printing Technology | LCD/MSLA Resin 3D Printing |
Product Description
The resin vat is the working container that holds liquid photopolymer resin during printing. A transparent NFEP release film forms the bottom of the vat, allowing UV exposure through the film while providing the release surface required for each cured layer.
The Photon P1 supports dynamic printing control and resin temperature management. Maintaining an appropriate resin temperature can be particularly useful when printing with higher-viscosity photopolymer materials because resin viscosity affects material flow and refill behavior between layers.
An additional resin vat is also useful when regularly switching between different resin types or colors. Separate vats can be dedicated to standard, ABS-like, dental, engineering, high-temperature or other specialized photopolymer resins.
Pre-installed NFEP Release Film
The vat comes with a pre-installed NFEP release film. The NFEP film forms the transparent bottom of the resin tank and provides the release interface between the cured resin layer and the vat.
The release film should be inspected regularly. Do not continue printing if the film has deep scratches, punctures, severe clouding, wrinkles or significant deformation.
When Replacement Is Needed
- The resin vat body has been mechanically damaged.
- The vat is warped or no longer seats correctly.
- The mounting or locking components are damaged.
- The resin heating system is not operating correctly.
- The vat has been damaged by a resin leak.
- Frequent switching between different resin types or colors is required.
- A spare fully assembled vat with an NFEP film is required.
Compatibility
Designed for: Anycubic Photon P1.
This Resin Vat version is specifically intended for the Photon P1. Do not select a vat purely based on visual similarity to Photon P1 Max, Photon Mono M7, M7 Pro or other models, as dimensions, mounting systems, release films and internal construction may differ.
Installation Recommendations
- Make sure the printer's vat mounting area is clean before installation.
- Inspect the NFEP film for damage before adding resin.
- Install the vat evenly without tilting or forcing it into position.
- Secure the vat using the standard Photon P1 locking mechanism.
- Check the release film for punctures or leaks before filling the vat.
- Never leave cured resin debris between the release film and exposure screen.
Care Tips
- Always inspect the vat for cured resin debris after a failed print.
- Filter used resin before returning it to the vat when contamination is possible.
- Do not scrape the NFEP film with sharp or metal tools.
- Avoid excessive force when removing cured resin.
- Use soft cleaning materials around the release film.
- Regularly inspect the film for scratches, dents and clouding.
- Do not start another print while cured resin fragments remain inside the vat.
Important
This Photon P1 Resin Vat is the standard full-size Photon P1 resin vat and is not the Dual-material Print Kit. Simultaneous dual-color or dual-material printing requires the separate Photon P1 Dual-material Print Kit with its dedicated dual-vat configuration.
FAQ
Is this resin vat compatible with the Anycubic Photon P1?
Yes. This version is specifically designed for the Anycubic Photon P1.
Does the vat include a release film?
Yes. Anycubic specifies a pre-installed NFEP release film for the Photon P1 resin vat.
Do I need to install a new NFEP film before first use?
No. The new resin vat is supplied with the release film already installed. Replacement films are required later as the original film wears.
Does the resin vat support heating?
Yes. Anycubic lists Smart Heating Resin functionality for the Photon P1 version, and the Photon P1 supports dynamic resin vat temperature control.
What is the Photon P1 resin vat capacity?
The official Photon P1 specification lists a resin vat capacity of up to 1 L.
Can I use it as a spare resin vat?
Yes. A second vat is particularly useful for switching between different resin colors or material types without repeatedly cleaning the same vat.
