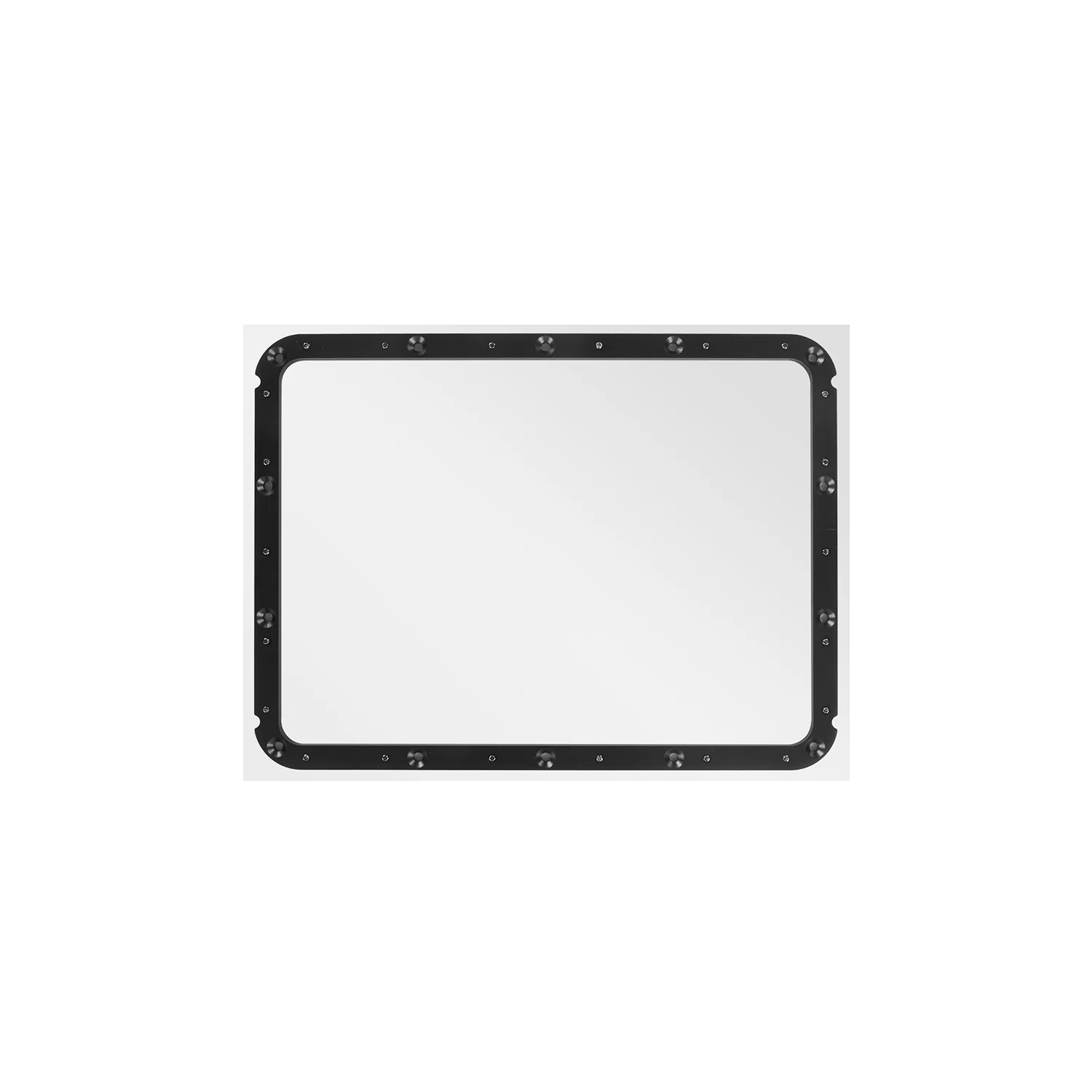

Reusable Dual Ring Metal Frame with NFEP Film for Anycubic Photon P1
Photon P1 Dual Ring Release Film is an original reusable system for mounting replaceable FEP film in the resin vat of the Anycubic Photon P1.
The Dual Ring design consists of two reusable metal frame halves. The FEP film is positioned and clamped between these two metal components.
The metal Dual Ring frame is reusable. When the film becomes worn or damaged, the metal frame does not need to be discarded. The two halves can be disassembled, cleaned and reused with a new compatible FEP or NFEP film.
An NFEP film is installed by default. The factory-installed NFEP film is 0.15 mm thick and provides 95% light transmittance.
Key Advantages
- Original Dual Ring system for Anycubic Photon P1.
- Reusable two-piece metal frame.
- Replaceable FEP film design.
- Metal frame can be reused many times.
- Only the FEP film needs replacement when worn.
- NFEP film installed by default.
- Compatible replacement FEP or NFEP film can be installed later.
- Reduces the need to replace the entire frame assembly.
- Convenient for regular Photon P1 maintenance.
What Does Dual Ring Mean?
Dual Ring refers to the reusable two-piece metal frame construction. It does not refer to a special type of FEP film.
The FEP film is positioned between the two metal frame halves. After the film becomes worn, the frame can be opened, cleaned and reused with a new compatible film.
The FEP film is the consumable component, while the Dual Ring metal frame is intended for repeated use.
NFEP Film Installed by Default
The Photon P1 Dual Ring Release Film assembly comes with an NFEP film installed by default.
The supplied NFEP film is 0.15 mm thick with 95% light transmittance. The system is designed for the 10.1″ Photon P1 platform.
Once the original NFEP film is worn, the Dual Ring metal frame can be reused with a compatible replacement FEP or NFEP film.
Technical Specifications
| Parameter | Specification |
|---|---|
| Official Name | Photon P1 - Dual Ring Release Film |
| Product Type | Reusable metal frame for replaceable FEP film |
| Compatibility | Anycubic Photon P1 |
| Frame Design | Dual Ring — two metal frame halves |
| Frame Use | Reusable |
| Pre-installed Film | NFEP |
| Film Thickness | 0.15 mm |
| Light Transmittance | 95% |
| System Size | 10.1″ |
| Quantity | 1 set |
| Weight | 500 g |
| Package Dimensions | 355 × 300 × 26 mm |
Reusable Dual Ring Design
The Dual Ring system uses two metal components to clamp the FEP film securely in position. When the installed film reaches the end of its service life, the metal components can remain in use.
The frame can be disassembled, the old film removed and a new compatible FEP or NFEP film installed.
When to Replace the FEP Film
- Deep scratches are visible.
- The film has been punctured.
- Resin leakage is detected.
- The film becomes significantly cloudy.
- Severe dents or deformation appear.
- The film no longer maintains correct tension.
- Surface damage begins to affect print quality.
Compatibility
Designed for Anycubic Photon P1.
When replacing the original NFEP film, use a compatible FEP or NFEP film with the appropriate dimensions, thickness and specifications for the Photon P1 Dual Ring system.
Dual Ring vs Integrated Release Film
Photon P1 Dual Ring Release Film and Photon P1 Integrated Release Film are different configurations.
The Dual Ring version uses two reusable metal frame halves and allows the FEP film itself to be replaced independently.
Important
Dual Ring does not mean Dual-Color or Dual-Material. The term Dual Ring describes the two-piece metal frame construction. Anycubic offers a separate release-film version for the Photon P1 Dual-Color / Dual-Material printing system.
FAQ
What is the Photon P1 Dual Ring Release Film?
It is a reusable two-piece metal frame system used to install replaceable FEP film in the Anycubic Photon P1.
Is the metal frame disposable?
No. Both metal frame halves are reusable. Only the FEP film needs to be replaced when worn.
What film is installed by default?
An NFEP film with a thickness of 0.15 mm is installed by default.
Can the original NFEP film be replaced?
Yes. The Dual Ring frame can be disassembled and reused with a new compatible FEP or NFEP film.
Is Dual Ring the same as Dual-Material?
No. Dual Ring refers to the two-piece reusable metal frame. The Photon P1 Dual-Color / Dual-Material release film is a separate accessory.
