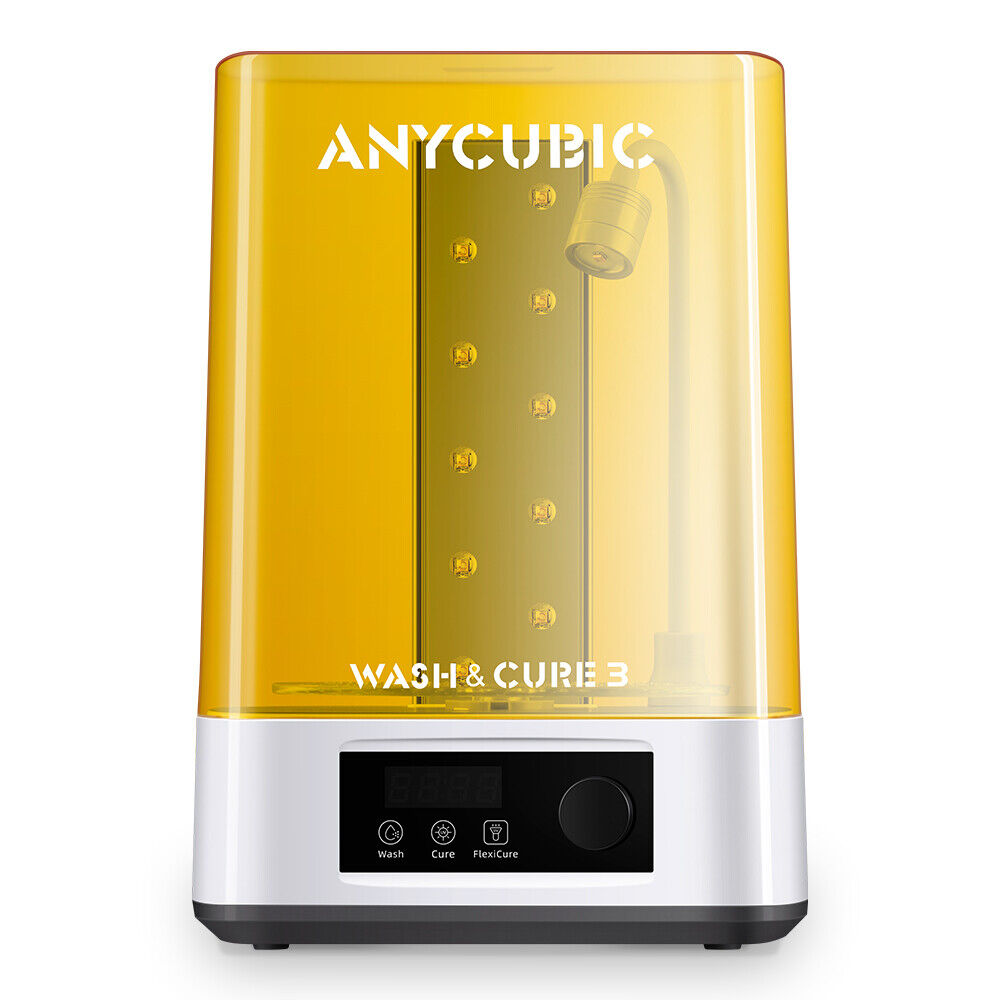

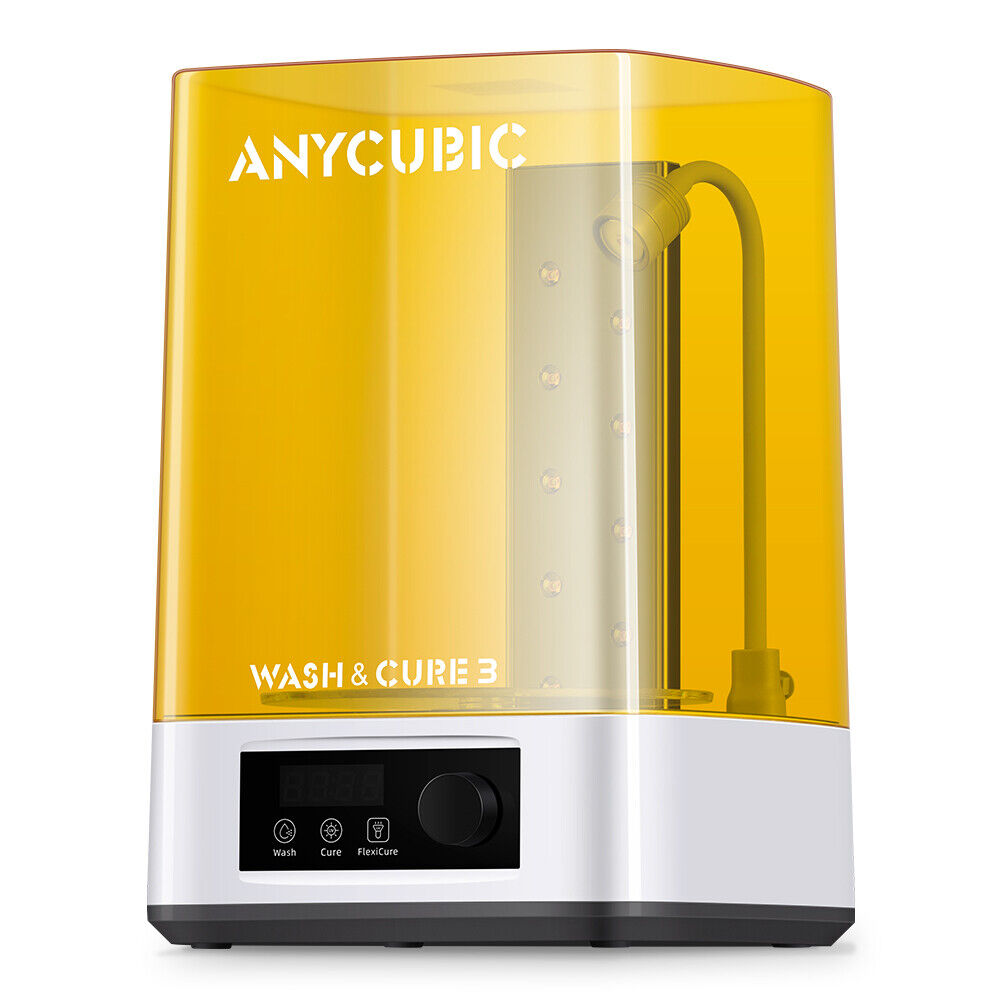

Anycubic Wash & Cure 3.0
Anycubic Wash & Cure 3.0 is a compact 2 in 1 post processing station for resin 3D printing. It combines model washing and UV curing in one convenient device, helping users clean uncured resin from printed parts and complete the final curing process with stable and repeatable results.
This station is suitable for LCD, DLP and SLA resin 3D printers. It is a practical solution for home workshops, professional studios, dental model printing, miniature production, engineering prototypes, decorative parts and detailed resin models.
Main Advantages
- 2 in 1 post processing system for washing and UV curing resin printed models.
- Compact desktop design with product dimensions of 216 x 217 x 310 mm.
- Maximum curing volume 3.18 L for small and medium resin models.
- Maximum cleaning volume 165 x 100 x 180 mm for convenient washing after printing.
- 3 L washing basket for safer and more organized model cleaning.
- 10 pcs 405 nm UV LEDs for curing most standard resin materials.
- Gooseneck Light for detailed curing of complex areas, inner surfaces and hard to reach zones.
- 1 to 30 minute timer for flexible washing and curing control.
- Touch button control for simple mode selection and easy operation.
- Lightweight body 2.7 kg for convenient placement in a resin printing workspace.
Technical Specifications
| Product name | Anycubic Wash & Cure 3.0 |
| Device type | 2 in 1 washing and UV curing station |
| Maximum curing volume | 3.18 L |
| Maximum cleaning volume | 165 x 100 x 180 mm |
| Cleaning method | Alcohol soaking |
| Cleaning basket capacity | 3 L |
| Time setting range | 1 to 30 minutes |
| UV light configuration | 10 pcs 405 nm LEDs plus Gooseneck Light |
| Power supply | 36 W |
| Control interface | Touch buttons |
| Machine weight | 2.7 kg |
| Package weight | 3.6 kg |
| Product dimensions | 216 x 217 x 310 mm |
| Packaging dimensions | 420 x 290 x 290 mm |
| Compatibility | LCD, DLP and SLA resin 3D printers with models that fit the working volume |
Product Description
Anycubic Wash & Cure 3.0 is designed to make resin 3D print post processing cleaner, easier and more consistent. After printing, resin models usually have uncured liquid resin on the surface. This material must be removed before final UV curing. The washing mode helps clean the model, while the curing mode helps complete polymerization and prepare the part for handling, painting, sanding or further use.
The station is especially useful for models with small details, deep cavities, surface texture, miniatures, dental models and engineering parts. The Gooseneck Light allows the user to direct additional UV light to areas that are difficult to cure with standard side lighting only.
Washing Mode

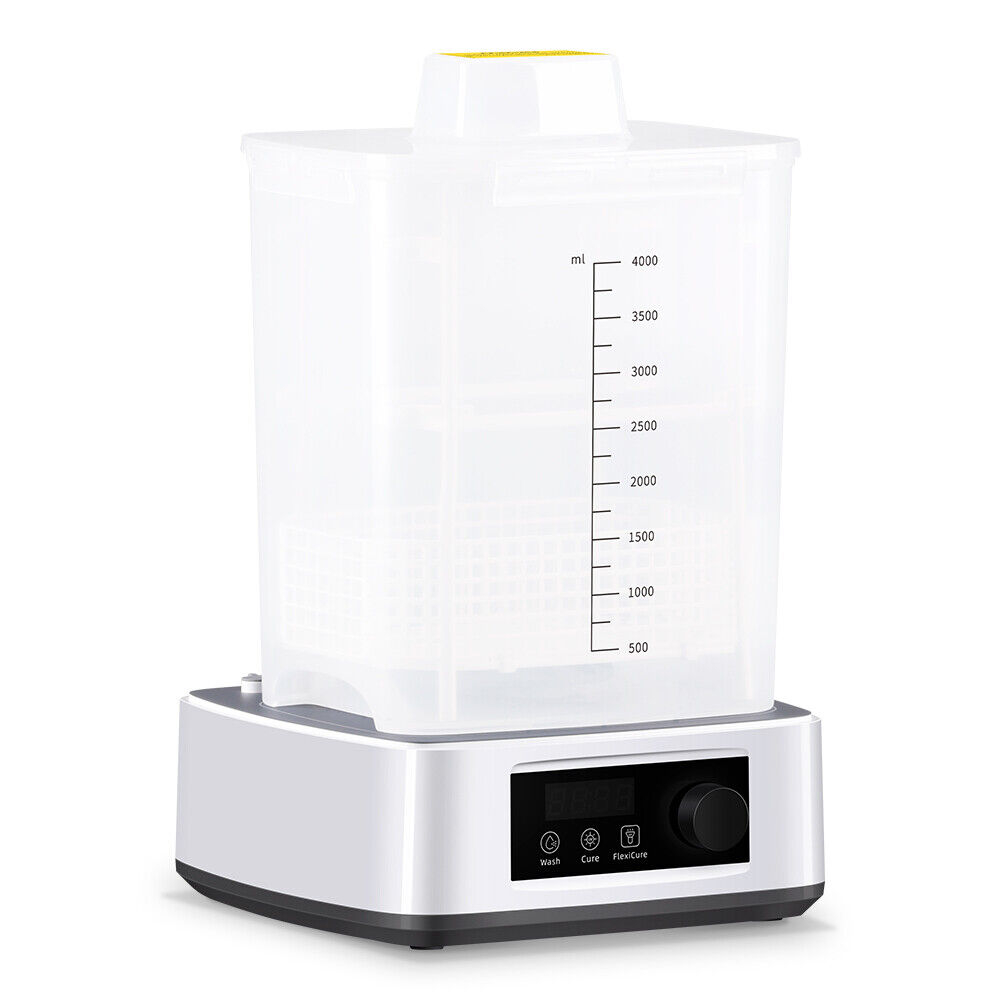

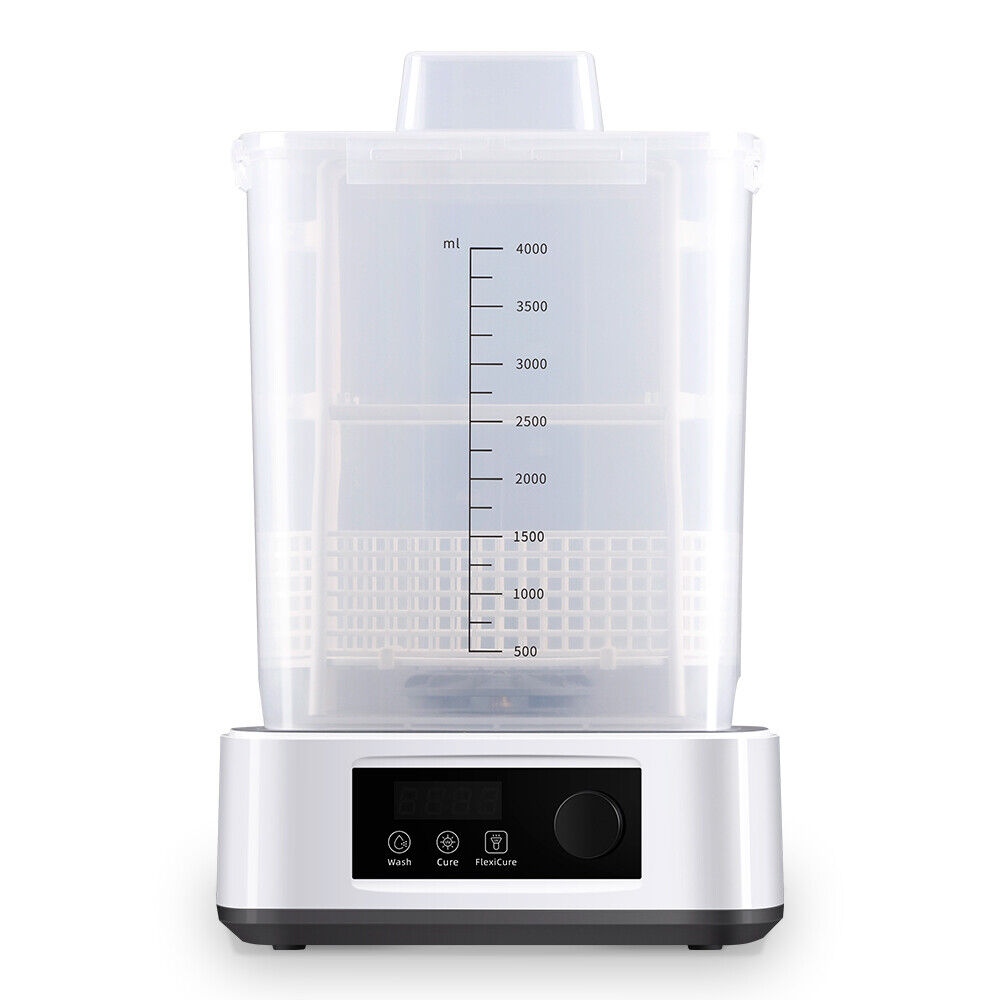

In washing mode, the station helps remove uncured resin from the printed model. For standard resin, alcohol based cleaning is commonly used. For water washable resin, water can be used only when the resin manufacturer allows it. The 3 L basket helps place the model inside the container and reduces direct contact with cleaning liquid.
Curing Mode

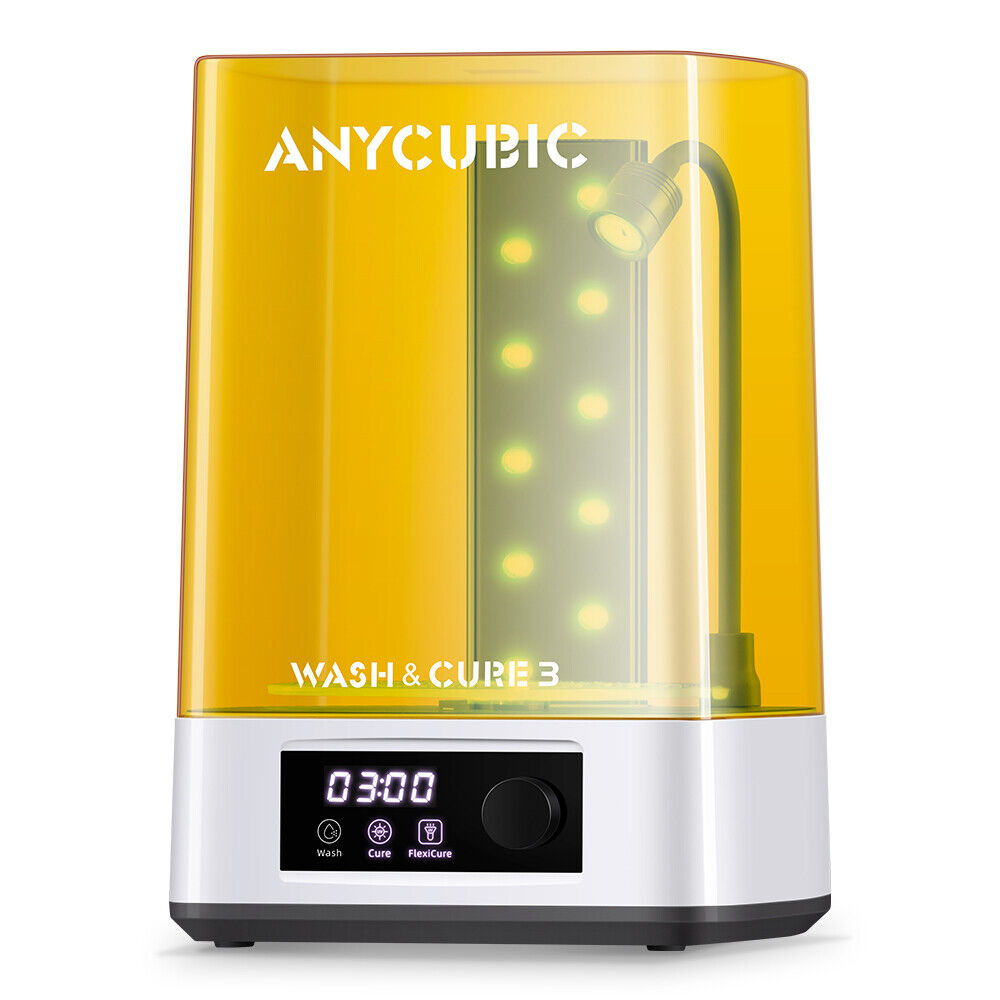

In curing mode, Anycubic Wash & Cure 3.0 uses 405 nm UV light to complete the curing process. The 10 UV LEDs provide general curing, while the Gooseneck Light improves curing for detailed areas, internal surfaces and complex geometry.
Recommended Use
- Remove the printed model from the resin 3D printer build plate.
- Place the model in the washing basket.
- Add the proper cleaning liquid to the washing container.
- Select washing mode and set the required time.
- After washing, let the model dry completely.
- Place the model on the curing platform.
- Select curing mode and set the curing time.
- Use the Gooseneck Light for detailed or hard to reach areas if needed.
Safety and Post Processing Tips
- Always wear gloves when handling uncured resin models.
- Do not cure the model before proper washing.
- Let the model dry before UV curing to avoid white marks and surface defects.
- Do not over cure thin or delicate parts.
- Use water only with water washable resin.
- Do not pour resin contaminated alcohol or water directly into the drain.
- Keep cleaning liquid away from open flame and direct sunlight.
FAQ
What is Anycubic Wash & Cure 3.0 used for?
It is used for washing and UV curing resin 3D printed models after printing.
Is Anycubic Wash & Cure 3.0 compatible with non Anycubic printers?
Yes. It can be used with models printed on most LCD, DLP and SLA resin 3D printers if the model fits the working volume.
What is the maximum cleaning size?
The maximum cleaning volume is 165 x 100 x 180 mm.
What is the curing volume?
The maximum curing volume is 3.18 L.
What UV wavelength does the station use?
The station uses 405 nm UV LEDs, which are suitable for most common resin materials.
Can I wash models with water?
Water can be used only with water washable resin. Standard resin usually requires alcohol based cleaning.
Why is the Gooseneck Light useful?
The Gooseneck Light helps cure detailed areas, internal surfaces, cavities and hard to reach parts of the model.
