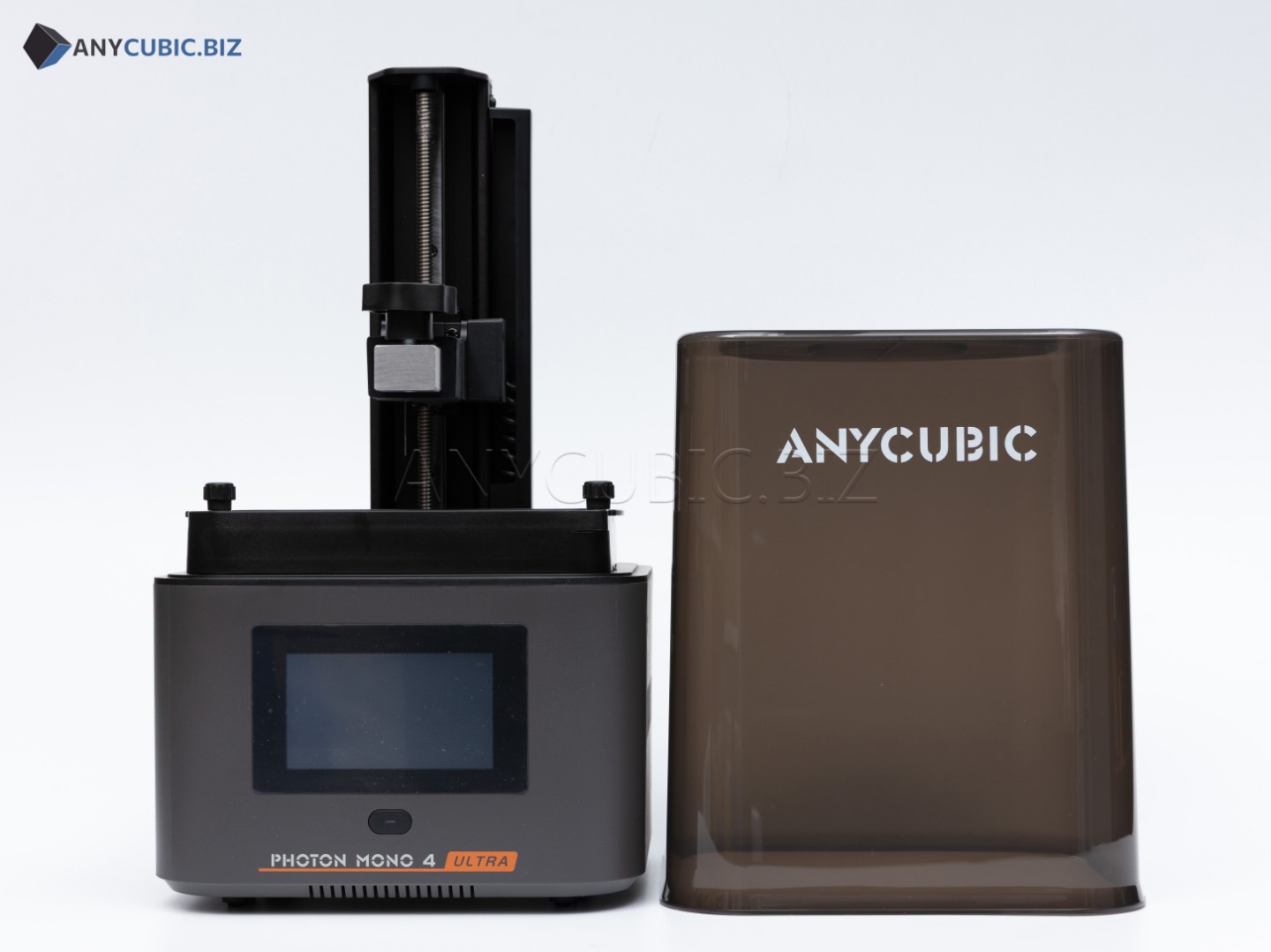

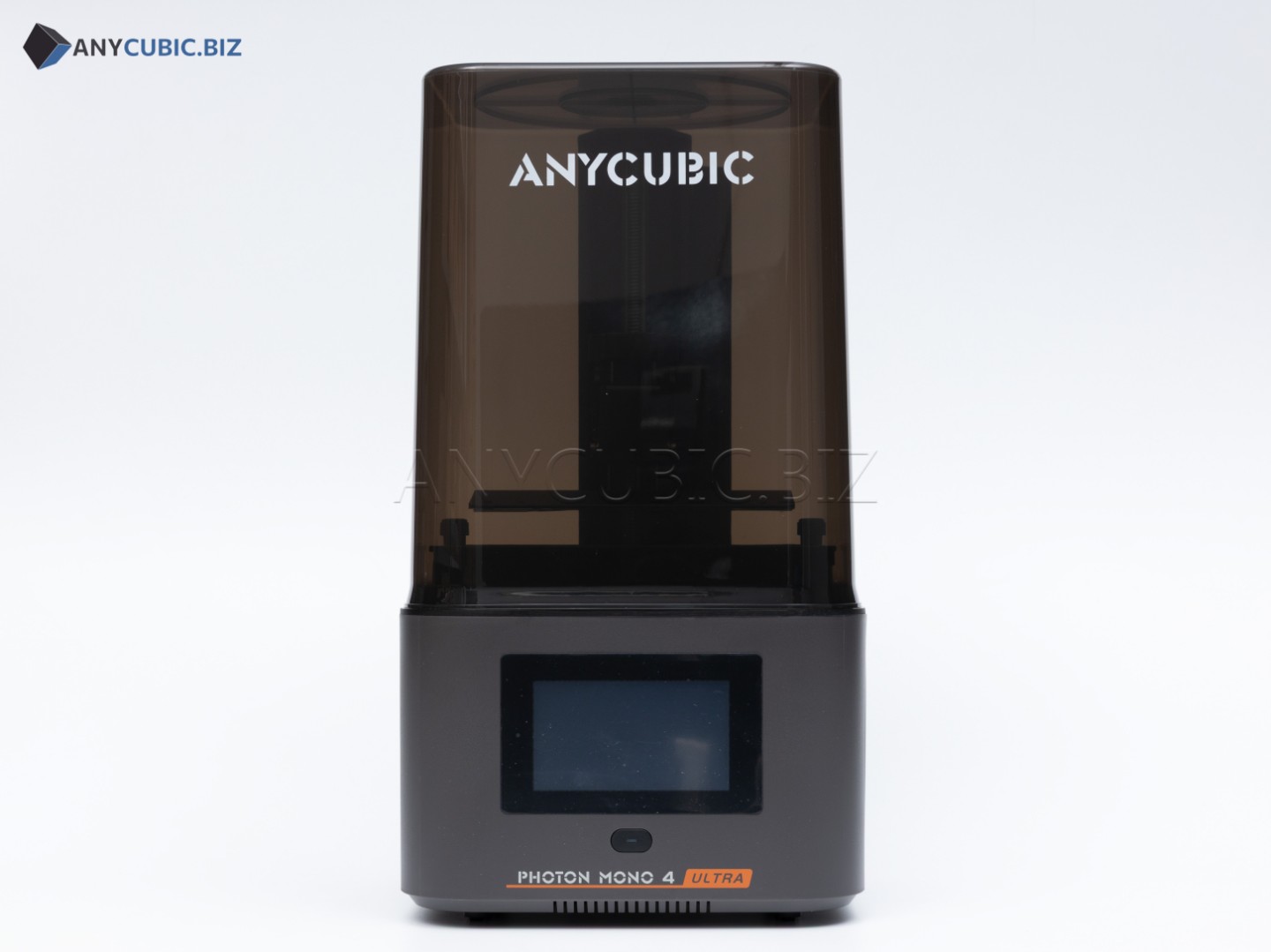

Anycubic Photon Mono 4 Ultra 3D Printer

Anycubic Photon Mono 4 Ultra is a modern resin 3D printer designed for high precision LCD MSLA printing. The printer features a 7″ monochrome LCD screen with 10K resolution 9024 x 5120 px and 17 x 17 micron XY precision. This allows the printer to reproduce fine details, sharp edges, complex textures and accurate model geometry.

The key difference between Anycubic Photon Mono 4 Ultra and the standard Photon Mono 4 is the upgraded optical system, higher printing speed, ACF release film, improved Z axis accuracy, WiFi and LAN file transfer, and intelligent printing features. The printer uses COB Light Source with Fresnel Lens and Light Uniformity Algorithm to deliver stable layer exposure and more consistent print quality.

Main advantages of Anycubic Photon Mono 4 Ultra

• 7″ monochrome LCD screen with 10K resolution 9024 x 5120 px
• 17 x 17 micron XY precision for high detail quality
• Build volume 153.4 x 87 x 165 mm
• Printing speed up to 80 mm/h with Standard Resin
• Printing speed up to 120 mm/h with High Speed Resin 2.0
• COB Light Source plus Fresnel Lens plus Light Uniformity Algorithm
• Light uniformity of at least 90%
• ACF Film for faster and smoother model release
• Single linear rail Z axis with 20 micron accuracy
• Laser engraved aluminum build plate
• Manual 4 point platform leveling
• Power loss resume support
• USB, WiFi and LAN file transfer
• 4.3″ touch control screen
• Compatible with optional Anycubic AirPure activated carbon air purifier

Technical specifications of Anycubic Photon Mono 4 Ultra

Printer type	Resin MSLA 3D printer
Model	Anycubic Photon Mono 4 Ultra
Printing screen	7″ monochrome LCD
Screen resolution	10K 9024 x 5120 px
XY precision	17 x 17 microns
Build volume	153.4 x 87 x 165 mm
Printing volume	2.2 L
Printing speed	Up to 80 mm/h with Standard Resin and up to 120 mm/h with High Speed Resin 2.0
Layer height range	0.02 to 0.15 mm
Light source	COB Light Source plus Fresnel Lens plus Light Uniformity Algorithm
Light intensity	At least 3500 uW/cm2
Material compatibility	High speed resin, water washable resin, standard resin, ABS like resin, plant based resin
Build platform	Laser engraved aluminum build plate
Z axis	Single linear rail with 20 micron accuracy
Release film	ACF Film
Resin vat capacity	Up to 0.39 L
Leveling	Manual 4 point leveling
Power loss resume	Supported
Power supply	66 W
Screen protector	Replaceable scratch resistant film
Resin auto fill unit	Not supported
Dynamic temperature control resin vat	Not supported
Slicing software	Photon Workshop
File transfer	USB, WiFi, LAN
Operating screen	4.3″ Touch-Control
Air purifier	Optional accessory
Multilingual support	EN, CN, DE, FR, IT, ES, RU, JP
Machine weight	5 kg
Package weight	6.1 kg
Product dimensions	231 x 236 x 430 mm
Packaging dimensions	512 x 300 x 305 mm

Applications for Anycubic Photon Mono 4 Ultra

• Highly detailed miniatures, figures and collectible models
• Master models for casting
• Jewelry models and decorative parts
• Detailed prototypes and small engineering components
• Dental and orthodontic models when suitable resins are used
• Model making, tabletop gaming, mockups and design parts
• Parts that require accuracy, sharp contours and high surface quality

Compatible materials

Anycubic Photon Mono 4 Ultra is compatible with 405 nm photopolymer resins. Standard Resin and Standard Resin V2 are suitable for general model printing. ABS Like Resin and Tough Resin are better for stronger parts. High Speed Resin 2.0 is recommended for faster printing. Water Wash Resin can be used for easier cleaning. Plant Based Resin is suitable for users who prefer a lower odor material option.

• Standard Resin
• Standard Resin V2
• High Speed Resin 2.0
• Water Wash Resin
• Water Wash Resin Plus
• ABS Like Resin
• ABS Like Resin V2
• ABS Like Resin Pro 2
• Plant Based Resin
• Tough Resin
• High Clear Resin
• DLP Craftsman Resin
• Bio Resin

Difference between Anycubic Photon Mono 4 Ultra and Photon Mono 4

Parameter	Anycubic Photon Mono 4 Ultra	Anycubic Photon Mono 4
Light source	COB Light Source plus Fresnel Lens	Parallel Matrix Upgrade Light Source
Release film	ACF Film	FEP Film
Maximum speed	Up to 120 mm/h with High Speed Resin 2.0	Up to 70 mm/h with High Speed Resin
File transfer	USB, WiFi, LAN	USB
Operating screen	4.3″ Touch-Control	2.8″ Touch Screen
Z axis accuracy	20 microns	30 microns

Usage recommendations

• Mix the resin well before printing.
• Complete manual 4 point platform leveling before the first print.
• Use exposure settings that match the selected resin type.
• Use High Speed Resin 2.0 and correct layer settings for fast printing.
• Check the condition of the ACF Film and replace it if damaged.
• Wash the printed model in alcohol or water depending on the resin type.
• Complete final UV curing after washing.
• Wear gloves and use resin in a well ventilated area.

FAQ

What resolution does Anycubic Photon Mono 4 Ultra have?

The printer has a 7″ monochrome LCD screen with 10K resolution 9024 x 5120 px.

What is the print precision of Photon Mono 4 Ultra?

The XY precision is 17 x 17 microns and the Z axis accuracy is 20 microns.

What is the build volume of Anycubic Photon Mono 4 Ultra?

The build volume is 153.4 x 87 x 165 mm.

What release film does the printer use?

Anycubic Photon Mono 4 Ultra uses ACF Film.

What is the maximum printing speed?

The maximum printing speed is up to 80 mm/h with Standard Resin and up to 120 mm/h with High Speed Resin 2.0.

Does the printer support WiFi?

Yes. Anycubic Photon Mono 4 Ultra supports USB, WiFi and LAN file transfer.

Does it support resin auto filling?

No. Resin auto fill is not supported in this model.

Does it have a heated resin vat?

No. Dynamic temperature control resin vat is not supported in this model.

Who is Anycubic Photon Mono 4 Ultra suitable for?

This model is suitable for users who need a compact resin 3D printer with high detail quality, fast printing and an advanced optical system.
