Through multiple tests on the connectivity of the exposure screen, mechanical detection module, and motor operation status, it quickly detects and troubleshoots hardware problems, ensuring smooth and non-destructive connections to help achieve printing success.
In order to reduce printing failures caused by insufficient resin, the resin detection mode is preset to intelligently detect whether the amount of resin in the vat meets the printing requirements before printing. Minimizes print failures due to resin shortages.

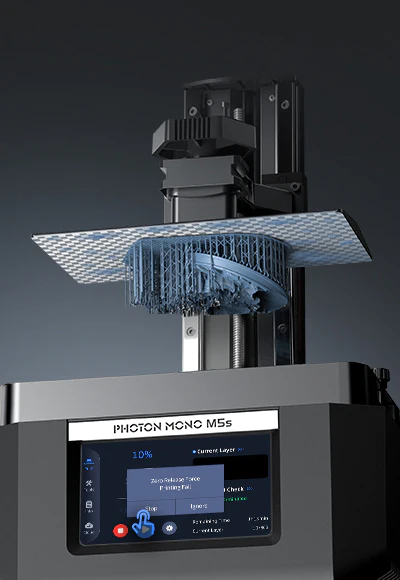

The prints status detection function will provide reminders for common failures like bottoming-out printing, significantly reducing waste of resin and time. It also can smartly analyze the causes of failures, and provides effective suggestions to ensure printing efficiency.
10.1-inch 12K
1st consumer class without equalization
3-fold printing speed on average 105 mm/h
Anycubic Photon Mono M5s Key FeaturesExquisite detail with 12K resolution

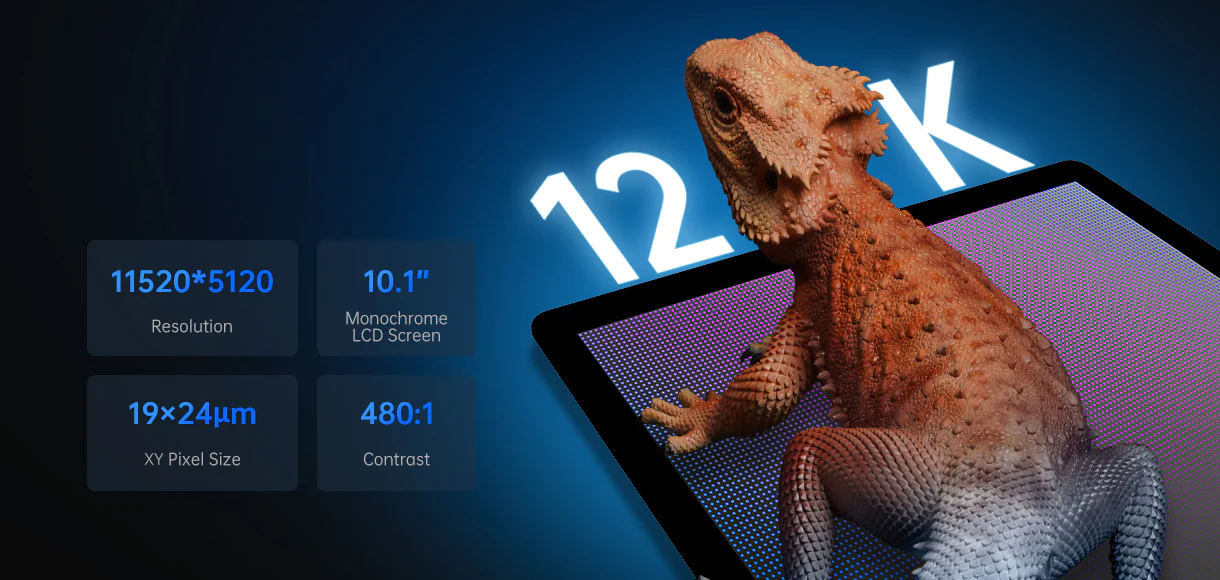

The Photon Mono M5s 10.1-inch screen has a resolution of 12K, providing 19 micron print accuracy and hair-thick print detail.

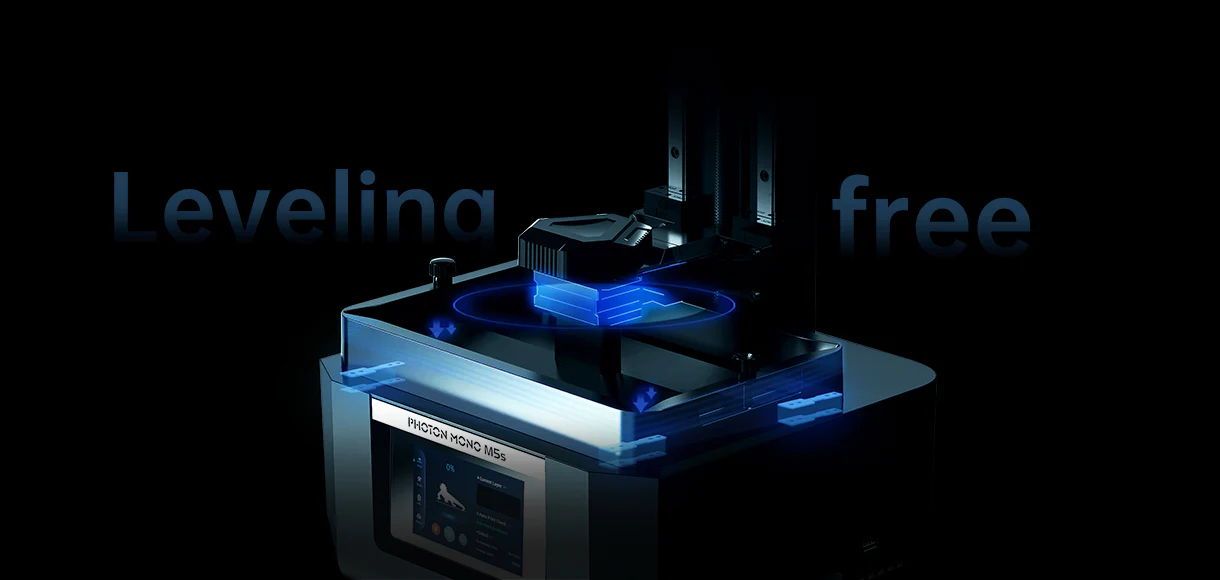

No alignment
Rush to print success
A mechanical sensor on the console arm detects the correspondence between the print bed and the floating alignment module and automatically adjusts it based on the detection results. This eliminates the risk of misalignment and improves print quality.

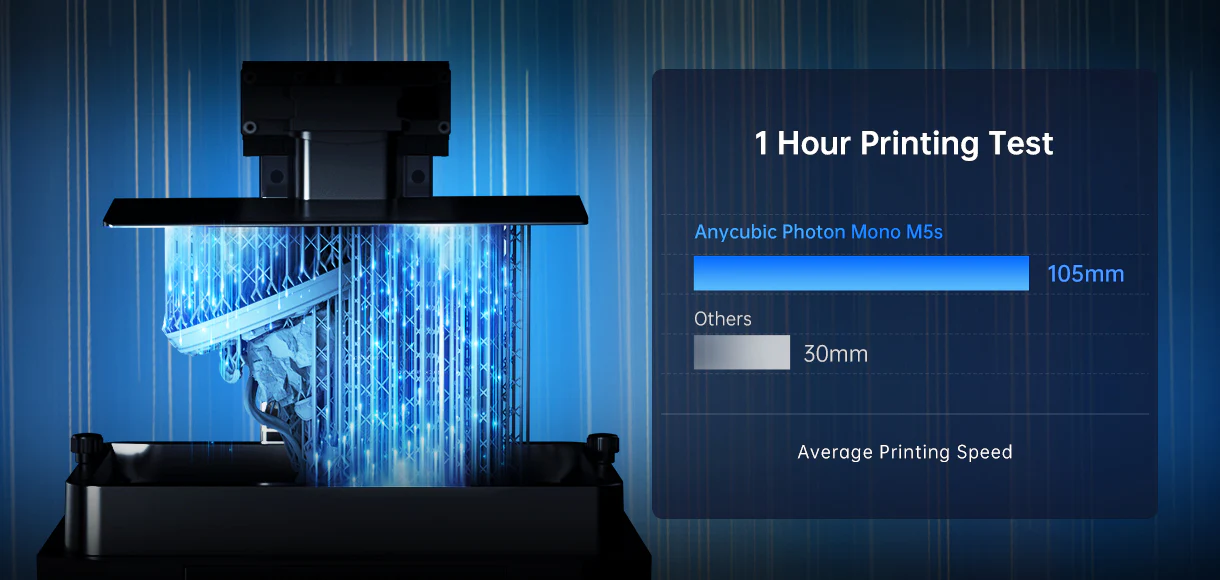

3 times faster
The Photon Mono M5s achieves an average print speed of 105 mm/h*. It uses a high-speed film capable of reducing the tear-off force, which provides a high level of printing success by reducing the tear-off height and increasing the lift-off speed.
Printed using Anycubic Photon Workshop 3.1 (or later) and Anycubic High Speed Resin.
The thickness of the layer is 0.1 mm, the perforation and extraction of the shell is 2 mm.
Data from Anycubic Lab, for reference only

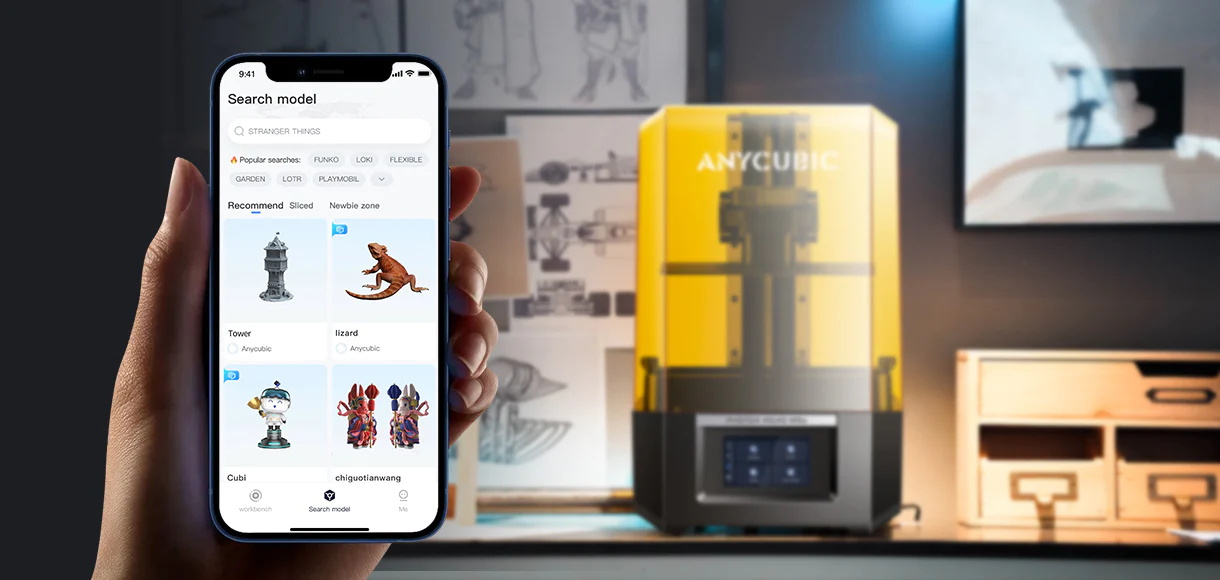

Anycubic application
Popular cutaway models/STL available for one-touch 3D printing. Viewing jobs provides control over the printing process.
Updated Anycubic Photon Workshop 3.1
Intelligent mode
In the new version of the slicing software
Anycubic Photon Workshop 3.1 Smart Mode option
allows you to intelligently select exposure parameters according to the details and size of the model, reducing the risk of printing failure caused by incorrect parameter settings.
New support algorithm
The new support algorithm further increases print stability and success, reduces model surface damage, and facilitates removal of supports and lower valves. Comprehensively improves punching and slicing speed, making slicing easier to use.
Anycubic Photon Mono M5s Included
| Weight of the car | 19.6 lbs / 8.9 kg |
| Machine dimensions |
18.11x10.63x11.41in./ 460 * 270 * 290 mm (HxWxD) |
| Print volume | 190 oz / 5.4 L |
| Print sizes |
7.87x8.58x4.84in./ 200x218x123mm (HxWxD) |
| Average print speed |
With high-speed resin - 105 mm/h. or 4.13 in/hr. With ordinary resin - 70 mm/h. or 2.76 in/hr. |
| Machine leveling | No alignment |
| A source of light radiation | LED matrix UV light source |
| The z axis | Double liners with 10 μm |
| container for resin | Unibody construction with sweeping lines |
| Exposure screen |
10.1" monochrome 12K resolution (11,520 x 5,120px) Contrast ratio 480:1 4.7% light transmittance The standard service life is 2,000 hours |
| Platform assembly | Laser engraving of aluminum alloy |
| Control panel | 4.3" TFT touch control |
| Removable Cover | Effectively blocks UV radiation |
| Special protective film of large size | Replaceable anti-scratch film |
| Power Supply | Nominal power 100 W |
| Data entry | USB Type-A 2.0, WIFI |
Smart, simple and effective
The Anycubic Photon M5s 3D printer is a novelty from Anycubic, a leader in the production of household and professional level 3D printers. It has high levels of detail and 12K construction accuracy with a screen size of 10.1 inches, with an accuracy of nineteen microns. The presence of a mechanical sensor on the cantilever lever allows for automatic detection and alignment of the correspondence between the printing platform and the floating module. Which in turn prevents the possibility of failure of the alignment process. The indicators of the average speed of construction are 105mm/hour. The Anycubic Photon M5s is capable of detecting and fixing hardware problems thanks to the exposure screen of the mechanical detection module, as well as the engine status. The presence of a smart intelligent system of detection and calculation of photopolymer resin. This 3D printer can analyze the construction of the model and detect and warn you about possible failures for a rational and economical consumption of material. Complete with a 3D printer, you get access to work with branded multifunctional and original software. Also, a new support algorithm is used here to ensure print stability and easy disconnection of the model after completion.
