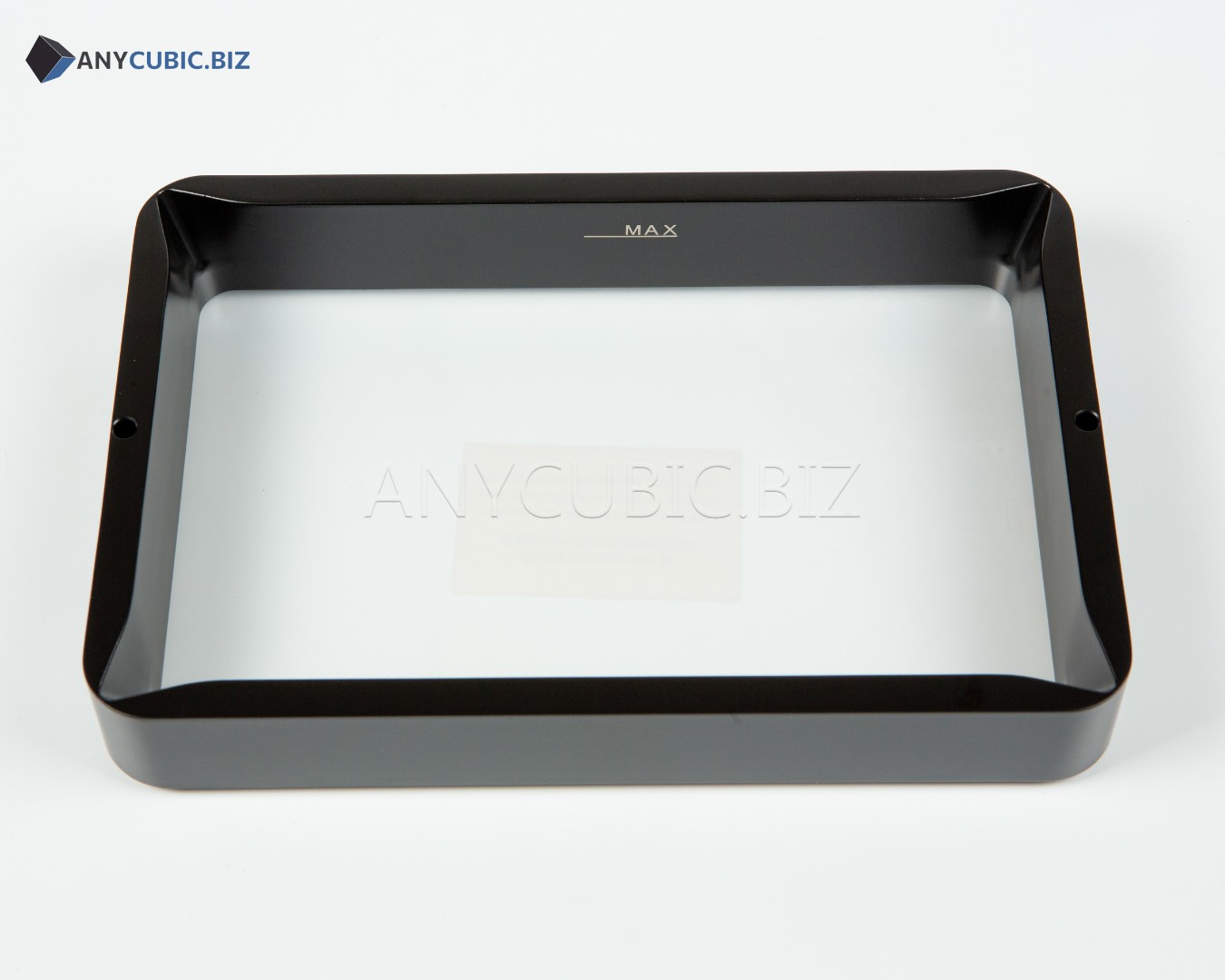

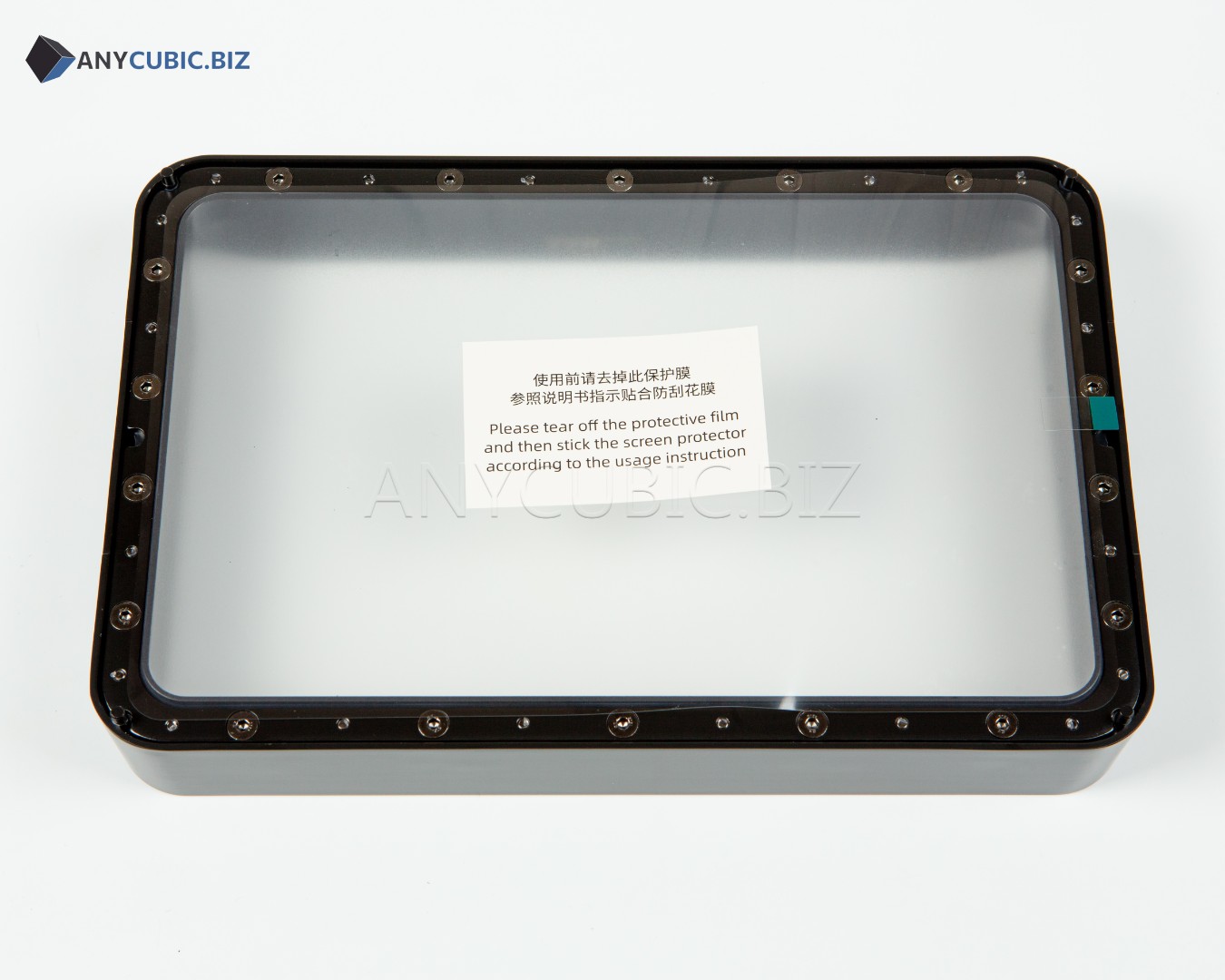

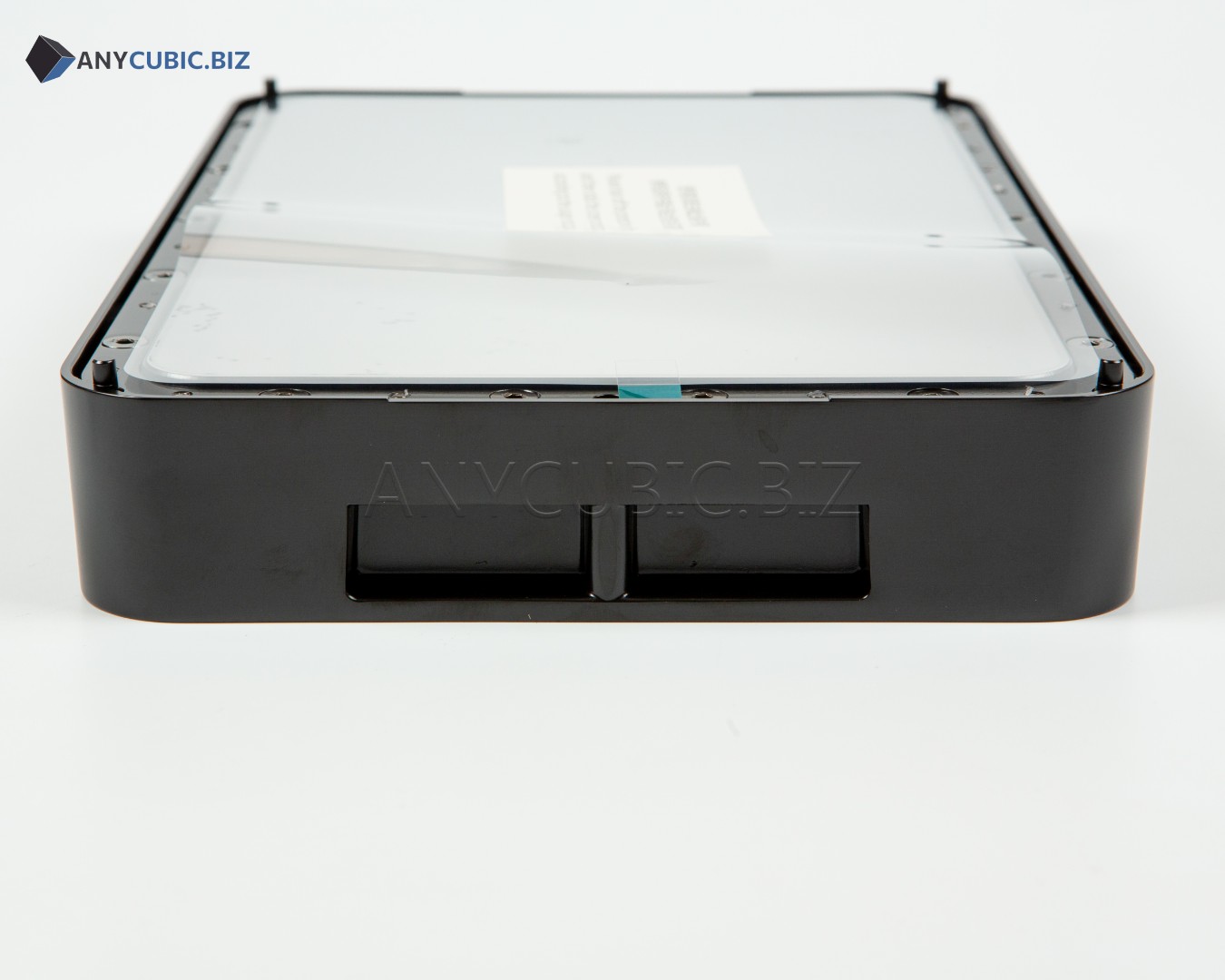

Resin Vat for Anycubic Photon Mono M5s and Photon Mono M5s Pro
Description
Resin Vat for Anycubic Photon Mono M5s and Photon Mono M5s Pro is a replacement container for photopolymer resin installed in the working area of the 3D printer. The vat holds resin during printing and works together with the release film at the bottom, allowing UV light to pass through and cure each layer of the model.
Resin Vat for 3D printer Anycubic Photon Mono M5s | Photon Mono M5s PRO is suitable for replacing a damaged, contaminated or worn resin vat. An additional vat is also useful when working with different resin types and colors because it allows faster material changes without constantly pouring and fully cleaning one container after every resin change.
Advantages
- Compatible with Anycubic Photon Mono M5s and Anycubic Photon Mono M5s Pro
- Used to hold photopolymer resin during printing
- Helps quickly change resin type or color
- Convenient for regular printing and batch model production
- Suitable for replacing a damaged or contaminated vat
- Compatible with NFEP film for stable layer separation
- Important spare part for stable resin 3D printing
- Helps reduce printer downtime when changing material
Technical Specifications
| Product name | Resin Vat for Anycubic Photon Mono M5s and Photon Mono M5s Pro |
| Full product name | Resin Vat for 3D printer Anycubic Photon Mono M5s | Photon Mono M5s PRO |
| SKU | S020162 |
| Part type | Resin vat, resin container |
| Main compatibility | Anycubic Photon Mono M5s, Anycubic Photon Mono M5s Pro |
| Additional compatibility according to Anycubic table | Anycubic Photon Mono M5 |
| Film type | NFEP Film |
| Weight | 1079 g |
| Package size | 320 x 220 x 74 mm |
| Printer type | LCD resin 3D printer |
| Purpose | Container for photopolymer resin during printing |
| Category | Spare parts and accessories for Anycubic resin 3D printers |
When to Replace the Resin Vat
- The vat has cracks or mechanical damage
- The container no longer seals properly
- The inner surface is heavily contaminated with resin
- The film mounting area is damaged
- The film at the bottom of the vat is damaged or needs replacement
- Different resin colors or types need to be changed quickly
- A spare vat is needed for regular printing
- The vat has become difficult to clean after long use
Compatibility
This resin vat is intended for Anycubic Photon Mono M5s and Anycubic Photon Mono M5s Pro. According to the Anycubic table, this variant can also be used with Anycubic Photon Mono M5. Before ordering, check the printer model, vat appearance and part number S020162.
Usage Recommendations
- Check that the vat is clean and the film is in good condition before installation
- Do not use the vat with damaged or punctured film
- After printing, filter resin before pouring it back into the bottle
- Do not leave resin in the vat under direct UV light
- Clean the vat after changing resin type or color
- Do not use sharp tools to clean the inner surface
- Make sure no cured resin particles remain on the bottom of the vat
- Before important prints, check the film for scratches, cloudiness and wear
Maintenance Recommendations
- Check the condition of NFEP film before every important print
- Do not allow resin to leak onto the LCD screen
- After a failed print, check the bottom of the vat for cured fragments
- Use soft wipes and suitable cleaning products
- Store an empty vat in a clean and dry place
- Using separate vats for different resins is convenient
- Replace the film or vat in time if signs of wear appear
Suitable Applications
- Replacement vat for Anycubic Photon Mono M5s
- Replacement vat for Anycubic Photon Mono M5s Pro
- Printing with different photopolymer resin colors
- Batch printing of resin models
- Printing miniatures, prototypes, master models and functional parts
- Maintenance of a resin 3D printer
- Organizing a separate vat for a specific resin type
FAQ
Is this resin vat compatible with Anycubic Photon Mono M5s
Yes, this resin vat is listed as compatible with Anycubic Photon Mono M5s.
Is this resin vat compatible with Anycubic Photon Mono M5s Pro
Yes, this resin vat is listed as compatible with Anycubic Photon Mono M5s Pro.
What is the SKU of Resin Vat for Anycubic Photon Mono M5s and Photon Mono M5s Pro
The SKU of this part is S020162.
What film is used in this vat
This variant is listed with NFEP Film.
Can one vat be used for different resins
Yes, it can be used for different resins, but the vat must be cleaned thoroughly before changing resin type or color. For convenience, separate vats for different materials are recommended.
When should the resin vat be replaced
Replacement is needed if the vat is cracked, does not seal properly, has a damaged film mounting area, is heavily contaminated or if you regularly work with multiple resin types.
Should the film be checked before printing
Yes, the film should be checked before printing. Damaged film may cause resin leakage and LCD screen damage.
