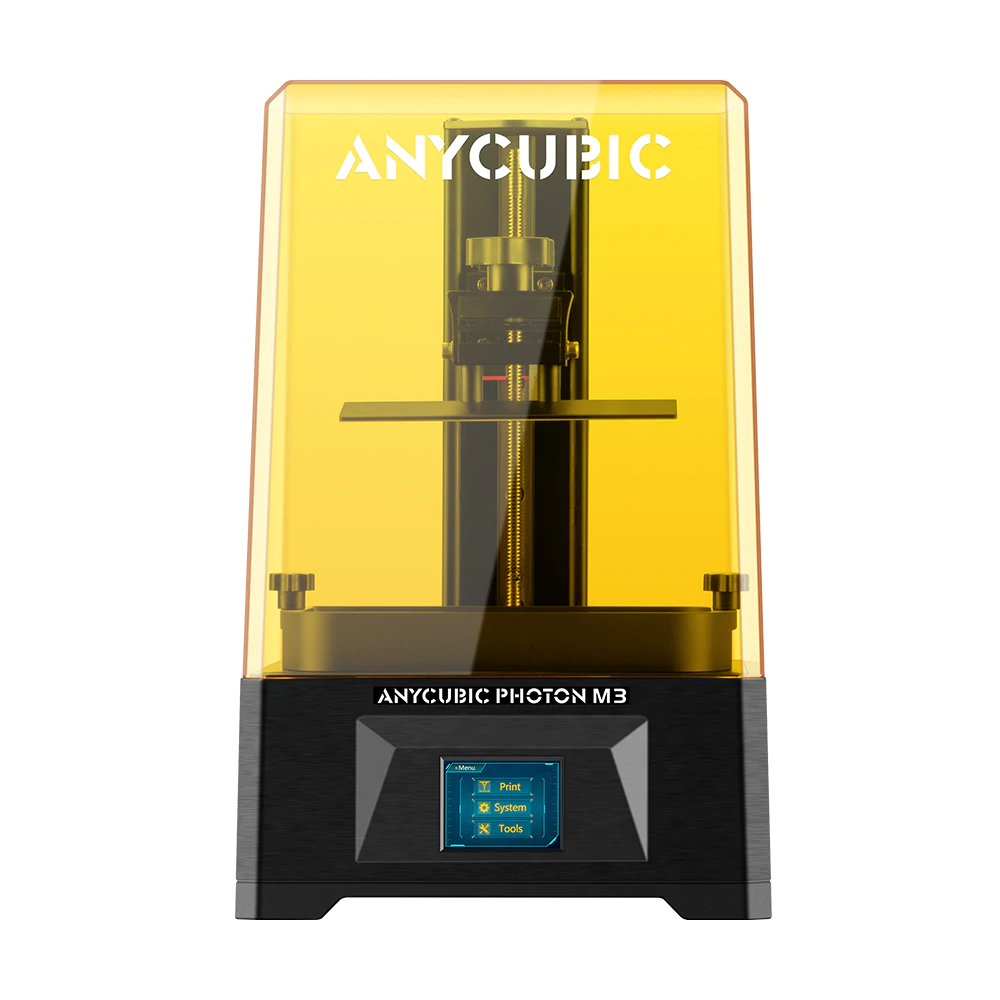

Description anycubic photon m3
Anycubic Photon M3 Main Features

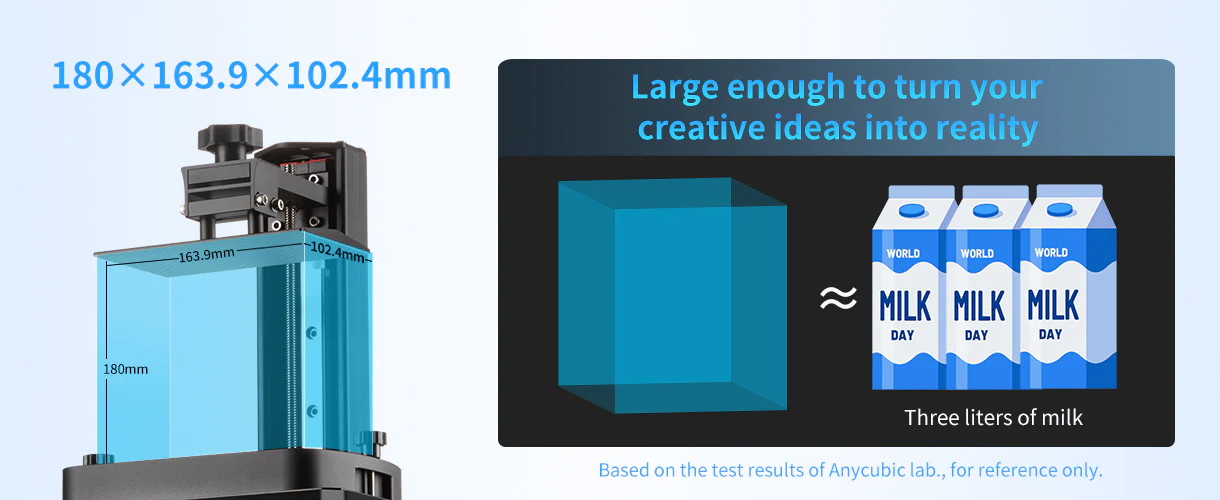

Unleash Your Imagination
With a 7.6-inch high quality monochrome screen, the printing volume of Anycubic Photon M3 is up to 180×163.9×102.4mm.
Sharpen Your Mind
Ultra-high resolution of 4,096 x 2,560 pixels. It is capable of producing parts with high dimensional accuracy and intricate detailing.

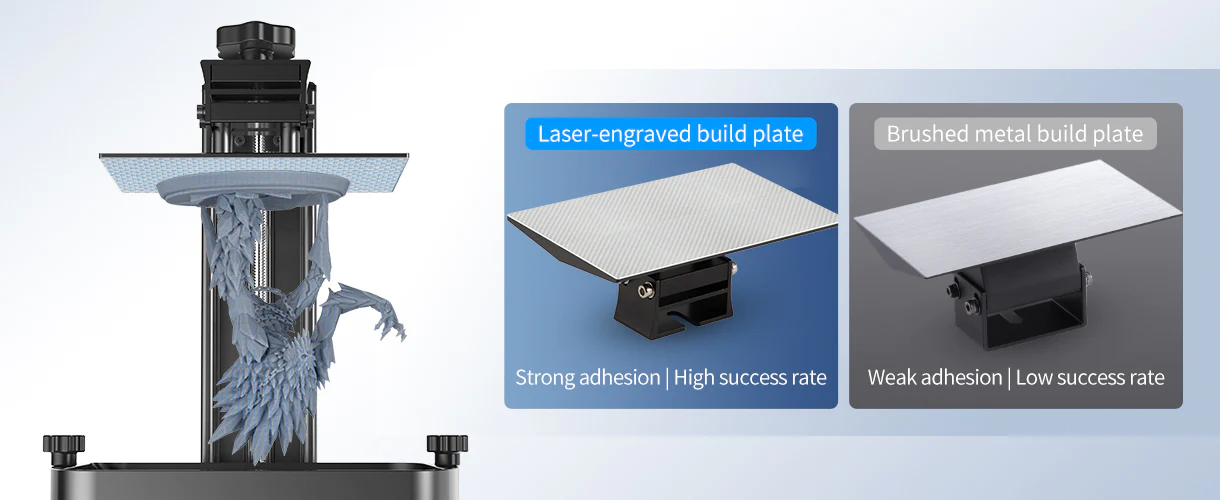

Foundation Is the Key
The new build plate has a texturized checkerboard pattern that dramatically improves adhesion and print success rate.

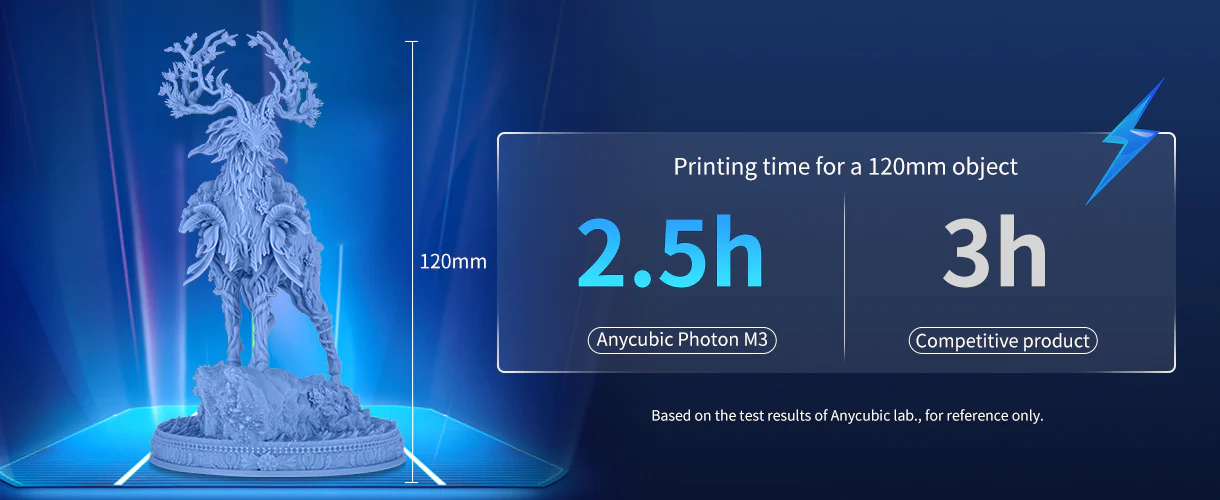

Ultra Fast Printing
The fastest printing speed can reach 50mm/h, and it only takes 2.5 hours to print the 120mm high miniature, which is 30 minutes less than the 3 hours of the competitive products.

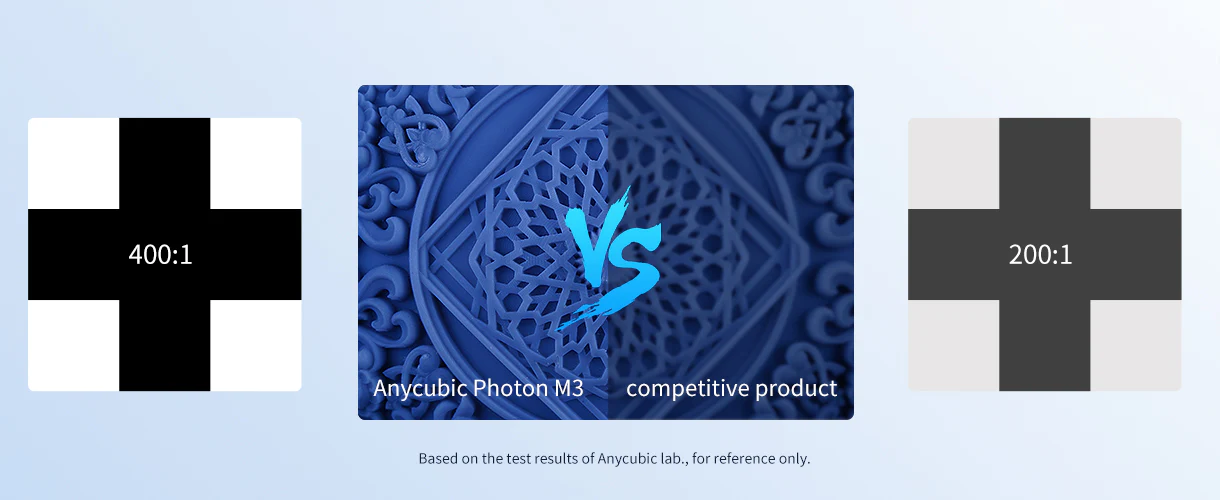

Sharp & Clear Edges
The printer adopts an LCD screen with 400:1 contrast, 100% higher than its competitor. The high contrast leads to parts with better surface finish.

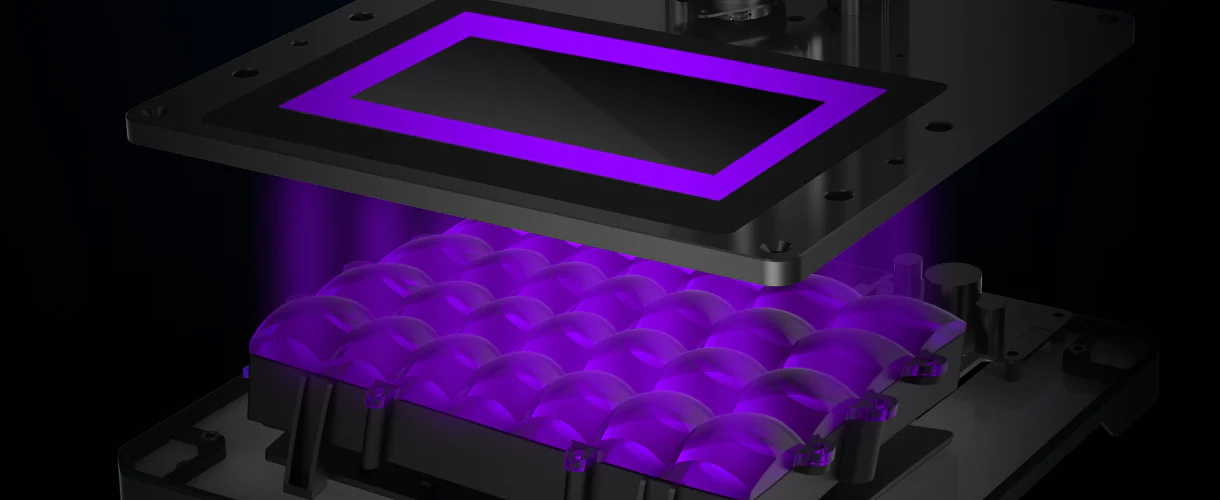

Powerful Enlighting Matrix
With the Anycubic LighTurbo matrix light source system, the matrix LED beads will provide strong light energy, making high-speed printing possible.

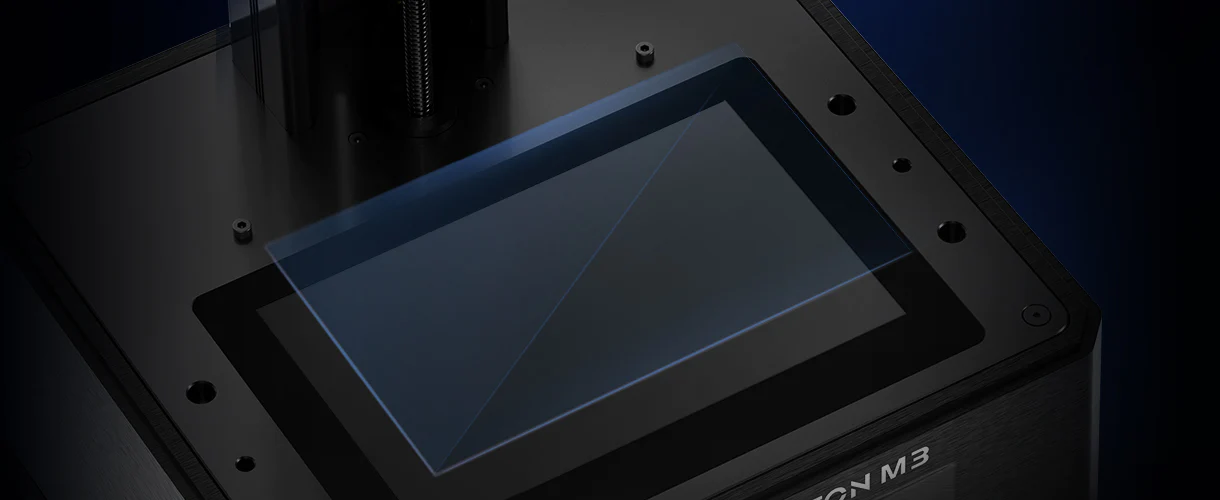

Protect What Matters
The anti-scratch protective film greatly extends the lifespan of the LCD screen.

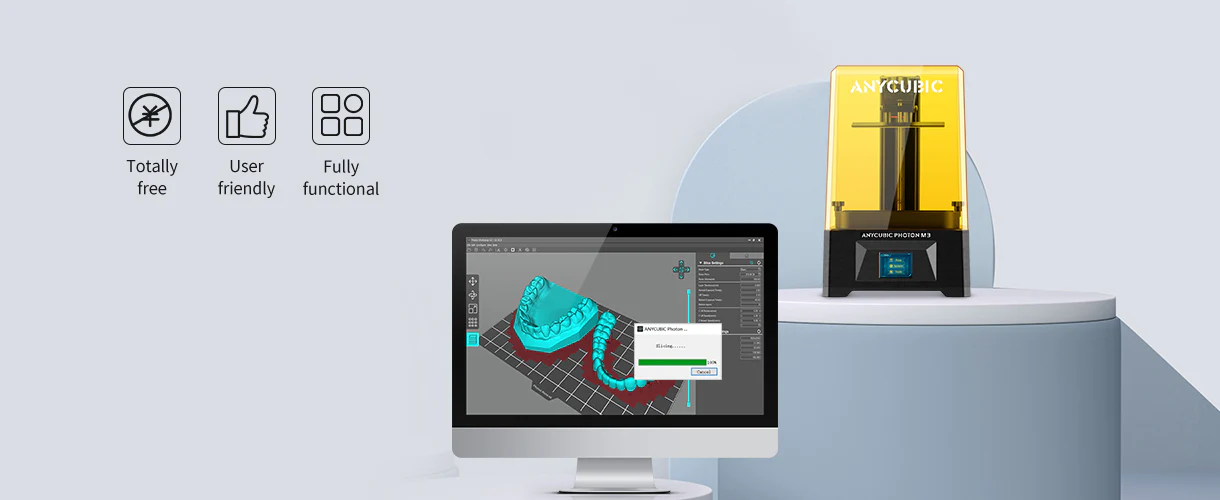

Fully Compatible Slicer
Fully compatible with all Anycubic resin printers. It is easy to use and offers versatile and professional service without monthly fees.

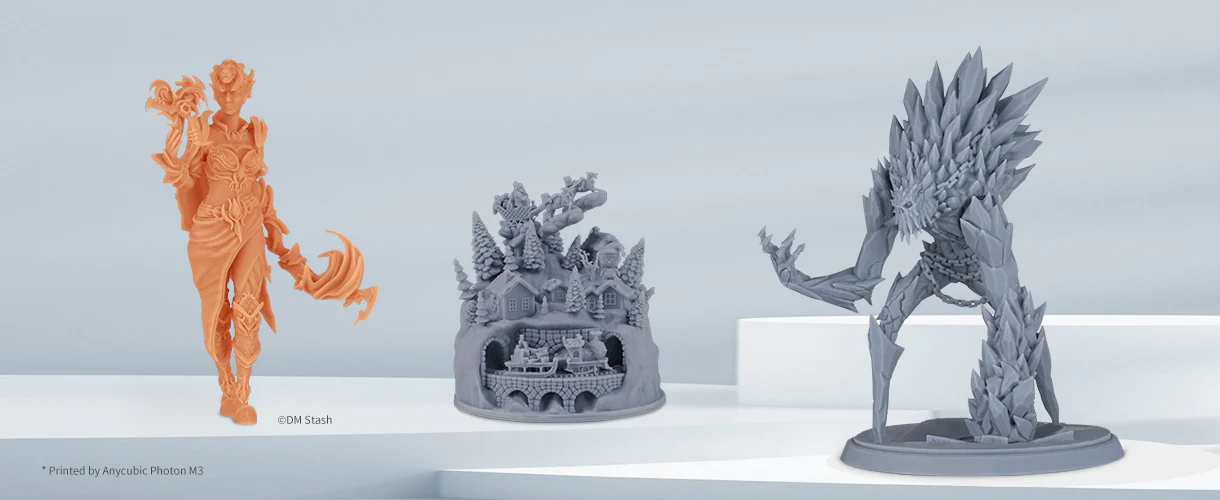

Anycubic Photon M3 Models Display
Anycubic Photon M3 Tech Specs
| Machine Weight | 7kg/15.4lb. | Machine Dimensions | 16.7x10.6x10.1in./ 425x269x256mm(HWD) |
|
| Printing Volume | 2.99L/101.19oz. | Printing Dimensions | 7.1x6.5x4.0in./ 180x164x102mm(HWD) |
|
| Printing Speed | ≤50mm/hr | Machine Leveling | 4-point manual leveling | |
| Light Source | Parallel matrix light source ≤30,735 lux light intensity |
Z Axis | Single guide rail | |
| Resin Vat | Integrated design with scale lines | Exposure Screen | 7.6" monochrome screen 4K+ (4,098 x 2,560px) resolution 400:1 contrast 4% light transmittance 2,000 hours lifespan |
|
| Build Platform | Laser-engraved aluminum alloy | Control Panel | 2.8" resistance touch-control | |
| Removable Cover | Blocks 99.95% of UV radiation | Screen Protector | Replaceable anti-scratch film | |
| Power Supply | 55W rated power | Data Input | USB Type-A 2.0 |

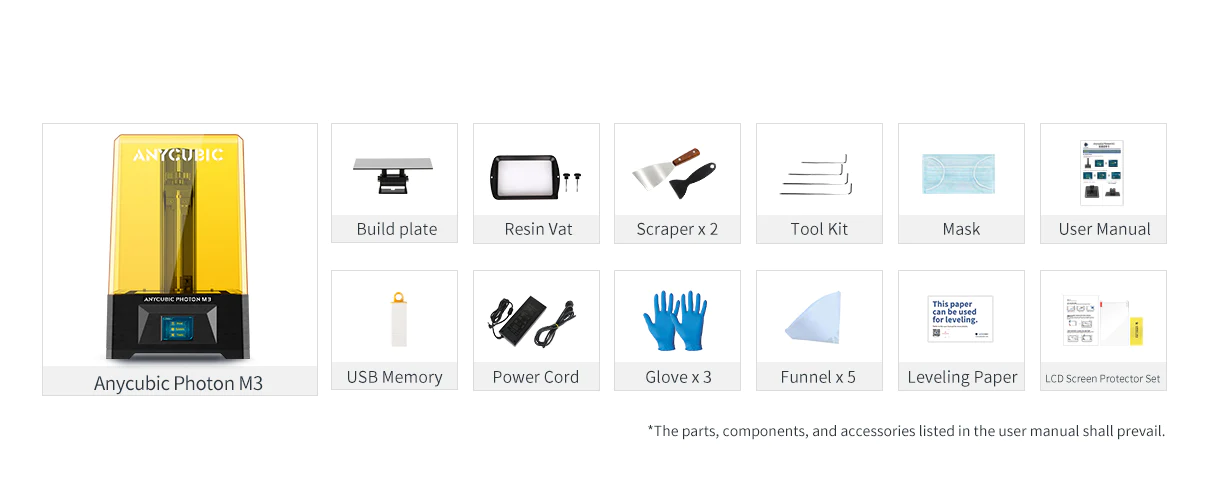

Anycubic Photon M3 In The Box
