X-axis End Cover with Limit Switch for Anycubic Kobra Go / Kobra Neo
SKU: S010097
Manufacturer: Anycubic
Compatibility: Anycubic Kobra Go, Anycubic Kobra Neo
Purpose: X-axis end cover with limit switch for carriage position detection
Description

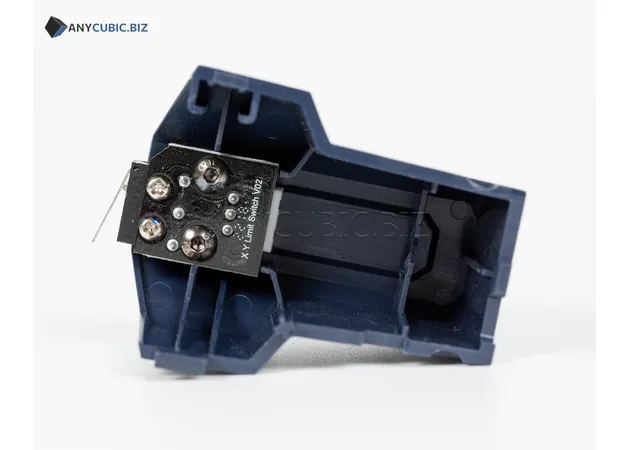

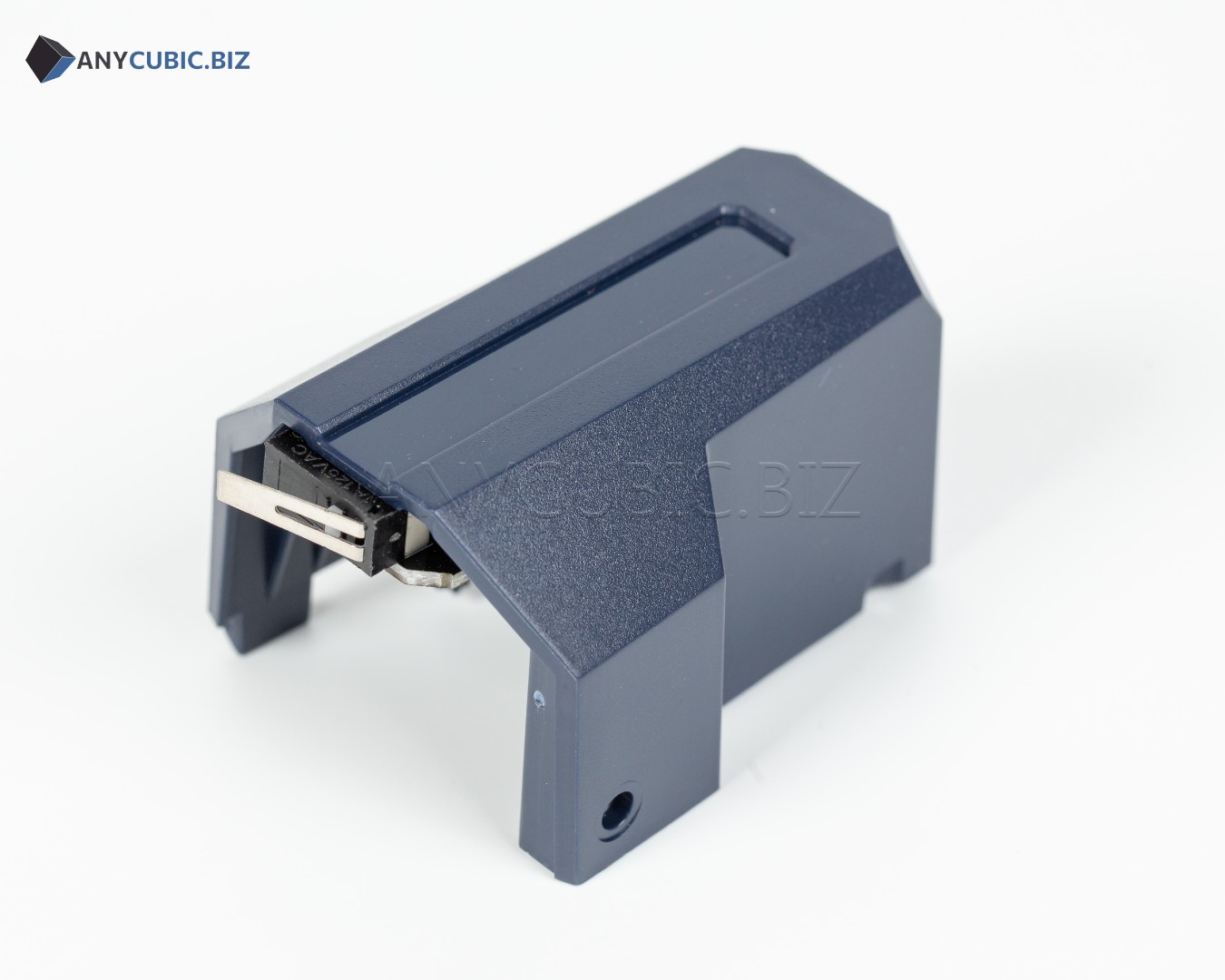

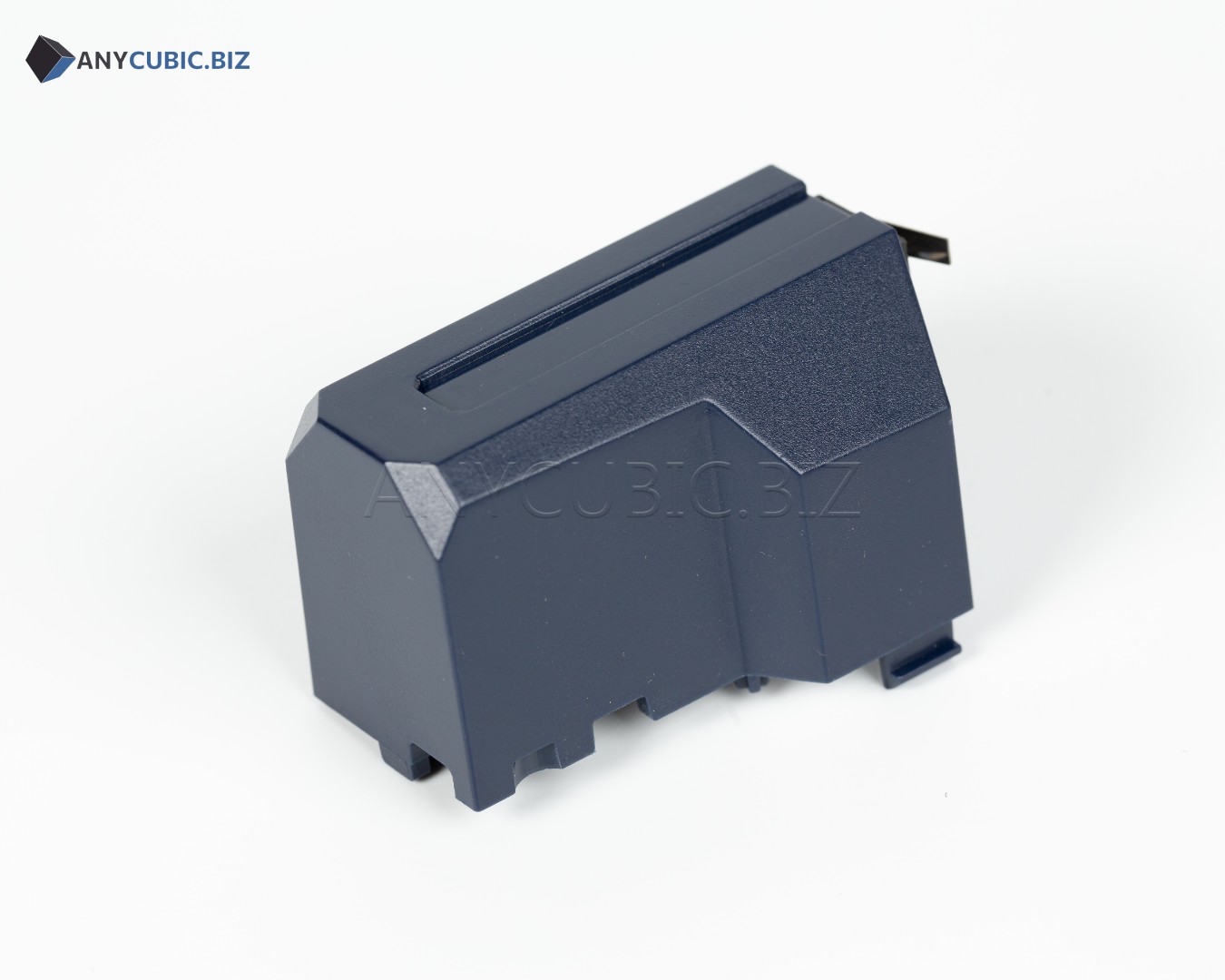

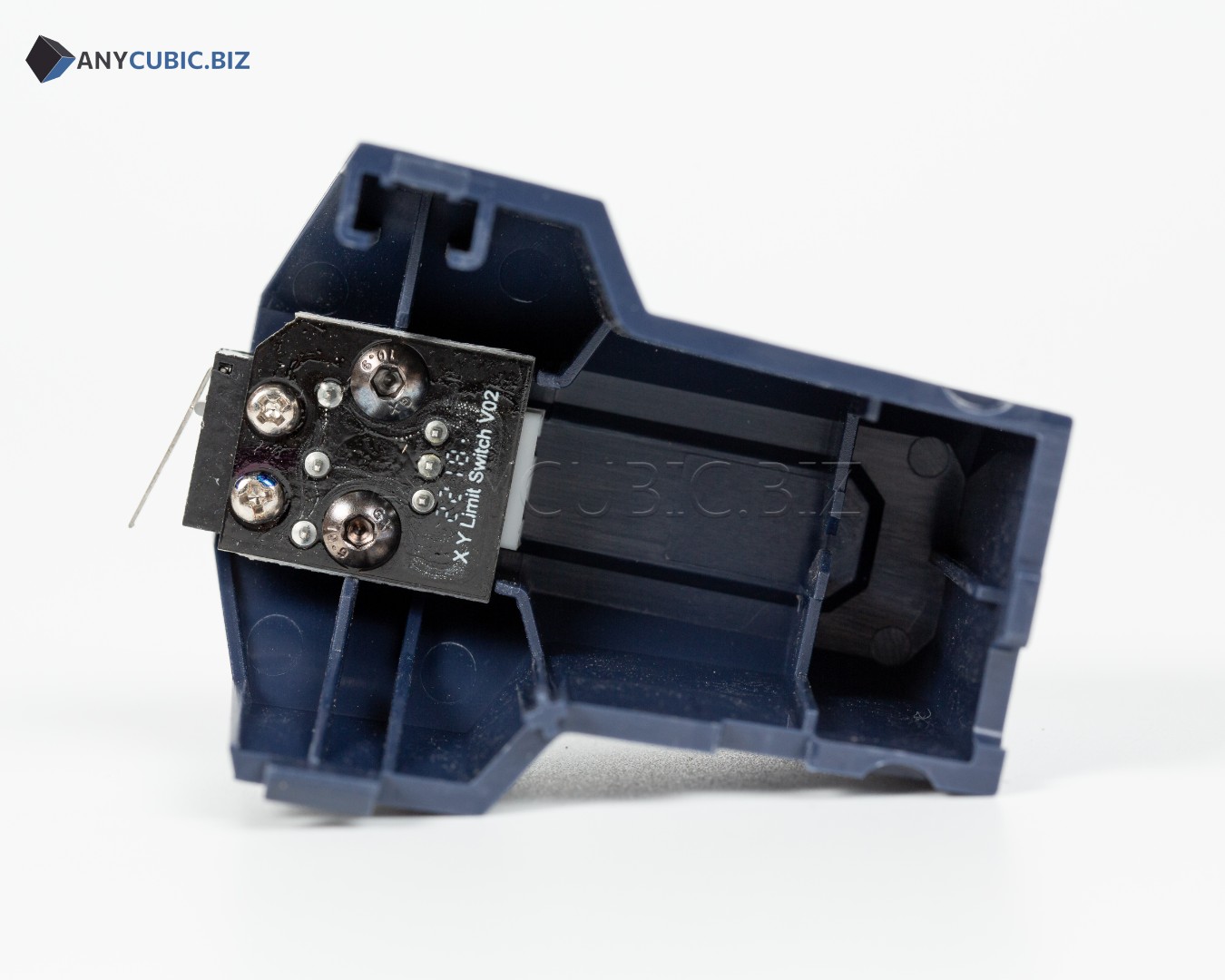

The X-axis end cover with limit switch for Anycubic Kobra Go and Anycubic Kobra Neo is a replacement spare part installed on the X-axis assembly of the FDM 3D printer. The part combines the X-axis end cover and a limit switch used by the printer to detect the carriage end position during parking and homing.
A properly functioning X-axis limit switch is important for correct print start, accurate print head positioning and safe mechanical operation. If the switch is damaged, does not trigger or has wiring problems, the printer may fail homing, stop with an error, drive the carriage into the end of the axis or incorrectly detect the print head position.
Key Benefits
- Original Anycubic spare part.
- Compatible with Anycubic Kobra Go and Anycubic Kobra Neo.
- Combines the X-axis end cover and limit switch.
- Used to detect the print head end position on the X axis.
- Helps restore correct homing operation.
- Suitable for repair after cover damage, limit switch failure or positioning issues.
Technical Specifications
| Product name | X-axis End Cover with Limit Switch for Anycubic Kobra Go / Kobra Neo |
| Original name | X-axis end cover + limit switch Kobra Go | Kobra Neo |
| SKU | S010097 |
| Manufacturer | Anycubic |
| Part type | X-axis end cover + limit switch |
| Installation axis | X-axis |
| Purpose | Detecting the carriage end position on the X axis |
| Compatible models | Anycubic Kobra Go, Anycubic Kobra Neo |
| Category | Spare parts for Anycubic FDM 3D printers |
When Replacement May Be Needed
- The printer does not home correctly on the X axis.
- The carriage hits the X-axis end and does not stop in time.
- Homing or X-axis positioning errors appear.
- The limit switch does not trigger or works intermittently.
- The X-axis end cover, mounting point or limit switch wiring is damaged.
- The X-axis assembly becomes unreliable after transportation, impact or repair.
Installation Recommendations
- Turn off the 3D printer and disconnect the power cable before maintenance.
- Move the X-axis carriage to a convenient position without force or misalignment.
- Carefully disconnect the old limit switch cable.
- Remove the damaged X-axis end cover with the limit switch.
- Install the new cover with limit switch in the original position.
- Connect the limit switch cable and make sure the wire does not interfere with moving parts.
- Check free movement of the carriage along the X axis.
- After installation, run homing, calibration and a test print.
Compatibility
The X-axis end cover with limit switch with SKU S010097 is intended for Anycubic Kobra Go and Anycubic Kobra Neo. For Anycubic Kobra 2, Kobra 2 Neo, Kobra 2 Pro, Kobra 2 Plus, Kobra 2 Max, Kobra 3 and other models, select a separate compatible spare part according to the correct SKU and assembly design.
FAQ
Which printers is this part compatible with?
This part is compatible with Anycubic Kobra Go and Anycubic Kobra Neo.
What is the SKU?
The SKU is S010097.
What is included in this spare part?

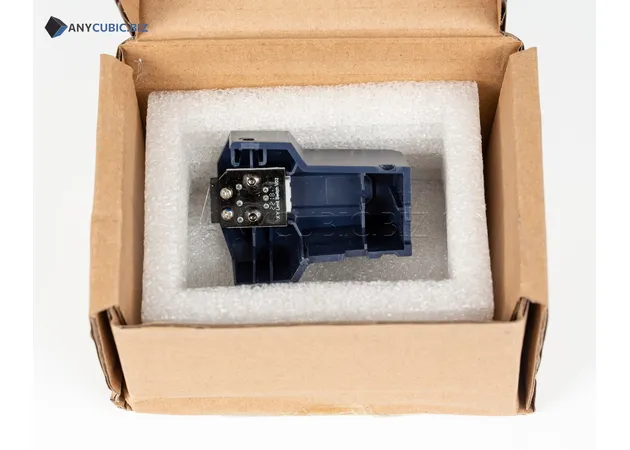

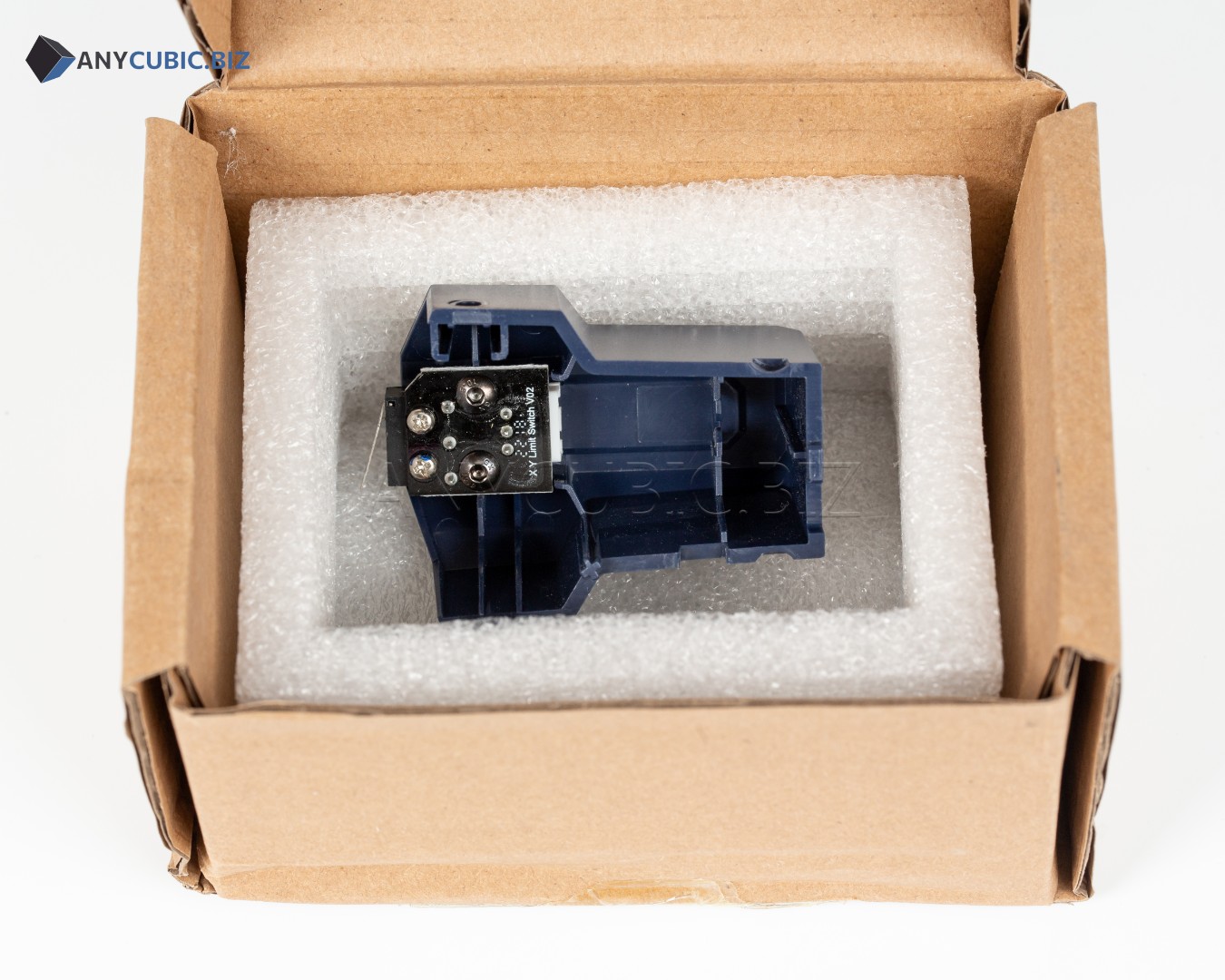

It is an X-axis end cover with an installed limit switch.
What is the X-axis limit switch used for?
It helps the printer detect the carriage end position on the X axis during homing and positioning.
Is S010097 compatible with Kobra 2 Neo?
No. According to the product name and SKU, this part is listed for Kobra Go and Kobra Neo. Kobra 2 Neo requires a separate compatible spare part.
Do I need to calibrate the printer after replacement?
Yes. After replacement, check limit switch triggering, run homing, calibration and a test print.
