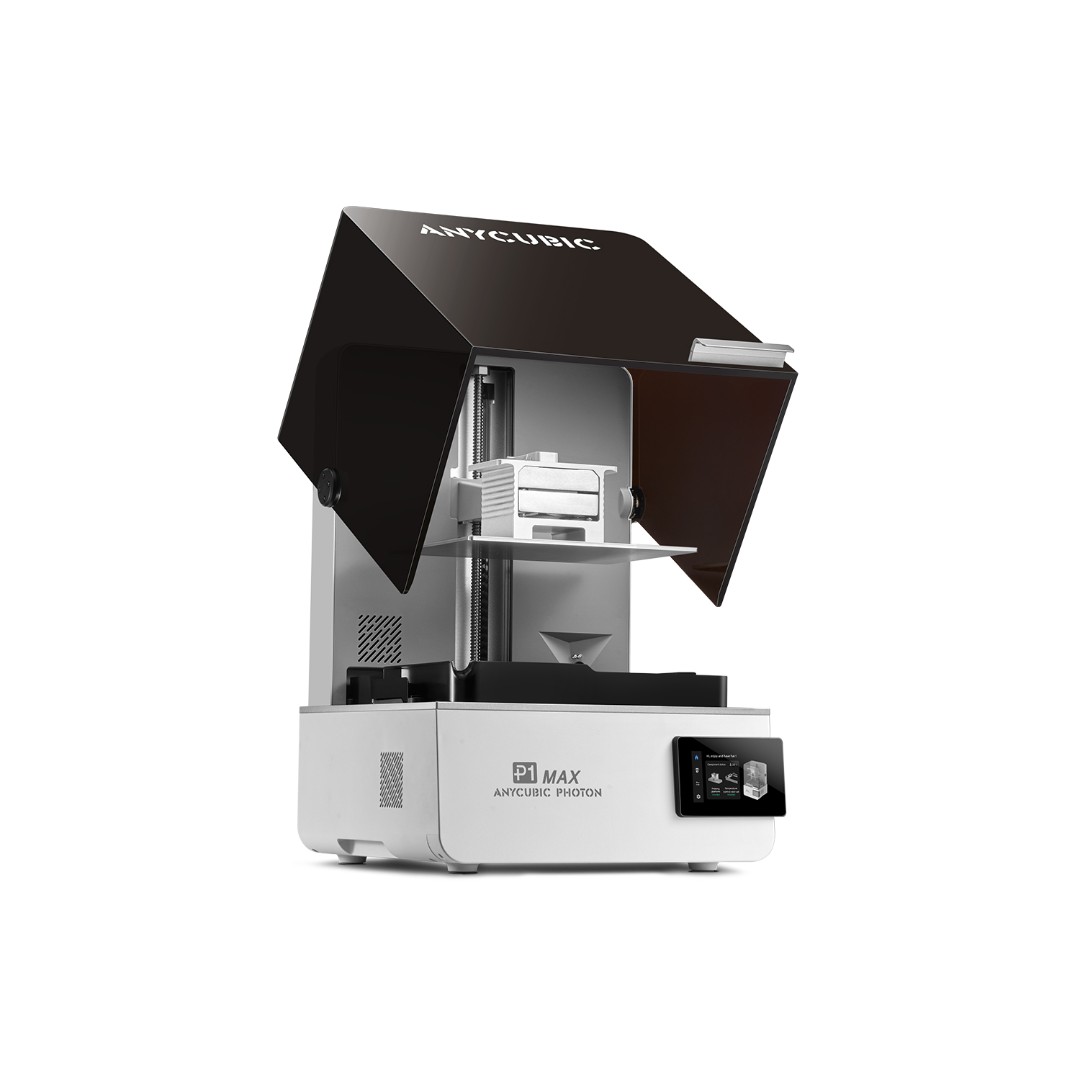

Anycubic Photon P1 Max

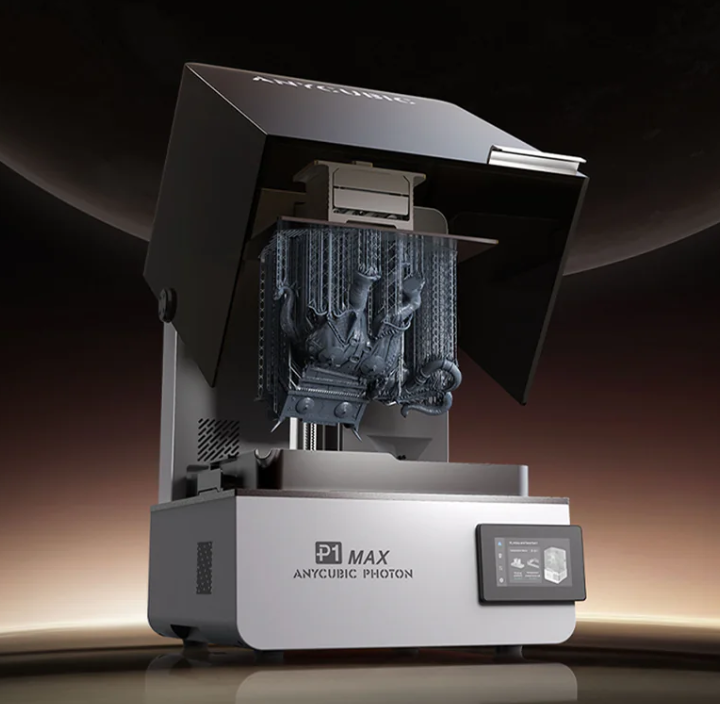

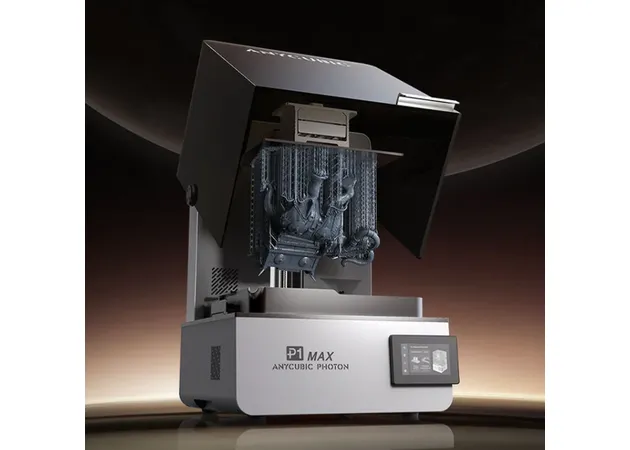

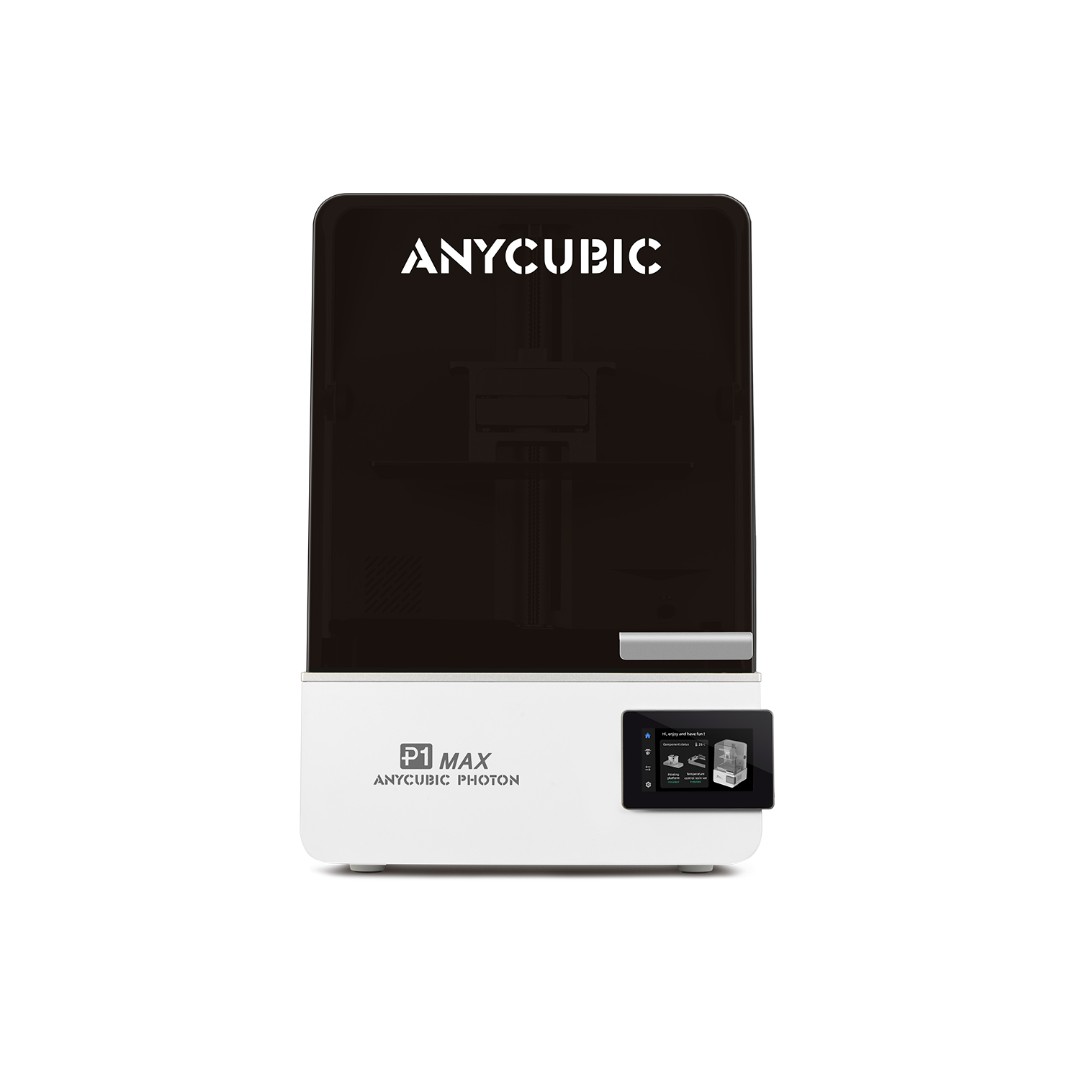

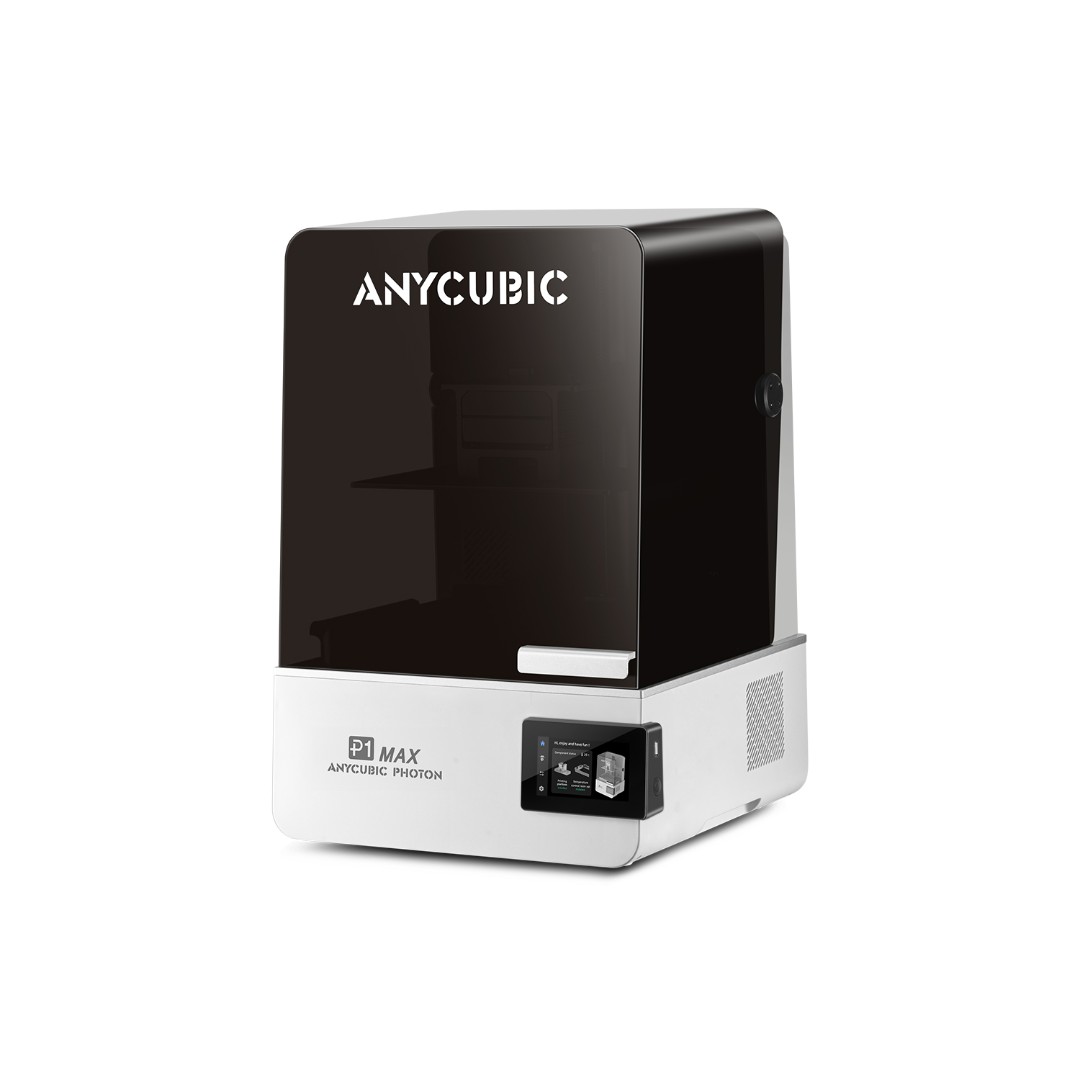

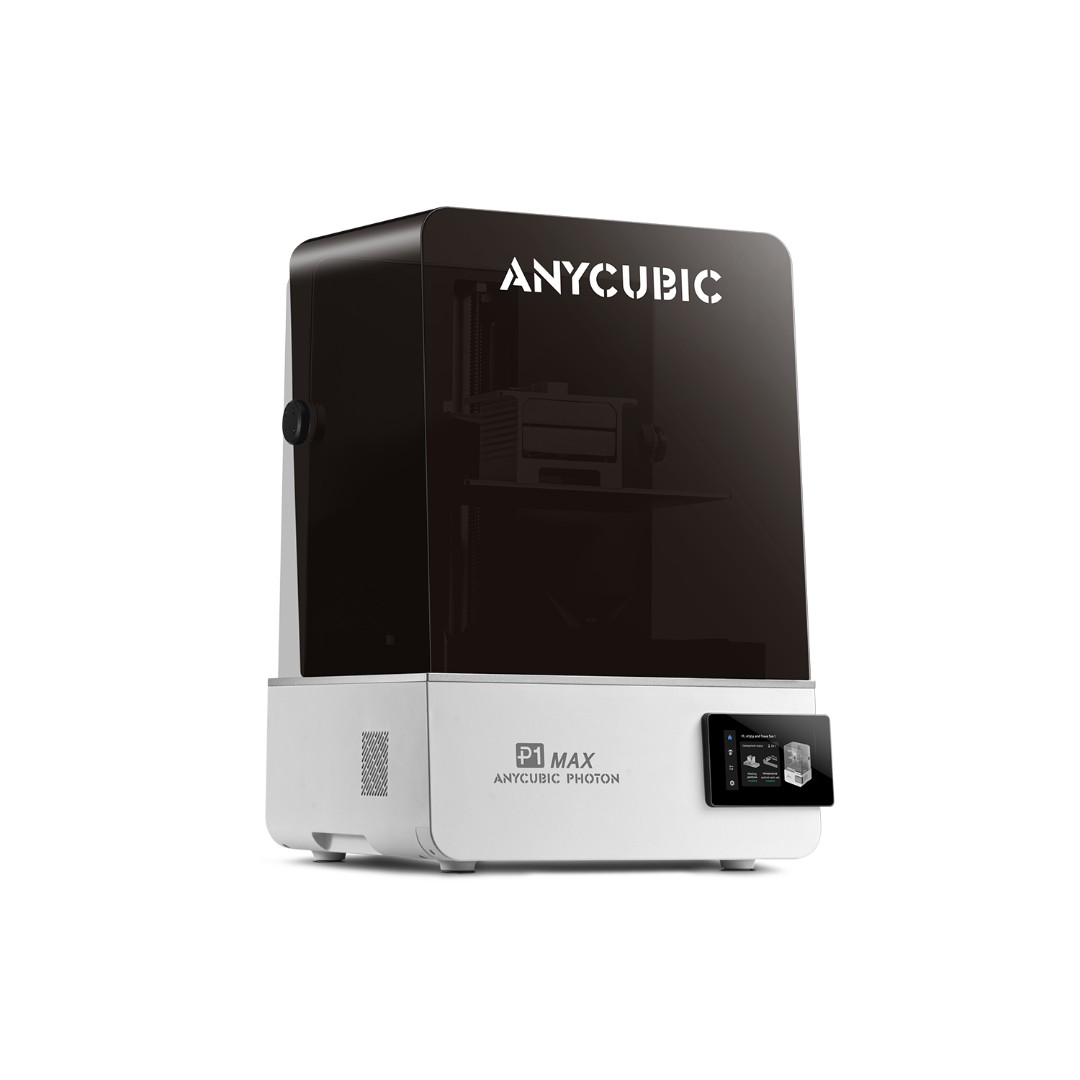

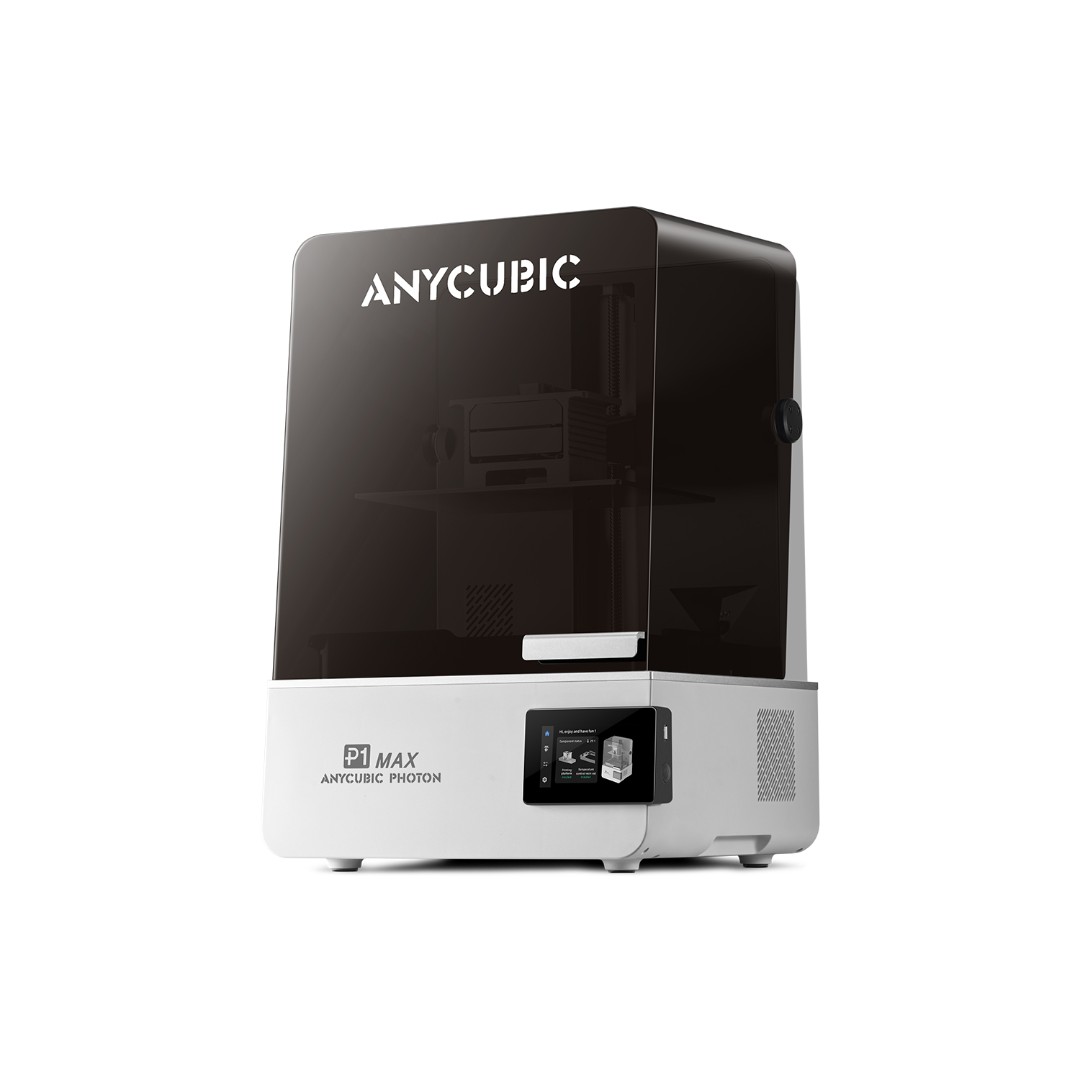

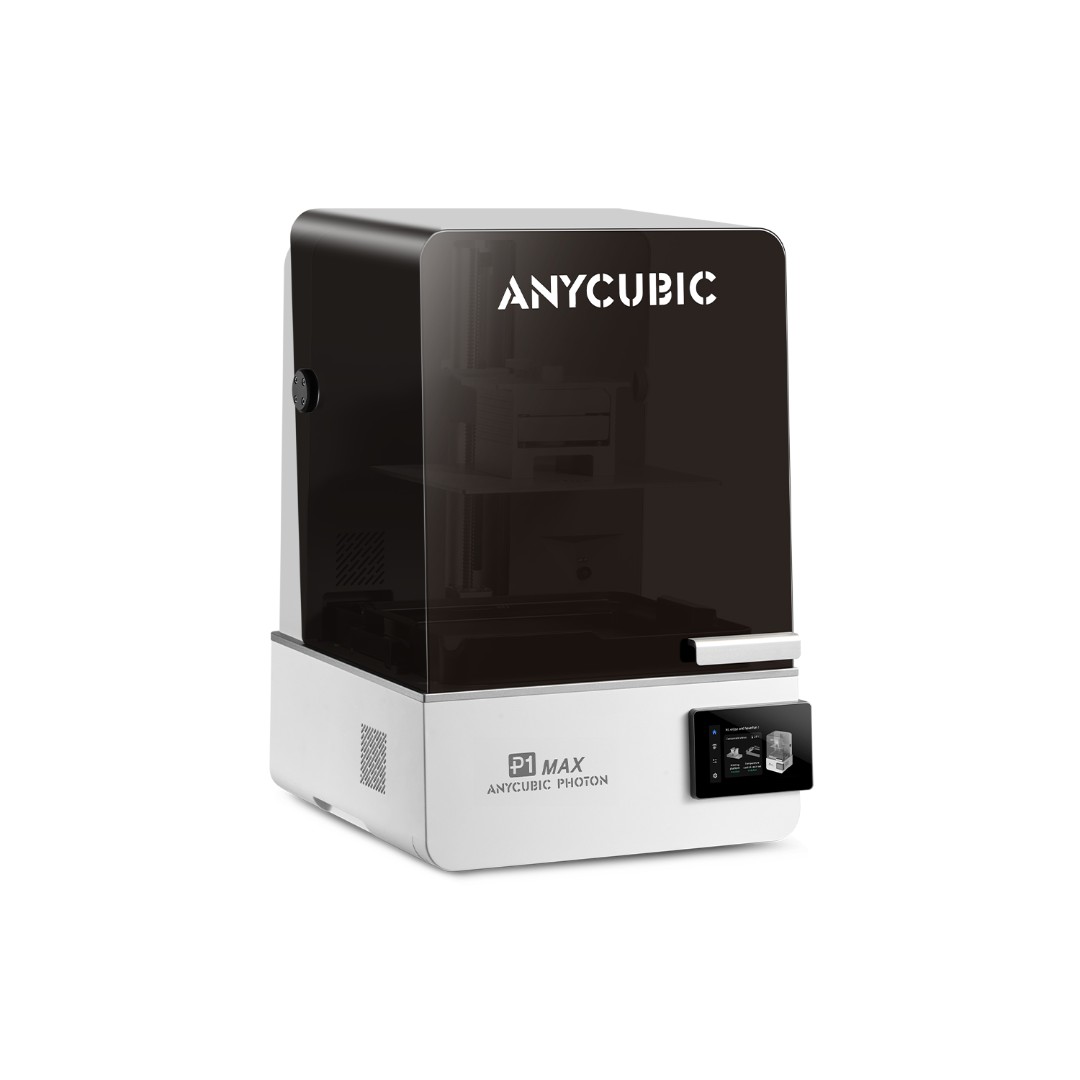

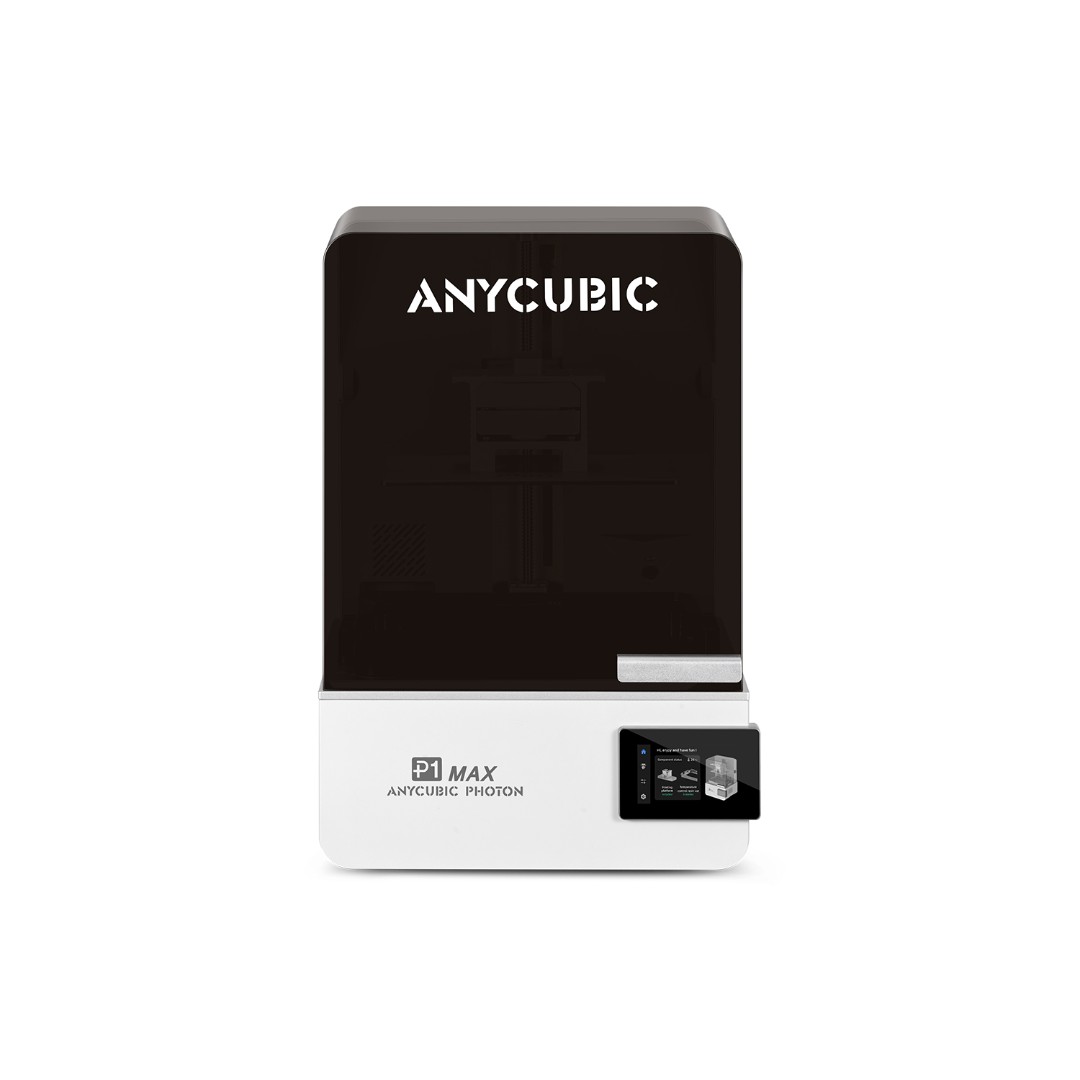

Anycubic Photon P1 Max is a large format resin 3D printer designed for printing large models, batch production of parts, and highly detailed objects. The machine combines a 14 inch 12K screen, a large build volume of 285.5 x 214 x 300 mm, Auto Leveling 3.0, and remote control through app and camera. This model is suitable for users who need a modern LCD printer with a large printing volume, precise mechanics, and a convenient control system.
Key Advantages
- 14 inch 12K screen for high detail printing
- 11520 x 8640 resolution for sharp fine details
- 24.8 x 24.8 um XY accuracy
- Large build volume of 285.5 x 214 x 300 mm
- 18.3 L usable print volume
- Auto Leveling 3.0 automatic leveling system
- Z axis mechanics based on C7 grade ball screws
- Remote control through app and monitoring camera
- Wi Fi and Ethernet connectivity
- LightTurbo 4.0 technology
- Support for high viscosity resins up to 8000 cps
- Suitable for large models and batch production
Description
Anycubic Photon P1 Max is designed for users who need a large printing volume without sacrificing precision. The model is suitable for workshops, studios, small production environments, engineering tasks, prototyping, master model creation, artistic products, and decorative objects. The large platform allows users to print big models in one piece or place many smaller parts on the plate in a single run.
The printer features a 14 inch 12K screen with a resolution of 11520 x 8640 and a square pixel size of 24.8 x 24.8 um. This helps produce smooth surfaces, accurate geometry, and high detail even on small elements. This format is especially useful for complex parts with thin walls, textures, and fine relief details.
For stable Z axis performance, the manufacturer uses C7 grade ball screws and linear guides. The official page also states positioning repeatability up to 0.01 mm. This means more consistent platform movement, better stability when printing tall models, and more accurate shape reproduction during long print jobs.
LightTurbo 4.0 is designed to improve print consistency and light uniformity. The manufacturer states collimation accuracy up to 3 degrees, light uniformity above 92 percent, and an 8 mm copper cooling system to reduce light source degradation and maintain stable performance during long term use.
Photon P1 Max is also designed for convenient daily operation. The printer includes factory calibration, automatic leveling check before printing, leveling assistance with four corner force display, remote monitoring through Anycubic App and camera, as well as Wi Fi and Ethernet support. The printer is also stated to be compatible with high viscosity resins up to 8000 cps.
Technical Specifications
| Model Name | Anycubic Photon P1 Max |
| Device Type | Resin LCD 3D Printer |
| Screen | 14 inch 12K |
| Screen Resolution | 11520 x 8640 |
| XY Accuracy | 24.8 x 24.8 um |
| Build Volume | 285.5 x 214 x 300 mm |
| Print Volume | 18.3 L |
| Light Source | COB + Fresnel + Mask |
| Leveling System | Auto Leveling 3.0 with feedback |
| Z Axis Drive | C7 grade ball screws |
| Resin Vat Capacity | 1900 ml |
| Remote Control | App and monitoring camera |
| Network Connections | Wi Fi and Ethernet |
| High Viscosity Resin Support | Up to 8000 cps |
| Maximum Model Height | Up to 300 mm |
| Positioning Repeatability | Up to 0.01 mm |
Technology Features
Large Format Printing
The 285.5 x 214 x 300 mm build area allows you to print large objects in one run. This is useful for helmets, housings, figures, display models, large master models, and batch production of several parts at once.
High 12K Detail
The 14 inch 12K screen with a 24.8 x 24.8 um square pixel helps deliver clean surfaces and accurate fine details. This is important for decorative objects, technical parts, prototypes, miniatures, and models with fine textures.
Stable Mechanics
The use of C7 grade ball screws and linear guides is intended for accurate positioning and smooth platform movement along the Z axis. This reduces the risk of print artifacts and improves stability during long print jobs.
LightTurbo 4.0
LightTurbo 4.0 improves light precision, exposure uniformity, and light source stability. The official page states collimation accuracy up to 3 degrees, light uniformity above 92 percent, and an 8 mm copper cooling system.
Convenient Everyday Operation
The model includes factory calibration, automatic platform checking before printing, assisted leveling mode, Anycubic App support, a monitoring camera, and Wi Fi and Ethernet connectivity. This makes the printer more convenient for home, workshop, and small production use.
Applications
- Printing large decorative models
- Batch production of small parts
- Creating master models
- Product prototyping
- Making figures and collectible objects
- Printing housings and technical components
- Use in studios, workshops, and small production environments
FAQ
What is the build volume of Anycubic Photon P1 Max?
The officially stated build volume is 285.5 x 214 x 300 mm.
What screen does Photon P1 Max use?
The printer is equipped with a 14 inch 12K screen with a resolution of 11520 x 8640.
What accuracy does the printer offer?
The official page states XY accuracy of 24.8 x 24.8 um.
Does it have automatic leveling?
Yes. The manufacturer states Auto Leveling 3.0 with feedback.
What ensures accuracy and stability during printing?
The printer uses C7 grade ball screws and linear guides. Positioning repeatability up to 0.01 mm is also stated.
How does the printer improve print stability?
This is supported by the LightTurbo 4.0 system with improved collimation, light uniformity above 92 percent, and copper cooling for the light source.
Can I monitor printing remotely?
Yes. Anycubic App and a monitoring camera are supported.
What connection options are available?
The model page lists Wi Fi and Ethernet.
What is the resin vat capacity?
The officially stated resin vat capacity is 1900 ml.
Is the printer suitable for large models?
Yes. The 18.3 L print volume and height up to 300 mm make it suitable for large objects and batch printing.
Does the printer support thick resins?
Yes. The manufacturer states compatibility with resins up to 8000 cps viscosity.
