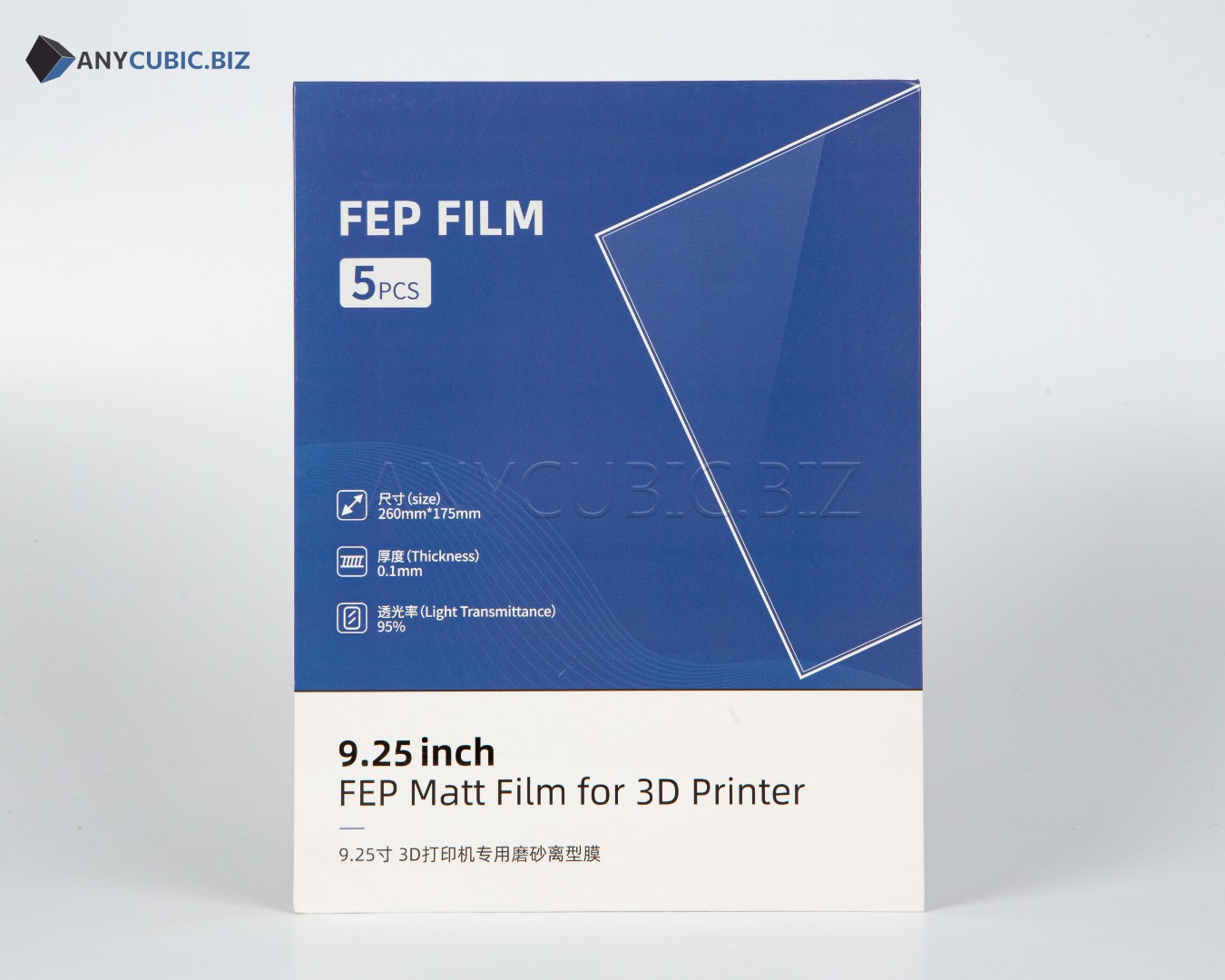

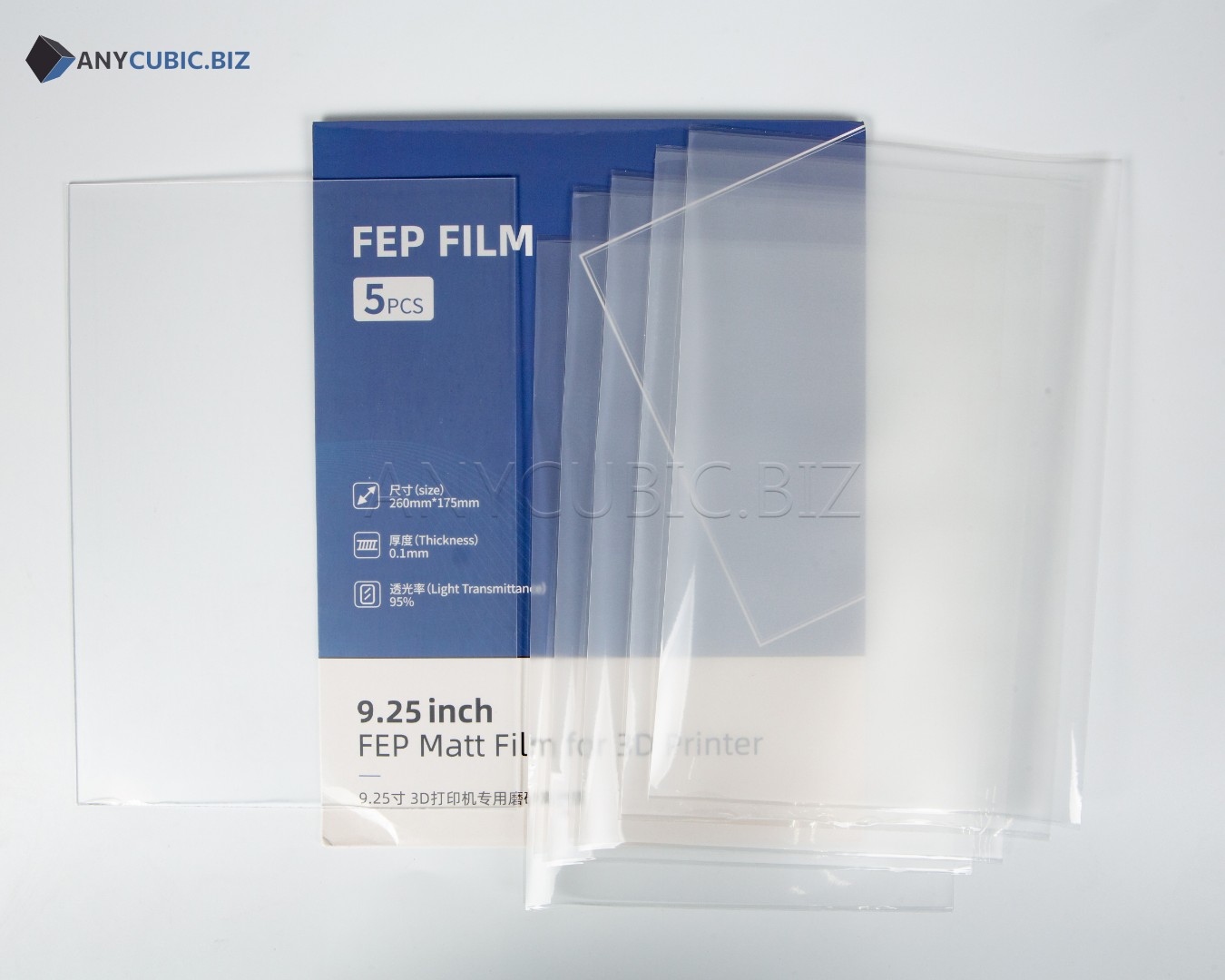

FEP Matt Film for Anycubic Photon M3 Plus 260 x 175 mm 5 pcs
Anycubic FEP Matt Film S020080 is designed to replace the bottom release film in the resin vat of the Anycubic Photon M3 Plus resin 3D printer. The set includes 5 films with a size of 260 x 175 mm.
FEP film is installed on the bottom of the resin vat and works as a release layer between liquid photopolymer resin, the printed model and the 3D printer screen. The condition of the film affects print stability, first layer quality, model release behavior and LCD screen protection from possible resin leakage.
Main Benefits
- Original Anycubic FEP Matt film
- Compatible with Anycubic Photon M3 Plus
- Set of 5 films
- Film size 260 x 175 mm
- Matt surface
- Used to replace the film on the resin vat bottom
- Helps the model release correctly from the vat bottom
- Suitable for regular resin 3D printer maintenance
- Used when the old film is worn, cloudy, scratched or damaged
Technical Specifications
| Product type | FEP Matt film for resin 3D printer vat |
| Brand | Anycubic |
| SKU | S020080 |
| Quantity | 5 pcs |
| Film size | 260 x 175 mm |
| Material | FEP |
| Surface type | Matt |
| Compatible model | Anycubic Photon M3 Plus |
| Purpose | Replacement of the release film on the resin vat bottom |
Compatibility
| Anycubic Photon M3 Plus |
When to Replace FEP Matt Film
- When deep scratches appear on the surface.
- When the film becomes cloudy and transmits light less effectively.
- When dents, stretching marks or deformation appear.
- When the model releases poorly from the vat bottom.
- When layer separation or print failures become more frequent.
- When there is a risk of resin leaking through damaged film.

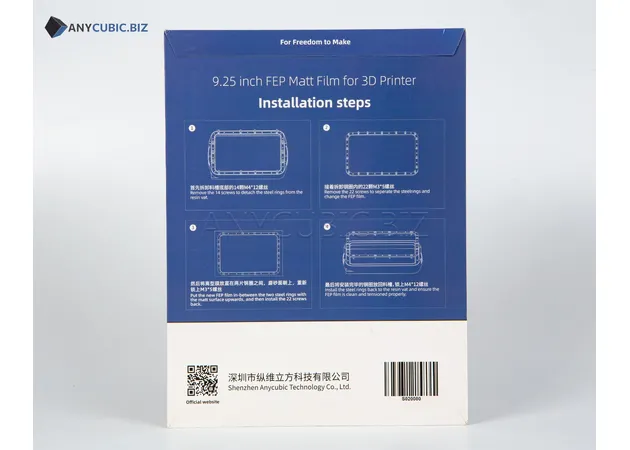

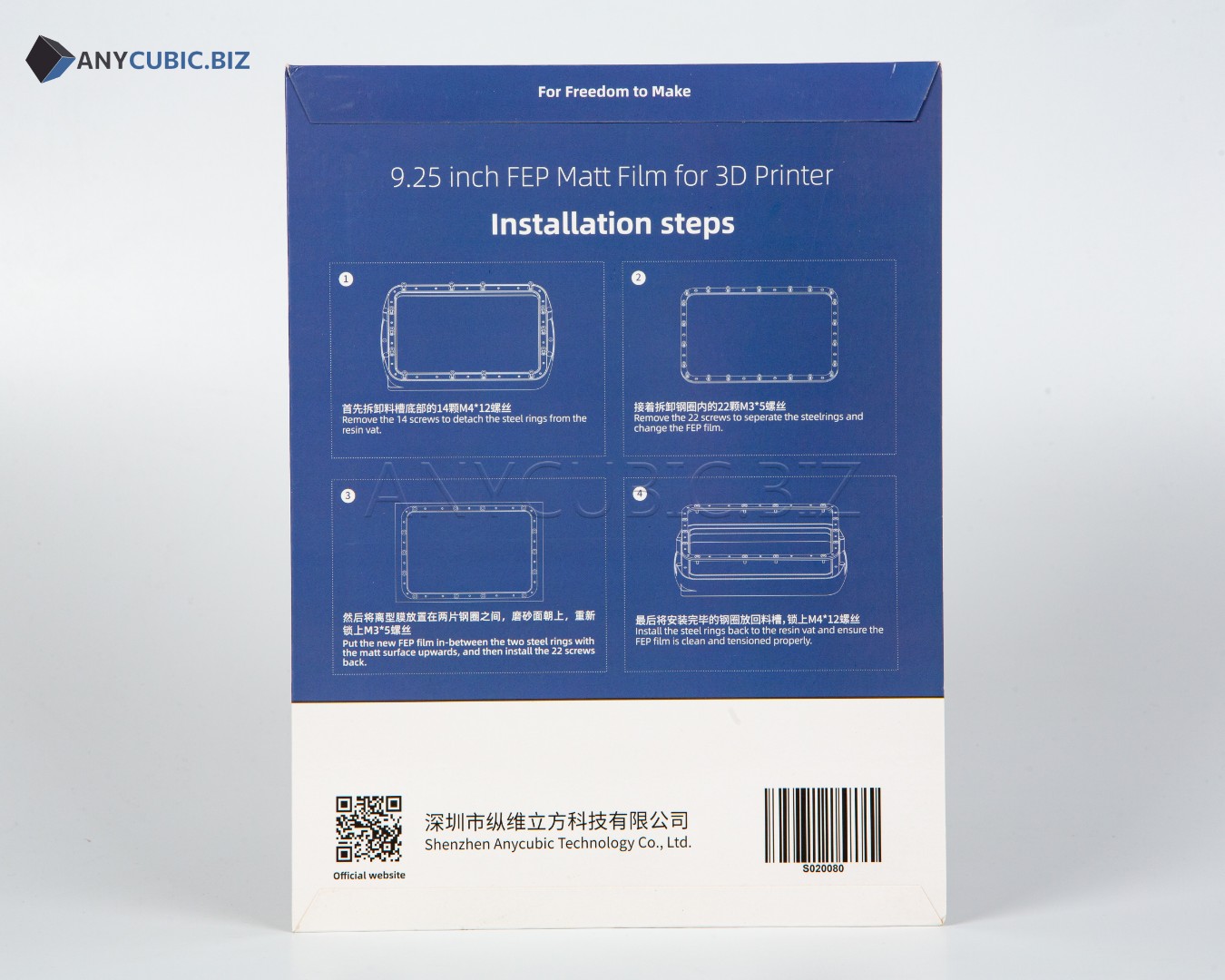

Installation Recommendations
- Drain all resin from the vat before replacement.
- Clean the vat from uncured and cured resin residue.
- Remove the old FEP film and check the vat frame for contamination.
- Install the new film evenly without misalignment, wrinkles or dust.
- Tighten screws evenly to achieve proper film tension.
- After installation, check the vat bottom for leakage.
- Before the first print, make sure there are no resin particles, dust or fingerprints on the film.
FAQ
Which printer is FEP Matt Film S020080 compatible with?
FEP Matt Film S020080 is compatible with the Anycubic Photon M3 Plus resin 3D printer.
How many films are included in the set?
The set includes 5 FEP Matt films.
What is the film size?
The size of one film is 260 x 175 mm.
What is FEP film used for?
FEP film is installed on the resin vat bottom and acts as a release layer between liquid resin, the printed model and the 3D printer screen.
Can I print with damaged FEP film?
If the film has deep scratches, cloudiness, stretching marks or visible damage, it is better to replace it. Damaged film can reduce print quality and increase the risk of resin leakage.
