FEP Matte Film for Anycubic Photon M3 Plus 260 x 175 mm 2 pcs
FEP Matte Film for Anycubic Photon M3 Plus 260 x 175 mm is a replacement release film for the resin vat of the Anycubic Photon M3 Plus resin 3D printer. The film is installed at the bottom of the vat and works as a separation layer between the liquid resin and the printed model during layer curing.

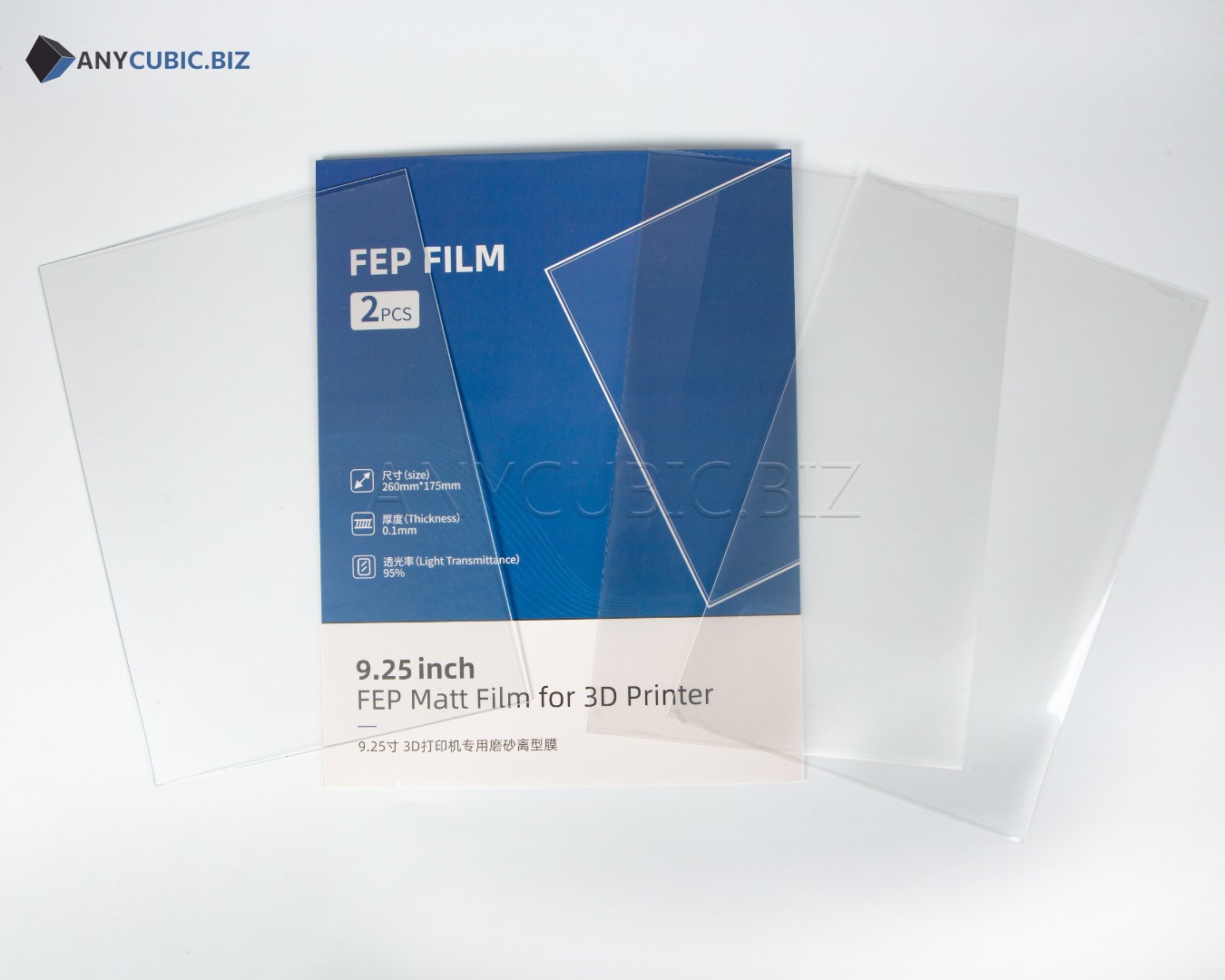

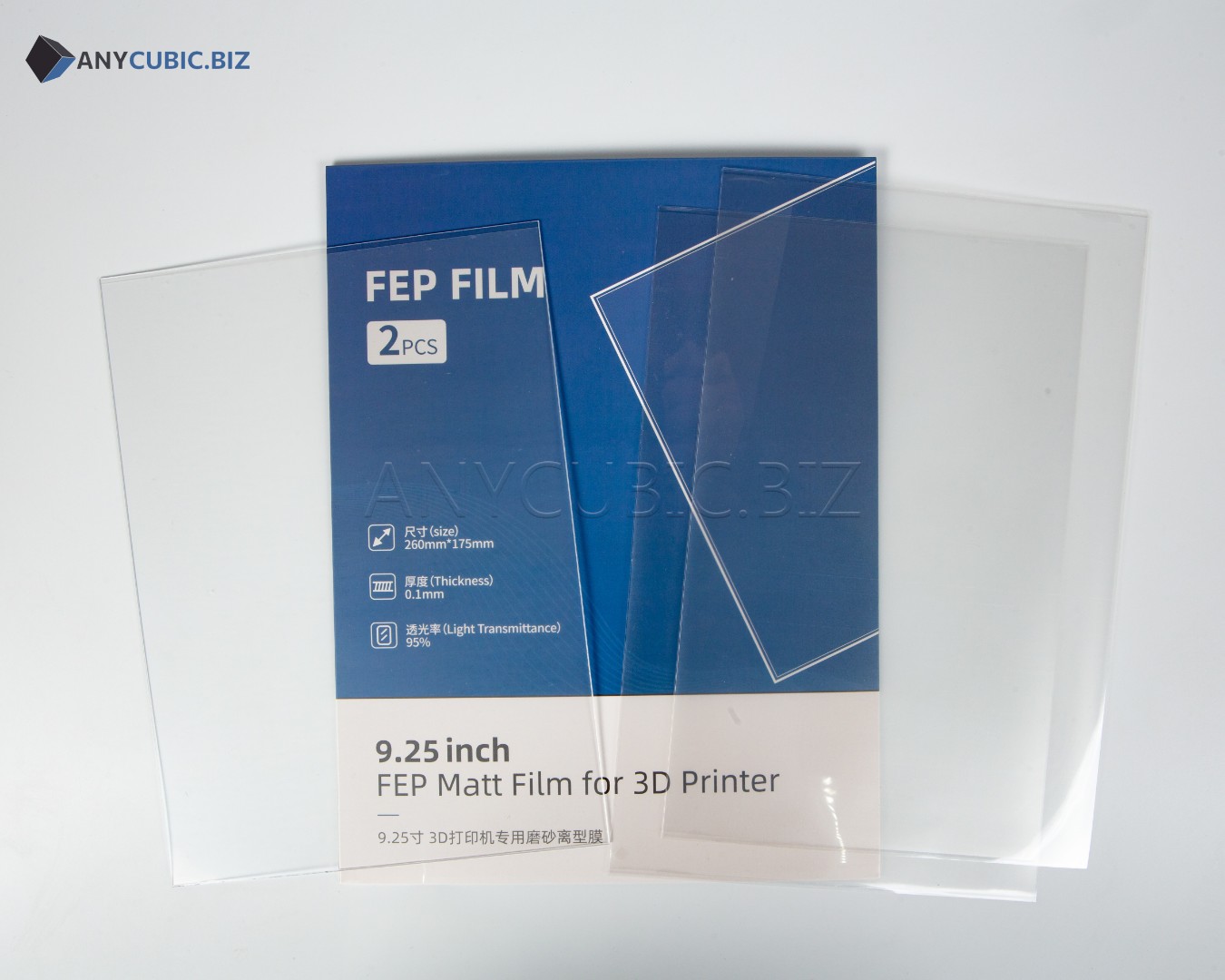

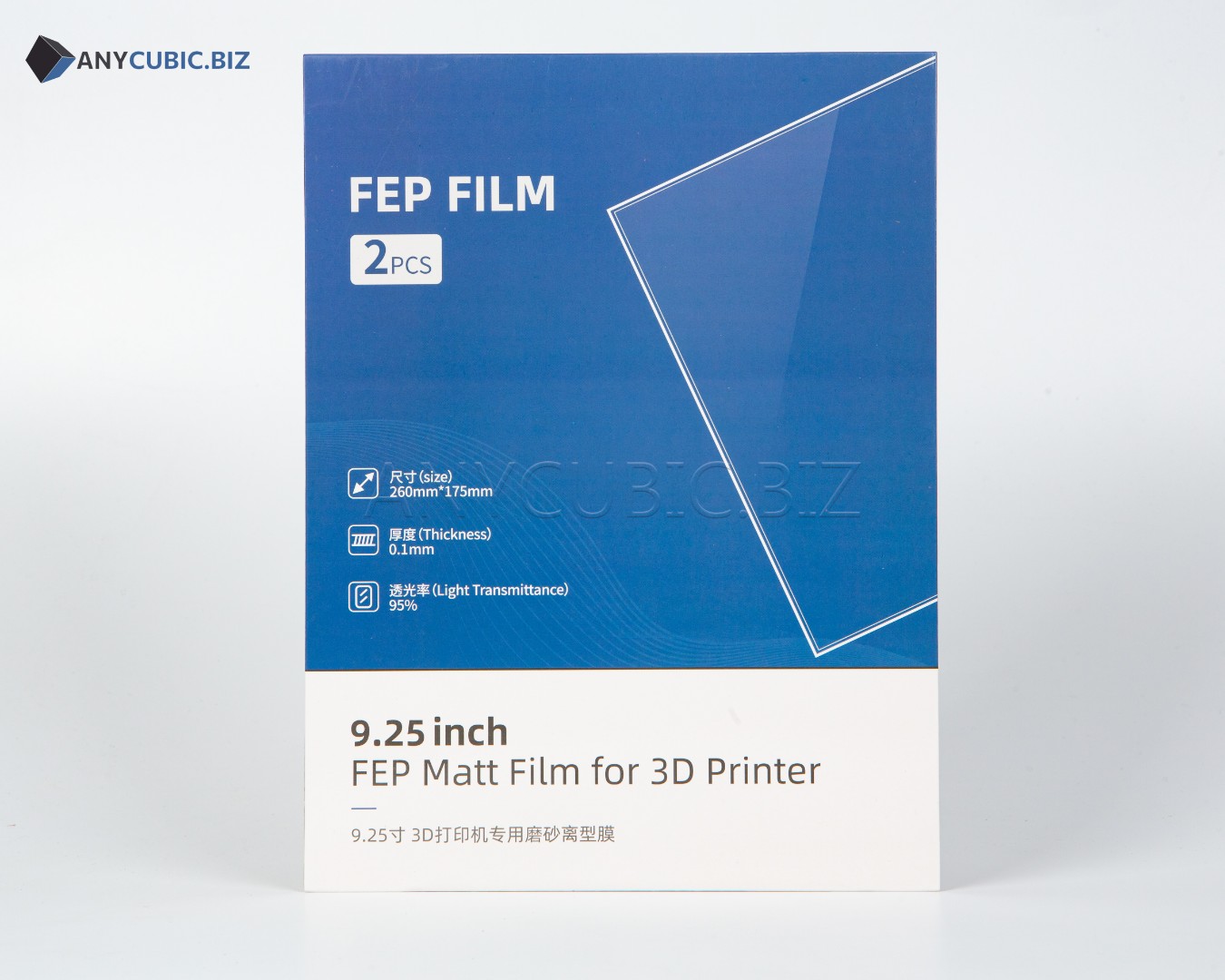

The package includes 2 pcs of FEP Matte film. This consumable part is used for regular maintenance of the resin vat and helps keep resin 3D printing stable when the old film becomes scratched, cloudy, stretched or damaged.
Compatibility
- Anycubic Photon M3 Plus
Main advantages
- Compatible with Anycubic Photon M3 Plus
- Film size 260 x 175 mm
- Package includes 2 pcs
- Designed for replacement in the resin vat
- Helps separate cured layers from the vat bottom
- Suitable for regular resin printer maintenance
- Useful for replacing worn, scratched, cloudy or damaged film
- Helps reduce the risk of resin leakage when replaced in time
Technical specifications
| Product name | FEP Matte Film for Anycubic Photon M3 Plus |
|---|---|
| Compatible printer | Anycubic Photon M3 Plus |
| Film size | 260 x 175 mm |
| Film type | FEP Matte |
| Quantity | 2 pcs |
| Application | Replacement release film for resin vat |
| Printing technology | LCD resin 3D printing |
What FEP film is used for
FEP film is one of the key consumable parts of a resin 3D printer. It is placed at the bottom of the resin vat and allows each cured layer to release from the vat surface during printing. The condition of the film directly affects layer separation, print stability and the overall success rate of resin printing.
If the film is scratched, punctured, stretched, cloudy or contaminated with cured resin, it can cause failed prints, surface defects, excessive release force, resin leakage and possible LCD screen damage. For this reason, the FEP film should be checked regularly and replaced when signs of wear appear.
Features of matte FEP film
FEP Matte film is used as a release layer in the resin vat. It helps provide stable layer separation and proper light transmission through the bottom of the vat. When installed correctly, the film supports reliable printing and helps maintain consistent resin curing.
The matte surface may look different from a fully glossy transparent film. Before installation, make sure the film is clean, undamaged and correctly positioned in the vat. After replacement, it is recommended to run a test print or exposure test.
When to replace the FEP film
- When deep scratches appear on the film surface
- When the film becomes cloudy or visibly worn
- When dents, stretching or deformation are visible
- When resin starts leaking through the vat
- When printed layers release from the film with difficulty
- When print failures become frequent without changes in settings
- When cured resin remains on the film surface
- After mechanical damage caused by tools or failed print residues

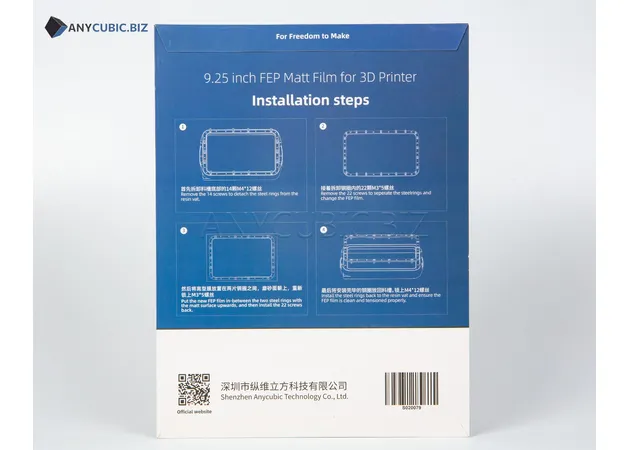

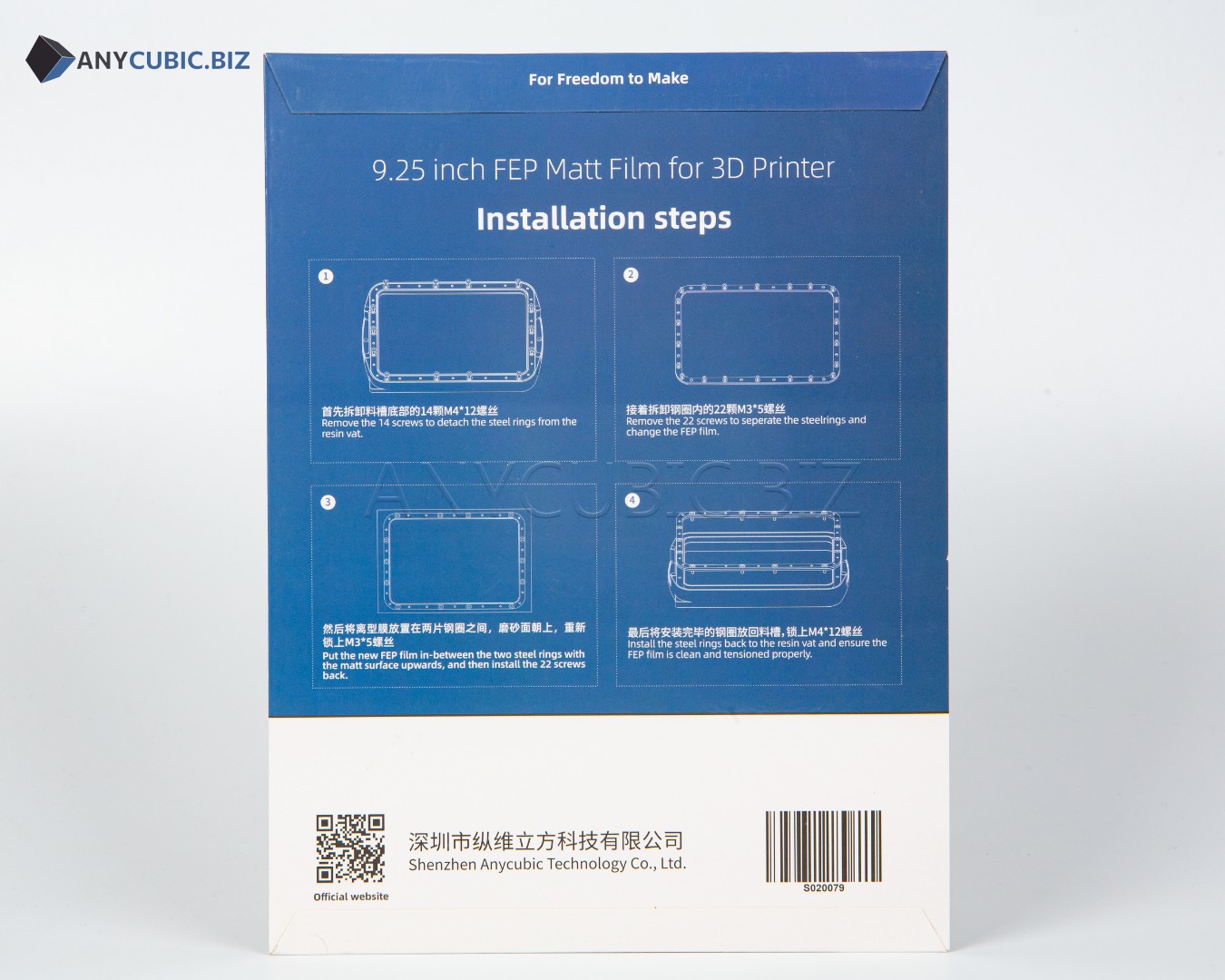

Installation recommendations
- Turn off the 3D printer and remove the resin vat.
- Pour the remaining resin through a filter into a clean container.
- Clean the vat carefully with a soft cloth.
- Remove the old FEP film from the vat.
- Install the new FEP Matte film 260 x 175 mm.
- Check the correct position and even tension of the film.
- Fix the film without excessive force.
- Before adding resin, make sure the film is clean and undamaged.
- After installation, check the vat for possible leakage.
Care recommendations
- Do not clean the FEP film with sharp metal tools
- Do not press strongly on the film surface
- Do not allow cured resin to remain on the film
- Remove failed print residues carefully
- Check the film before each print for punctures, scratches and cloudy areas
- Use soft cloths and suitable cleaning methods
- Store spare films in a clean and dry place
Difference between FEP, NFEP and ACF
FEP film is a classic release film for resin 3D printing. It is widely used in LCD resin 3D printers and is suitable for standard resin printing tasks.
NFEP film usually has lower release force compared with standard FEP film, which can improve printing stability for more complex models. ACF film is often used for high speed resin printing because it helps reduce layer separation resistance, but it can have different optical and surface properties.
For Anycubic Photon M3 Plus, FEP Matte film 260 x 175 mm is a practical consumable part for maintaining the resin vat and stable resin 3D printing.
FAQ
Is this FEP Matte film compatible with Anycubic Photon M3 Plus?
Yes. This FEP Matte film 260 x 175 mm is compatible with Anycubic Photon M3 Plus.
How many films are included?
The package includes 2 pcs of FEP Matte film.
When should I replace the FEP film?
The film should be replaced when scratches, cloudy areas, stretching, punctures, resin leakage or frequent layer separation problems appear.
Can I use damaged FEP film?
No. Damaged FEP film should be replaced because resin can leak through punctures or cracks and damage the LCD screen.
Does FEP film affect print quality?
Yes. A clean, flat and correctly installed FEP film helps ensure stable layer separation, accurate curing and reliable resin 3D printing.
Do I need to change print settings after replacing the film?
In most cases, the same settings can be used. If layer separation, adhesion or curing quality changes after replacement, it is recommended to run an exposure test and adjust settings if needed.
