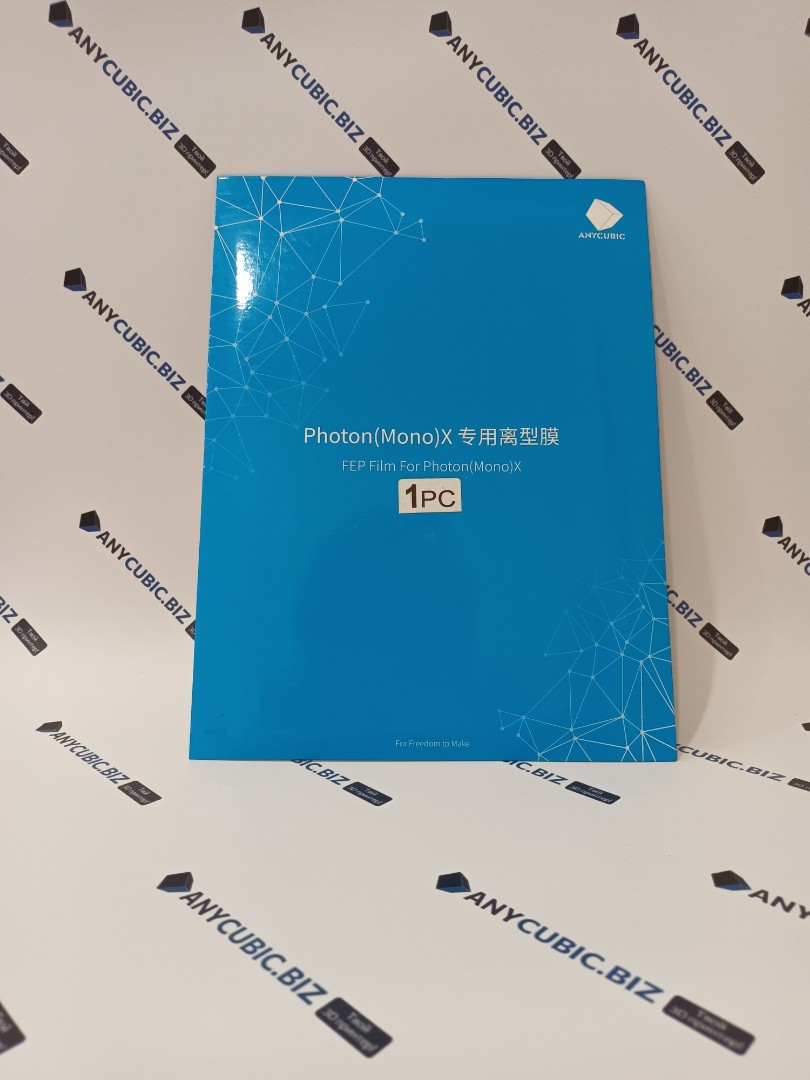

1pcs FEP Film for Anycubic Photon Mono X, Mono X 6K, Photon M3 Plus, Mono X2, Mono X 6Ks 260 x 175 mm
Description
1pcs FEP Film for Anycubic Photon Mono X, Mono X 6K, Photon M3 Plus, Mono X2, Mono X 6Ks 260 x 175 mm is a replacement release film for the resin vat of compatible Anycubic resin 3D printers. The film is installed at the bottom of the resin vat and works as a transparent release layer between liquid photopolymer resin, the LCD screen and the printed model.
During resin printing, each model layer is exposed through the LCD screen and the transparent FEP film. After exposure, the cured layer must separate from the film and lift with the build platform. For this reason, the condition of the FEP film directly affects print stability, model surface quality, layer release and resin vat service life.
FEP film is a consumable part for resin 3D printing. It should be replaced when cloudiness, scratches, dents, deformation, resin sticking, leakage or print quality issues appear. A new FEP sheet helps restore stable layer separation and reduces the risk of failed prints.
Advantages
- Compatible with Anycubic Photon Mono X
- Compatible with Anycubic Photon Mono X 6K
- Compatible with Anycubic Photon M3 Plus
- Compatible with Anycubic Photon Mono X2
- Compatible with Anycubic Photon Mono X 6Ks
- Film size 260 x 175 mm
- Package includes 1 pcs
- Used for resin vat release film replacement
- Provides a transparent release layer between resin and screen
- Helps improve stable layer separation
- Suitable for regular resin 3D printer maintenance
- Helps reduce model sticking to the vat bottom
Technical Specifications
| Product name | 1pcs FEP Film for Anycubic Photon Mono X, Mono X 6K, Photon M3 Plus, Mono X2, Mono X 6Ks 260 x 175 mm |
| Full product name | 1pcs. FEP Film Photon Mono X | Mono X 6K | M3 Plus | Mono X2 | Mono 6Ks 260 x 175 mm |
| SKU | S020053 |
| Part type | FEP release film for resin vat |
| Material | FEP |
| Size | 260 x 175 mm |
| Quantity | 1 pcs |
| Compatibility | Anycubic Photon Mono X, Anycubic Photon Mono X 6K, Anycubic Photon M3 Plus, Anycubic Photon Mono X2, Anycubic Photon Mono X 6Ks |
| Purpose | Replacement of the release film at the bottom of the resin vat |
| Printing type | LCD resin 3D printing |
| Category | Consumables and spare parts for Anycubic resin 3D printers |
When to Replace FEP Film
- The surface has scratches, dents or visible damage
- The film becomes cloudy and transmits light worse
- The model does not release properly from the vat bottom
- Strong peeling forces appear during layer separation
- Printed models show bottom or intermediate layer defects
- The film is stretched or has lost even tension
- Resin sticking marks or cured spots appear on the film
- The film was damaged after a failed print
- There is a risk of resin leakage through the vat bottom
Compatibility
This 260 x 175 mm FEP film is intended for Anycubic Photon Mono X, Anycubic Photon Mono X 6K, Anycubic Photon M3 Plus, Anycubic Photon Mono X2 and Anycubic Photon Mono X 6Ks. Before ordering, check the printer model, film size and SKU S020053.
Important Difference
This product is FEP film for the resin vat. It is not an LCD screen protector and it is not the LCD screen itself. FEP film is installed in the resin vat, while an LCD screen protector is installed on top of the printer screen. The 1 pcs version uses SKU S020053, the 2 pcs version uses SKU S020054, and the 5 pcs version uses SKU S020055.

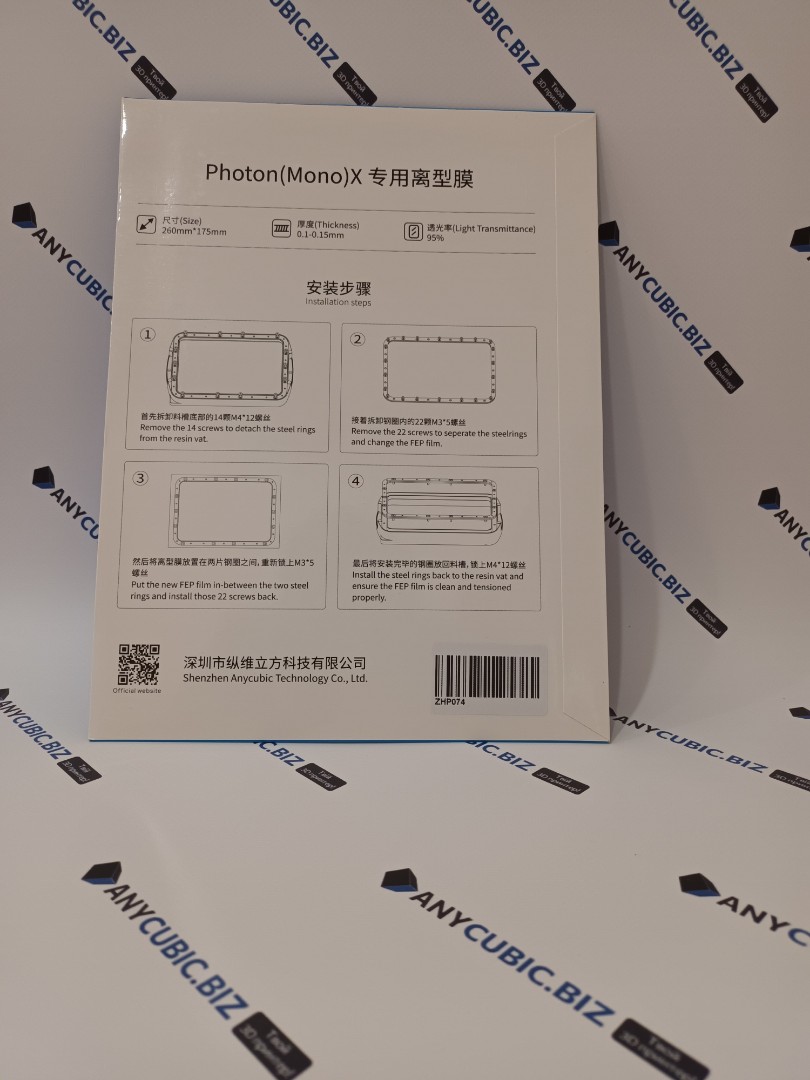

Installation Recommendations
- Drain all resin from the vat before replacement
- Clean the vat from liquid and cured resin residue
- Remove the old film carefully without damaging the frame and fasteners
- Before installation, make sure the new film is clean and scratch free
- Install the film evenly without misalignment or folds
- Keep film tension even across the whole area
- After installation, check the vat bottom for leaks
- Before the first print, run a small resin test
- Do not use sharp tools on the active film surface
Usage Recommendations
- After every failed print, check the vat bottom for cured resin residue
- Do not press a scraper strongly against the film
- Do not leave cured particles between the film and build platform
- Filter resin after a failed print before reusing it
- Clean the film with soft tools and suitable cleaning methods
- Do not continue printing with damaged film
- Store spare films in a clean and dry place
- Use correct exposure settings to reduce excessive layer adhesion
Suitable Applications
- Replacing worn FEP film in the resin vat
- Preventive resin 3D printer maintenance
- Restoring stable layer release
- Printing miniatures, figures and decorative models
- Printing prototypes and master models
- Printing functional photopolymer resin parts
- Preparing the vat for regular work with different resin types
FAQ
Is this FEP film compatible with Anycubic Photon Mono X
Yes, this FEP film is compatible with Anycubic Photon Mono X.
Is this FEP film compatible with Anycubic Photon Mono X 6K
Yes, this film is compatible with Anycubic Photon Mono X 6K.
Is this FEP film compatible with Anycubic Photon M3 Plus
Yes, this film is compatible with Anycubic Photon M3 Plus.
Is this FEP film compatible with Anycubic Photon Mono X2
Yes, this film is compatible with Anycubic Photon Mono X2.
Is this FEP film compatible with Anycubic Photon Mono X 6Ks
Yes, this film is compatible with Anycubic Photon Mono X 6Ks.
What is the size of this FEP film
The film size is 260 x 175 mm.
How many films are included
The package includes 1 FEP film.
What is the SKU of the 1 pcs version
The SKU of the 1 pcs version is S020053.
Is this an LCD screen protector
No, this is FEP film for the resin vat. It is installed at the bottom of the resin vat, not on the LCD screen.
When should FEP film be replaced
FEP film should be replaced when scratches, cloudiness, dents, stretching, leakage, poor layer release or print defects appear.
