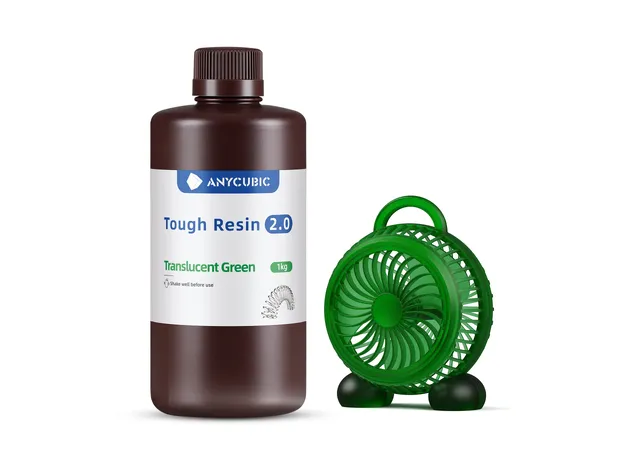

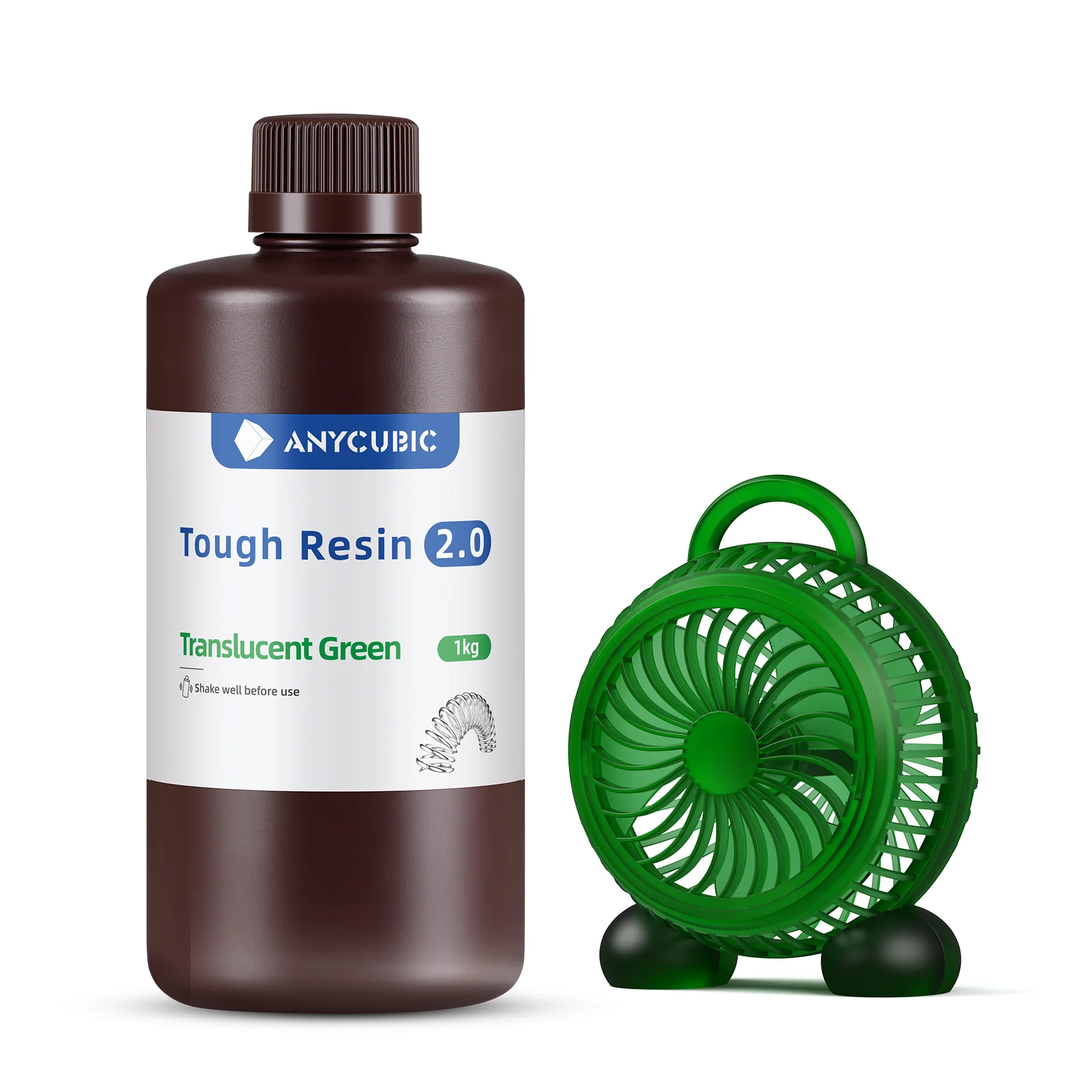

Anycubic Tough Resin 2.0 Translucent Green 1 kg
Anycubic Tough Resin 2.0 Translucent Green 1 kg is a translucent green tough photopolymer resin for LCD, MSLA and DLP resin 3D printers. It is designed for strong, flexible and accurate prints that require improved resistance to bending, impact, drops and mechanical stress.
The translucent green color is especially useful for decorative models, display samples, light-related elements, visual prototypes, technical parts with partial internal visibility, housings, architectural models, figures and projects where a green translucent effect is needed without mandatory painting.
Anycubic Tough Resin 2.0 combines high flexibility, impact resistance, strong elongation at break, low shrinkage and accurate detail reproduction. It is suitable for functional prototypes, R&D parts, thin-walled models, fixtures, housings, jigs and decorative models where ordinary standard resin may be too brittle.
π― Features and advantages
- πͺ Improved impact resistance — better resistance to drops, bending and local mechanical loads compared with many standard resins.
- π High flexibility — suitable for parts that require both rigidity and moderate elastic deformation.
- π High printing precision — low shrinkage helps preserve geometry, fine details, edges, textures and fitting dimensions.
- π’ Translucent Green color — a practical choice for decorative, technical, display and visual models.
- π Translucent visual effect — creates visual depth and partial light transmission in printed parts.
- 𧩠Good for thin-walled parts — helps maintain structural integrity even in small and complex elements.
- π Easy support removal — supports detach more easily, reducing the risk of damaging the print during post-processing.
- π¬ Low-odor formulation — more comfortable to work with than many traditional resins, while ventilation, gloves and eye protection are still required.
- π₯οΈ Wide compatibility — compatible with LCD, MSLA and DLP resin 3D printers using 365-405 nm / 405 nm UV curing after calibration.
π Color and appearance
| Parameter | Value |
|---|---|
| Official color | Translucent Green |
| HEX code | #009A17 |
| Package size | 1 kg |
| Material type | Photopolymer Resin |
| Best color applications | Decorative models, light-related elements, visual prototypes, display samples and technical parts with a translucent effect |
βοΈ Technical specifications
| Specification | Value |
|---|---|
| Pre-print preparation | Shake well before use |
| Print environment | 20-40 β |
| First layer exposure duration | 20-40 s |
| Normal exposure duration | 1.5-3 s |
| Print temperature | 20-50 β |
| Material | Photopolymer Resin |
| Wavelength | 365-405 nm |
| Viscosity | 450-500 mPa·s at 25 β |
| Density | 1.10-1.15 g/cm³ |
| Hardness | 82-84 HD |
| Tensile strength | 30-42 MPa |
| Elongation at break | 60-72% |
| Bending modulus | 42-52 MPa |
| Bending strength | 1500-2000 MPa |
| Young’s modulus | 900-1100 MPa |
| Izod impact strength | 245 J/m |
| Volume shrinkage rate | 5.1-6.2% |
π§ͺ Post-processing
| Step | Recommendation |
|---|---|
| Cleaning | 95% IPA |
| Washing duration | ≥3 mins |
| UV wavelength for final curing | 405 nm |
| Curing temperature | 18-30 β |
| UV intensity | 25000-30000 uW/cγ‘ |
| Curing time | 3 mins |
| Disposal | After UV curing, cured resin waste is treated as plastic waste |
β Resin 3D printer compatibility
Anycubic Tough Resin 2.0 Translucent Green is compatible with LCD, MSLA and DLP resin 3D printers that work with 365-405 nm / 405 nm photopolymer resins. The best result requires calibration of exposure, layer height, lift speed, bottom exposure, release film condition and printing temperature.
- Anycubic Photon series: Photon Mono, Photon Mono 2, Photon Mono 4, Photon Mono 4K, Photon Mono 4 Ultra, Photon Mono M5, Photon Mono M5s, Photon Mono M5s Pro, Photon Mono M7, Photon Mono M7 Pro, Photon Mono M7 Max, Photon Mono X, Photon Mono X2, Photon Mono X 6K, Photon Mono X6Ks, Photon M3, Photon M3 Plus, Photon M3 Premium, Photon M3 Max, Photon D2, Photon Ultra.
- Elegoo: Mars, Saturn, Jupiter series.
- Phrozen: Sonic Mini, Sonic Mighty, Sonic Mega series.
- Creality: HALOT ONE, HALOT SKY, HALOT LITE, HALOT MAGE, HALOT MAGE PRO, HALOT R6 series.
- Uniformation: GKtwo, GK3 and other GK series models.
- Nova3D: Bene, Elfin, Whale series.
- Peopoly: Phenom, Forge, Moai series.
- Other LCD/MSLA/DLP printers: compatible with 365-405 nm / 405 nm resins after profile calibration.
Important: this resin is not suitable for FDM/FFF filament 3D printers.
βοΈ Recommended printing parameters
| Printer Model | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layer | Z Lift Distance | Z Lift Speed | Z Retract Speed | Anti-Aliasing Level | Layer Thickness |
|---|---|---|---|---|---|---|---|---|---|
| Photon P1 | 2.1 s | 2 s | 15 s | 1 | 5 mm | 3 mm/s | 3 mm/s | 4 | 0.05 mm |
| Photon Mono M7 | 2.2 s | 0.5 s | 25 s | 4 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M7 Pro | 1.8 s | 0.5 s | 25 s | 3 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M7 Max | 2 s | 0.5 s | 30 s | 5 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M5 | 2.8 s | 0.5 s | 25 s | 5 | 8 mm | 5 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M5s | 2.8 s | 0.5 s | 25 s | 5 | 8 mm | 5 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M5s Pro | 3.6 s | 0.5 s | 30 s | 5 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono 4 | 2.8 s | 1 s | 30 s | 5 | 6 mm | 4 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono 4K | 2 s | 0.5 s | 40 s | 6 | 6 mm | 4 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono 4 Ultra | 2.6 s | 1 s | 30 s | 5 | 5 mm | 8 mm/s | 8 mm/s | 1 | 0.05 mm |
| Photon Mono 2 | 2.5 s | 1 s | 25 s | 5 | 6 mm | 4 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono X2 | 2.5 s | 0.5 s | 20 s | 5 | 8 mm | 2 mm/s | 3 mm/s | 1 | 0.05 mm |
| Photon Mono X 6K | 2 s | 0.5 s | 25 s | 6 | 8 mm | 2 mm/s | 3 mm/s | 1 | 0.05 mm |
| Photon Mono X6Ks | 2.5 s | 0.5 s | 20 s | 5 | 8 mm | 3 mm/s | 4 mm/s | 1 | 0.05 mm |
| ANYCUBIC Photon M3 Max | 3 s | 2.5 s | 35 s | 6 | 10 mm | 2 mm/s | 3 mm/s | 1 | 0.05 mm |
| ANYCUBIC Photon M3 Premium | 2.5 s | 0.5 s | 25 s | 2 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
𧩠Best applications
- functional prototypes and R&D parts;
- housings, brackets, fixtures and small technical elements;
- parts that require improved impact resistance and flexibility;
- translucent green decorative and presentation models;
- light-related elements, display models and demonstration samples;
- engineering samples, jigs, templates and assembly aids;
- thin-walled elements and complex geometry parts;
- models where a green translucent effect is needed without mandatory painting.
π File Download: technical files and certificates
- MSDS / SDS — material safety documentation
- TDS — technical data sheet
- REACH — chemical safety report
- RoHS — RoHS compliance report
π§° Instructions for use
- Shake the resin bottle well before use.
- Clean the resin vat and build plate.
- Check the transparency of the vat bottom and the condition of the release film.
- Make sure the printing parameters match your printer.
- Print in a recommended environment of 20-35 β to reduce temperature-related failures.
- Pour resin into the vat without exceeding the maximum fill line.
- After printing, remove the model from the build plate, remove supports and wash the model.
- Clean the model in an Anycubic Wash & Cure machine or another compatible washing system.
- Dry the model by air-drying, blow-drying or using a drying chamber.
- Perform final UV curing.
- Filter remaining resin through a 100-mesh sieve before reuse.
π‘ Safety recommendations
Use the resin in a well-ventilated area. Wear nitrile gloves, safety goggles and a respirator if needed. Avoid skin and eye contact with uncured resin. Keep liquid resin away from children, pets and pregnant women. Fully cure resin waste with UV light before disposal.
β FAQ
Is Anycubic Tough Resin 2.0 Translucent Green suitable for beginners?
Yes. It is suitable for users with basic resin printing experience. For stable results, calibrate exposure, shake the resin well before use and follow proper washing and final curing recommendations.
How is Translucent Green different from Gray, White, Black or Clear?
Translucent Green is the semi-transparent green version, suitable for decorative, display, visual and technical models with a green translucent effect. Unlike Clear, it has a distinct green tint.
Will the printed model be fully transparent?
No. This is a translucent green material. The final transparency depends on wall thickness, model orientation, printing parameters, washing, final curing, sanding, polishing and possible clear coating.
Can I use this resin with non-Anycubic printers?
Yes, if the printer supports 365-405 nm / 405 nm photopolymer resin. For other printer brands, exposure testing and calibration are recommended.
Do I need to wash the model after printing?
Yes. Wash the printed model in 95% IPA for at least 3 minutes, dry it thoroughly and then perform final UV curing.
Is this resin suitable for functional parts?
Yes. Tough Resin 2.0 is suitable for functional prototypes, small technical components, brackets, housings and parts that require improved resistance to impact and bending.
Is this resin suitable for FDM printers?
No. This is a liquid photopolymer resin for LCD, MSLA and DLP resin printers. FDM/FFF printers require plastic filament.
