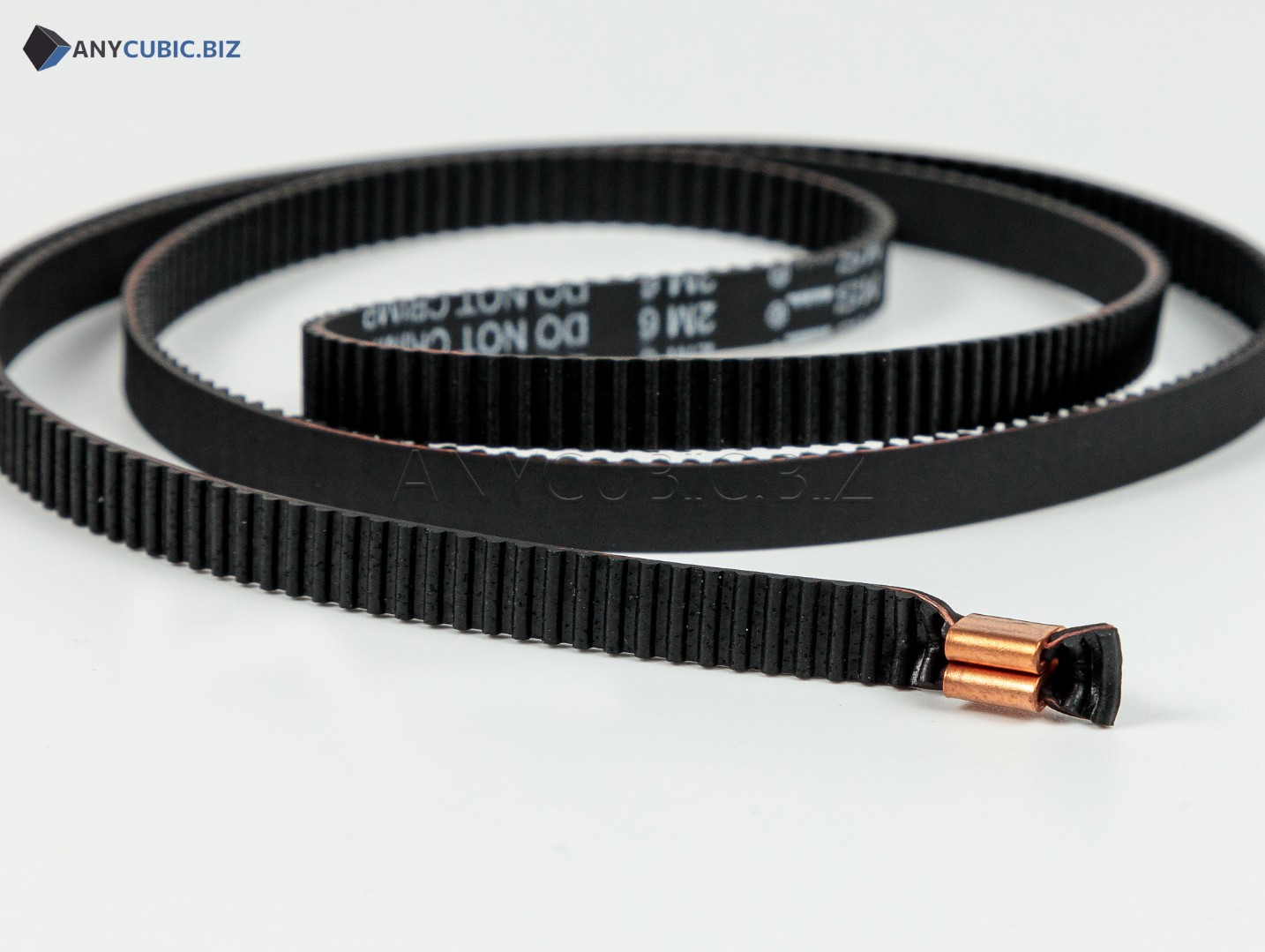

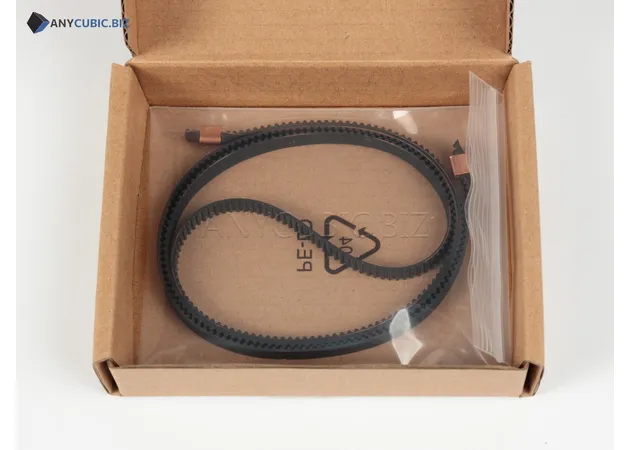

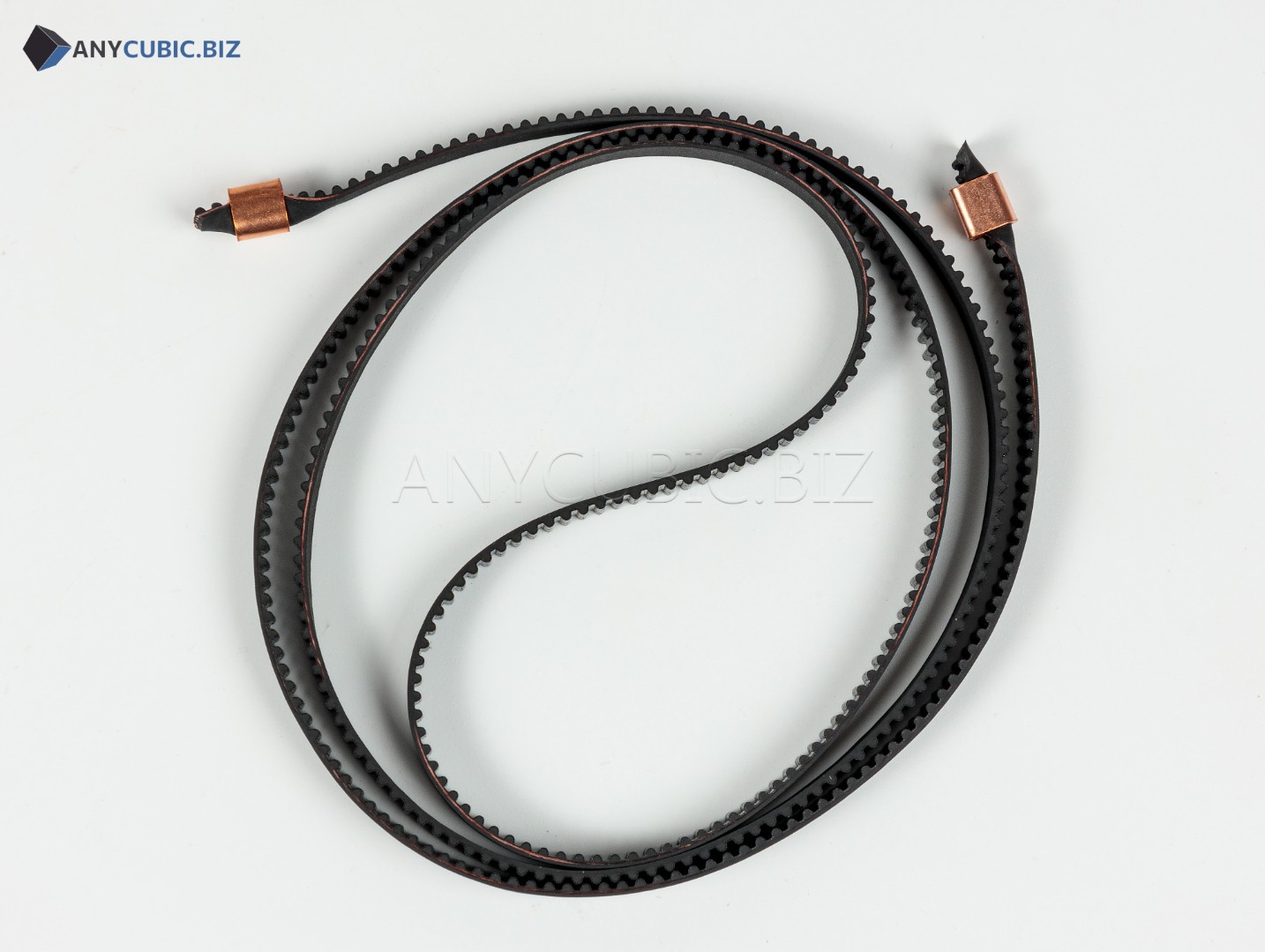

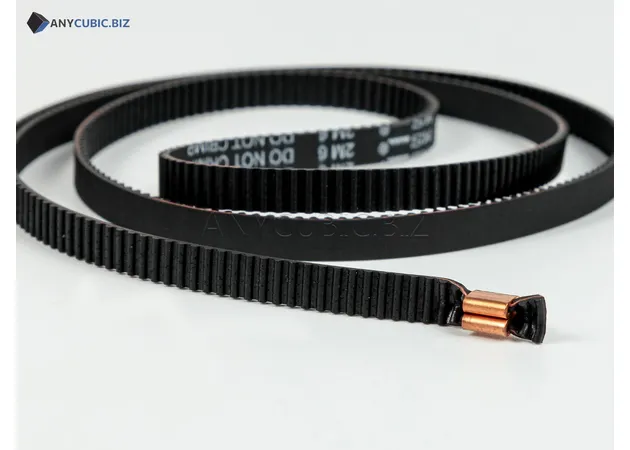

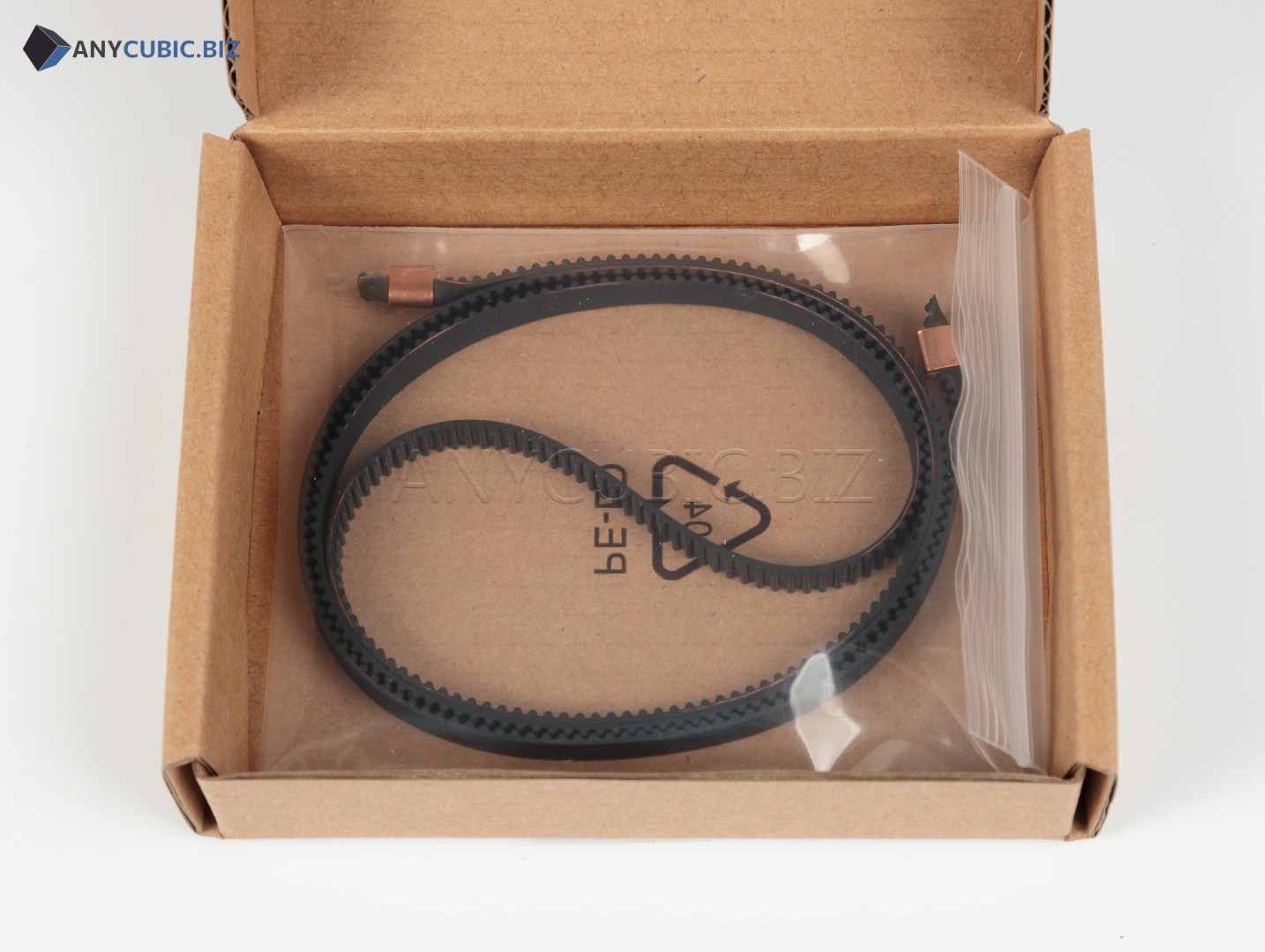

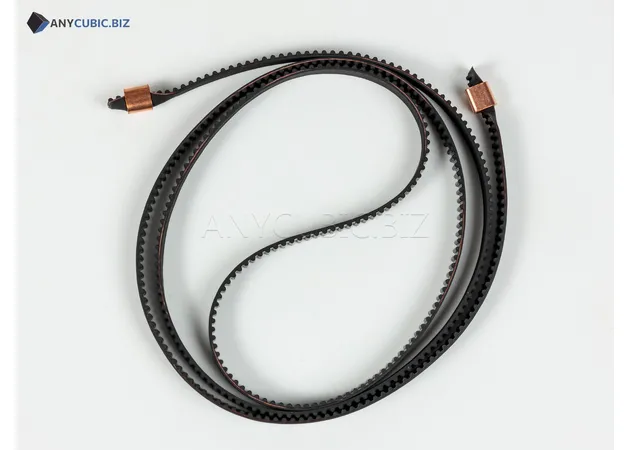

Y-axis Belt for Anycubic Kobra 2 Neo 790 mm
SKU: S010149
Compatibility: Anycubic Kobra 2 Neo
Purpose: Y-axis heated bed movement belt
Description
The Y-axis belt for Anycubic Kobra 2 Neo 790 mm is a replacement spare part for the heated bed motion system of the FDM 3D printer. The belt controls the forward and backward movement of the print bed along the Y axis, so its condition directly affects model geometry, layer accuracy, positioning repeatability and overall print stability.
This part is suitable for repair, maintenance and preventive replacement on the Anycubic Kobra 2 Neo. Belt replacement may be required when the belt is stretched, damaged, worn, slipping, causing backlash, layer shifting, uneven bed movement or visible print quality degradation.
Key Benefits
- Designed for the Y-axis assembly of the Anycubic Kobra 2 Neo 3D printer.
- Belt length — 790 mm.
- Helps restore stable heated bed movement.
- Suitable for repair, regular maintenance and preventive replacement.
- An important spare part for solving layer shifts and unstable print geometry.
- Useful for users who maintain their 3D printer independently.
Technical Specifications
| Product name | Y-axis Belt for Anycubic Kobra 2 Neo 790 mm |
| SKU | S010149 |
| Part type | Y-axis belt / heated bed movement belt |
| Installation axis | Y-axis |
| Length | 790 mm |
| Compatible 3D printer | Anycubic Kobra 2 Neo |
| Category | Spare parts and accessories for Anycubic FDM 3D printers |
When to Replace the Y-axis Belt
- Layer shifts appear in the direction of the bed movement.
- The heated bed moves unevenly, with jerks or noticeable backlash.
- The belt has lost tension and cannot be adjusted properly with the standard tensioner.
- Cracks, tooth wear, damage or deformation are visible on the belt.
- Clicking, slipping or unstable Y-axis movement occurs during printing.
- The printer requires preventive maintenance after long-term operation.
Installation Recommendations
- Turn off the 3D printer and disconnect the power cable before maintenance.
- Loosen the Y-axis belt tensioner.
- Remove the old belt carefully from the guide rail and mounting points.
- Install the new belt along the original routing path, making sure it runs evenly through the rollers and motor pulley.
- Secure the belt in the heated bed mounting points.
- Adjust the belt tension: it should be firm enough for accurate movement, but not overtightened.
- After replacement, check the bed movement, run auto-leveling and adjust Z-offset if necessary.
Compatibility
This belt is intended specifically for the Anycubic Kobra 2 Neo. Do not select a belt only by appearance, as different printer models and axes may require belts of different lengths. For the X axis, as well as for Kobra 2, Kobra 2 Pro, Kobra 2 Plus, Kobra 2 Max and other printers, choose a separate compatible spare part.
Why Belt Tension Matters
A loose belt may cause backlash, vibration, skipped movement and layer shifting. Excessive tension increases load on the motor, pulleys and mounting points. A properly installed belt helps maintain smooth bed motion, accurate part geometry and consistent print quality.
FAQ
Which printer is this belt compatible with?
This belt is intended for the Anycubic Kobra 2 Neo 3D printer.
Is this an X-axis or Y-axis belt?
This is a Y-axis belt for heated bed movement.
What is the belt length?
The belt length is 790 mm.
What is the SKU?
The SKU is S010149.
Do I need to calibrate the printer after replacement?
Yes. After servicing the Y-axis mechanical assembly, it is recommended to check bed movement, run auto-leveling and adjust Z-offset if needed.
Can I use this belt for Kobra 2 Pro or Kobra 2 Plus?
No. Other models may require different belt lengths and compatible parts. This item is listed for the Anycubic Kobra 2 Neo.
