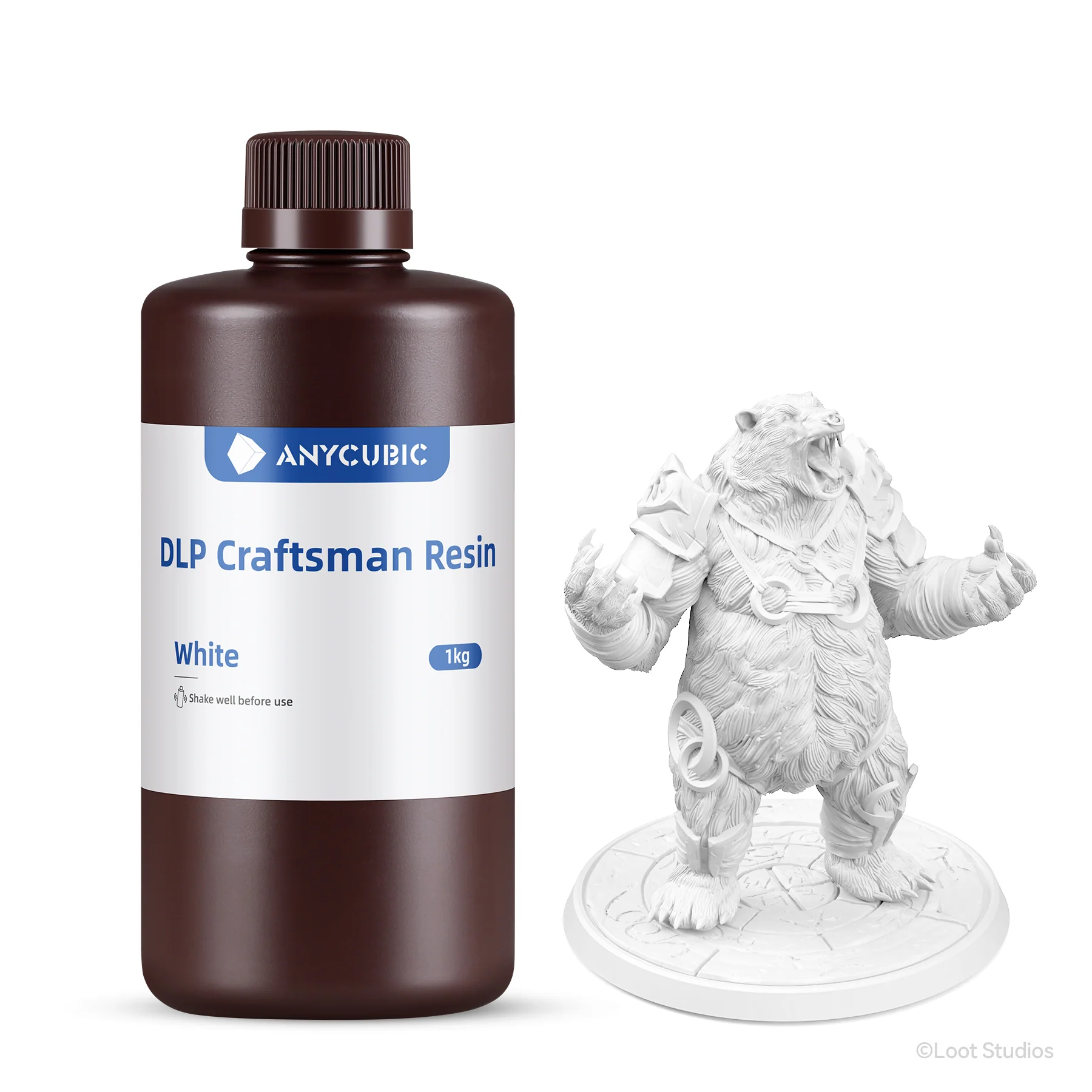

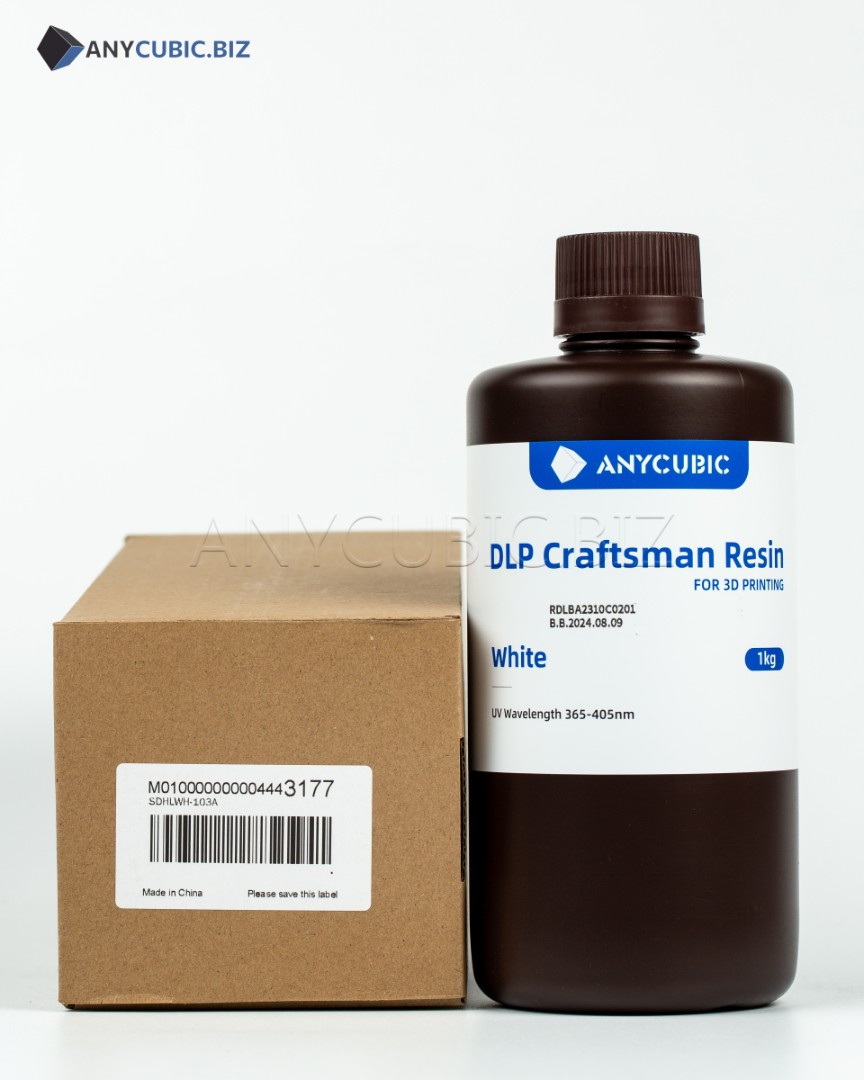

Anycubic DLP Craftsman Resin White 1 kg

SKU: SDHLWH

Color: White

Color HEX: #EFF0F1

Official product name: Anycubic DLP Craftsman Resin White 1 kg

⚪ Anycubic DLP Craftsman Resin White is a high-precision white photopolymer resin for LCD, MSLA and DLP 3D printing with 365-405 nm / 405 nm UV curing. The material is designed for detailed models with a clean matte surface, low shrinkage, stable dimensions and accurate reproduction of fine elements.

The white #EFF0F1 color is especially practical for models intended for painting, display prototypes, architectural models, decorative parts, figures, miniatures and artistic objects. The light surface is suitable for priming, painting and visual inspection before final finishing.

✨ Features and Benefits

• High detail reproduction: the resin reproduces fine elements, textures, folds, lines, relief and decorative features.
• Matte surface finish: the nano-ceramic component helps reduce the visibility of layer lines and pixel marks.
• White color for painting: the #EFF0F1 shade provides a clean visual base for priming and painting.
• Low shrinkage: volume shrinkage of 3.72-4.24% helps preserve model geometry after printing and post-processing.
• Good mechanical stability: suitable for decorative models, prototypes and small functional parts.
• Low viscosity: the resin flows well in the vat, returns under the model quickly and helps reduce bubbles.
• Wide compatibility: suitable for LCD, MSLA and DLP resin 3D printers using 365-405 nm / 405 nm UV curing after exposure calibration.

🧬 Technical Specifications

Parameter	Value
Material type	Photopolymer resin
Color	White
HEX	#EFF0F1
Net weight	1 kg
Material	Photopolymer Resin
Wavelength	365-405 nm
Printing technology	LCD / MSLA / DLP
Viscosity	150-250 mPa·s at 25 ℃
Density	1.15-1.20 g/cm³
Hardness	80-83 HD
Tensile strength	36-52 MPa
Elongation at break	11-20%
Flexural modulus	59-70 MPa
Flexural strength	1200-1600 MPa
Young’s modulus	1300-1500 MPa
Izod impact strength	83 J/m
Volume shrinkage	3.72-4.24%
Printing temperature	20-50 ℃
Recommended print environment	20-40 ℃
First layer exposure duration	23-40 s
Normal exposure duration	2-2.5 s
Cleaning	95% IPA / isopropyl alcohol
Washing duration	≥3 mins
Post-curing	405 nm, 18-30 ℃, 3 mins

⚙️ Recommended Printing Parameters

The settings below are starting values. Individual exposure calibration may be required depending on the printer, LCD screen condition, room temperature, release film, layer thickness and model geometry.

Printer Model	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Z Lift Distance	Z Lift Speed	Z Retract Speed	Anti-Aliasing Level	Layer Thickness
Photon P1	2.1 s	2 s	35 s	1	5 mm	3 mm/s	3 mm/s	4	0.05 mm
Photon Mono M7	2.2 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M7 Pro	1.8 s	0.5 s	40 s	3	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M7 Max	2 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5s	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5s Pro	3.6 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4	2.8 s	1 s	30 s	5	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4 Ultra	2.6 s	1 s	30 s	5	5 mm	8 mm/s	8 mm/s	1	0.05 mm
Photon Mono 2	2.5 s	1 s	25 s	5	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono X2	2.5 s	0.5 s	20 s	5	8 mm	2 mm/s	3 mm/s	1	0.05 mm
Photon Mono X 6K	2 s	0.5 s	40 s	8	8 mm	2 mm/s	3 mm/s	1	0.05 mm
Photon Mono X6Ks	2.5 s	1 s	20 s	5	8 mm	2 mm/s	3 mm/s	1	0.05 mm
ANYCUBIC Photon M3 Max	3 s	2.5 s	35 s	6	8 mm	3 mm/s	4 mm/s	1	0.05 mm
ANYCUBIC Photon M3 Premium	2.5 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s	1	0.05 mm

🖥️ Resin 3D Printer Compatibility

Anycubic DLP Craftsman Resin White is compatible with LCD, MSLA and DLP resin 3D printers that use 365-405 nm / 405 nm UV curing. Compatibility depends on wavelength, light source power, release film condition, layer thickness, temperature and a properly calibrated exposure profile.

• Anycubic Photon P1, Photon Mono M7, Photon Mono M7 Pro, Photon Mono M7 Max.
• Anycubic Photon Mono M5, Photon Mono M5s, Photon Mono M5s Pro.
• Anycubic Photon Mono 4, Photon Mono 4 Ultra, Photon Mono 2.
• Anycubic Photon Mono X2, Photon Mono X 6K, Photon Mono X6Ks.
• Anycubic Photon M3 Max, Photon M3 Premium and other 405 nm models.
• Elegoo Mars, Saturn, Jupiter series.
• Phrozen Sonic series.
• Creality HALOT series.
• Uniformation GK series.
• Nova3D, Peopoly and other LCD/MSLA/DLP resin printers after calibration.
• Not suitable for FDM/FFF 3D printers that use PLA, PETG, ABS, ASA or TPU filament.

🎯 Best Applications

• detailed miniatures and collectible figures;
• anime, game and tabletop models;
• architectural models and display models;
• jewelry prototypes and artistic objects;
• models intended for priming and painting;
• precise accessories and small functional parts;
• casing prototypes, engineering elements and visual samples.

🔆 Post-Processing

• Use nitrile gloves, eye protection and ventilation before handling uncured resin.
• After printing, wash the model in 95% IPA for at least 3 minutes.
• Do not leave the model in alcohol for too long to avoid surface quality degradation.
• Dry the model thoroughly after washing.
• Post-cure the model with 405 nm UV light for about 3 minutes.
• After full curing, the model can be sanded, primed and painted.

📄 Documentation and File Downloads

• MSDS / SDS — material safety data sheet.
• TDS — technical data sheet.
• REACH — REACH / SVHC report for the submitted sample.
• RoHS — RoHS compliance report for the submitted sample.

🛡️ Safety and Storage

Liquid photopolymer resin must be handled carefully. The manufacturer describes it as low-odor, but this does not mean vapor-free. Work in a well-ventilated area, avoid skin and eye contact, do not breathe vapors and do not release uncured resin into drains or the environment.

• Use protective gloves, eye protection and protective clothing.
• Store the bottle tightly closed, away from sunlight and heat sources.
• Shake the bottle well before use.
• If pigment settles, stir the resin with a plastic spatula or shake the bottle.
• Do not exceed the maximum fill line of the resin vat.
• Cure resin residues and contaminated consumables completely with UV light before disposal.

❓ FAQ





Is Anycubic DLP Craftsman Resin White suitable for miniatures?

Yes. White DLP Craftsman Resin is suitable for miniatures, figures and models with fine details. The light color is convenient for painting, priming and visual inspection of the model shape.

Is this resin only for DLP printers?

No. Despite the DLP Craftsman Resin name, it is suitable for LCD, MSLA and DLP 3D printers using 365-405 nm / 405 nm UV curing after proper exposure calibration.

Why is white useful for models intended for painting?

A white surface creates a light base for priming and painting. It makes it easier to inspect shape, surface smoothness, sanding defects and preparation quality before final finishing.

How should printed models be cleaned?

95% IPA / isopropyl alcohol is recommended. After washing, dry the model and complete UV post-curing.

Does this resin have an odor?

The manufacturer describes it as low-odor, but it should still be used in a ventilated area with gloves and eye protection.

Is this resin suitable for FDM printers?

No. This is a liquid photopolymer resin for LCD, MSLA and DLP resin printers. It is not suitable for FDM/FFF printers that use filament.

Is exposure calibration required?

Yes. Even with recommended settings, exposure should be calibrated for the specific printer, temperature, release film condition, LCD screen condition and model geometry.





🚀 Why Buy

Anycubic DLP Craftsman Resin White 1 kg is a practical white photopolymer resin for precise 3D printing on LCD, MSLA and DLP printers. It is suitable for miniatures, figures, architectural models, prototypes, decorative models and parts intended for painting. The white color is convenient for priming and painting, while the material properties support stable printing and clean post-processing.
