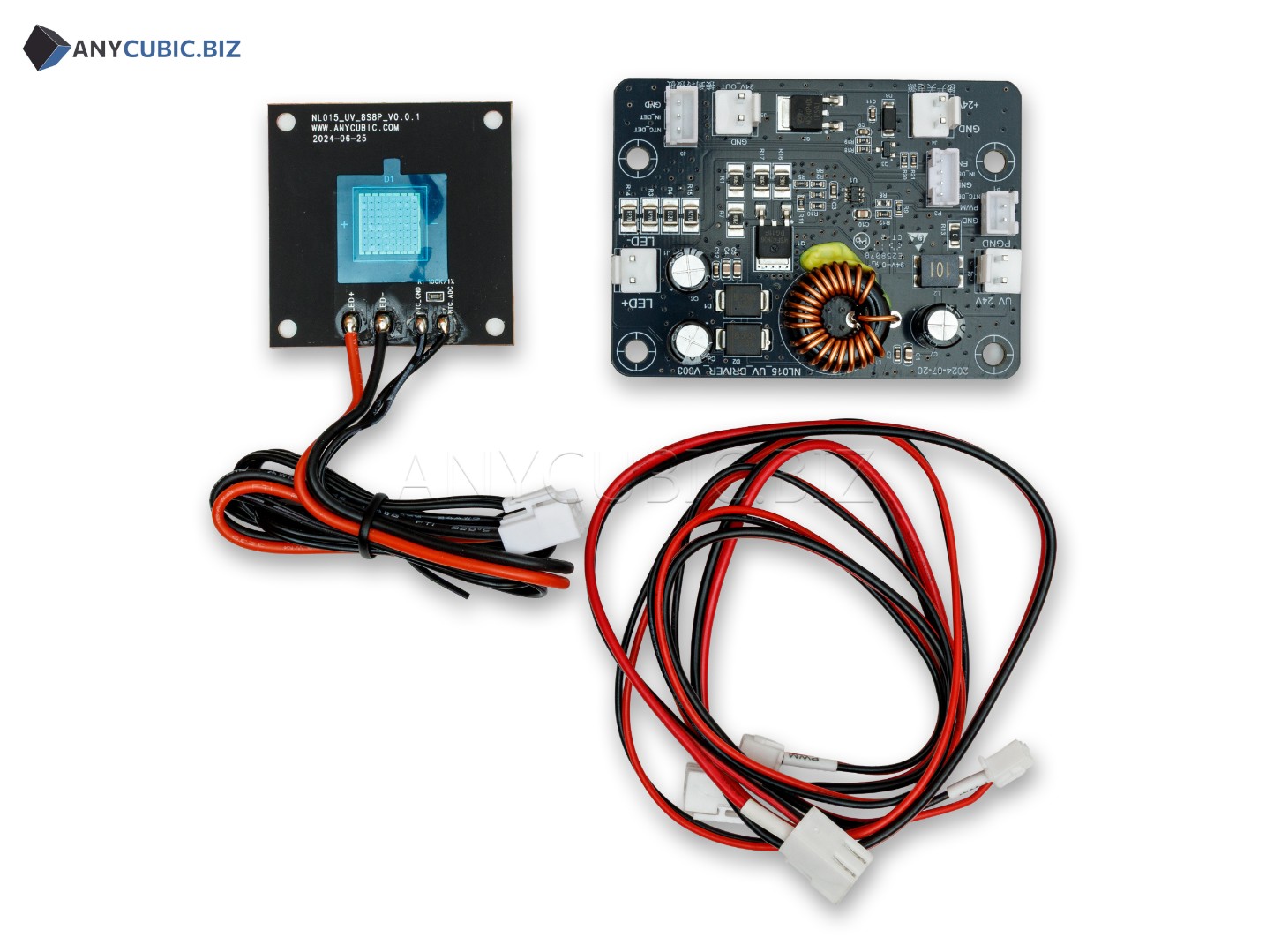

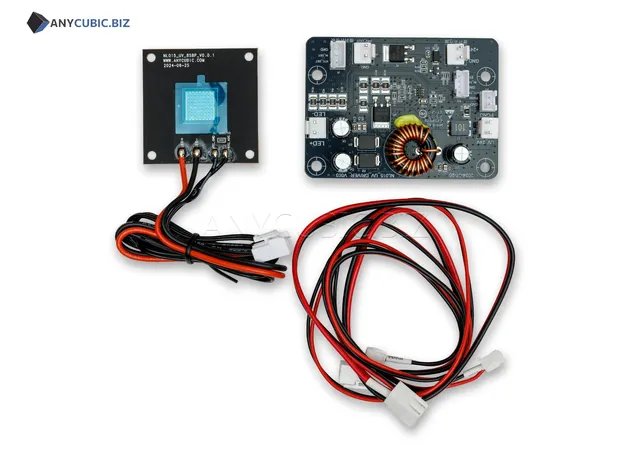

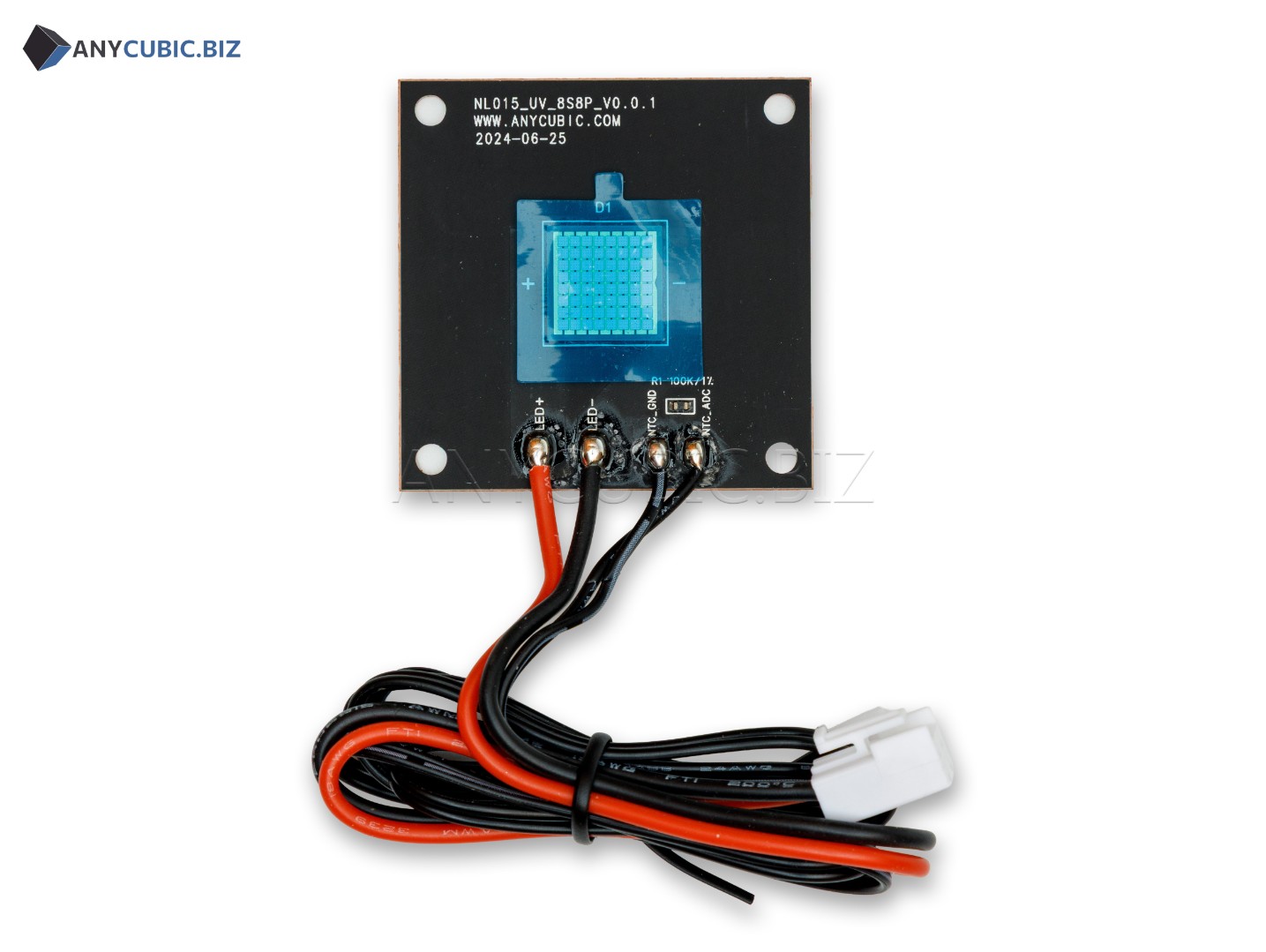

UV LED Module for Anycubic Photon Mono M7 Max
Description
UV LED Module for Anycubic Photon Mono M7 Max is a replacement light module for the Anycubic Photon Mono M7 Max resin 3D printer. The part is responsible for ultraviolet exposure of photopolymer resin during printing and is one of the key components of the layer curing system.
UV LED Module M7 Max is used for printer repair when UV exposure becomes weak, resin curing is unstable, exposure is uneven, layer defects appear or the light module fails completely. Replacing the module helps restore stable printer operation, uniform exposure and print accuracy.
A properly working UV LED module is important for resin print quality. Model detail, contour sharpness, correct resin curing, absence of layer gaps and print repeatability depend on light source stability when printing large models, miniatures, prototypes and functional parts.
Advantages
- Compatible with Anycubic Photon Mono M7 Max
- Used for UV exposure of photopolymer resin
- Helps restore stable layer curing
- Suitable for printer repair and service maintenance
- Important spare part for accurate resin LCD 3D printing
- Helps solve weak or uneven UV exposure problems
- Suitable for restoring print quality after light module wear
- Used for diagnostics and repair of the printer exposure system
Technical Specifications
| Product name | UV LED Module for Anycubic Photon Mono M7 Max |
| Full product name | UV LED Module M7 Max |
| SKU | S020287 |
| Part type | UV LED module, light module, exposure module |
| Compatibility | Anycubic Photon Mono M7 Max |
| Printer type | LCD resin 3D printer |
| Purpose | Ultraviolet exposure and curing of photopolymer resin |
| Category | Spare parts and accessories for Anycubic resin 3D printers |
When to Replace the UV LED Module
- Resin does not cure properly during printing
- Layer defects appear on printed models
- Exposure becomes weak or uneven
- The printer does not expose the layer
- The light module does not work correctly after an exposure test
- Printing becomes unstable with previous resin settings
- Printed parts show lines, gaps or areas with incomplete curing
- Diagnostics confirm a UV light module fault
Compatibility
This UV LED module is intended for Anycubic Photon Mono M7 Max. Before ordering, check the printer model and part number S020287. Anycubic Photon Mono M7, Photon Mono M7 Pro, Photon Mono M5s, Photon Mono M5s Pro, Photon Mono 4 Ultra and other models may require different light modules.
Important Difference
This product is intended specifically for Anycubic Photon Mono M7 Max and has SKU S020287. Photon Mono M7 and Photon Mono M7 Pro use different UV LED module variants, so the printer model and part number should be checked before ordering.
Installation Recommendations
- Turn off the printer completely and disconnect the power cable before replacement
- Remove the build platform and resin vat before disassembly
- Do not install the module while power is connected
- Take a photo of cable and connector positions before removing the old module
- Do not touch electronic components with wet or dirty hands
- Do not allow resin to get on the module, board or connectors
- After installation, check UV exposure with an exposure test
- If you do not have electronics or 3D printer repair experience, contact a qualified technician
Usage Recommendations
- Keep the LCD screen, resin vat and optical area clean
- Do not allow resin to leak inside the printer body
- Use correct exposure settings for the selected resin
- Do not start printing if cured resin remains on the film or screen
- After replacing the module, run a test print
- Clean dust and resin residue from the working area regularly
- If exposure quality changes, check the screen, cables, board and UV module
- Do not continue printing if burning smell, overheating or unstable electronics operation appears
Suitable Applications
- Repair of Anycubic Photon Mono M7 Max
- Replacement of a faulty UV LED module
- Restoration of stable photopolymer resin exposure
- Service maintenance of a resin 3D printer
- Solving layer curing problems
- Restoring print quality for large models
- Printing miniatures, prototypes, master models and functional parts
- Diagnostics and repair of the printer light source system
FAQ
Is this UV LED module compatible with Anycubic Photon Mono M7 Max
Yes, UV LED Module M7 Max is intended for Anycubic Photon Mono M7 Max.
What is the SKU of UV LED Module M7 Max
The SKU of this part is S020287.
What does the UV LED module do
The UV LED module provides ultraviolet exposure for photopolymer resin and helps form each printed layer during resin 3D printing.
When should the UV LED module be replaced
Replacement is needed when UV exposure becomes weak, curing is uneven, layer defects appear, exposure is missing or diagnostics confirm a light module fault.
Is this module compatible with Photon Mono M7 Pro
No, this product is listed for Photon Mono M7 Max. Photon Mono M7 Pro requires a separately compatible UV LED module.
Is this module compatible with Photon Mono M7
No, this product is listed for Photon Mono M7 Max. Photon Mono M7 uses another light module variant.
Should exposure settings be checked after replacement
Yes, after replacing the light module, run an exposure test and a test print to confirm stable resin curing.
