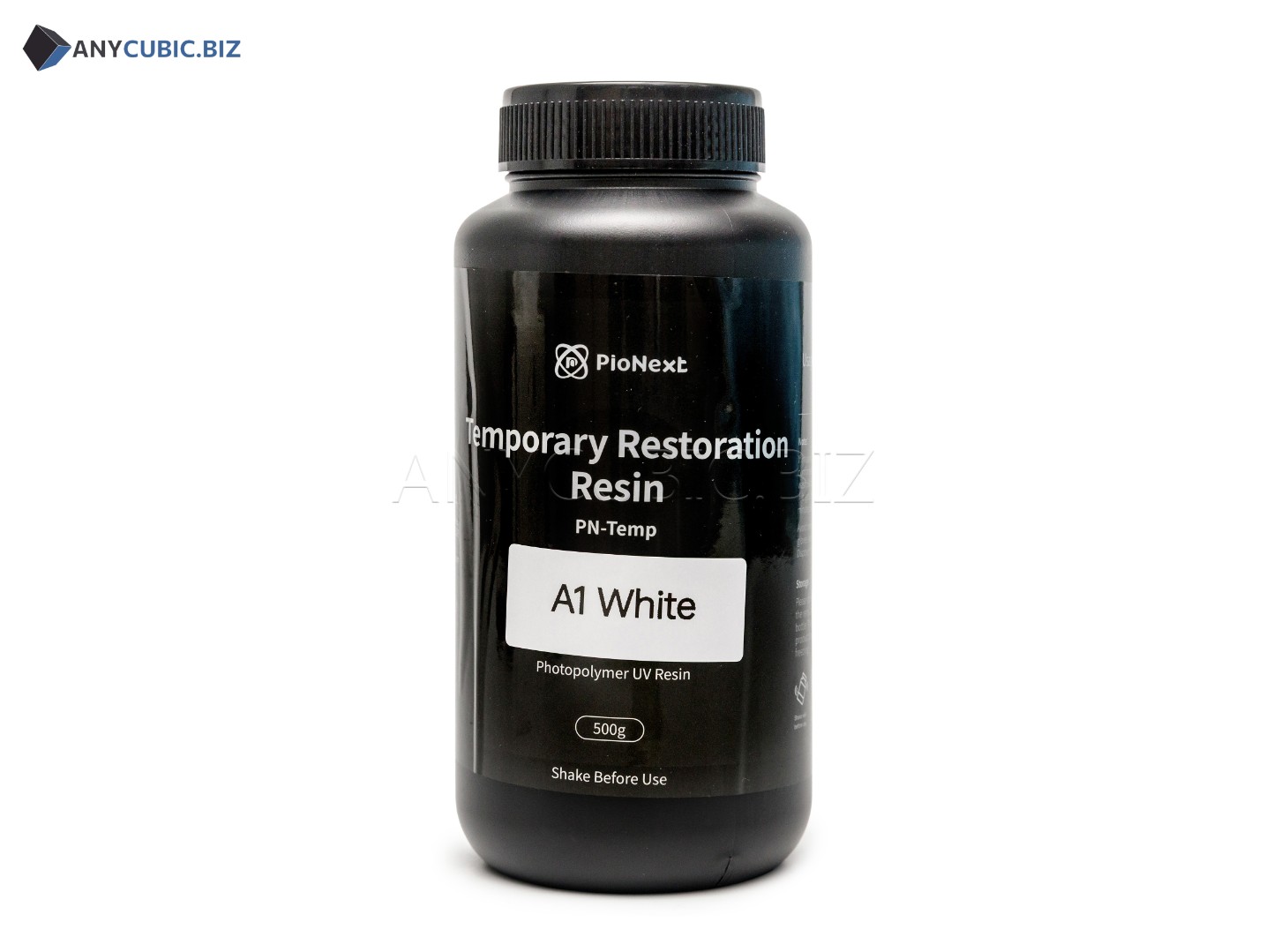

Temporary Restoration Resin PioNext A1 White 0.5KG

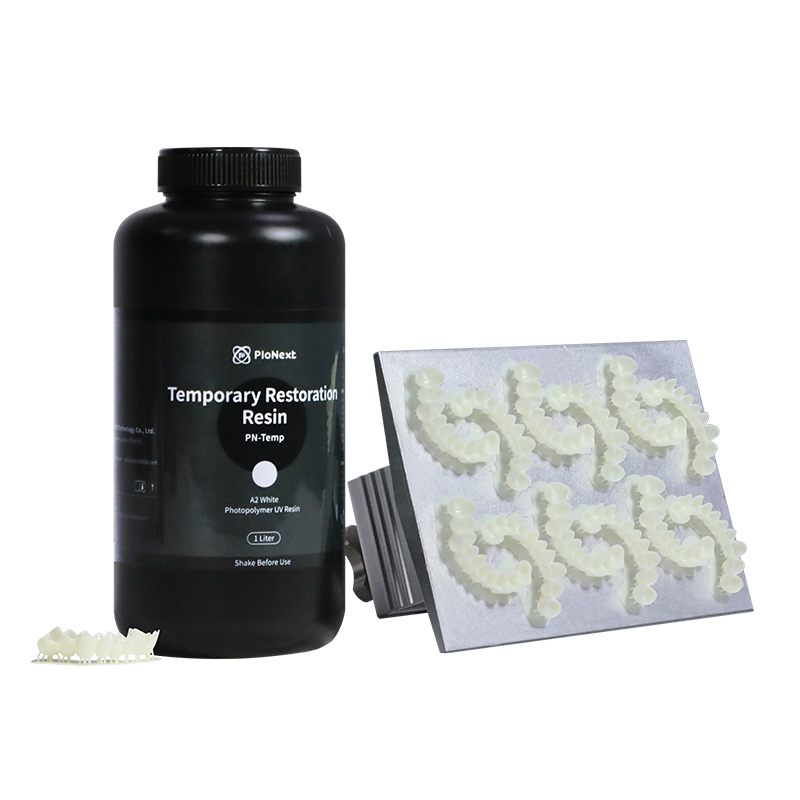

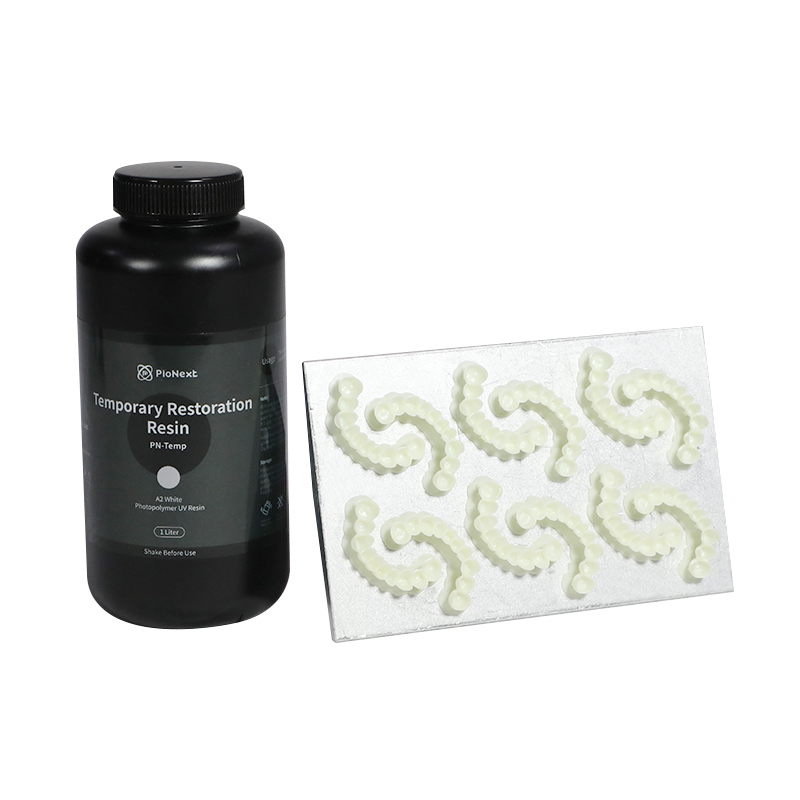

Temporary Restoration Resin PioNext A1 White 0.5KG is a UV curable resin for 3D printing temporary crowns, temporary bridges, try in models, and other dental restoration applications. The material is designed for cases where high accuracy, dimensional stability, low shrinkage, good polishability, and a natural tooth shade are important.
Features and Benefits
- A1 White shade for aesthetic temporary restorations
- High hardness after curing
- High flexural and tensile strength
- Low shrinkage
- Low water absorption
- Good temperature resistance
- Scratch resistant surface
- High printing accuracy
- Easy to polish
- Suitable for temporary crowns and bridges
- Compatible with LCD and DLP printers

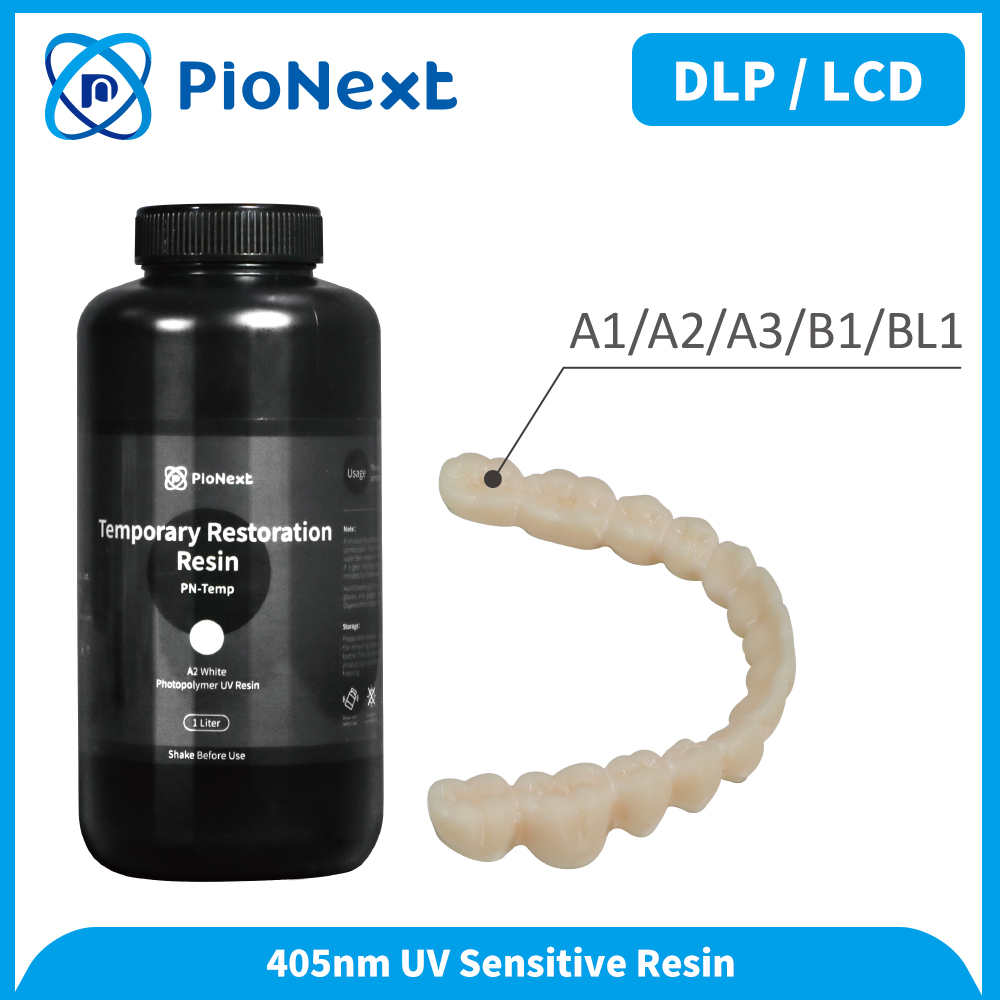

Available Colors in the Series

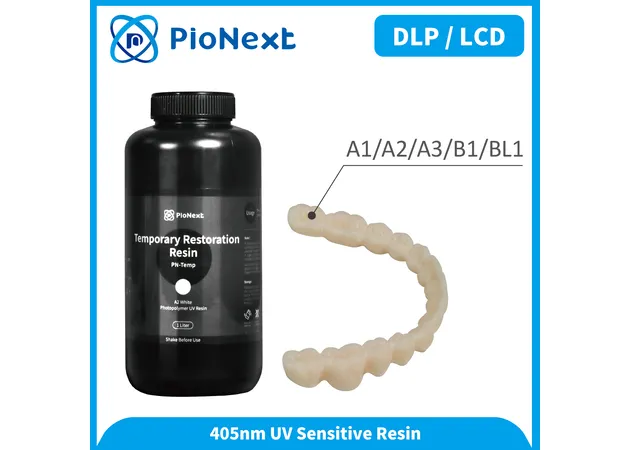

The Temporary Restoration Resin series is available in A1, A2, A3, B1, and BL shades. This page is prepared for the A1 White 0.5KG version.
Applications
- Temporary crowns
- Temporary bridges
- Try in models
- Temporary tooth restoration
- Transitional treatment
- Dental restoration fabrication
Technical Specifications
| Parameter | Value |
|---|---|
| Variant | A1 White |
| Packaging | 0.5KG |
| Viscosity at 25 C | 700 - 900 cps |
| Density at 25 C | 1.05 - 1.10 g/cm3 |
| Hardness | 85 - 90 Shore D |
| Flexural Modulus | 2000 - 3000 MPa |
| Flexural Strength | 100 - 140 MPa |
| Tensile Modulus | 1100 - 1500 MPa |
| Tensile Strength | 65 - 85 MPa |
| Elongation at Break | 10 - 15 % |
| Impact Strength Notched Izod | 75 - 85 J/m |
| Heat Deflection Temperature | 80 - 90 C |
| Water Absorption | Less than 1.5 % |
Performance Data from the Manufacturer Presentation
| Parameter | Claimed Value |
|---|---|
| Hardness | More than D90 |
| Flexural Modulus | More than 2200 MPa |
| Flexural Strength | More than 120 MPa |
| Tensile Modulus | More than 700 MPa |
| Tensile Strength | More than 80 MPa |
| Elongation at Break | More than 8 % |
| Water Absorption | Less than 1.5 % |
| Cytotoxicity | ISO 10993-5 |
| Allergenicity | ISO 10993-10 |
| Irritant | ISO 10993-10 |
| Material Certification | FDA and NMPA in process |
Recommended Starting Print Parameters for Anycubic
| Printer | Layer Thickness | Base Layer Exposure | Normal Layer Exposure | Lift Speed |
|---|---|---|---|---|
| Anycubic Photon Mono M5s | 0.05 mm | 70 s | 3.3 s | 5 mm/s |
| Anycubic M7 Pro | 0.05 mm | 70 s | 2.3 s | 7 mm/s |
| Anycubic DLP D2 | 0.05 mm | 40 s | 3.8 s | 5 mm/s |

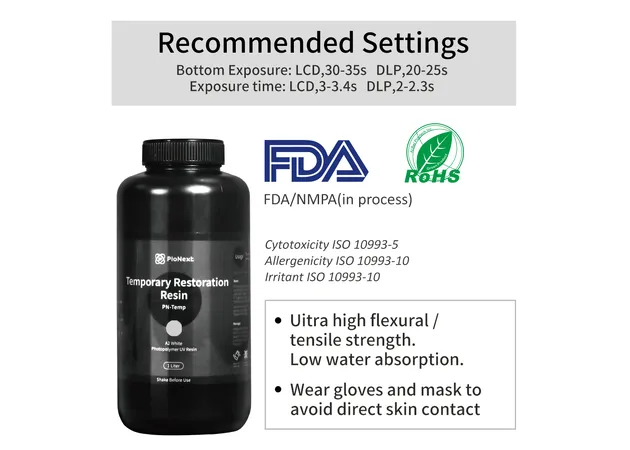

General Print Parameters
| Equipment Type | Layer Thickness | Base Layer Exposure | Normal Layer Exposure | Lift Speed |
|---|---|---|---|---|
| LCD | 0.05 - 0.1 mm | 30 - 35 s | 3.0 - 3.4 s | 3 - 4 mm/s |
| DLP | 0.05 - 0.1 mm | 20 - 25 s | 2.0 - 2.3 s | 3 - 4 mm/s |
UV Post Processing Recommendations
| Device | Wavelength | Light Intensity | Recommended Time | Curing in Water or Without |
|---|---|---|---|---|
| UV02 | 365 + 385 + 405 nm | 100 % | 20 - 25 min | Yes |
These values are starting points only. Final settings should be adjusted according to the printer model, resin temperature, room conditions, model geometry, and the required strength of the finished temporary restoration.
Dental Applications
- Dental temporary crown
- Dental temporary bridge
- Temporary tooth restoration
- Trial fitting
- Transitional treatment
- Restoration fabrication
Post Processing
- Clean the model with absolute ethanol or isopropanol using low frequency ultrasonic cleaning.
- Do not use high frequency cleaning and do not scrub the model to avoid damaging the surface.
- Remove residual liquid from the surface using air or a hair dryer.
- It is recommended to remove the main supports before final post curing and remove fine support marks after curing.
- Additional curing time should be adjusted according to the selected post curing mode.
Storage
Store below 25 C in a place protected from light. Do not leave the material under sunlight, in a humid environment, or near corrosive substances. Shelf life is 18 months.
Safety Information
- This material is for one time use and cannot be reused.
- Ensure good ventilation and proper protective measures during use.
- If the material gets into the eyes, rinse immediately with plenty of clean water and seek medical attention.
- If the material contacts skin, remove contaminated clothing and wash the area thoroughly with soap and water.
- The material is not intended for contact with food or drink.
- Refer to the manufacturer MSDS for additional information.
