UV LED Module for Anycubic Photon M3 Max
Description
UV LED Module for Anycubic Photon M3 Max is a replacement light module for the Anycubic Photon M3 Max resin 3D printer. The part is responsible for ultraviolet exposure of photopolymer resin during printing and is one of the key components of the layer curing system.
Photon M3 Max UV LED Module is used for printer repair when UV exposure becomes weak, resin curing is unstable, exposure is uneven, layer defects appear or the light module fails. Replacing the module helps restore stable printer operation, uniform exposure, print accuracy and correct photopolymer resin curing.
A properly working UV LED module is especially important for Anycubic Photon M3 Max because this printer is used for large models, prototypes, miniatures, master models and functional parts. Model detail, contour sharpness, absence of layer gaps and repeatable print results depend on the stability of the UV light source.
Advantages
- Compatible with Anycubic Photon M3 Max
- Used for UV exposure of photopolymer resin
- Helps restore stable layer curing
- Suitable for printer repair and service maintenance
- Important spare part for accurate resin LCD 3D printing
- Helps solve weak or uneven UV exposure problems
- Suitable for restoring print quality after light module wear
- Used for diagnostics and repair of the printer exposure system
Technical Specifications
| Product name | UV LED Module for Anycubic Photon M3 Max |
| Full product name | Photon M3 Max UV LED Module |
| SKU | S020198 |
| Part type | UV LED module, light module, exposure module |
| Compatibility | Anycubic Photon M3 Max |

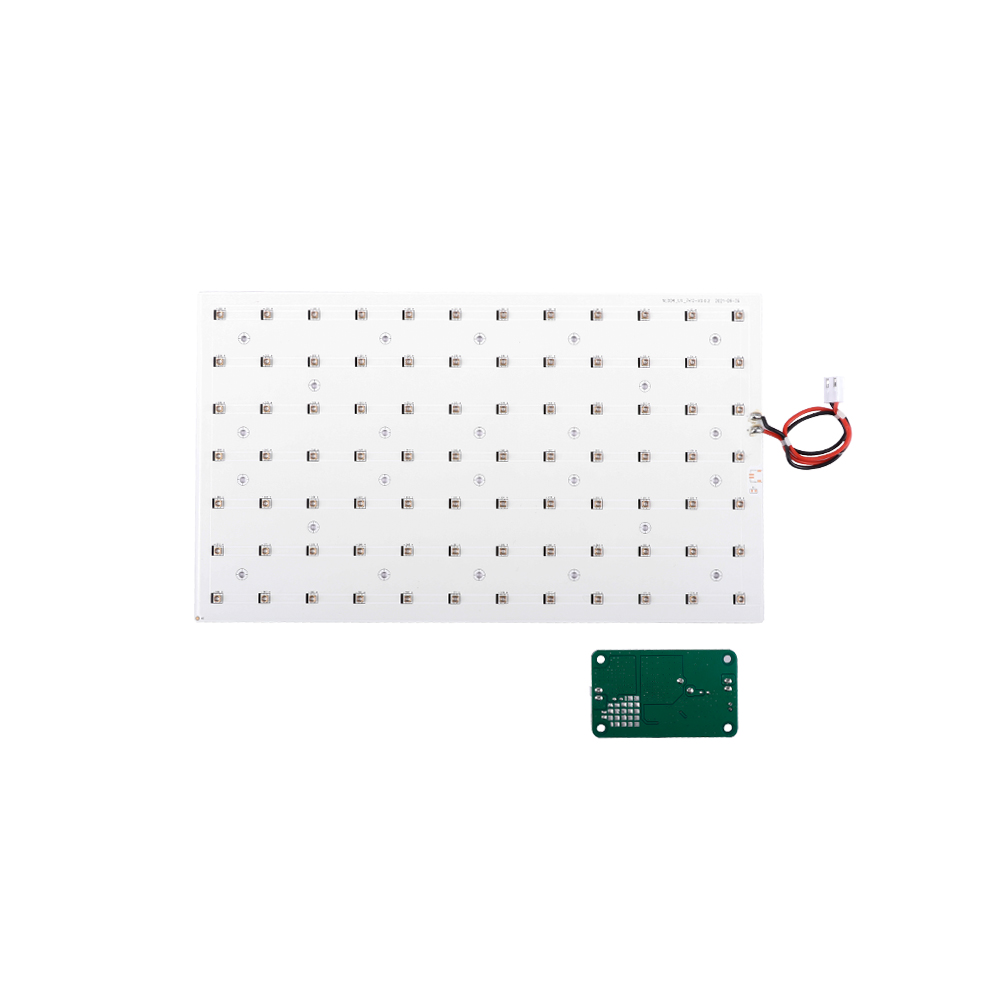

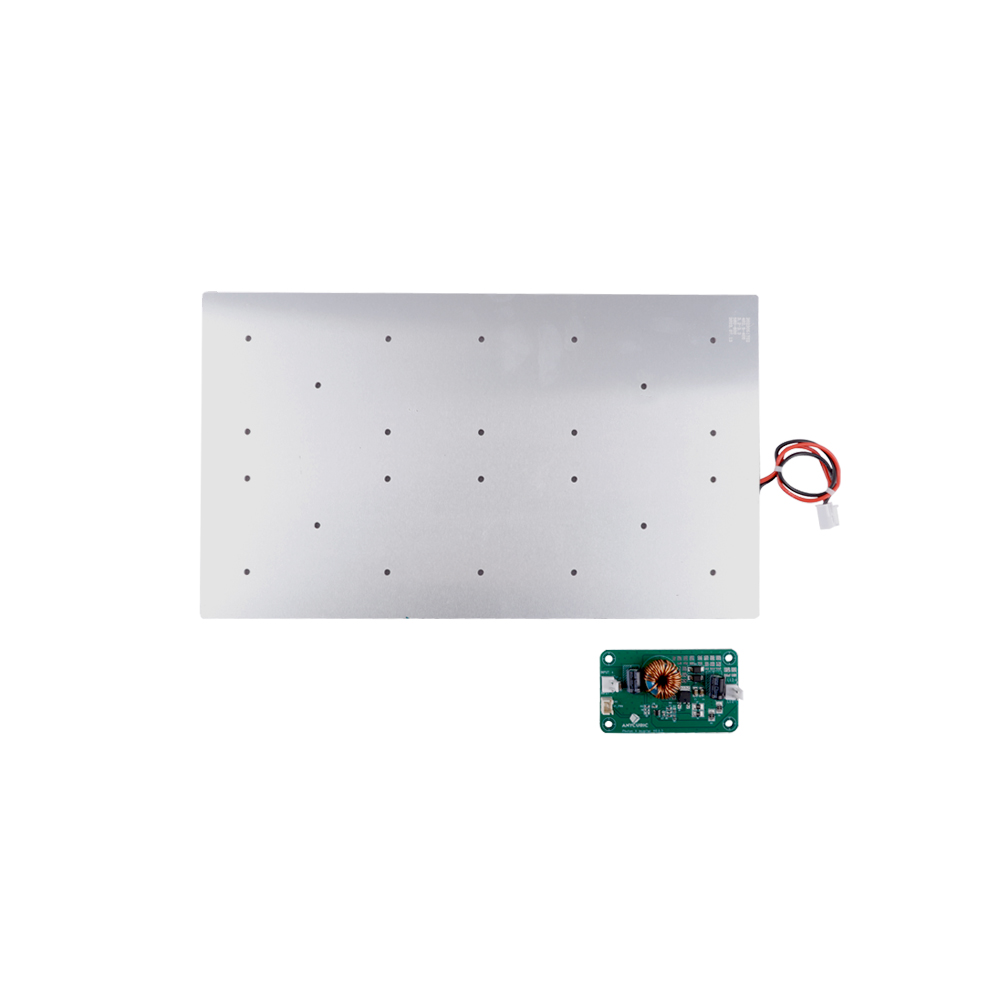

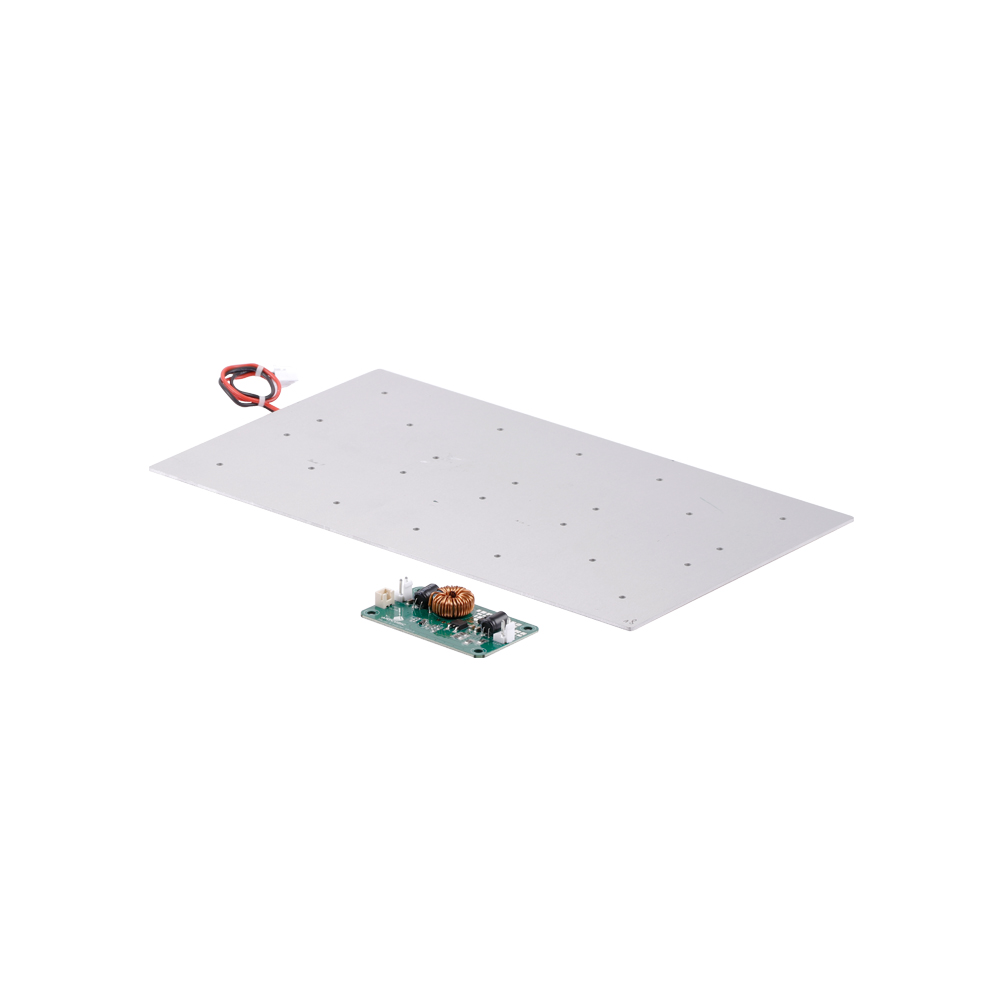

| In the package | UV Driver Board PCBA and UV Light Board |
| Weight | 489 g |
| Module size | 448 x 228 x 36 mm |
| Printer type | LCD resin 3D printer |
| Purpose | Ultraviolet exposure and curing of photopolymer resin |
| Category | Spare parts and accessories for Anycubic resin 3D printers |
When to Replace the UV LED Module
- Resin does not cure properly during printing
- Layer defects appear on printed models
- Exposure becomes weak or uneven
- The printer does not expose the layer
- The light module does not work correctly after an exposure test
- Printing becomes unstable with previous resin settings
- Printed parts show lines, gaps or areas with incomplete curing
- Diagnostics confirm a UV light module fault
Compatibility
This UV LED module is intended for Anycubic Photon M3 Max. Before ordering, check the printer model, part number S020198 and old module appearance. Anycubic Photon M3, Photon M3 Plus, Photon Mono M7, Photon Mono M7 Pro, Photon Mono M7 Max and other models may require different light modules.
Important Difference
This product is intended specifically for Anycubic Photon M3 Max and has SKU S020198. Other Photon and Photon Mono series models use different UV LED module variants. The printer model, part number and old module connectors should be checked before ordering.
Installation Recommendations
- Turn off the printer completely and disconnect the power cable before replacement
- Remove the build platform and resin vat before disassembly
- Do not install the module while power is connected
- Take a photo of cable and connector positions before removing the old module
- Do not touch electronic components with wet or dirty hands
- Do not allow resin to get on the module, board or connectors
- After installation, check UV exposure with an exposure test
- If you do not have electronics or 3D printer repair experience, contact a qualified technician
Usage Recommendations
- Keep the LCD screen, resin vat and optical area clean
- Do not allow resin to leak inside the printer body
- Use correct exposure settings for the selected resin
- Do not start printing if cured resin remains on the film or screen
- After replacing the module, run a test print
- Clean dust and resin residue from the working area regularly
- If exposure quality changes, check the screen, cables, board and UV module
- Do not continue printing if burning smell, overheating or unstable electronics operation appears
Suitable Applications
- Repair of Anycubic Photon M3 Max
- Replacement of a faulty UV LED module
- Restoration of stable photopolymer resin exposure
- Service maintenance of a resin 3D printer
- Solving layer curing problems
- Restoring print quality for large models
- Printing miniatures, prototypes, master models and functional parts
- Diagnostics and repair of the printer light source system
FAQ
Is this UV LED module compatible with Anycubic Photon M3 Max
Yes, this module is intended for Anycubic Photon M3 Max.
What is the SKU of Photon M3 Max UV LED Module
The SKU of this part is S020198.
What is included in the package
This product is listed with UV Driver Board PCBA and UV Light Board.
What does the UV LED module do
The UV LED module provides ultraviolet exposure for photopolymer resin and helps form each printed layer during resin 3D printing.
When should the UV LED module be replaced
Replacement is needed when UV exposure becomes weak, curing is uneven, layer defects appear, exposure is missing or diagnostics confirm a light module fault.
Is this module compatible with Photon M3 Plus
No, this product is listed for Photon M3 Max. Photon M3 Plus requires a separately compatible module.
Should exposure settings be checked after replacement
Yes, after replacing the light module, run an exposure test and a test print to confirm stable resin curing.
