Lead Screw Motor for Anycubic Photon M3 Max 3D Printer
Anycubic Photon M3 Max Lead Screw Motor is a replacement stepper motor for the Anycubic Photon M3 Max resin 3D printer. This part is used in the Z axis movement system and helps move the build platform up and down during LCD MSLA printing. Stable Z axis motion is essential for layer accuracy, smooth model lifting and reliable resin printing.
This motor is used for repair and maintenance when the printer has Z axis movement problems, unstable platform lifting, unusual motor noise, layer height issues or failed prints caused by incorrect platform movement. For a large format resin printer such as Photon M3 Max, correct Z axis operation is especially important because the build platform and large resin models create higher mechanical load during printing.
Main advantages
- Compatible with Anycubic Photon M3 Max
- Replacement motor for the Z axis movement system
- Suitable for build platform lifting mechanism repair
- Helps restore smooth platform movement
- Useful when the printer has lifting issues, vibration or unstable motion
- Suitable for service repair and maintenance
- Important spare part for accurate operation of the large format Photon M3 Max
Technical specifications
| Product type | Z axis lead screw motor |
| Product name | Anycubic Photon M3 Max Lead Screw Motor |
| Official Anycubic category | Motor |
| SKU | S020197 |
| Compatible printer | Anycubic Photon M3 Max |

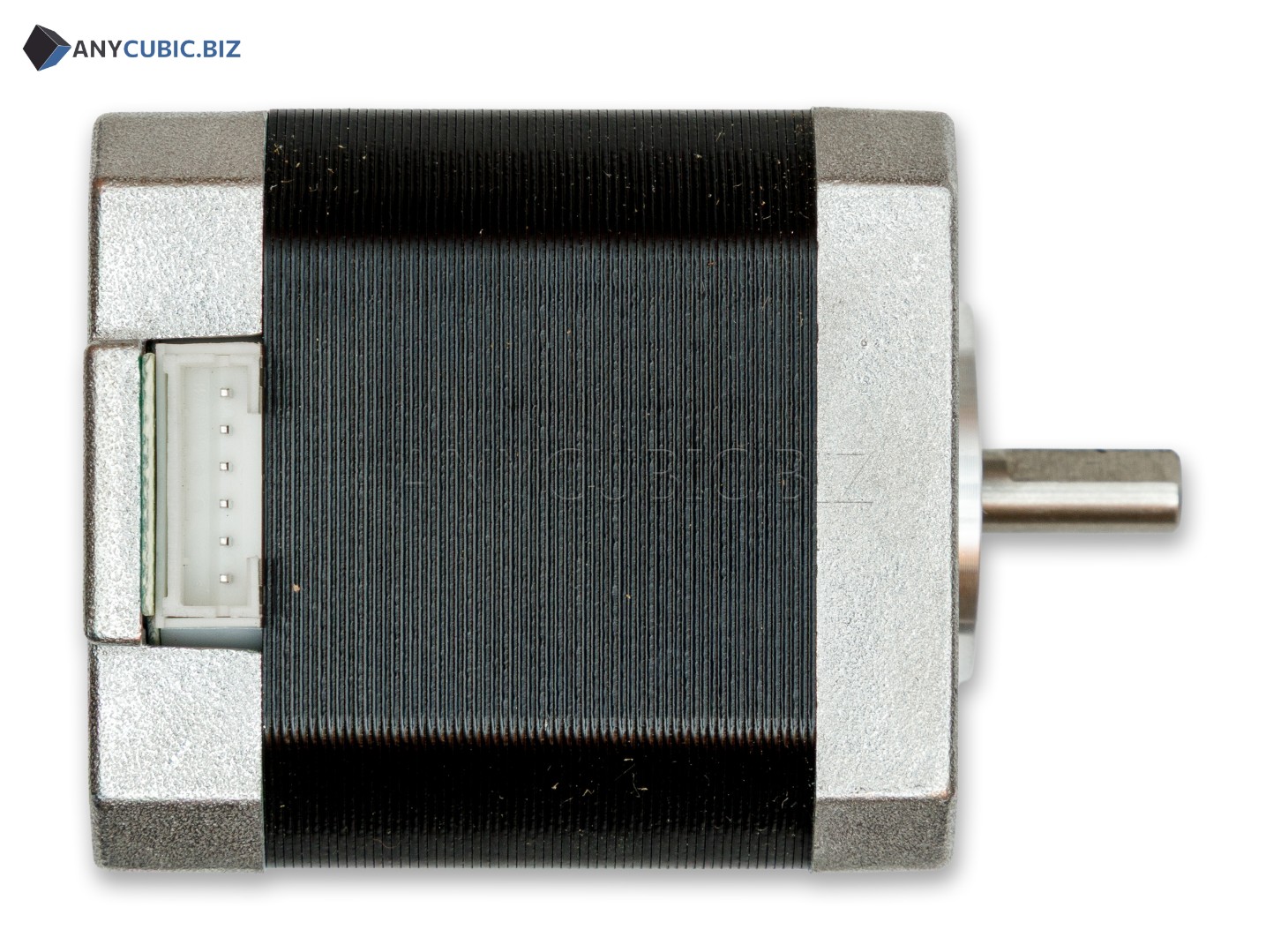

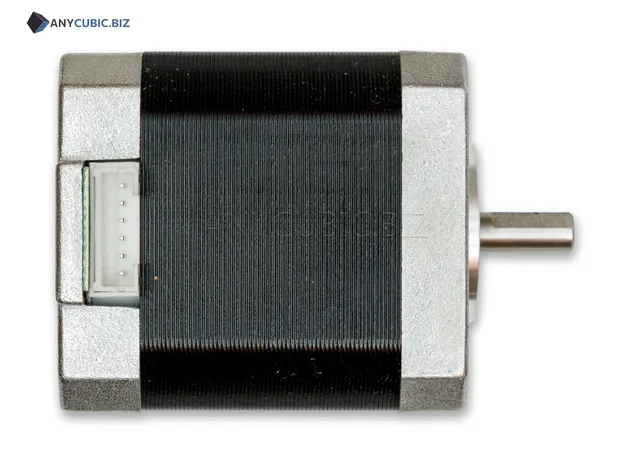

| Motor type | Stepper motor |
| Motor size | 42 x 42 x 48 mm |
| Shaft length | 12 mm |
| Weight | 397 g |
| Package dimensions | 116 x 72 x 70 mm |
| Main purpose | Build platform movement along the Z axis during resin printing |
| Printer type | LCD MSLA resin 3D printer |
When to replace the motor
- The build platform does not move up or down
- The Z axis moves unevenly or with delays
- The motor makes grinding, clicking or unusual noise
- Printing stops because of platform movement problems
- Layer consistency becomes unstable
- The platform gets stuck in one position
- The motor starts working unstably after resin contamination
- The printer turns on, but the Z axis does not respond to commands
Important compatibility note
This motor is designed for Anycubic Photon M3 Max. It should not be automatically used for Photon M3, Photon M3 Plus, Photon M3 Premium, Photon Mono M5s, Photon Mono M7 or other Photon series printers. Different models may use different shaft length, motor parameters, housing size, connector type and Z axis mechanism design.
Replacement recommendations
- Turn off the printer and disconnect the power cable before replacement.
- Drain resin from the vat and remove the build platform to avoid contamination.
- Secure or mark Z axis parts before disassembly.
- Disconnect the motor cable carefully without damaging connectors.
- Check the lead screw, guides and mechanism for cured resin residue.
- After installation, test platform movement without the vat and without a model.
- Level the build platform before the first print after repair.
- If you do not have experience with electronics and 3D printer mechanics, service installation is recommended.
FAQ
Which printer is this motor compatible with?
This motor is designed for the Anycubic Photon M3 Max resin 3D printer.
What is the SKU of this product?
The product SKU is S020197.
Is this a Z axis motor?
Yes. This part is used in the Z axis build platform movement system.
What is the motor size?
The official parameter for Photon M3 Max is Stepper motor 42 x 42 x 48 mm, shaft length 12 mm.
When should the Lead Screw Motor be replaced?
Replacement may be needed when the build platform does not move, moves unevenly, the motor makes noise, the Z axis gets stuck or platform movement errors appear.
Is it compatible with Photon M3 Plus or Photon M3 Premium?
No. This item is listed for Photon M3 Max. Photon M3 Plus and Photon M3 Premium require their own compatible replacement parts.
