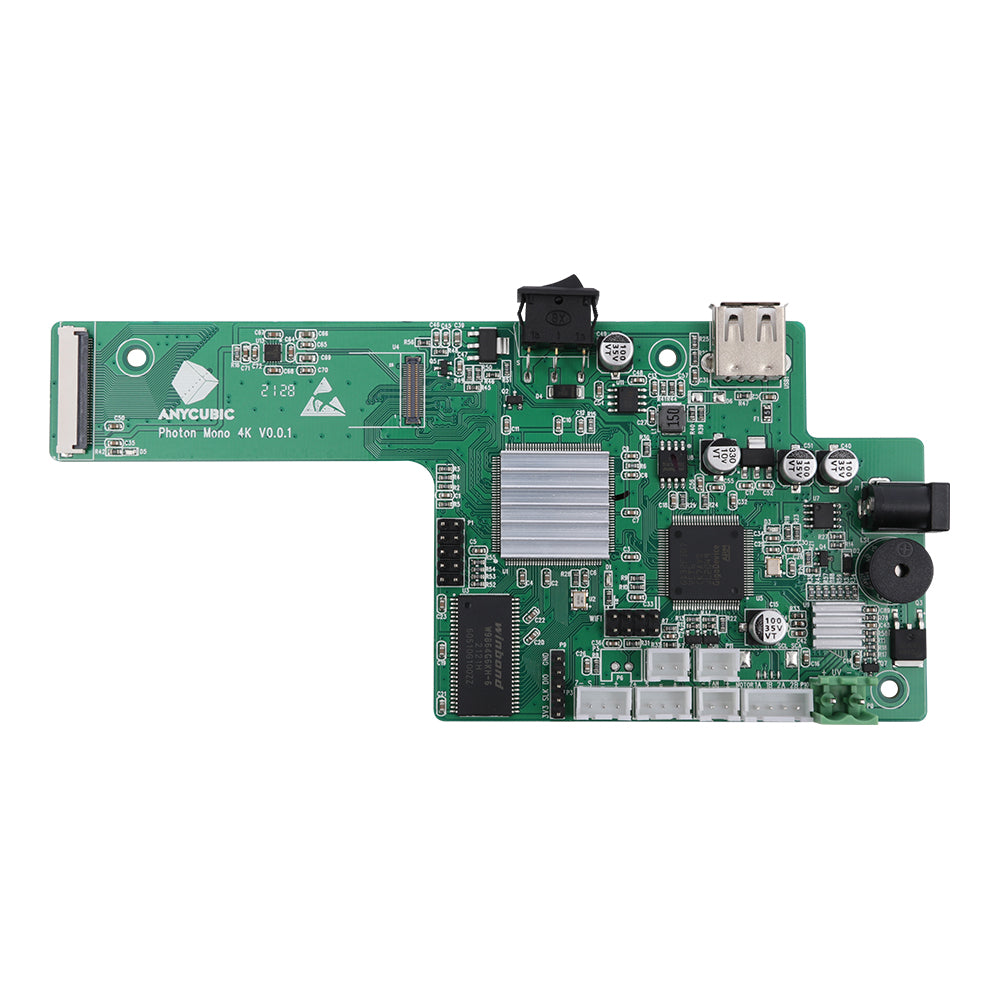

Motherboard for Anycubic Photon Mono 4K
Description
Motherboard for Anycubic Photon Mono 4K is a replacement electronic control module for the Anycubic Photon Mono 4K resin 3D printer. The board coordinates the main printer systems, including the screen, UV light source, Z axis, touch control, fans, power system and other electronic components.
Motherboard for Photon Mono 4K is used for printer repair when the original mainboard is faulty, startup problems appear, control failures occur, the screen works unstable, the UV light system does not operate correctly or communication between electronic units is interrupted. Replacing the motherboard helps restore correct printer operation without purchasing a new machine.
Advantages
- Compatible with Anycubic Photon Mono 4K
- Used to restore printer electronic operation
- Helps solve control and startup problems
- Suitable for service repair of a resin 3D printer
- Important spare part for stable screen, UV light and Z axis operation
- Helps extend the service life of Anycubic Photon Mono 4K
Technical Specifications
| Product name | Motherboard for Anycubic Photon Mono 4K |
| Full product name | Motherboard for Photon Mono 4K |
| SKU | Not listed in the verified product card |
| Part type | Motherboard, Mainboard, Control Board |
| Compatibility | Anycubic Photon Mono 4K |
| Printer type | LCD resin 3D printer |
| Purpose | Control of printer electronic systems |
| Package outer dimensions | 150 x 142 x 40 mm |
| Category | Spare parts and accessories for Anycubic resin 3D printers |
When to Replace the Motherboard
- The printer does not turn on or starts unstable
- The touch screen does not respond to commands
- Control errors appear during printing
- The Z axis works incorrectly
- The UV light does not turn on or works unstable
- The printer does not read files or processes commands incorrectly
- Diagnostics confirm a mainboard fault
Compatibility
This motherboard is intended for Anycubic Photon Mono 4K. Before ordering, check the printer model and the board appearance. Anycubic Photon Mono, Photon Mono 2, Photon Mono 4, Photon Mono 4 Ultra, Photon Mono X, Photon Mono X2 and other models may use different control boards.
Installation Recommendations
- Disconnect the printer from power before replacement
- Do not replace the board while the power cable is connected
- Take a photo of all cable connections before removing the old board
- Check compatibility with Anycubic Photon Mono 4K
- Avoid static electricity when working with electronics
- Installation should be performed by a qualified 3D printer repair specialist
- After installation, check the screen, Z axis, UV light and touch control functions
Usage Recommendations
- Do not allow resin to leak inside the printer body
- Keep connectors and cables clean
- Do not connect or disconnect ribbon cables while the power is on
- Use a stable power source
- After repair, run screen, exposure and Z axis movement tests
- If failures repeat, check the power supply, screen, cables and UV light module
Suitable Applications
- Repair of Anycubic Photon Mono 4K
- Replacement of a faulty mainboard
- Restoration of electronic component operation
- Service maintenance of a resin 3D printer
- Diagnostics and repair after power or control failures
- Restoration of stable printer operation during resin printing
FAQ
Is this motherboard compatible with Anycubic Photon Mono 4K
Yes, this motherboard is intended for the Anycubic Photon Mono 4K 3D printer.
What is the SKU of Motherboard for Photon Mono 4K
The verified product card does not list a separate SKU. Before ordering, check the printer model, board appearance and connectors.
Can I install the motherboard myself
If you have experience with electronics and 3D printer repair, installation can be done by yourself. If not, it is better to contact a qualified technician.
Is this board compatible with Photon Mono 2 or Photon Mono 4
No, this board is listed for Anycubic Photon Mono 4K. Photon Mono 2 and Photon Mono 4 require separately compatible boards.
When should the motherboard be replaced
Replacement is needed when the mainboard is faulty, the printer has startup issues, control errors, unstable screen operation, Z axis problems or UV light failures.
What should be checked before replacing the board
Before replacement, check the power supply, cables, ribbon cables, screen, UV module and connectors to confirm that the issue is actually related to the motherboard.
