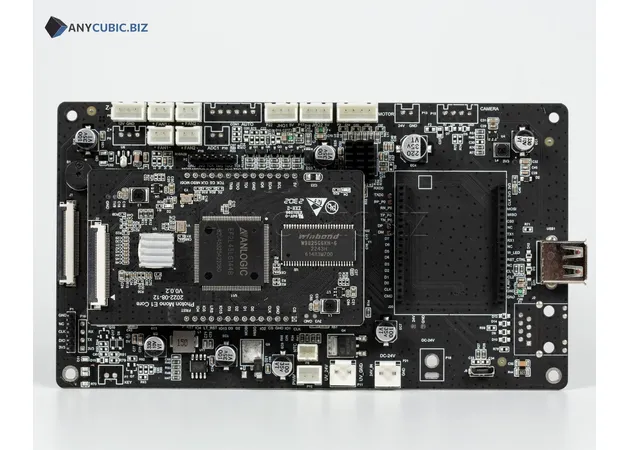

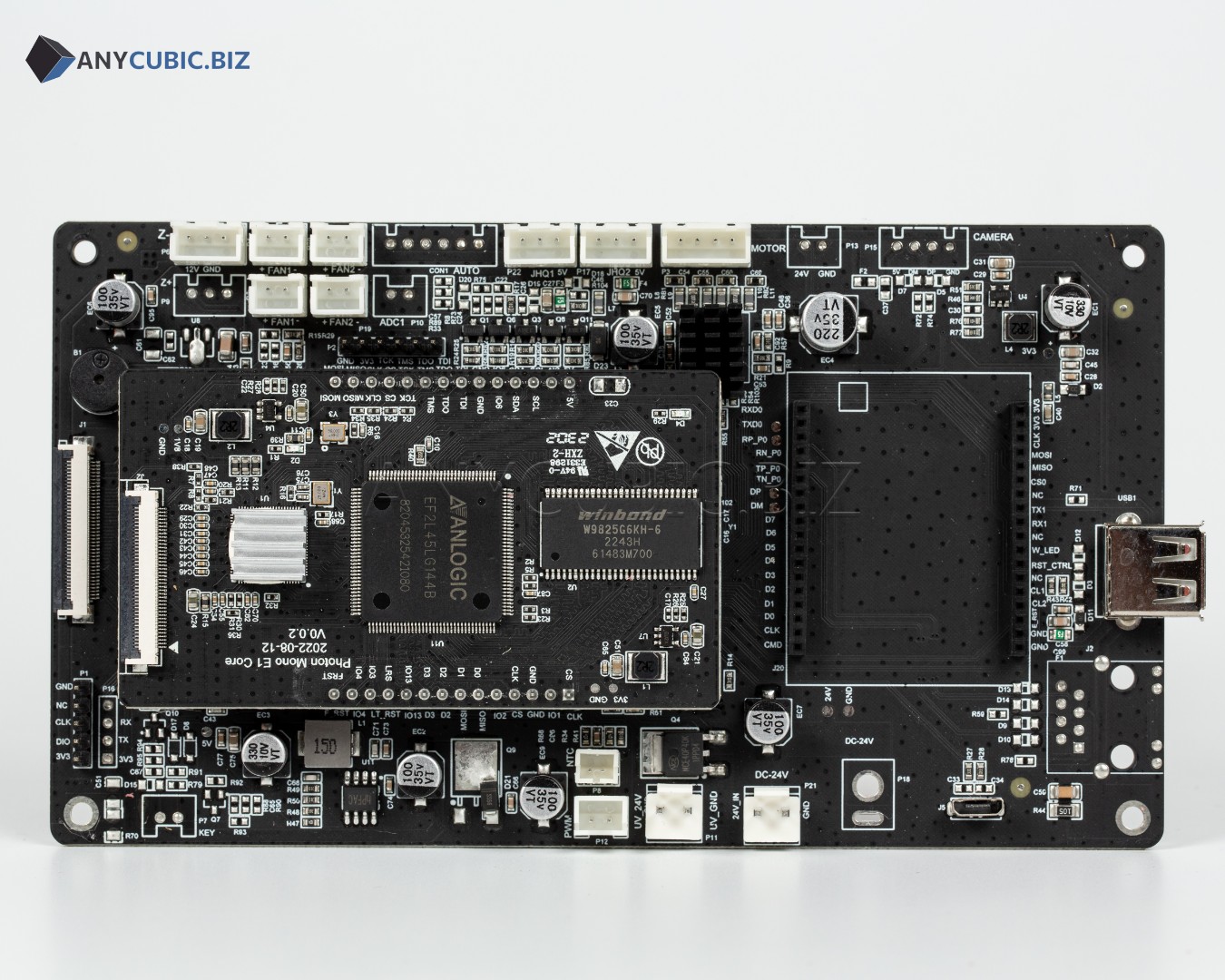

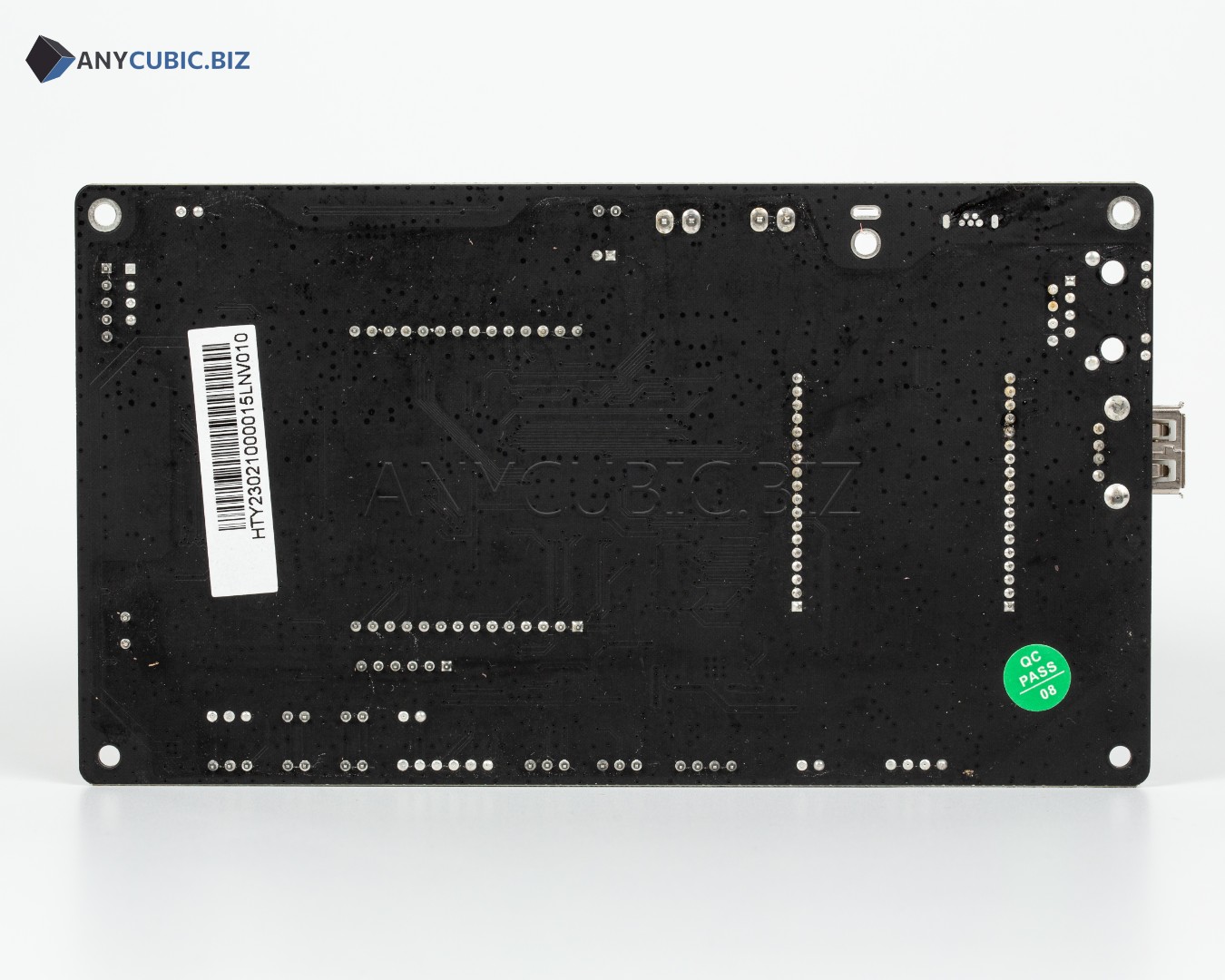

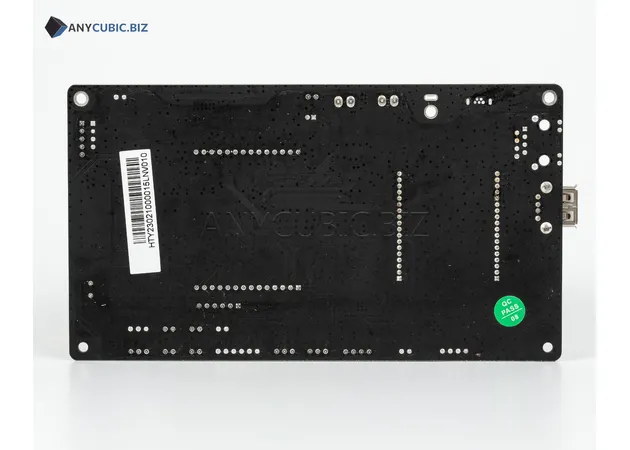

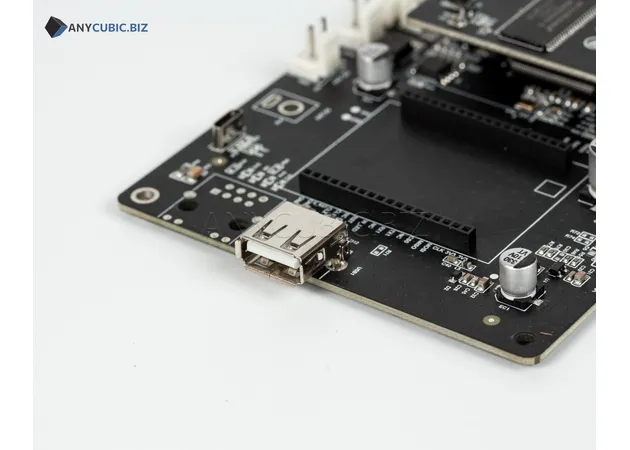

Motherboard for Anycubic Photon M3 Premium
Description

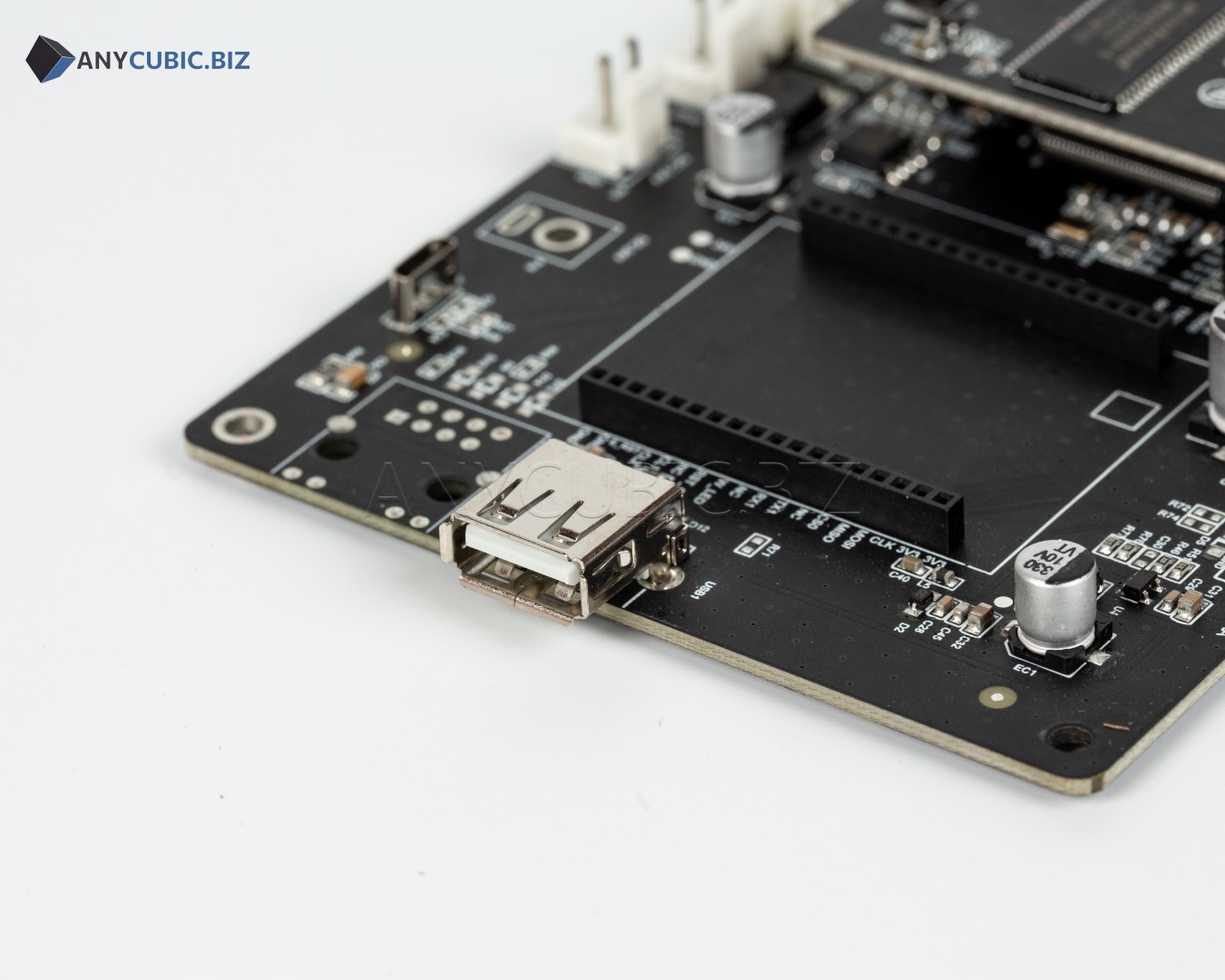

Motherboard for Anycubic Photon M3 Premium is a replacement main control board for the Anycubic Photon M3 Premium resin 3D printer. The board coordinates the printer electronic components, processes commands and controls the Z axis, screen, touch interface, exposure system, fans and other internal modules.
Motherboard for 3D printer Anycubic Photon M3 Premium is used for printer repair when the mainboard is faulty, startup problems appear, control errors occur, electronics work unstable, printing failures appear, Z axis movement becomes incorrect or communication between electronic modules is interrupted. Replacing the motherboard helps restore stable printer operation without buying a new machine.
This spare part is especially important for stable Anycubic Photon M3 Premium operation. Correct control system work, command execution, build platform movement, UV exposure system operation and overall resin printing stability depend on the mainboard condition.
Advantages
- Compatible with Anycubic Photon M3 Premium
- Used to restore main printer electronics
- Helps solve startup and control problems
- Suitable for resin 3D printer repair and service maintenance
- Important spare part for stable Z axis, screen, light module and control system operation
- Suitable for replacing a faulty mainboard after diagnostics
- Helps extend the service life of Anycubic Photon M3 Premium
Technical Specifications
| Product name | Motherboard for Anycubic Photon M3 Premium |
| Full product name | Motherboard for 3D printer Anycubic Photon M3 Premium |
| SKU | S020125 |
| Part type | Motherboard, main control board |
| Compatibility | Anycubic Photon M3 Premium |
| Package dimensions | 235 x 133 x 66 mm |
| Printer type | LCD resin 3D printer |
| Purpose | Control of printer electronic systems |
| Category | Spare parts and accessories for Anycubic resin 3D printers |
When to Replace the Motherboard
- The printer does not turn on or starts unstable
- The touch control does not respond to commands
- Control errors appear during printing
- The Z axis platform movement is incorrect
- The UV exposure system works unstable
- The printer does not read files or processes commands incorrectly
- Electronics failures appear after a power surge
- Diagnostics confirm a mainboard fault
- The board shows signs of damage, overheating or resin contamination
Compatibility
This motherboard is intended for Anycubic Photon M3 Premium. Before ordering, check the printer model, part number S020125, old board appearance and connector layout. Anycubic Photon M3, Photon M3 Plus, Photon M3 Max, Photon Mono X, Photon Mono X2, Photon Mono M5s and other models use different control boards.
Important Difference
This product is the motherboard specifically for Anycubic Photon M3 Premium and has SKU S020125. It should not be confused with boards for Photon M3, Photon M3 Plus, Photon M3 Max or Photon Mono series models. The printer model, product name and SKU should be checked before ordering.
Installation Recommendations
- Turn off the printer completely before replacement
- Disconnect the power cable from the mains
- Remove the resin vat and build platform before disassembly
- Take a photo of all cable and ribbon cable connections before removing the old board
- Do not connect or disconnect connectors while power is on
- Avoid static electricity when working with the board
- Do not allow resin to get on electronic components
- After installation, check printer startup, touch control, Z axis movement and exposure operation
- If you do not have electronics or 3D printer repair experience, contact a qualified technician
Usage Recommendations
- Use the printer only with a stable power source
- Do not allow resin to leak inside the printer body
- Check cables, ribbon cables and connectors regularly
- Do not work with the board using wet hands
- If burning smell, overheating or unstable operation appears, disconnect the printer immediately
- Run an exposure test and test print after repair
- If failures repeat, check the power supply, cables, UV LED module, LCD screen and touch interface
Suitable Applications
- Repair of Anycubic Photon M3 Premium
- Replacement of a faulty motherboard
- Restoration of printer electronic system operation
- Service maintenance of a resin 3D printer
- Diagnostics and repair after power failures
- Restoration of stable photopolymer resin printing
- Repair after resin leakage inside the printer body
FAQ
Is this motherboard compatible with Anycubic Photon M3 Premium
Yes, this motherboard is intended for Anycubic Photon M3 Premium.
What is the SKU of Motherboard for 3D printer Anycubic Photon M3 Premium
The SKU of this part is S020125.
What is the package size of this board
The package dimensions are 235 x 133 x 66 mm.
Is this board compatible with Anycubic Photon M3 Max
No, this board is listed for Anycubic Photon M3 Premium. Photon M3 Max requires a separately compatible board.
Is this board compatible with Anycubic Photon M3 Plus
No, this motherboard is intended for Photon M3 Premium. Photon M3 Plus uses another compatible board.
Can I install the motherboard myself
If you have experience with electronics and 3D printer repair, replacement can be done by yourself. If not, it is better to contact a qualified technician.
What should be checked before replacing the motherboard
Before replacement, check the power supply, cables, ribbon cables, connectors, UV LED module, LCD screen, touch screen and signs of resin leakage inside the printer body.
