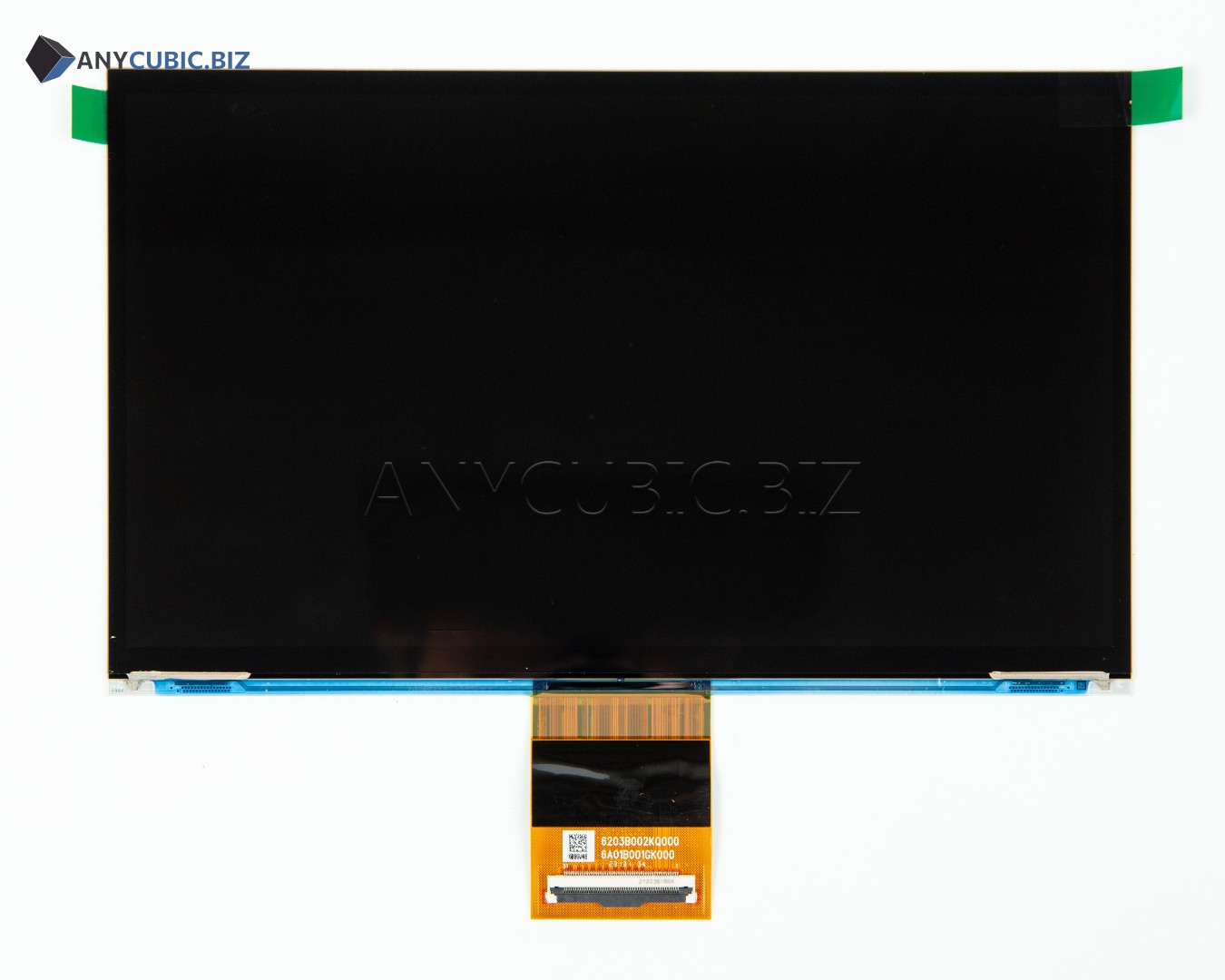

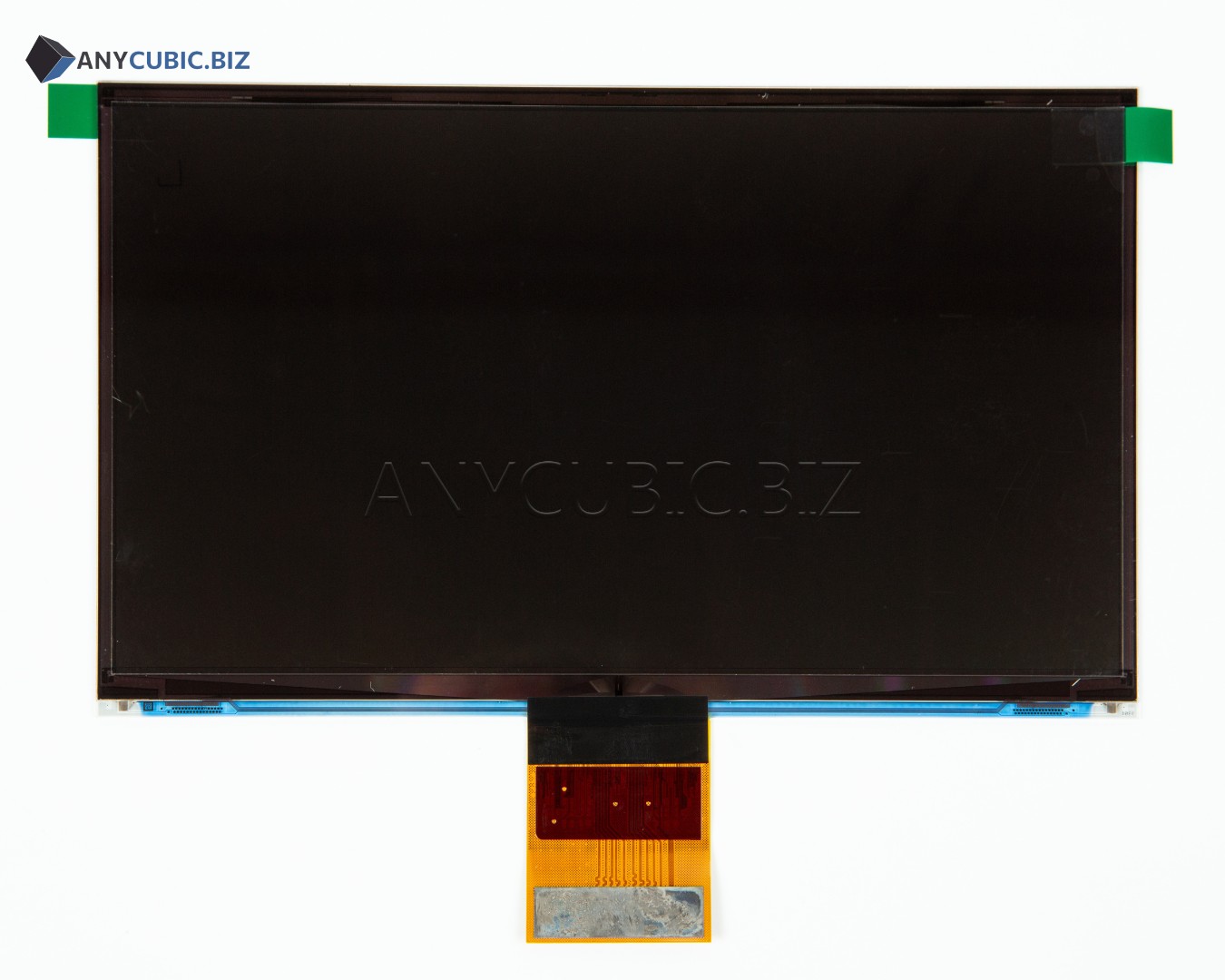

LCD Screen for Anycubic Photon Mono M5 and Photon Mono M5s
Description
The LCD screen for Anycubic Photon Mono M5 and Anycubic Photon Mono M5s is designed as a replacement display module for resin 3D printers from the Photon Mono series. The screen controls UV light transmission for each printed layer, so its condition directly affects print accuracy, edge sharpness, fine detail reproduction and overall printing stability.
This screen is suitable for Anycubic Photon Mono M5 and Anycubic Photon Mono M5s printers equipped with a 10.1″ monochrome 12K display. Replacement is recommended when the printer shows dark zones, exposure defects, stripes, missing printed areas, uneven curing or physical damage to the screen surface.
Key Advantages
- Compatible with Anycubic Photon Mono M5 and Photon Mono M5s
- Monochrome LCD technology for stable UV light transmission
- High detail reproduction with 12K resolution class
- Suitable for miniatures, prototypes, engineering parts and decorative models
- Restores print quality after screen wear or damage
- Helps achieve sharp edges, accurate contours and consistent layer curing
Technical Specifications
| Product type | LCD screen for resin 3D printer |
| Compatible models | Anycubic Photon Mono M5, Anycubic Photon Mono M5s |
| Screen type | Monochrome LCD screen |
| Screen size | 10.1″ |
| Resolution class | 12K |
| Resolution for Photon Mono M5 | 11520 x 5120 pixels |
| Horizontal pixel size | 19 microns |
| Purpose | Replacement of a damaged or worn LCD screen |
| Resin compatibility | UV resin for LCD MSLA 3D printing |
Compatibility
- Anycubic Photon Mono M5
- Anycubic Photon Mono M5s
Do not confuse this screen with the LCD screen for Anycubic Photon Mono M5s Pro. The Photon Mono M5s Pro uses a different 10.1″ 14K screen.
When to Replace the LCD Screen
- Printed models show lines, missing areas or layer defects
- Part of the build plate area no longer prints correctly
- The exposure test shows dark spots or bright spots
- The screen surface has been physically damaged
- Resin has leaked onto the screen
- Prints are distorted even when the vat and release film are in good condition
Installation Recommendations
- Turn off the 3D printer and disconnect the power before installation

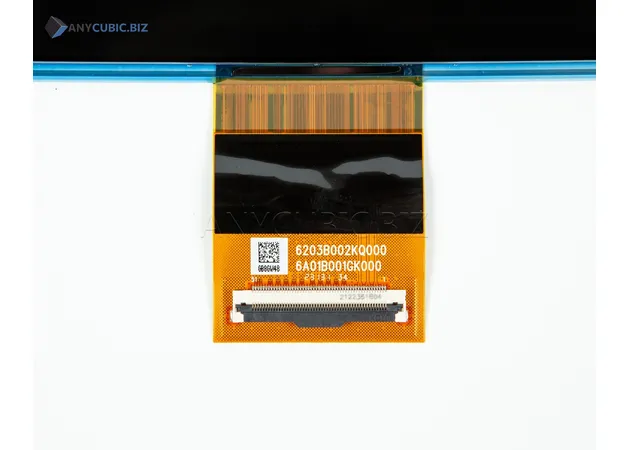

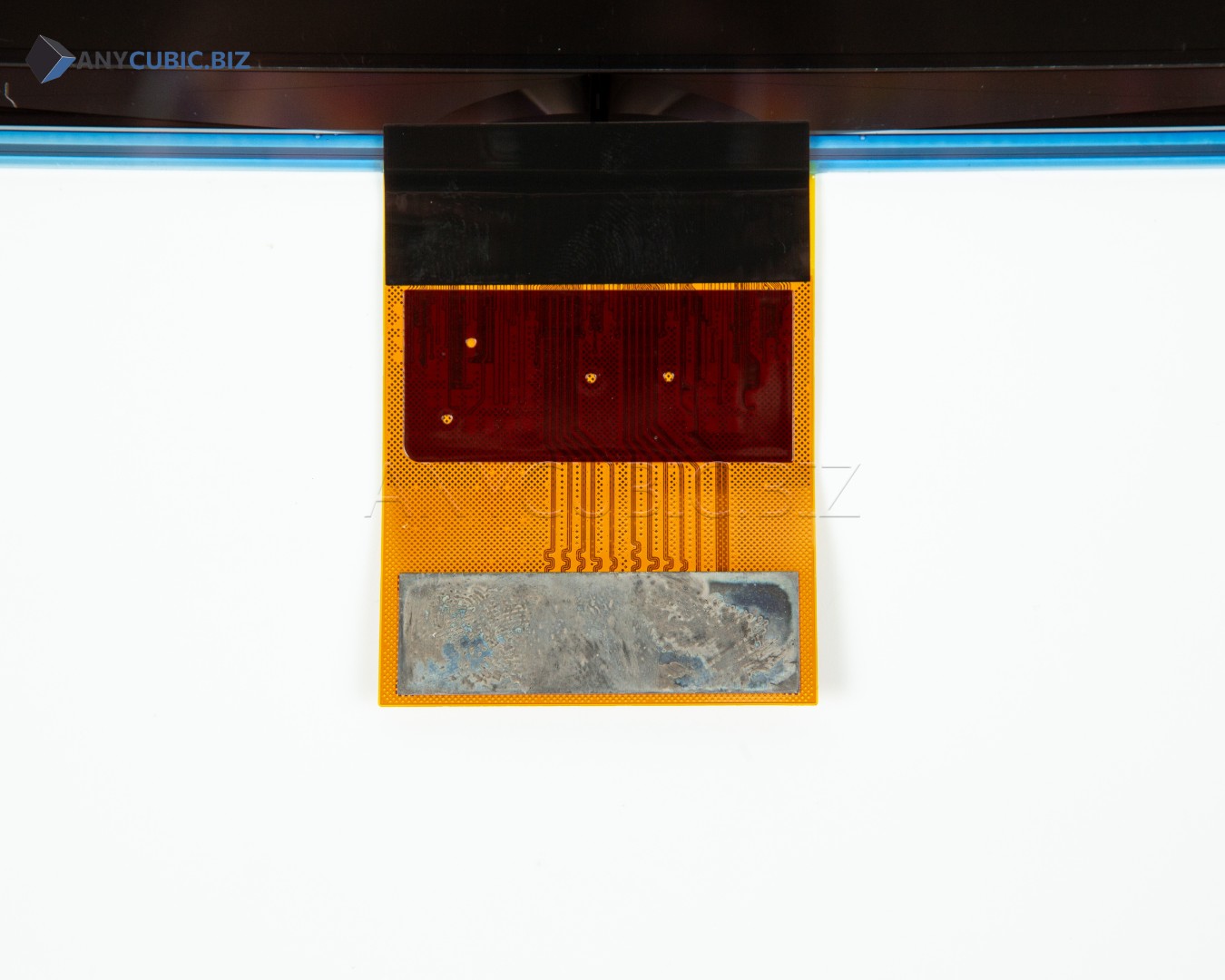

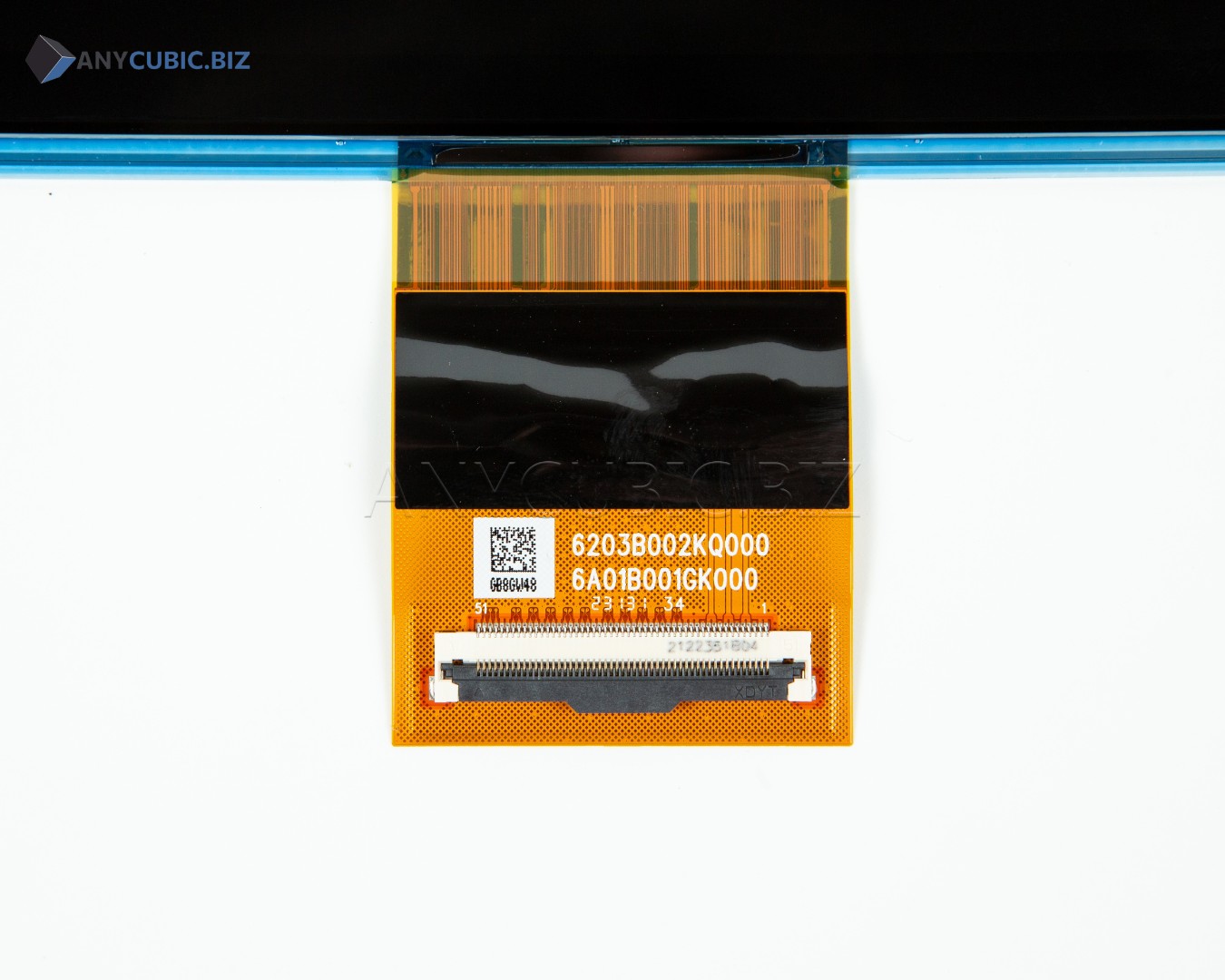

- Handle the screen carefully and do not bend the ribbon cable
- Clean the mounting surface from dust, resin and old adhesive residue
- Run an exposure test after installation before placing the resin vat back

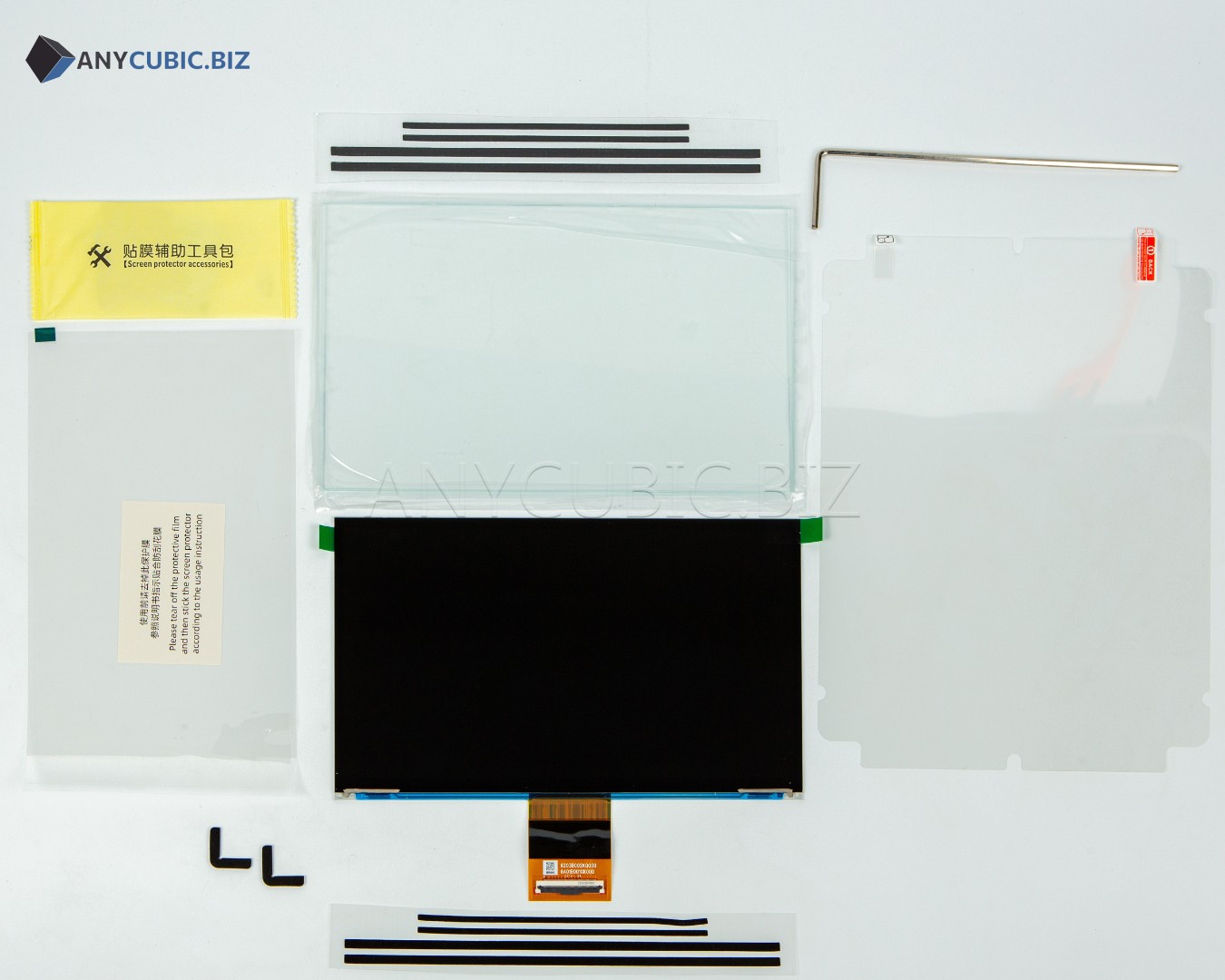

- Use a screen protector to reduce the risk of damage from accidental resin leakage
FAQ
Is this LCD screen compatible with Anycubic Photon Mono M5
Yes, this screen is compatible with Anycubic Photon Mono M5.
Is this LCD screen compatible with Anycubic Photon Mono M5s
Yes, this screen is compatible with Anycubic Photon Mono M5s.
Is this screen compatible with Anycubic Photon Mono M5s Pro
No, Anycubic Photon Mono M5s Pro requires a different 10.1″ 14K screen.
Why does a resin 3D printer need an LCD screen replacement
The LCD screen is a working component of an MSLA resin printer. If the display is damaged or worn, the printer may expose layers incorrectly and cause print defects.
Should I use a screen protector with a new LCD screen
Yes, a screen protector helps protect the LCD screen from scratches and accidental resin leaks.
