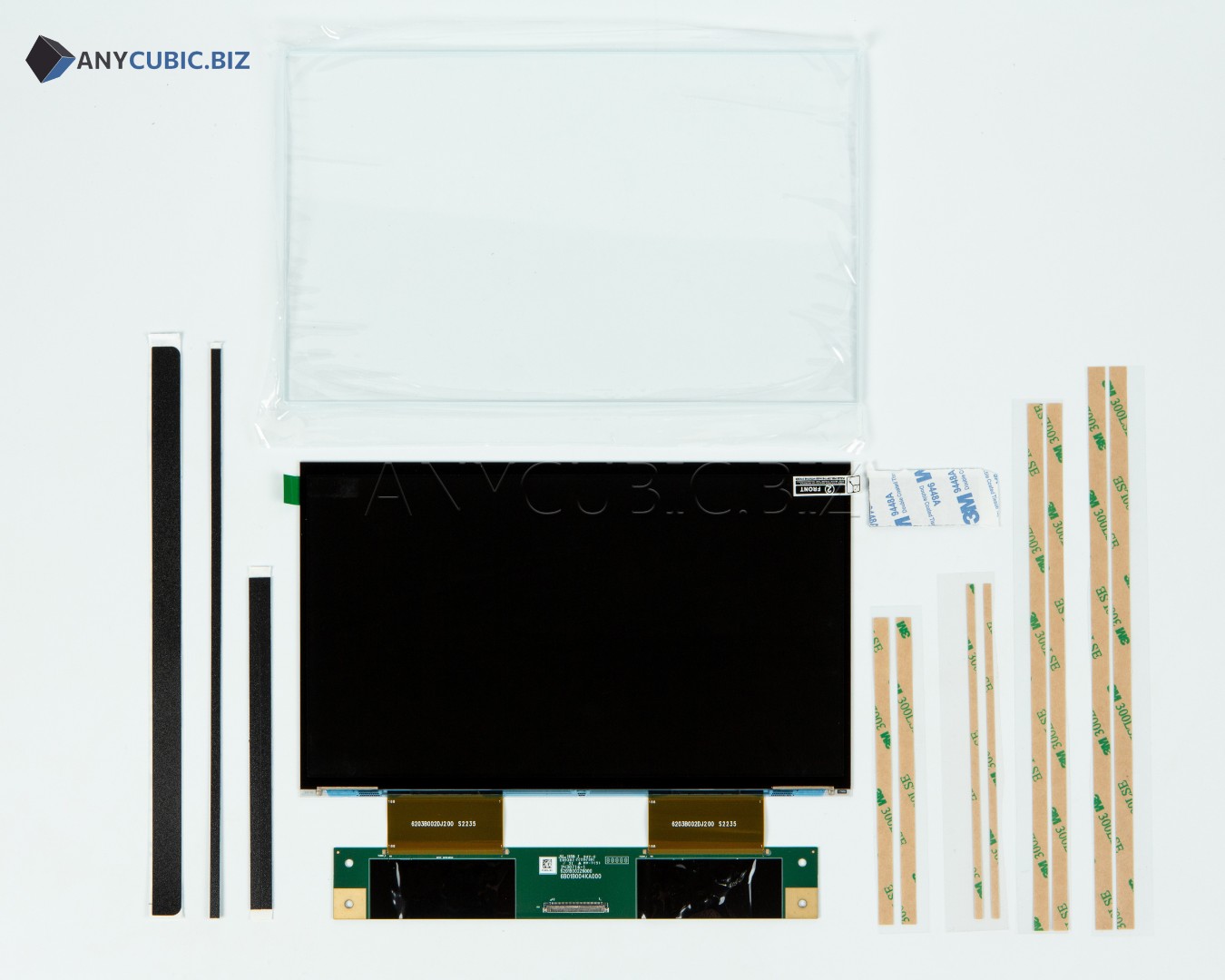

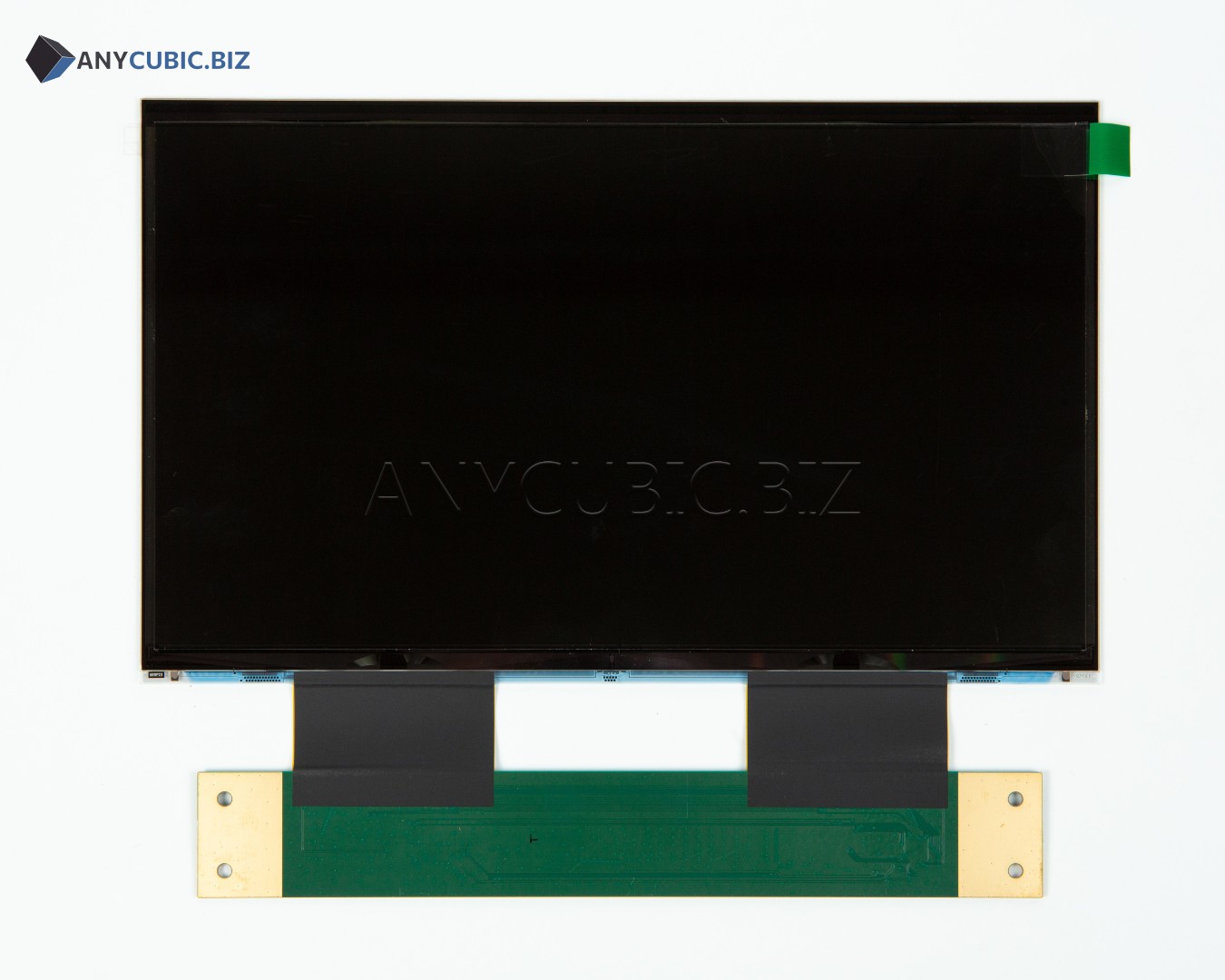

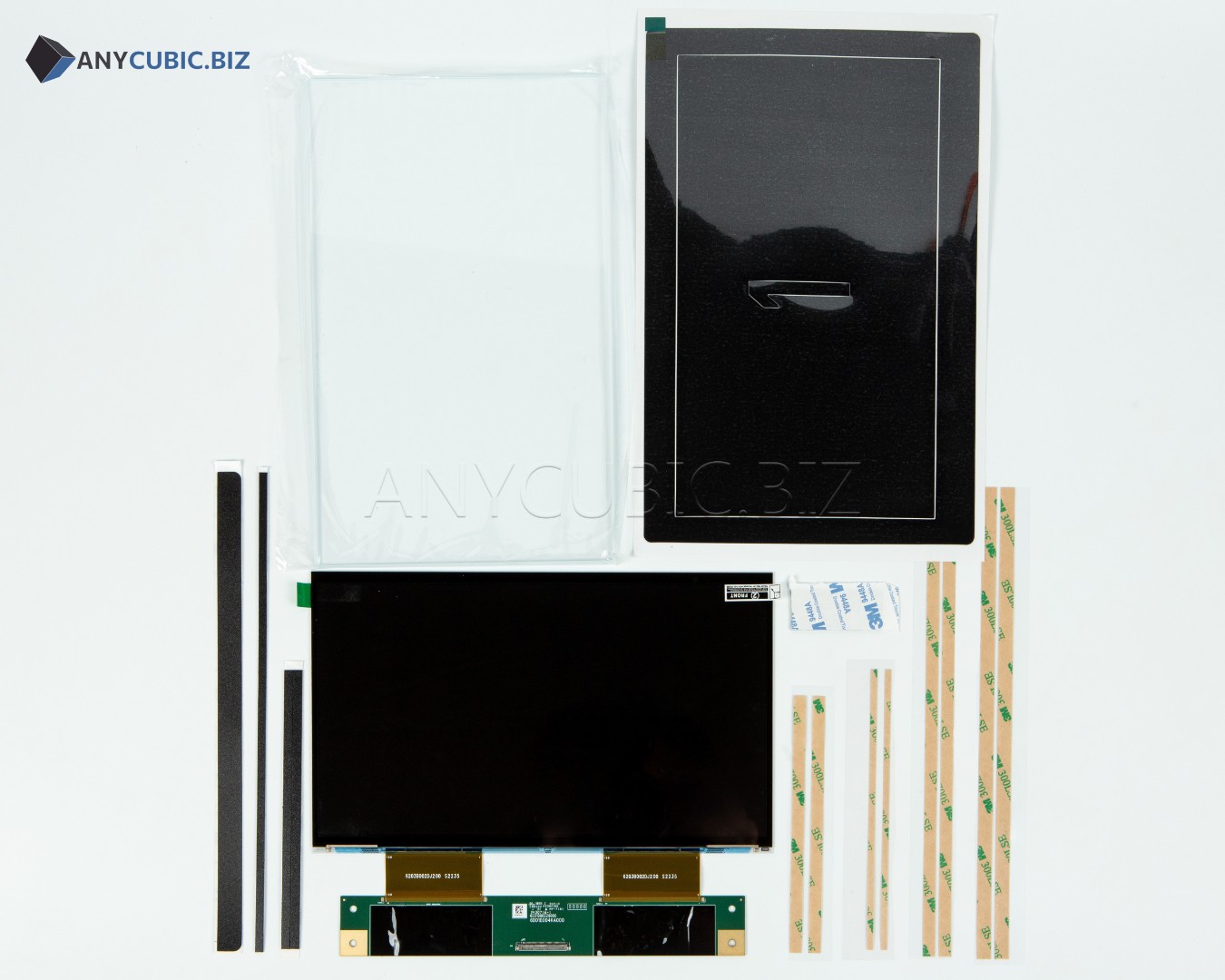

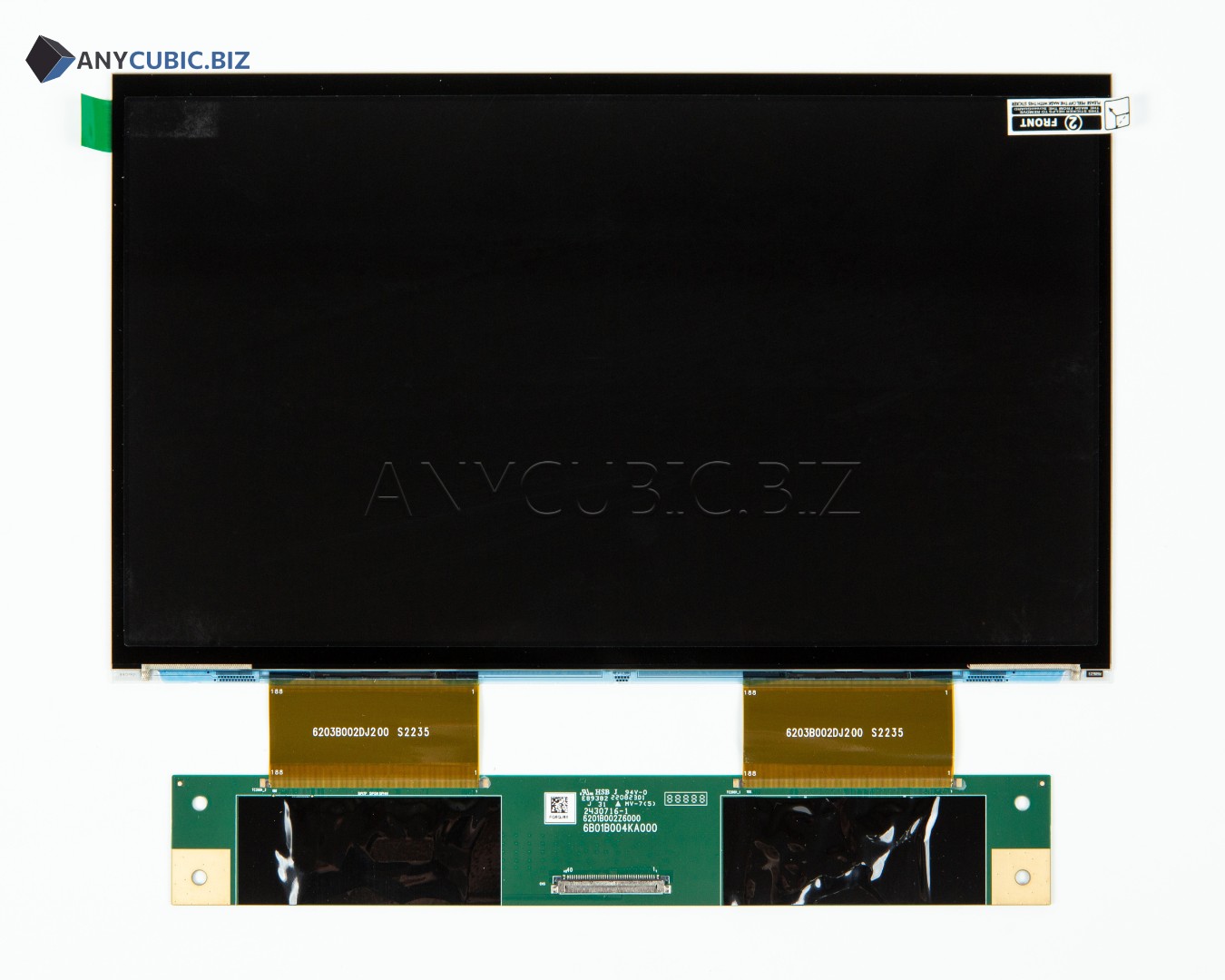

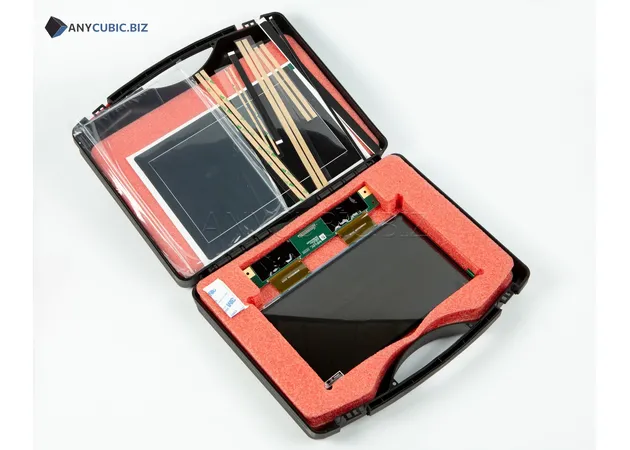

LCD Screen for Anycubic Photon M3 Premium 3D Printer
Description
LCD screen for Anycubic Photon M3 Premium is a replacement exposure display for a resin 3D printer. This screen forms each printed layer during MSLA printing by controlling where UV light passes through the display and cures the photopolymer resin.
This replacement LCD screen is intended for restoring the exposure system of the Anycubic Photon M3 Premium when the original screen is damaged, worn out or no longer exposes layers evenly. Replacing the screen helps recover print accuracy, fine detail, stable exposure and reliable resin printing performance.
Key Advantages
- Compatible with Anycubic Photon M3 Premium 3D printer
- Monochrome LCD exposure screen for resin printing
- 8K resolution for highly detailed models
- Designed as a replacement for the original exposure screen
- Helps restore print quality when the old screen is damaged or worn
- Suitable for miniatures, prototypes, engineering parts, decorative models and precise resin prints
Technical Specifications
| Product type | LCD screen for resin 3D printer |
| Compatibility | Anycubic Photon M3 Premium |
| Screen type | Monochrome LCD exposure screen |
| Screen size | 10.1″ |
| Resolution | 7680 x 4320 px |
| Resolution class | 8K |
| XY resolution | 28.5 microns |
| Purpose | Replacement exposure screen |
| Printing technology | MSLA resin 3D printing |
When to Replace the LCD Screen
- Printed models show lines, missing areas or repeated exposure defects
- Part of the build area no longer exposes correctly
- The screen has spots, cracks or dark zones
- Resin has leaked onto the screen and damaged the surface
- The printer works but models do not form on the build plate
- The exposure test shows uneven or missing light areas
Compatibility
This LCD screen is suitable for Anycubic Photon M3 Premium. Before installation, make sure the printer model is correct. It should not be installed in Photon M3, Photon M3 Plus, Photon M3 Max or other models without compatibility verification, because screen size, cables, connectors and mounting points may differ.
Installation Recommendations
- Turn off the printer and disconnect the power cable before replacement
- Work on a clean and dry surface
- Do not touch the working surface of the screen with your fingers

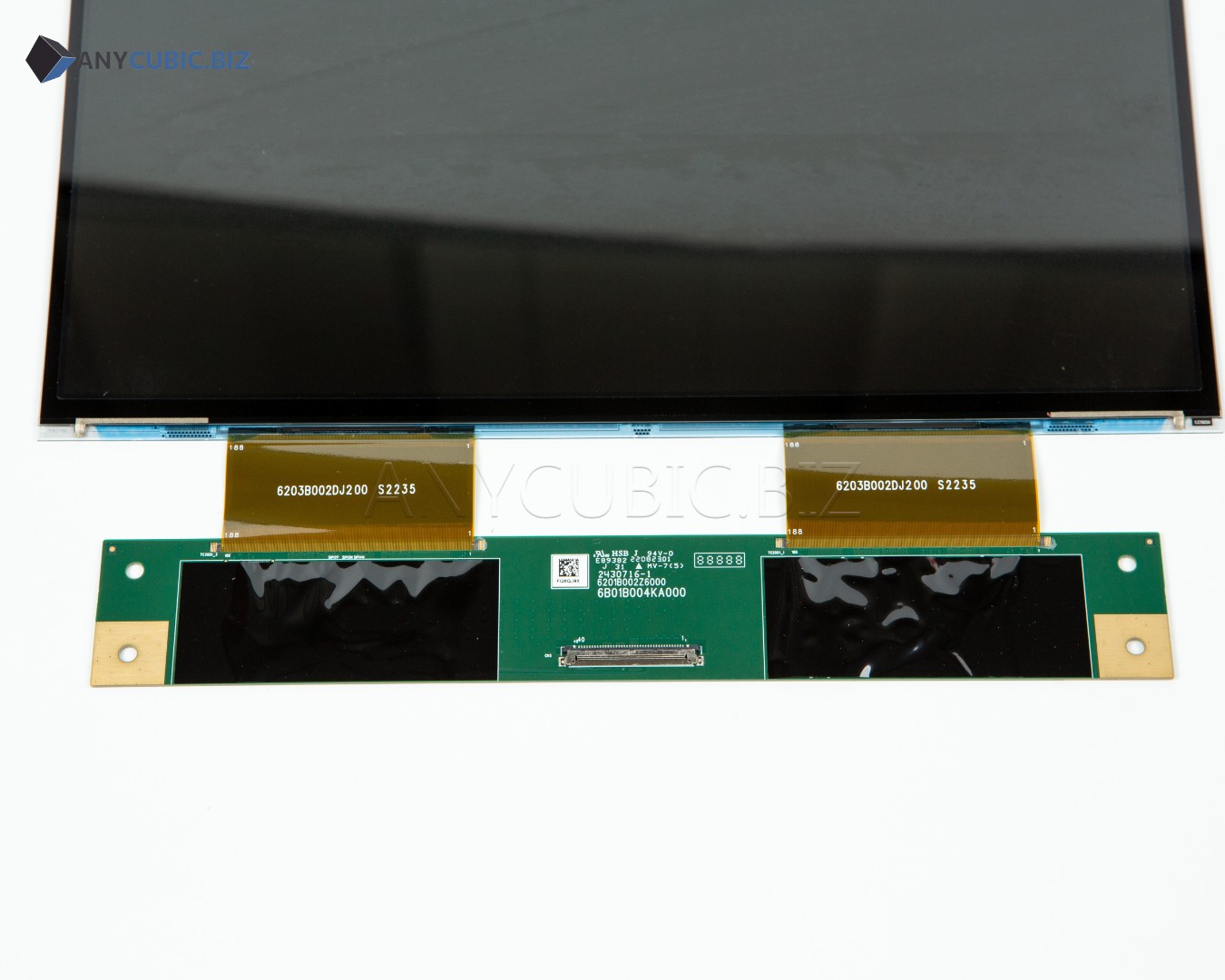

- Connect the ribbon cable carefully without bending or twisting it
- Run an exposure test after installation
- Using a screen protector is recommended
Best Uses
The LCD screen for Anycubic Photon M3 Premium is suitable for restoring a resin 3D printer used for miniatures, figures, engineering parts, master models, housings, decorative elements, prototypes, dental models and jewelry models with compatible 405 nm UV resin.
FAQ
Is this LCD screen compatible with Anycubic Photon M3 Premium
Yes, this screen is intended for the Anycubic Photon M3 Premium 3D printer.
Is this a touch screen or an exposure screen
This is an LCD exposure screen used for curing resin layers. It is not a touch control panel.
What is the screen resolution
The screen resolution is 7680 x 4320 px, which corresponds to the 8K resolution class.
What is the screen size
The screen size is 10.1″.
Should I use a screen protector
Yes, a screen protector helps reduce the risk of damage from resin leaks, accidental scratches and resin vat maintenance.
Can I install the screen myself
Yes, installation can be done by users with resin printer maintenance experience. Handle the ribbon cable carefully, avoid bending the cable and run an exposure test after installation.
