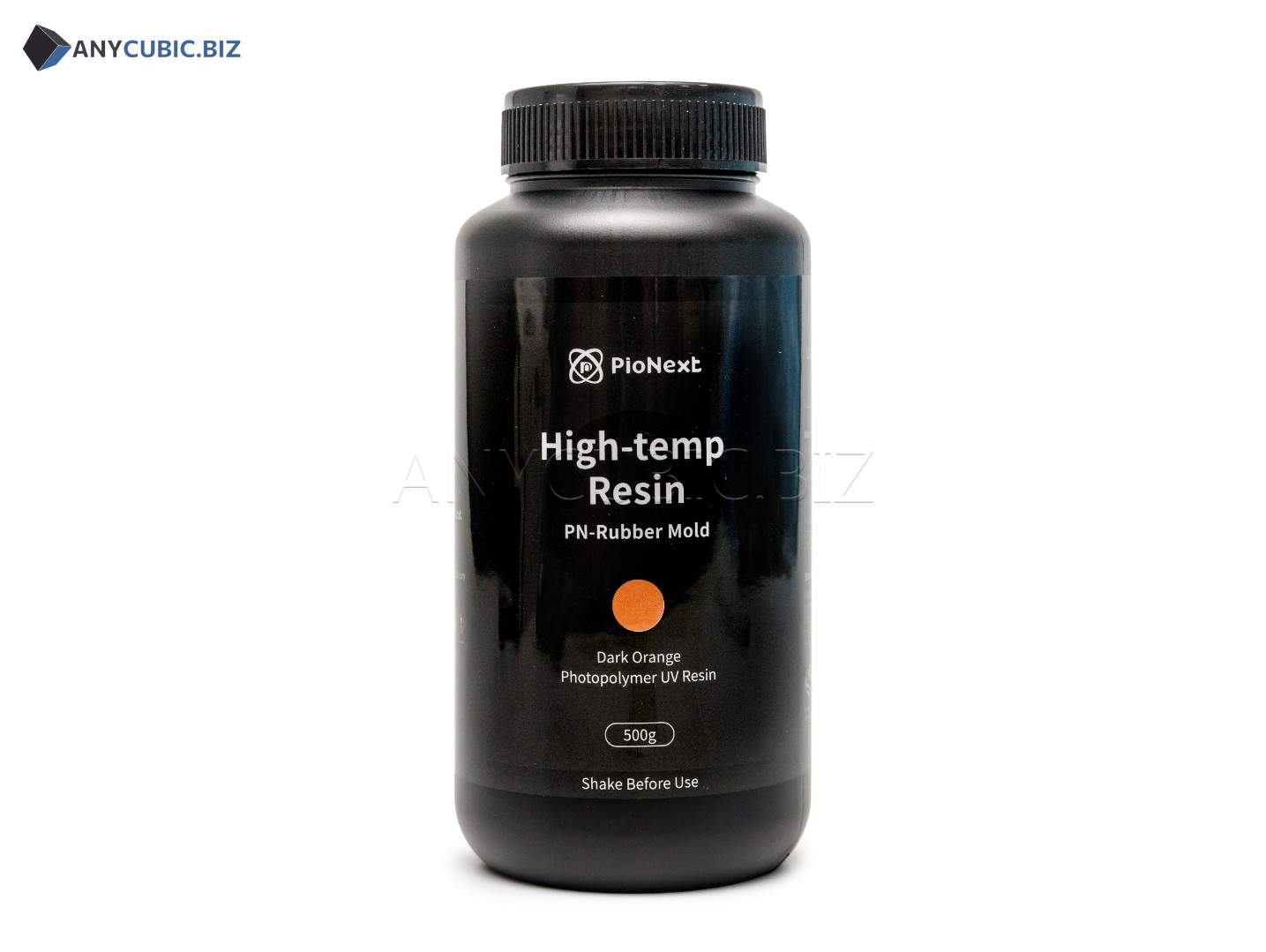

PioCreat High Temp Resin
PioCreat High Temp Resin is a heat resistant photopolymer resin for LCD and DLP 3D printers. The material is designed for applications that require high dimensional stability, reliable accuracy, and resistance to elevated temperatures. This resin is suitable for jewelry ring master patterns, small batch low temperature molds, silicone molds, rubber molds, heat resistant parts, and industrial structural components.
Description
PioCreat High Temp Resin is developed for users who need a 3D printing resin with strong thermal resistance and stable geometry after curing. The material offers high rigidity, good flexural performance, and dependable dimensional consistency for technical and production related applications. It can be used in jewelry workflows, prototyping, auxiliary mold making, process inserts, and small batch industrial part manufacturing.
Key Advantages
- High temperature resistance
- High dimensional stability
- High printing precision
- Stable printing performance
- Wide compatibility with LCD and DLP printers
- Surface scratch resistance
- Suitable for master patterns, molds, and heat resistant technical parts
Technical Specifications
| Material type | Heat resistant photopolymer resin |
| Printing technology | LCD DLP |
| Viscosity at 25 C | 600 to 800 cps |
| Density at 25 C | 1.05 to 1.15 g cm3 |
| Hardness | 85 to 89 Shore D |
| Flexural modulus | 2800 to 3400 MPa |
| Flexural strength | 78 to 90 MPa |
| Tensile modulus | 800 to 1000 MPa |
| Tensile strength | 40 to 50 MPa |
| Elongation at break | 8 to 12 percent |
| Notched impact strength | 20 to 30 J m |
| Heat deflection temperature | 170 to 250 C |
| Cleaning method | Absolute ethanol or isopropanol |
| Shelf life | 18 months |
| Storage conditions | Below 25 C in a dry place away from light |
| Net weight | 500 g and 1000 g |
Recommended Printing Parameters
| Equipment | Layer thickness | Base layer exposure | Normal layer exposure | Lift speed |
|---|---|---|---|---|
| DJ-89 | 0.05 to 0.1 mm | 30 to 60 s | 2.8 to 3.8 s | 1 to 8 mm s |
| DJ-89Plus | 0.05 to 0.1 mm | 30 to 60 s | 2.8 to 3.8 s | 1 to 10 mm s |
| Halot One | 0.05 to 0.1 mm | 20 to 40 s | 4.5 to 5.5 s | 1 to 3 mm s |
| Halot Sky | 0.05 to 0.1 mm | 30 to 60 s | 2.8 to 3.8 s | 1 to 8 mm s |
| Halot Mage | 0.05 to 0.1 mm | 30 to 60 s | 2.0 to 3.0 s | 1 to 3 mm s |
| Photon Mono M5s | 0.05 to 0.1 mm | 30 to 60 s | 2.8 to 3.8 s | 1 to 10 mm s |
| Saturn 3 Ultra | 0.05 to 0.1 mm | 30 to 60 s | 2.8 to 3.8 s | 1 to 10 mm s |
Instructions
- Prepare the model and select the printing parameters according to your printer and chosen layer thickness.
- After printing, clean the model with absolute ethanol or isopropanol.
- Low frequency ultrasonic cleaning can be used. High frequency or overly powerful ultrasonic cleaning is not recommended because it may damage the model surface.
- Thoroughly dry the model using air or a hair dryer like device.
- It is recommended to remove the main supports before final post curing.
- For some applications, additional UV curing for about 5 minutes can be used.
- Store the resin in a tightly closed container in a cool dry place below 25 C and keep it away from light.
FAQ
What is PioCreat High Temp Resin used for
This resin is suitable for jewelry ring master patterns, small batch molds, silicone molds, rubber molds, heat resistant parts, and industrial structural components.
Which printers are compatible with this resin
The material is designed for LCD and DLP 3D printers. The technical data includes suggested settings for DJ-89, DJ-89Plus, Halot One, Halot Sky, Halot Mage, Photon Mono M5s, and Saturn 3 Ultra.
How should printed parts be cleaned
The manufacturer recommends cleaning with absolute ethanol or isopropanol.
How heat resistant is this resin
According to the TDS, the heat deflection temperature is listed at 170 to 250 C, making it suitable for applications that require enhanced thermal resistance.
Can this resin be used for food contact or medical use on the human body
No. The manufacturer states that the resin is not approved for contact with food, drink, or for medical use on the human body.
How should the resin be stored
Store it below 25 C in a dry place away from light. The shelf life is 18 months.
