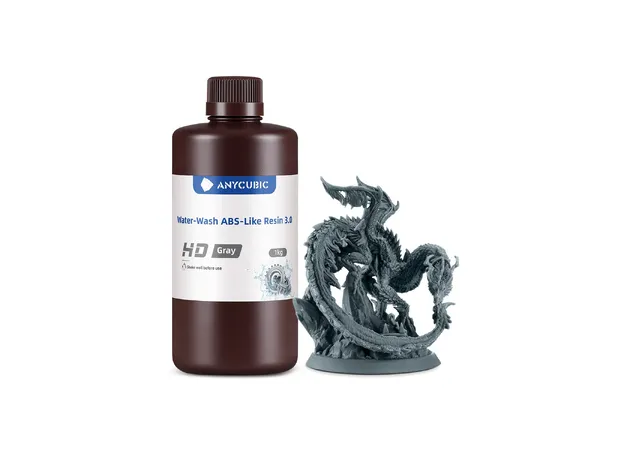

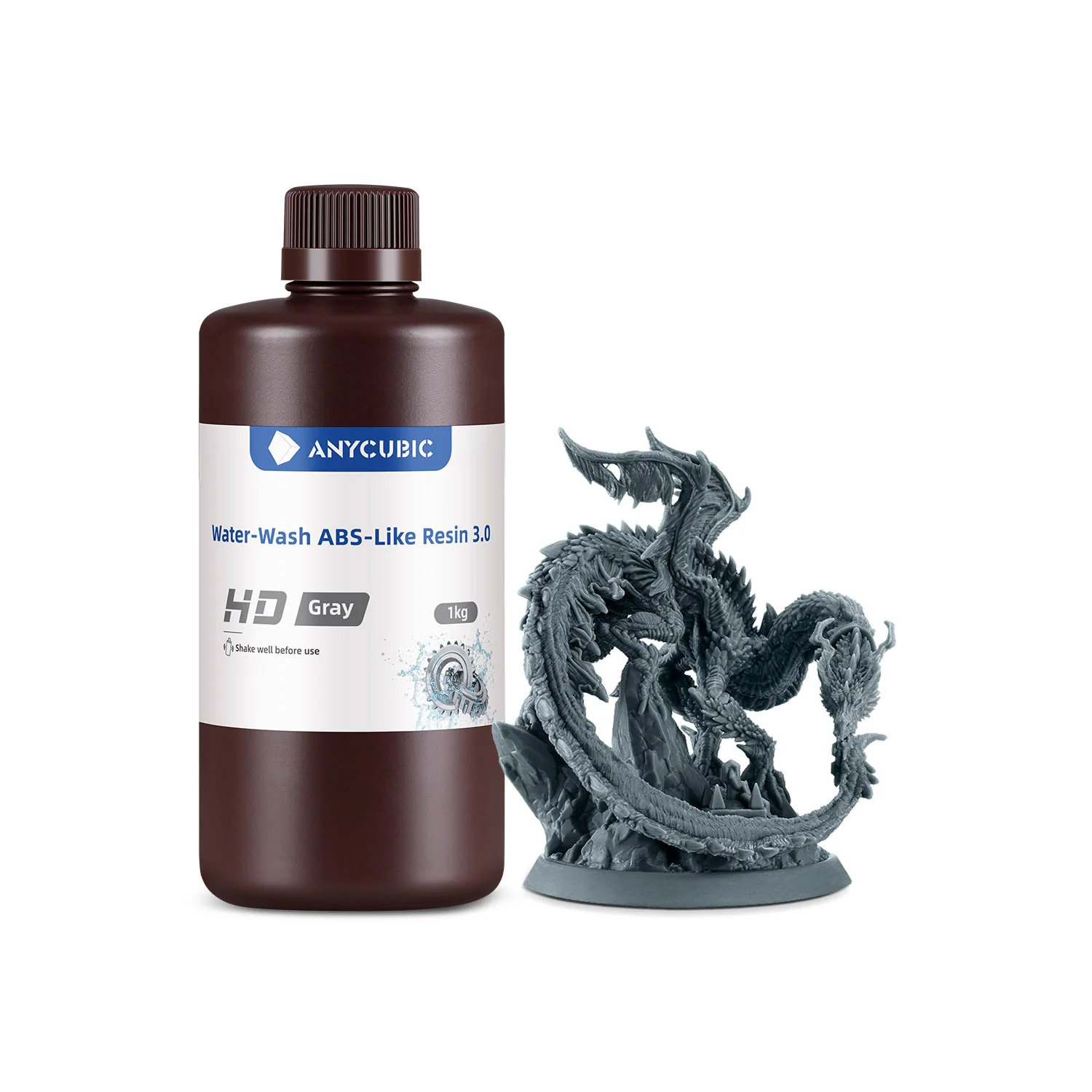

Anycubic Water-Wash ABS-Like Resin 3.0 HD Gray 1 kg

Anycubic Water-Wash ABS-Like Resin 3.0 HD Gray 1 kg is a dark high-detail gray water-washable ABS-like photopolymer resin for LCD, MSLA and DLP resin 3D printers using 365-405 nm light-curing technology. It combines easy water cleaning, ABS-like toughness, high precision, low shrinkage, good detail reproduction and minimal odor.

The HD Gray #768692 color can be described as dark gray / High Detailed Gray. This shade is suitable for detailed miniatures, figures, engineering prototypes, housings, architectural mockups, decorative models and prints intended for painting. It helps make relief, surface texture, edges and fine details easier to inspect.

✨ Key advantages

• 💧 Water-washable formula — printed models can be cleaned with water, simplifying post-processing and reducing IPA consumption.
• 🧱 ABS-like toughness — suitable for parts that need better bending resistance, load resistance and crack resistance.
• ⚙️ High precision — reproduces fine details, textures, edges, holes and fitting areas.
• 📉 Low shrinkage 4-5% — helps maintain model geometry and reduce deformation.
• 🌊 Good fluidity — the resin flows back to the print area more quickly after platform lifting.
• 🔘 HD Gray #768692 color — a dark high-detail gray shade for detailed models, prototypes and prints intended for painting.
• 🔧 Functional-use oriented — suitable for housings, clips, prototypes, fixtures and small load-bearing parts.
• 🌬️ Minimal odor — a more comfortable printing experience compared with many standard photopolymer resins.
• ✅ Wide compatibility — suitable for LCD/MSLA/DLP printers using 365-405 nm or 405 nm resin.

📦 Product data

Product name	Anycubic Water-Wash ABS-Like Resin 3.0 HD Gray 1 kg
Material type	Water-washable ABS-like photopolymer resin
Color	HD Gray / Dark Gray / High Detailed Gray
Color HEX	#768692
Net weight	1 kg
Compatible printing technology	LCD / MSLA / DLP resin 3D printing
Wavelength	365-405 nm
Cleaning after printing	Water or 95% IPA
UV post-curing	405 nm, 3 minutes

📊 Technical specifications

Parameter	Value
Material	Hydrophilic Group-Modified Light-Curing Resin
Wavelength	365-405 nm
Viscosity	400-500 mPa·s at 25 ℃
Density	1.07-1.09 g/cm³
Hardness	83-86 HD
Tensile Strength	36-46 MPa
Elongation at Break	35-45%
Bending Modulus	2000-2500 MPa
Bending Strength	2300-3000 MPa
Young's Modulus	1800-2300 MPa
Izod Impact Strength	133 J/m
Volume Shrinkage Rate	4-5%
Print environment	20-40 ℃
Print temperature	20-50 ℃
First layer exposure duration	20-40 s
Normal exposure duration	2-3.6 s

🎨 Product color

Color	HEX	Description
HD Gray / Dark Gray / High Detailed Gray	#768692	Dark high-detail gray shade for miniatures, figures, prototypes, housings, engineering parts, mockups and models intended for painting.

⚙️ Recommended printing parameters

Printer Model	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Z Lift Distance	Z Lift Speed	Z Retract Speed	Anti-Aliasing Level	Layer Thickness
Photon P1	2 s	2 s	25 s	1	5 mm	3 mm/s	3 mm/s	4	0.05 mm
Photon Mono M7	2.2 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M7 Pro	2 s	1 s	25 s	4	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M7 Max	2 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5	2.8 s	1 s	30 s	5	8 mm	5 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5s	2.8 s	1 s	30 s	5	8 mm	5 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5s Pro	3.2 s	1 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4	2.4 s	1 s	30 s	5	5 mm	8 mm/s	8 mm/s	1	0.05 mm
Photon Mono 4K	2 s	1 s	40 s	6	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4 Ultra	3 s	1 s	35 s	5	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono 2	2.5 s	1 s	25 s	5	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono X2	2.5 s	1 s	25 s	5	8 mm	4 mm/s	4 mm/s	1	0.05 mm
Photon Mono X 6K	2 s	1 s	30 s	6	8 mm	2 mm/s	3 mm/s	1	0.05 mm
Photon Mono X6Ks	2.5 s	1 s	20 s	5	8 mm	3 mm/s	4 mm/s	1	0.05 mm
Anycubic Photon M3 Max	3 s	2 s	35 s	6	10 mm	4 mm/s	4 mm/s	1	0.05 mm
Anycubic Photon M3 Premium	2.5 s	1 s	35 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm

🧼 Cleaning and post-processing

Method	Cleaning	Washing duration	UV post-curing	Important note
Option 1	95% IPA	≥3 minutes	405 nm, 3 minutes	Useful for complex geometry and hard-to-reach areas.
Option 2	Water	≥5 minutes	405 nm, 3 minutes	Do not drain wastewater into sewers; fully cure resin residues before disposal.

✅ 3D printer compatibility

The resin is compatible with LCD, MSLA and DLP resin 3D printers using 365-405 nm or 405 nm resin. Exposure calibration is recommended before production printing.

• Anycubic Photon Mono, Photon Mono 2, Photon Mono 4, Photon Mono 4K, Photon Mono 4 Ultra.
• Anycubic Photon Mono M5, M5s, M5s Pro, M7, M7 Pro, M7 Max.
• Anycubic Photon Mono X, Mono X2, Mono X 6K, Mono X6Ks.
• Anycubic Photon M3, M3 Plus, M3 Premium, M3 Max, Photon D2, Photon Ultra.
• Elegoo Mars, Saturn, Jupiter; Phrozen Sonic; Creality HALOT; Uniformation GK; Nova3D; Peopoly and other compatible resin printers.

This resin is not suitable for FDM/FFF 3D printers because it is a liquid photopolymer resin, not plastic filament.

🎯 Best applications

• Detailed miniatures, figures and collectible models.
• Functional prototypes and engineering samples.
• Electronic housings, shell parts and protective covers.
• Architectural mockups, presentation models and display samples.
• Parts intended for priming, painting, sanding and final finishing.
• Fixtures, templates, holders, tooling aids and small load-bearing components.

📄 File Download

• MSDS / SDS — material safety data sheet.
• REACH — REACH / SVHC report.
• RoHS — restricted substances report.
• TDS — technical data sheet.

⚠️ Safety recommendations

• Wear nitrile gloves and protective eyewear.
• Avoid contact between uncured resin and skin or eyes.
• Use the resin in a ventilated area.
• Shake the bottle thoroughly before use.
• Store the resin in a closed bottle away from light and heat.
• Do not drain resin-contaminated washing water into sewers.
• Fully cure resin residues before disposal.

❓ FAQs



Can this resin be cleaned with water?

Yes. Anycubic Water-Wash ABS-Like Resin 3.0 can be cleaned with water. Resin-contaminated water should be settled, exposed to UV or sunlight, and cured residues should be disposed of as solid plastic waste.

How should HD Gray be described?

For product content, HD Gray can be described as Dark Gray / High Detailed Gray. The official product variant can remain HD Gray, while the descriptive color name should explain the darker high-detail gray appearance.

How is HD Gray different from regular Gray?

HD Gray is a darker and more saturated gray shade. It helps highlight fine details, relief, textures, edges and complex geometry more clearly.

What is HD Gray best used for?

HD Gray is convenient for miniatures, figures, prototypes, mockups, technical parts and models intended for painting. It makes surface relief, geometry and print quality easy to inspect.

How is this resin different from standard Water-Wash Resin?

This version is ABS-like, making it better suited for parts that require improved strength, bending resistance and crack resistance.

Is IPA washing required?

Not necessarily. The resin can be washed with water, but 95% IPA may be useful for faster and deeper cleaning of complex models.

Can it be used for functional parts?

Yes. After correct printing and UV post-curing, it is suitable for housings, prototypes, clips, fixtures and small load-bearing components.



🏁 Why buy this resin

Anycubic Water-Wash ABS-Like Resin 3.0 HD Gray 1 kg is a practical dark high-detail gray photopolymer resin for users who need easy water cleaning, ABS-like toughness, high precision, low shrinkage and expressive surface detail. HD Gray #768692 is especially useful for high-detail miniatures, figures, technical prototypes, mockups, housings and models intended for painting.
