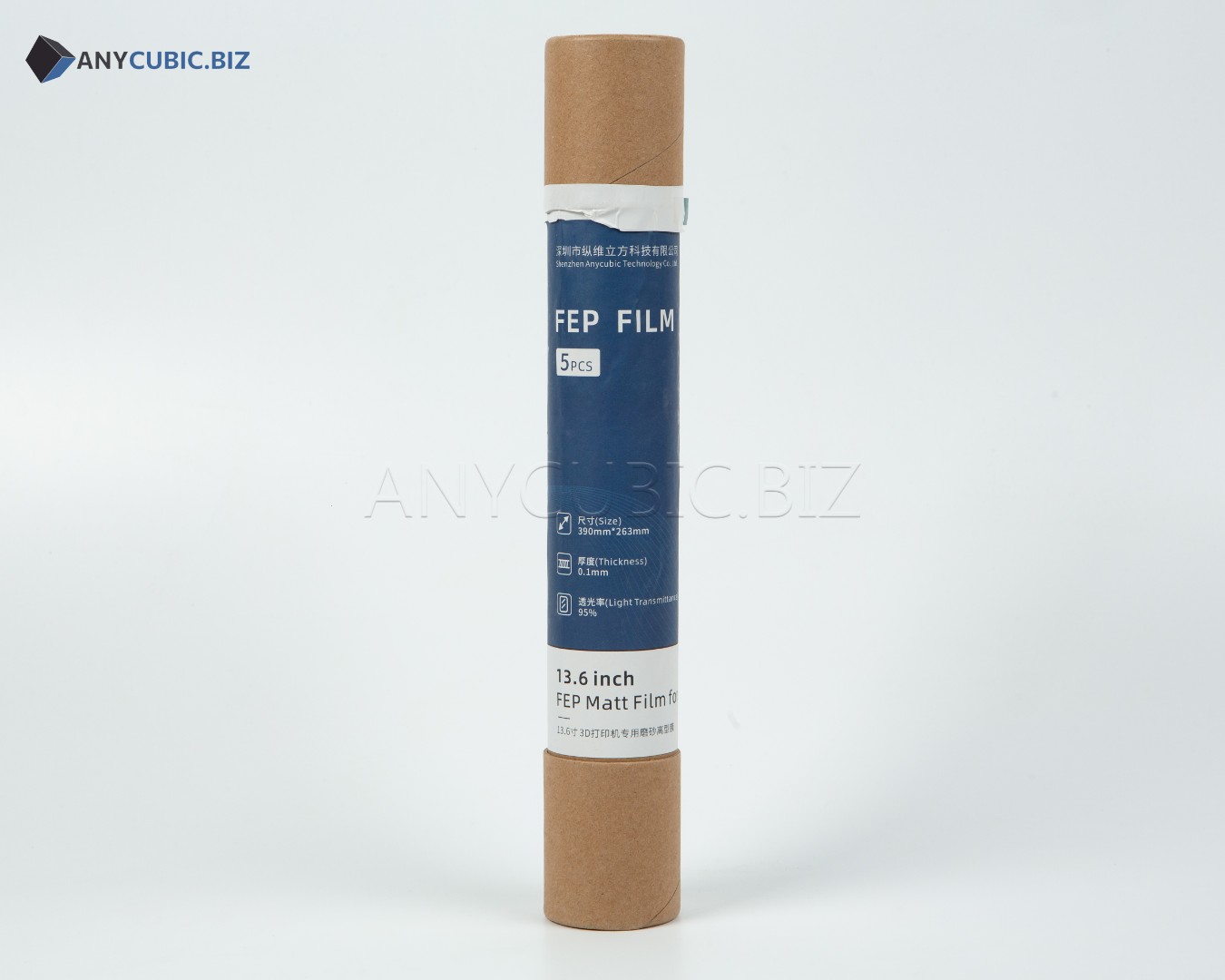

FEP Matt Film for Anycubic Photon M3 Max 390 x 263 mm 13.6″ 5 pcs
Description
FEP Matt Film for Anycubic Photon M3 Max 390 x 263 mm 13.6″ 5 pcs is a set of replacement Teflon release films for the resin vat of the Anycubic Photon M3 Max resin 3D printer. The film is installed at the bottom of the resin vat and provides layer separation during LCD resin printing.
FEP film is a consumable part of a resin 3D printer. Its condition affects UV exposure quality, layer release stability, print accuracy and LCD screen protection against possible resin leakage. The matt surface supports stable film performance during printing of large models, miniatures, prototypes and functional parts.
The set of 5 films is convenient for regular printer maintenance, planned consumable replacement and restoring stable printing after old film wear.
Advantages
- Compatible with Anycubic Photon M3 Max
- Film size 390 x 263 mm
- 13.6″ diagonal

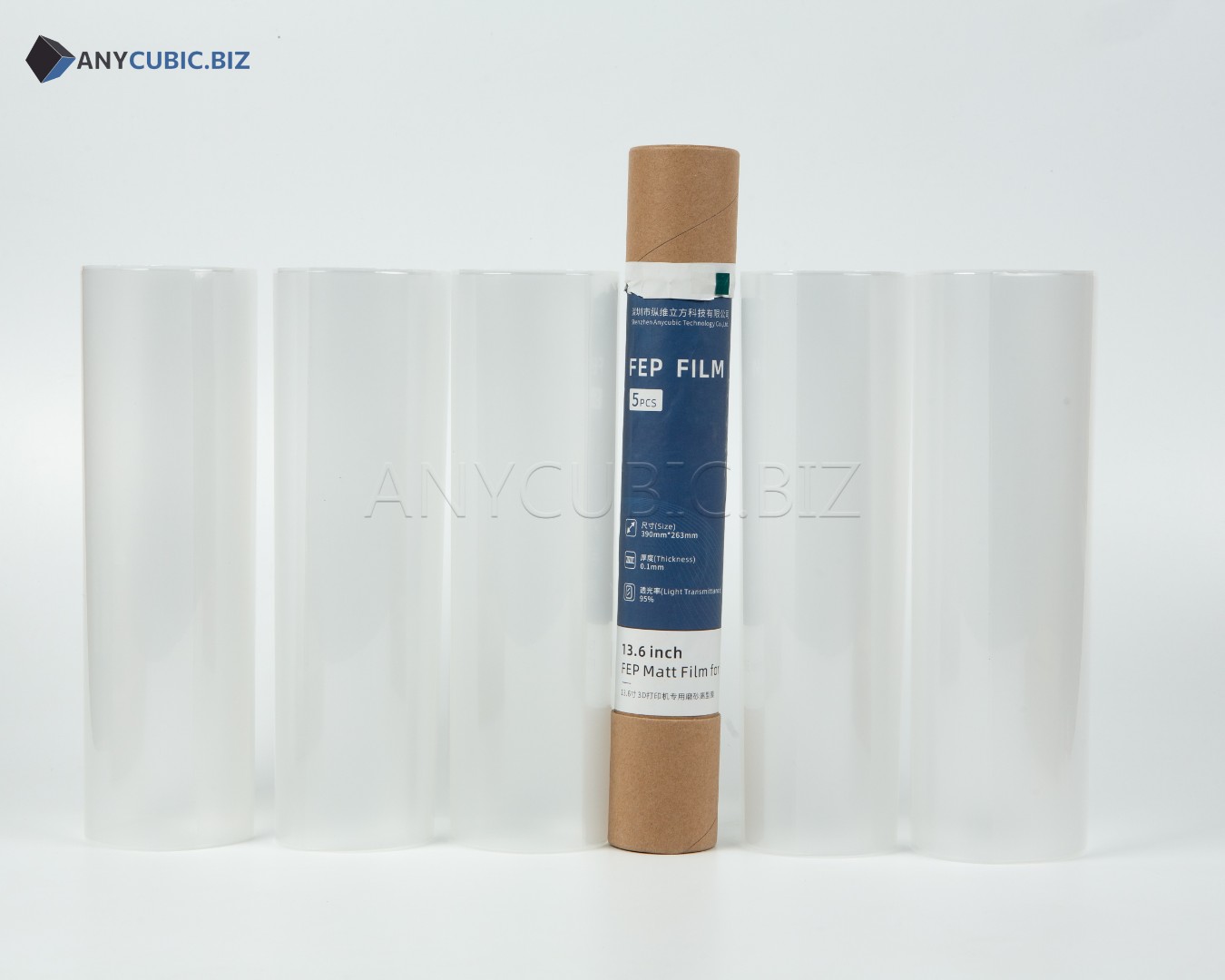

- Set includes 5 films
- FEP Matt film for stable layer release
- Suitable for replacing worn or damaged vat film
- Helps reduce failed prints caused by poor model separation
- Used for LCD resin 3D printing
Technical Specifications
| Product name | FEP Matt Film for Anycubic Photon M3 Max 390 x 263 mm 13.6″ 5 pcs |
| Full product name | FEP Matt film for Photon M3 Max 390 x 263 mm 13.6″ 5 pcs |

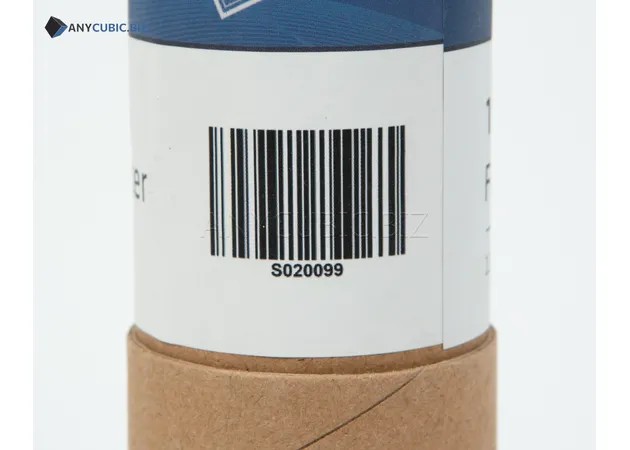

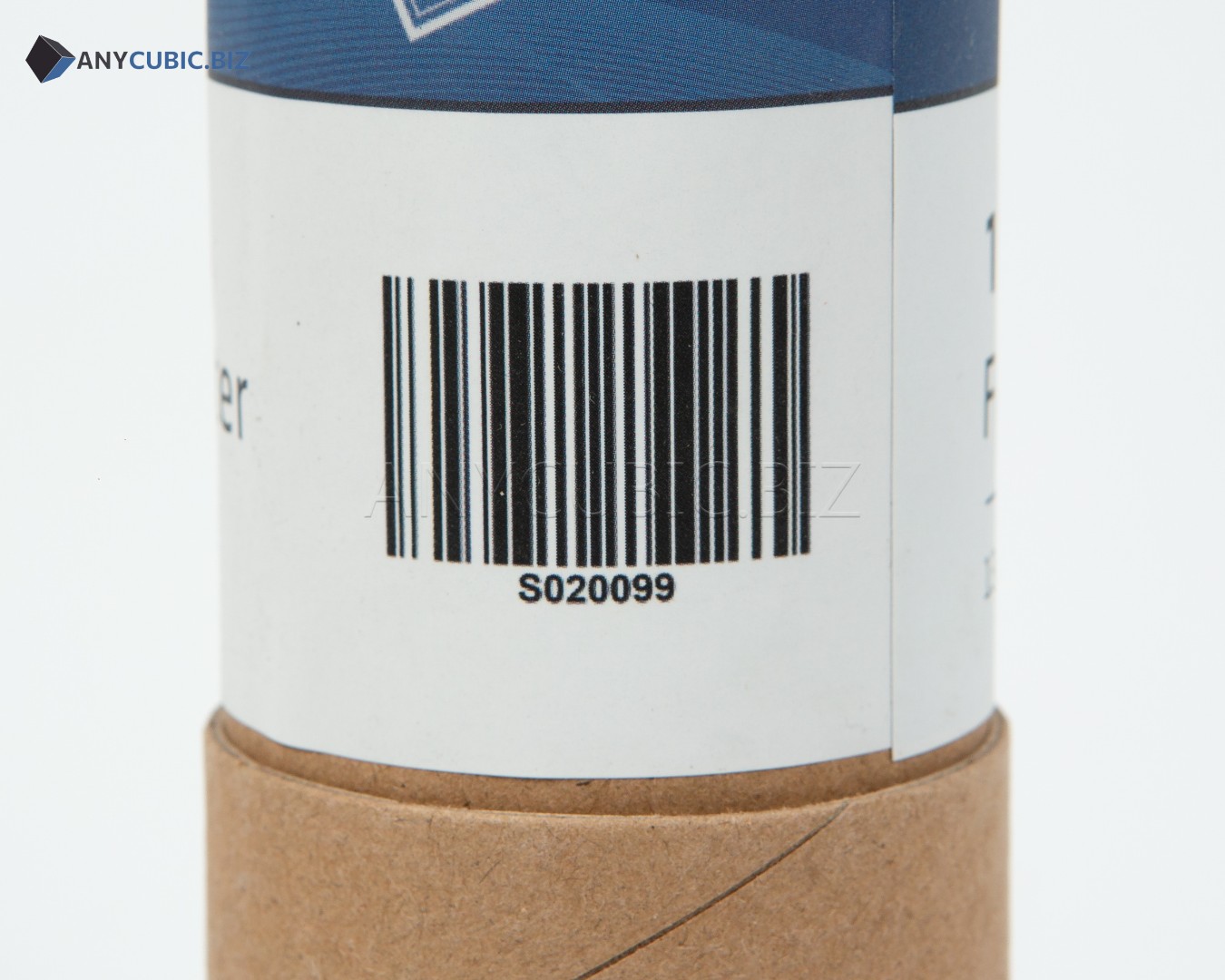

| SKU | S020099 |
| Part type | FEP film for resin vat |
| Surface | Matt |
| Compatibility | Anycubic Photon M3 Max |

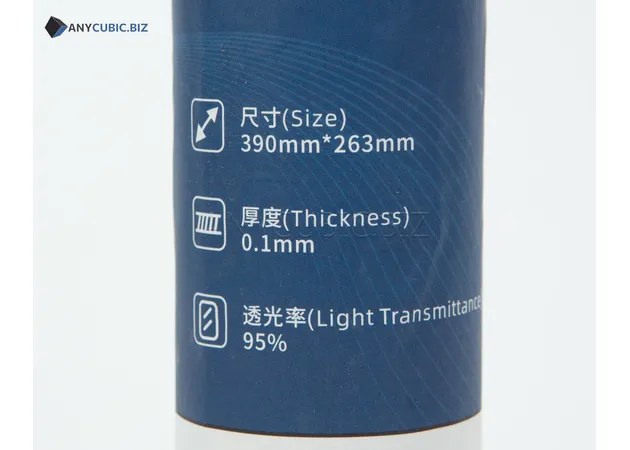

| Film size | 390 x 263 mm |
| Diagonal | 13.6″ |
| Quantity | 5 pcs |
| Purpose | Replacement film for the bottom of a resin vat |
| Category | FEP films for Anycubic resin 3D printers |
When to Replace the FEP Film
- The film has scratches, punctures or dents
- The film has become cloudy or lost transparency
- The model does not separate properly from the vat bottom
- Layer defects appear on printed parts
- Cured resin marks remain on the film after a failed print
- There is a risk of resin leakage onto the LCD screen
- The film has stretched and lost working tension
Compatibility
This film is intended for the resin vat of the Anycubic Photon M3 Max 3D printer. Before ordering, check the printer model, film size 390 x 263 mm and part number S020099. Anycubic Photon M3, Photon M3 Plus, Photon M3 Premium, Photon Mono X, Photon Mono X 6K and other models use films of different sizes.
Installation Recommendations
- Clean the resin vat completely before replacement
- Work on a clean and flat surface
- Remove the old film carefully to avoid damaging the vat frame
- Do not touch the working area of the film with dirty hands
- Tighten the screws evenly without distortion
- After installation, check the film tension
- Before the first print, make sure the vat does not leak
Usage Recommendations
- Check the film condition before every important print
- Do not use sharp metal tools to clean the film
- After a failed print, remove cured resin residue very carefully
- Filter resin before pouring it back into the bottle
- Do not leave the vat with resin under direct UV light
- Replace the film if punctures or heavy cloudiness appear
- Store spare films in a dry and clean place
Suitable Applications
- Film replacement for Anycubic Photon M3 Max resin vat
- Preventive maintenance of a resin 3D printer
- Printing large models
- Printing miniatures and figures
- Printing engineering prototypes
- Printing master models and functional parts
- Regular work with UV photopolymer resins
FAQ
Is this FEP film compatible with Anycubic Photon M3 Max
Yes, this film is intended for Anycubic Photon M3 Max.
What is the film size
The film size is 390 x 263 mm.
How many films are included
The set includes 5 FEP films.
What is the SKU of FEP film for Photon M3 Max 390 x 263 mm 13.6″ Matt 5 pcs
The SKU of this part is S020099.
Is this FEP Matt film
Yes, this is FEP Matt film for Photon M3 Max.
When should the FEP film be replaced
The film should be replaced when scratches, punctures, cloudiness, poor model release, wear marks or resin leakage risk appear.
Can this film be used for Photon M3 Plus
No, this film is listed for Photon M3 Max. Photon M3 Plus requires a film of a different size.
