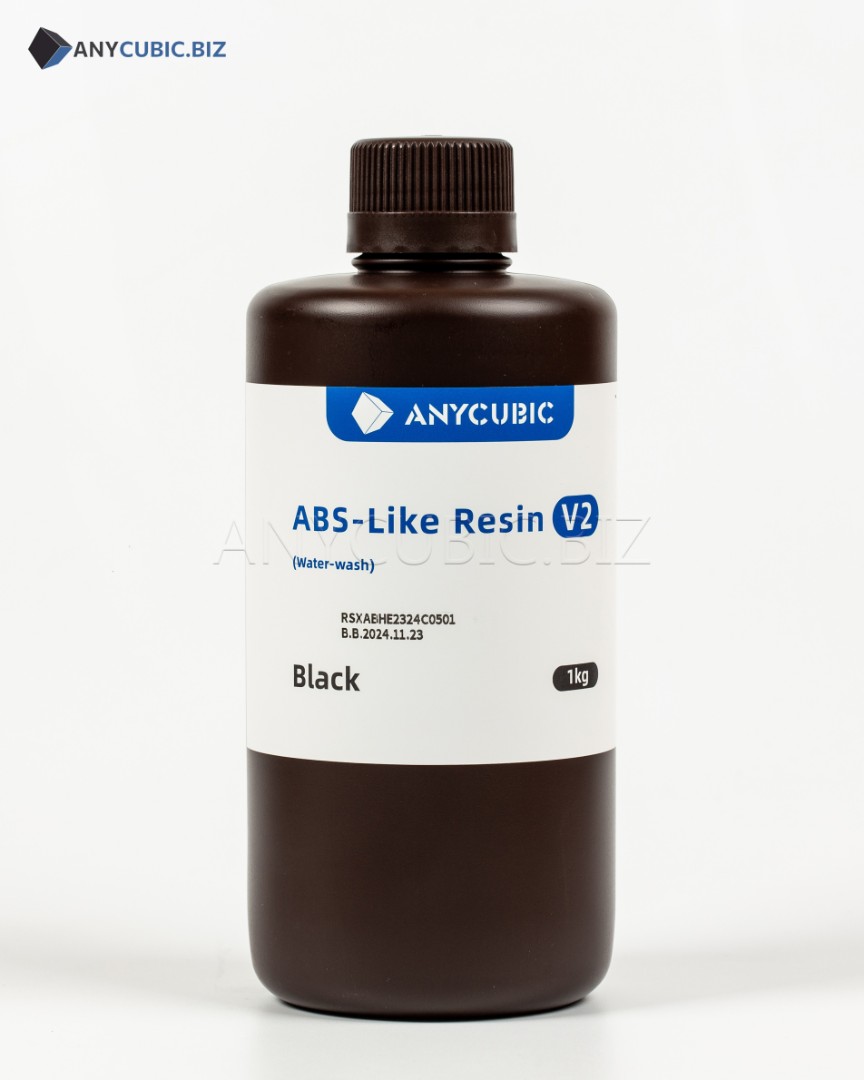

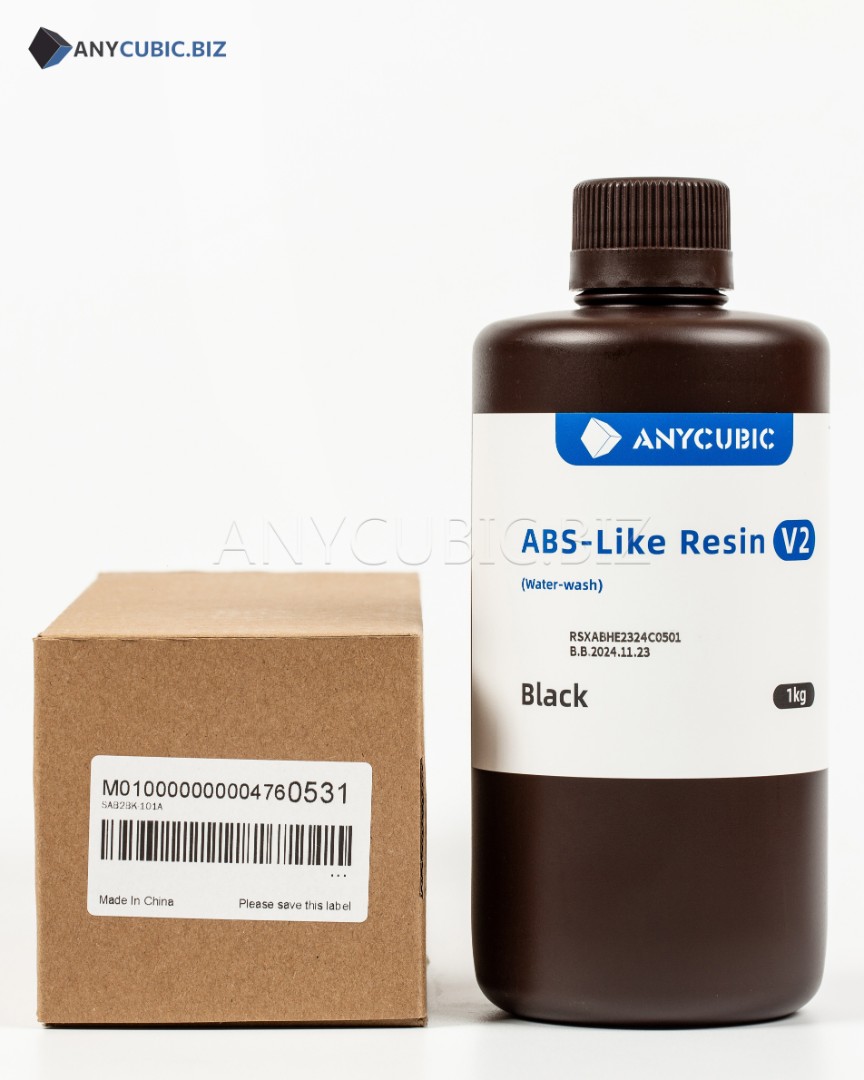

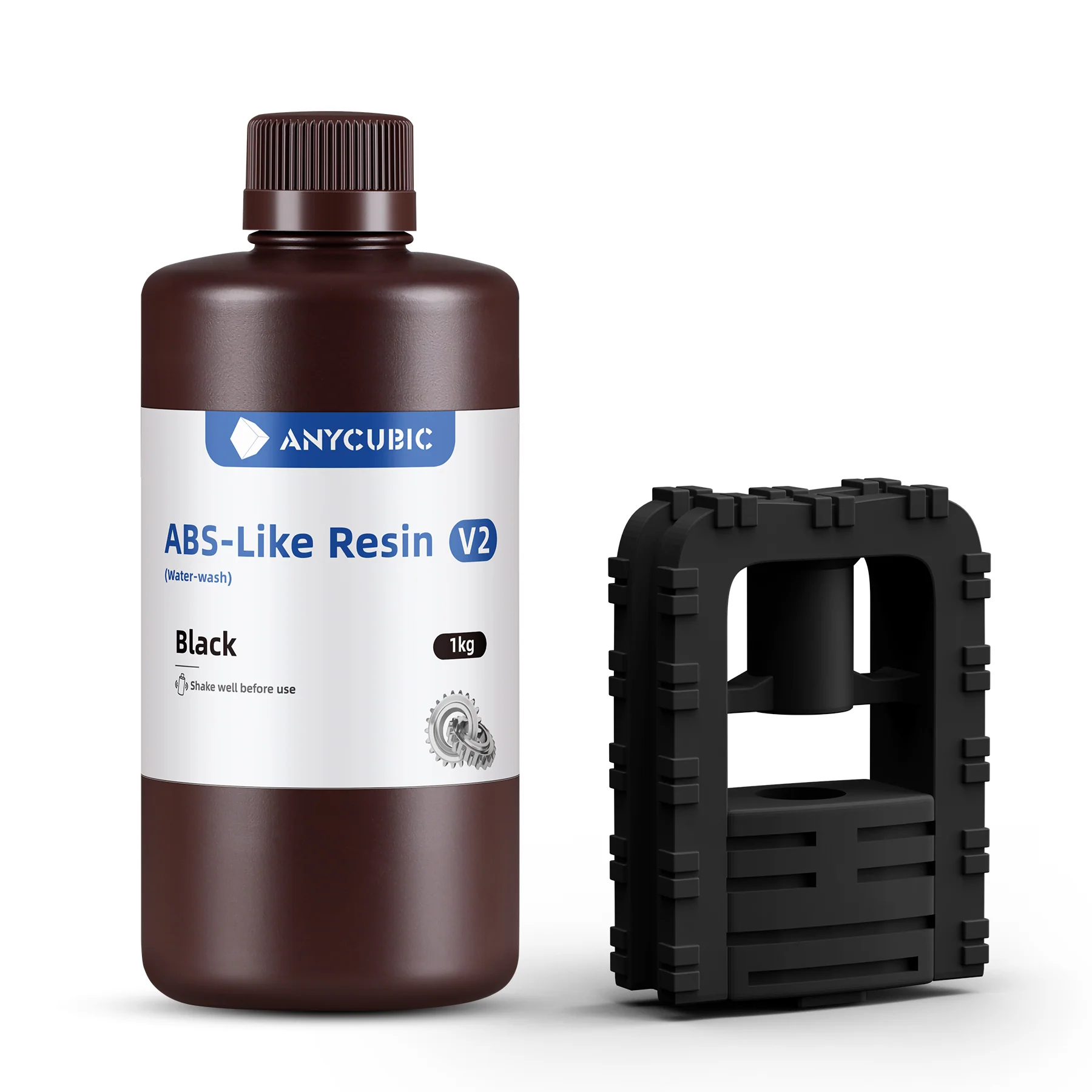

Anycubic ABS-Like Resin V2 Black — Tough, Water-Washable, and Precision UV Resin
Anycubic ABS-Like Resin V2 Black is a matte black, water-washable photopolymer designed for strong and functional 3D prints. It replicates the mechanical properties of ABS plastic while allowing for easy water rinsing. Perfect for printing brackets, mechanical assemblies, tools, and visually striking matte black prototypes.
Key Features
- ABS-Like Durability: High impact and flexural strength for technical and mechanical parts.
- Water-Washable: Easily rinsed with water, IPA, or used in ultrasonic cleaners.
- Matte Black Surface: Non-glossy finish ideal for stealth-style prototypes and post-processing.
- High Precision & Low Shrinkage: Ensures dimensional stability and detail retention.
- Low Odor Formula: Safe for indoor workspaces with reduced VOC content.
Technical Specifications
| Parameter | Value |
|---|---|
| UV Wavelength | 365–405 nm |
| Viscosity | 180–200 cP·mPa·s |
| Density | 1.1–1.2 g/cm³ |
| Hardness | 80–85 Shore D |
| Tensile Strength | 35–45 MPa |
| Flexural Strength | 40–50 MPa |
| Flexural Modulus | 1000–1200 MPa |
| Elongation at Break | 30–40% |
| Heat Deflection Temperature | 60–65°C |
| Molding Shrinkage | 4.3–5.6% |
| Resin Wash | Water / Alcohol |
| Shelf Life | 1.5 years |
Recommended Printing Parameters
| Setting | Value |
|---|---|
| Layer Thickness | 0.025–0.05 mm |
| Normal Exposure Time | 2–3 s |
| Bottom Exposure Time | 25–35 s |
| Post-Curing Time | 30–60 min (UV 5–10 mW/cm²) |
Instructions for Use
- Before printing: Shake well and clean the vat and build platform.
- During printing: Pour resin and set recommended exposure settings.
- After printing: Use gloves and tools. Rinse with water or ≥95% alcohol. Ultrasonic cleaning is preferred.
- Post-processing: Remove supports, dry completely, and UV-cure thoroughly.
Precautions
- Store in a sealed container between 18–35°C away from direct sunlight.
- If thickened due to cold, warm gently (not above 60°C).
- Shake before use if pigment has settled.
- Do not soak models in water/alcohol too long.
- Always perform post-curing to ensure durability and performance.
Frequently Asked Questions (FAQ)
- Is the resin suitable for mechanical parts?
- Yes. Its ABS-like strength and flexibility make it great for brackets, joints, and functional models.
- Can I clean it with water?
- Yes. This resin is water-washable for convenient cleaning.
- Does it emit strong odor?
- No. The low-VOC formulation makes it ideal for indoor use.
- Does the black color affect details?
- No. The matte black surface provides sharp visibility of edges and contours.
