Anycubic Wash & Cure Max
Anycubic Wash & Cure Max is a large automatic post processing station for resin 3D printing. It combines model washing and UV curing in one machine, helping users remove uncured resin from printed parts and complete final polymerization after printing.
The station is designed for large resin models printed on LCD, DLP and SLA 3D printers. With a 14.9 L working volume and a maximum washing and curing volume of 300 x 165 x 300 mm, Anycubic Wash & Cure Max is suitable for most consumer resin 3D printers with build sizes up to 13.6″.
Main Advantages
- Large 14.9 L capacity for post processing medium and large resin models.
- 300 x 165 x 300 mm washing and curing volume for large prints, prototypes, figures and batch processing.
- Automatic workflow after washing, the station can automatically move to UV curing.
- Spray Rinsing helps remove uncured resin from the model surface.
- Immersion Cleaning helps clean details, cavities, holes and complex geometry.
- Alcohol efficient design large models can be cleaned with about 4 L of IPA.
- Build plate support up to 12″ for compatible resin 3D printer platforms.

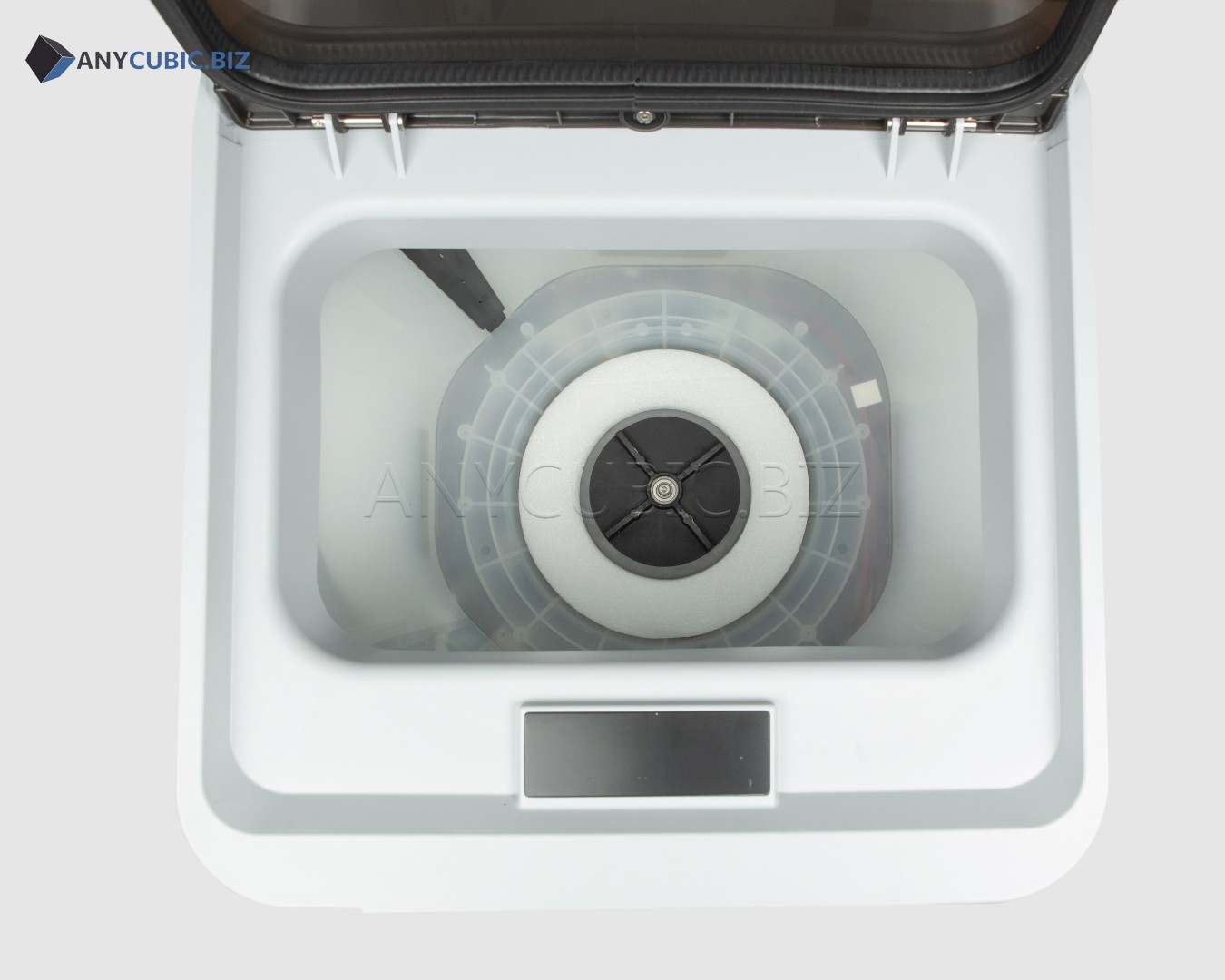

- 360 degree curing rotating platform helps expose the model more evenly.
- 405 nm UV wavelength suitable for most standard resin materials.
- Fault detection protection helps detect door status, lack of water and blocked outlets.
Technical Specifications
| Product name | Anycubic Wash & Cure Max |
| Device type | Washing and UV curing station |
| Total working capacity | 14.9 L |
| Maximum washing and curing volume | 300 x 165 x 300 mm |
| Build plate compatibility | up to 12″, weight up to 2.2 kg |
| Recommended resin printer size | up to 13.6″ |
| Cleaning method | Spray Rinsing plus Immersion Cleaning |
| Cleaning liquid | IPA or ethanol with 95% concentration or higher |
| UV wavelength | 405 nm |
| Rated power | 144W |
| Input voltage | AC110-240V 50/60Hz |
| Control method | Control Panel |
| Product dimensions | 434 x 434 x 556 mm |
| Machine weight | 13.5 kg |
| Main modes | Auto Mode and Cure Mode |
Product Description
Anycubic Wash & Cure Max is made for users who need more serious post processing than compact desktop wash and cure stations can offer. It is a practical solution for large resin models, big figures, engineering parts, dental models, master models, prototypes, housings and decorative prints.
After resin 3D printing, the surface of the model is covered with uncured liquid resin. If it is not removed before UV curing, the surface may remain sticky, cloudy, uneven or covered with marks. Wash & Cure Max helps make this process cleaner, more repeatable and more convenient for a resin printing workspace.
Washing Mode
In washing mode, the station uses liquid spraying and lower immersion. Spray Rinsing helps wash uncured resin from the surface, while Immersion Cleaning helps clean hard to reach areas, surface texture, holes, channels and deep sections of the model.
For standard resin materials, IPA or ethanol with 95% concentration or higher is usually used. For water washable resin, water can be used only when the resin manufacturer allows it.
UV Curing Mode
After washing, the station can switch to UV curing. The 405 nm UV light helps complete polymerization, reduce surface stickiness and prepare the printed part for handling, sanding, painting, assembly or final use.
The rotating platform helps provide more even UV exposure. This is especially important for large models and objects with complex geometry.
Suitable Applications
- Post processing large resin 3D printed models.
- Cleaning and curing prints from resin printers up to 13.6″.
- Miniatures, figures and collectible models.
- Engineering prototypes and functional parts.
- Dental models with compatible dimensions.
- Architectural models and master models.
- Batch processing of multiple small parts.
- Workshop, service center and laboratory use.
Compatible Resin Types
- Standard Resin
- Basic Resin
- ABS Like Resin
- ABS Like Resin Pro
- Water Wash Resin
- Tough Resin
- High Clear Resin
- DLP Craftsman Resin
- Plant Based Resin
- Dental Model Resin
- Engineering Resin
- Transparent Resin
3D Printer Compatibility
Anycubic Wash & Cure Max is suitable for models printed on LCD, DLP and SLA resin 3D printers when the printed object fits within 300 x 165 x 300 mm. It is especially useful for large Anycubic Photon printers and other large format resin printers.
- Anycubic Photon M3 Max
- Anycubic Photon M3 Plus
- Anycubic Photon M3 Premium
- Anycubic Photon Mono M5s
- Anycubic Photon Mono M5s Pro
- Anycubic Photon Mono M7
- Anycubic Photon Mono M7 Pro
- Anycubic Photon Mono M7 Max
- Anycubic Photon P1 Max
- Other LCD, DLP and SLA printers with compatible model dimensions
Recommended Use
- Remove the printed model from the resin 3D printer build plate.
- Remove excess liquid resin from the model surface.
- Place the model on the tray inside the station.
- Check that detergent and water containers are filled correctly.
- Select Auto Mode for automatic washing and curing.
- Select Cure Mode if only additional UV curing is needed.
- After the process is complete, open the door and remove the model.
- Check the surface and repeat a short curing cycle if necessary.
Safety Tips
- Always wear gloves when working with uncured resin.
- Do not open the door while the machine is operating.
- Keep IPA and ethanol away from open flame.
- Do not pour resin contaminated liquid directly into the drain.
- Let the model dry after washing before UV curing.
- Clean filters and the inner chamber regularly.
- Store cleaning liquid in a closed container away from sunlight and heat.
FAQ
What is Anycubic Wash & Cure Max?
It is a large post processing station for washing and UV curing resin 3D printed models.
What is the working capacity of Anycubic Wash & Cure Max?
The working capacity is 14.9 L.
What is the maximum washing and curing volume?
The maximum washing and curing volume is 300 x 165 x 300 mm.
What UV wavelength does it use?
It uses 405 nm UV light.
What is the rated power?
The rated power is 144W.
Can it clean a model together with the build plate?
Yes. The station supports compatible build plates up to 12″ with a weight not exceeding 2.2 kg.
How much IPA is needed?
Anycubic indicates that about 4 L of IPA is enough for large models, reducing cleaning liquid consumption compared with traditional large machines.
Can I use water?
Water can be used with water washable resin only when allowed by the resin manufacturer. Standard resin usually requires IPA or ethanol with 95% concentration or higher.
How is Wash & Cure Max different from compact stations?
It has a much larger volume, automatic washing and curing workflow, Spray Rinsing, Immersion Cleaning and support for large resin models.
