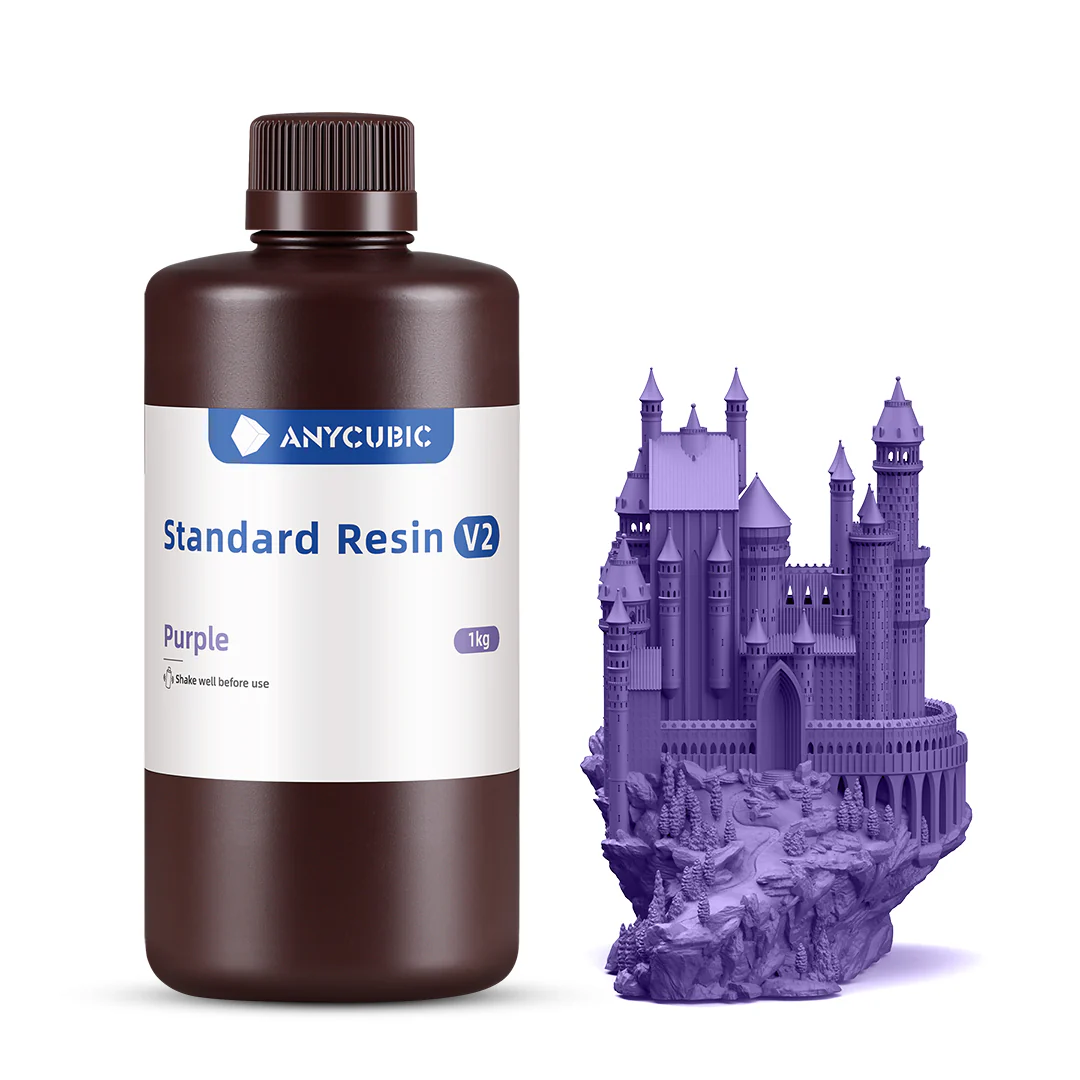

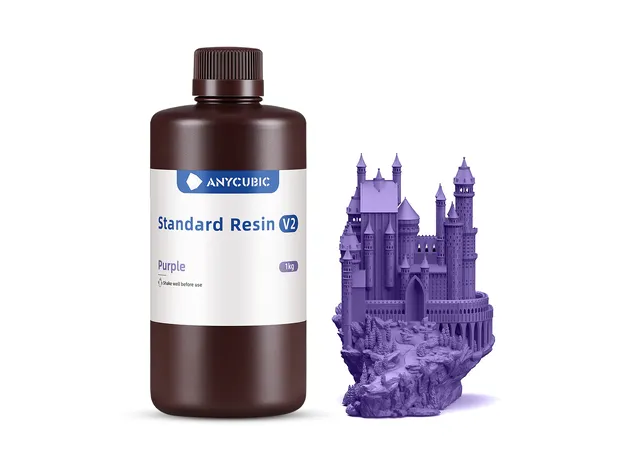

Anycubic Standard Resin V2 Purple 1 kg

🟣 Anycubic Standard Resin V2 Purple 1 kg is a versatile photopolymer resin for accurate 3D printing on resin LCD, MSLA and DLP 3D printers. The material is designed for 365-405 nm / 405 nm UV-curing resin systems and is suitable for figures, scale models, prototypes, housings, decorative models, technical parts and functional components.

🧪 Anycubic Standard Resin V2 Purple combines high strength, good impact resistance, low shrinkage, stable detail reproduction and an expressive purple color. Printed parts look clean after washing and UV curing, making this resin a good choice for design parts, gaming miniatures, decorative elements, visual prototypes and models that need a rich purple shade without mandatory painting.

💡 Core idea: Standard Resin V2 Purple is a practical purple Anycubic resin for everyday printing where detail, stable geometry, strength and a vivid final color are important.

• 🟣 Color: Purple
• 🎯 Hex color: #825DC7
• 🏷️ SKU: SBZ2PU
• ⚖️ Net weight: 1 kg
• 🧪 Official name: Anycubic Standard Resin V2 Purple
• 🔬 Material type: Photopolymer resin
• 💡 Wavelength: 365-405 nm / 405 nm
• 🧩 Compatibility: Resin LCD, MSLA and DLP 3D printers

✅ Key advantages

• 💪 High strength: suitable not only for decorative models, but also for prototypes, housings, technical parts, holders and fixtures.
• 🛡️ Improved impact resistance: the material handles mechanical stress better than many basic standard resins.
• 🔍 Accurate detail reproduction: low shrinkage helps preserve fine details, sharp edges, relief, texture and model geometry.
• 💧 Good resin flow: low viscosity helps the resin spread across the vat faster and form stable layers.
• 🎨 Ready purple color: printed models look expressive even without painting, especially after proper washing and UV curing.
• 🧩 Wide application range: suitable for figures, models, housings, engineering prototypes, visual samples and functional parts.
• ⚙️ Resin printer compatibility: works with resin LCD, MSLA and DLP 3D printers using 405 nm UV light.
• 🚀 Ready starting parameters: recommended print settings are available for many Anycubic Photon printers.

🔍 Technical specifications

Parameter	Value
Product name	Anycubic Standard Resin V2 Purple 1 kg
SKU	SBZ2PU
Material type	Photopolymer resin
Color	Purple
Hex color	#825DC7
Net weight	1 kg
Wavelength	365-405 nm
Pre-print preparation	Shake well before use
Print environment	20-40 ℃
Print temperature	20-50 ℃
First layer exposure	20-40 s
Normal exposure	2.5-3 s
Cleaning	95% IPA
Washing duration	≥3 min
UV curing wavelength	405 nm
Curing temperature	18-30 ℃
UV intensity	25000-30000 uW/cm²
Curing time	3 min
Shelf life	18 months when stored properly

🧪 Physical and mechanical properties

Property	Value
Viscosity	250-350 mPa·s at 25 ℃
Density	1.05-1.25 g/cm³
Hardness	80-83 HD / Shore D
Tensile strength	35-45 MPa
Elongation at break	25-30%
Flexural strength	40-50 MPa
Flexural modulus	1500-2100 MPa
Young’s modulus	1200-1400 MPa
Izod impact strength	192 J/m
Volume shrinkage	4.3-5.6%

🧩 3D printer compatibility

Anycubic Standard Resin V2 Purple is compatible with resin LCD, MSLA and DLP 3D printers that use 365-405 nm or 405 nm UV-curing photopolymer resin systems. The material is optimized for Anycubic Photon series printers and can also be used with compatible resin printers from other brands after exposure calibration.

• ✅ Compatible Anycubic printers: Photon Mono, Photon Mono X, Photon Mono X2, Photon Mono 2, Photon Mono 4, Photon Mono 4 Ultra, Photon Mono M5, Photon Mono M5s, Photon Mono M5s Pro, Photon Mono M7, Photon Mono M7 Pro, Photon Mono M7 Max, Photon M3, Photon M3 Plus, Photon M3 Max, Photon M3 Premium, Photon D2, Photon Ultra and other Anycubic resin 3D printers.
• 🔄 Compatible printers from other brands: Elegoo Mars, Elegoo Saturn, Elegoo Jupiter, Phrozen Sonic, Creality HALOT, Creality LD, Longer Orange, Nova3D and other LCD, MSLA or DLP resin 3D printers using 405 nm UV light.

📌 Important: printing parameters should be adjusted for the specific printer, screen, release film, temperature, layer height and model geometry. An exposure test is recommended before batch printing.

🎯 Recommended applications

• 🎮 Character figures, gaming miniatures and collectible models.
• 🏛️ Architectural models and presentation prototypes.
• 📦 Electronic housings, visual samples and display parts.
• 🧪 Functional R&D prototypes and engineering samples.
• 🧩 Technical parts, holders, fixtures and snap-fit components.
• 🎨 Decorative models that need a ready purple color without additional painting.
• 🛠️ Parts for trial assembly, form checking, ergonomics testing and fit verification.

⚙️ Recommended printing parameters

Printer model	Exposure time	Light-off time	Bottom exposure	Bottom layers	Z lift distance	Z lift speed	Z retract speed	Anti-aliasing	Layer thickness
Photon P1	2 s	2 s	20 s	1	5 mm	3 mm/s	3 mm/s	4	0.05 mm
Photon Mono M7	2.2 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M7 Pro	1.8 s	0.5 s	25 s	3	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M7 Max	2 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5s	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s	1	0.05 mm
Photon Mono M5s Pro	3.6 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4	2.8 s	1 s	30 s	5	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4K	2 s	0.5 s	40 s	6	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono 4 Ultra	2.6 s	1 s	30 s	5	5 mm	8 mm/s	8 mm/s	1	0.05 mm
Photon Mono 2	2.5 s	1 s	25 s	5	6 mm	4 mm/s	6 mm/s	1	0.05 mm
Photon Mono X2	2.5 s	0.5 s	20 s	5	8 mm	2 mm/s	3 mm/s	1	0.05 mm
Photon Mono X 6K	2 s	0.5 s	25 s	6	8 mm	2 mm/s	3 mm/s	1	0.05 mm
Photon Mono X6Ks	2.5 s	0.5 s	20 s	5	8 mm	3 mm/s	4 mm/s	1	0.05 mm
ANYCUBIC Photon M3 Max	3 s	2.5 s	35 s	6	10 mm	2 mm/s	3 mm/s	1	0.05 mm
ANYCUBIC Photon M3 Premium	2.5 s	0.5 s	25 s	2	8 mm	6 mm/s	6 mm/s	1	0.05 mm

💡 Setup tip: if the model does not adhere well to the build plate, increase bottom exposure. If fine details look overexposed, slightly reduce normal exposure and run a calibration test.

🧼 Washing and post-processing

1. 🧤 Wear nitrile gloves and safety glasses before handling resin.
2. 🧴 Carefully remove the printed model from the build plate.
3. ✂️ Remove supports according to the model geometry.
4. 🧼 Wash the model in 95% IPA for at least 3 min.
5. 🌬️ Dry the model completely after washing.
6. 💡 UV cure the model for 3-5 min depending on size, wall thickness and geometry.
7. 🔎 Check the surface after curing: the model should be dry, solid and non-sticky.

📦 Storage recommendations

• 📌 Store the resin in the tightly closed original bottle.
• ☀️ Keep the material away from direct sunlight.
• 🌡️ Recommended storage range: 20-50 ℃.
• 🧪 Filter leftover resin before returning it to the bottle if it remained in the vat after printing.
• 🚫 Do not mix different resin types, colors or brands without prior testing.

🛡️ Safety precautions

• 🧤 Use nitrile gloves, safety glasses and protective clothing.
• 🌬️ Work only in a well-ventilated area.
• 🚫 Avoid contact of liquid resin with skin and eyes.
• 💧 Do not release liquid resin into drains, soil or water.
• 👶 Keep the material away from children, pets and direct sunlight.
• ♻️ Fully cure resin waste with UV light before disposal.

📄 File Download

• 📄 MSDS / SDS — material safety data sheet.
• ✅ REACH — SVHC substance report.
• ✅ RoHS — RoHS compliance report.
• 📘 TDS — technical data sheet.

❓ FAQ





🧪 Is Anycubic Standard Resin V2 Purple suitable for beginners?

Yes. The resin is suitable for regular 3D printing and is easy to tune. For best results, use the recommended starting parameters and run an exposure test for your specific printer.

🧩 Can I use this resin on printers from other brands?

Yes. The resin is compatible with resin LCD, MSLA and DLP 3D printers that work with 365-405 nm or 405 nm photopolymer resins. Printing parameters should be calibrated for non-default profiles.

💪 How is Standard Resin V2 different from regular standard resin?

Version V2 is focused on higher strength, better impact resistance, stable detail reproduction, low shrinkage and better suitability for prototypes and technical parts.

🧼 How should I clean the model after printing?

Use 95% IPA for washing. After washing, dry the model completely and perform additional UV curing.

🔄 Should I shake the bottle before printing?

Yes. Shake the bottle well before use so that pigment and resin components are evenly distributed.

🛠️ Is the purple resin suitable for technical parts?

Yes. The material is suitable for prototypes, housings, holders, fixtures and other parts where accuracy, shape stability and improved strength are important.

🌡️ What should I do if the room temperature is below 20 ℃?

At low temperatures resin becomes less fluid, so it is recommended to increase exposure time and reduce Z-axis lift speed. Printing in a stable temperature range is also recommended.

📦 If I buy 3 kg, will it be one bottle?

No. Usually, when purchasing 3 kg of resin, the customer receives three separate 1 kg bottles.
