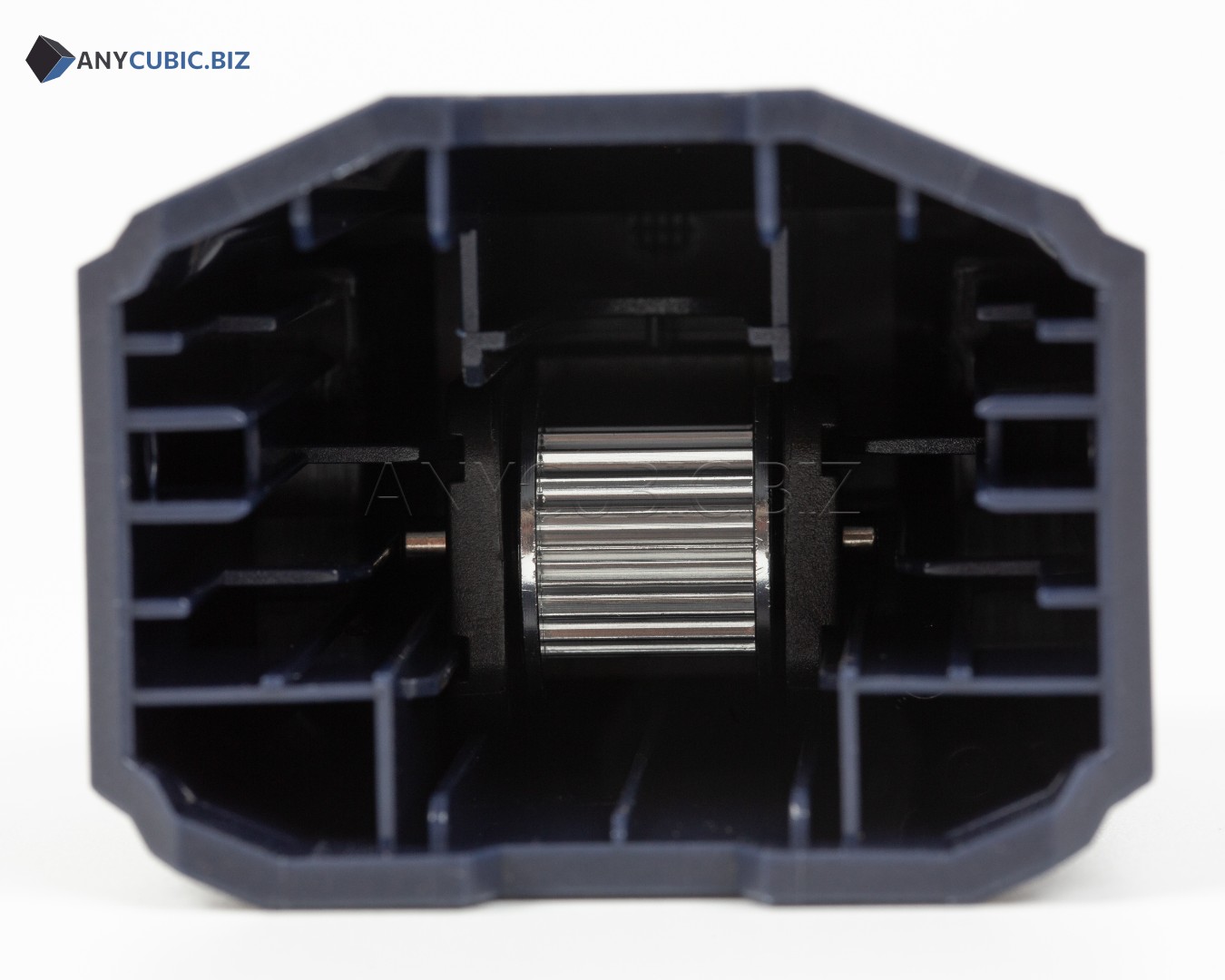

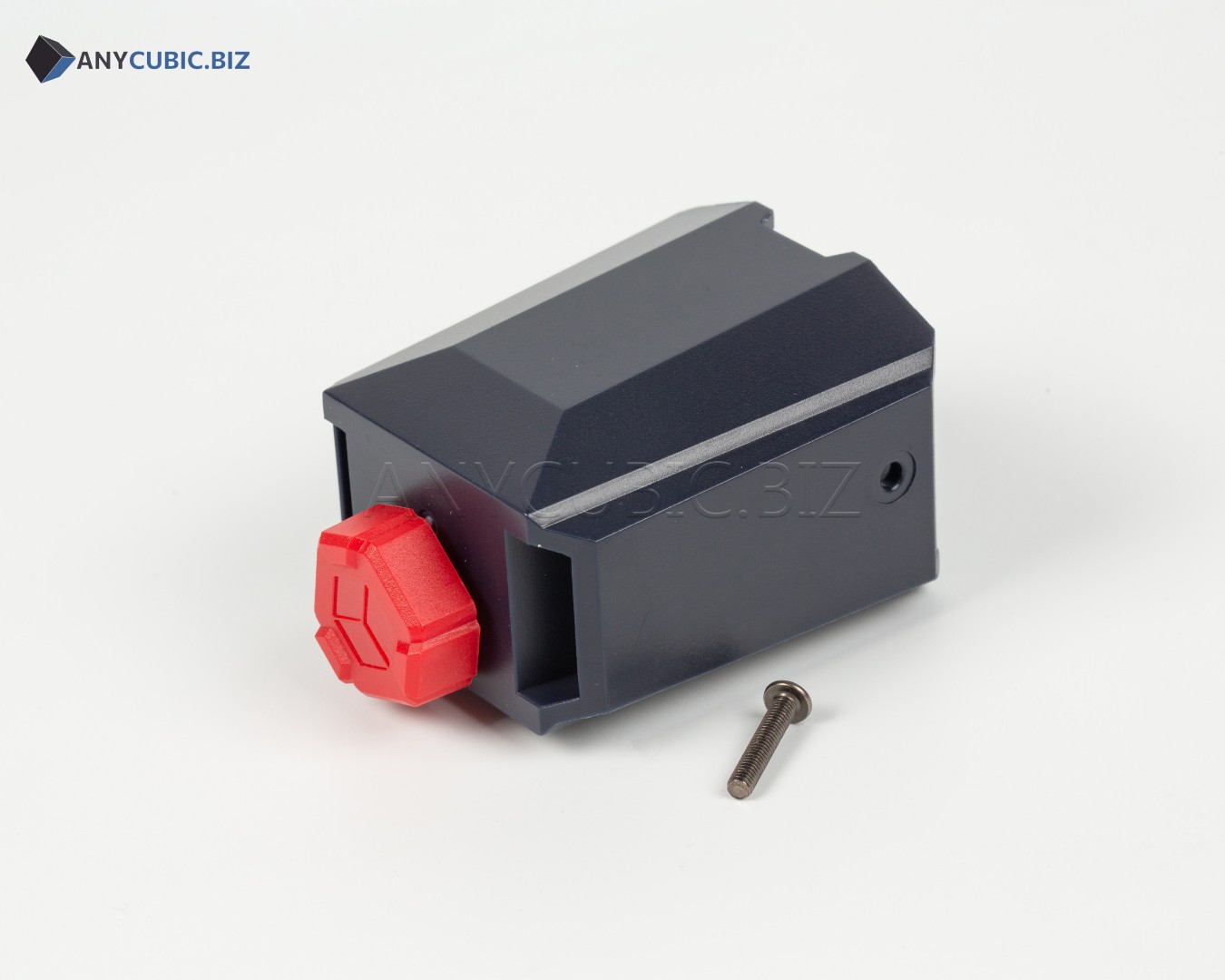

Anycubic Kobra 2 Y-axis Belt Adjustment Assembly

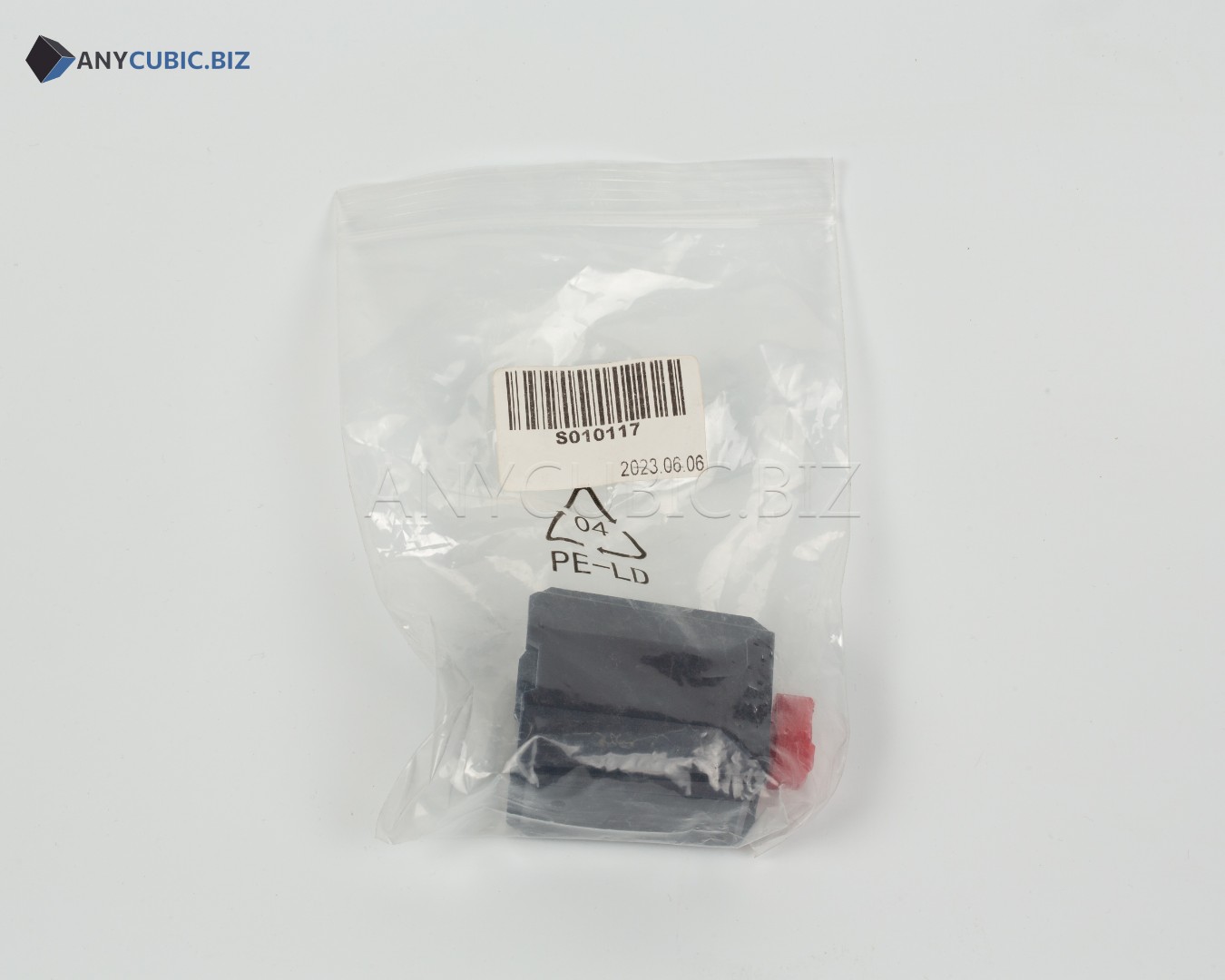

SKU: S010117

Manufacturer: Anycubic

Compatibility: Anycubic Kobra 2

Purpose: Y-axis belt tension adjustment / heated bed belt tensioner assembly

Description

The Anycubic Kobra 2 Y-axis belt adjustment assembly is a replacement mechanical spare part used in the heated bed motion system of the FDM 3D printer. The part helps correctly tension the Y-axis belt, keep it in the proper working position and support stable forward and backward platform movement.

Proper Y-axis belt tension directly affects print quality: model geometry, layer alignment, wall consistency and smooth bed movement. If the tensioning assembly is damaged, worn or no longer adjusts the belt correctly, the printer may produce vibration, jerky movement, backlash and Y-axis related print defects.

Key Benefits

• Original Anycubic spare part for the Kobra 2 3D printer.
• Used for Y-axis belt tension adjustment.
• Helps restore stable heated bed movement.
• Reduces the risk of backlash, vibration and layer shifting.
• Suitable for repair, maintenance and preventive replacement.
• An important part for stable FDM printer mechanical operation.

Technical Specifications

When Replacement May Be Needed

• The Y-axis belt cannot be properly tensioned.
• The heated bed moves with jerks, vibration or noticeable backlash.
• Layer shifts appear in the Y-axis direction.
• The tensioner housing is damaged, cracked or does not secure properly.
• The tension adjustment knob does not work correctly or does not hold position.
• The heated bed mechanics require maintenance after long-term operation.

Installation Recommendations

1. Turn off the 3D printer and disconnect the power cable before maintenance.
2. Rotate the Y-axis belt tensioner knob counterclockwise to release belt tension.
3. Carefully remove the old adjustment assembly if it is damaged or requires replacement.
4. Check the belt, pulley and heated bed mounting points.
5. Install the new Y-axis belt adjustment assembly in the original position.
6. Make sure the belt runs straight, is not twisted and sits correctly on the pulley.
7. Tighten the mounting screws without misaligning the tensioner housing.
8. Adjust belt tension: it should be firm enough for stable motion, but not overtightened.
9. After installation, check smooth bed movement, run calibration and make a test print.

Compatibility

The Y-axis belt adjustment assembly with SKU S010117 is intended for Anycubic Kobra 2. For Anycubic Kobra Go, Kobra Neo, Kobra 2 Neo, Kobra 2 Pro, Kobra 2 Plus, Kobra 2 Max, Kobra 3 and other models, select a separate compatible spare part according to the correct SKU and assembly design.
