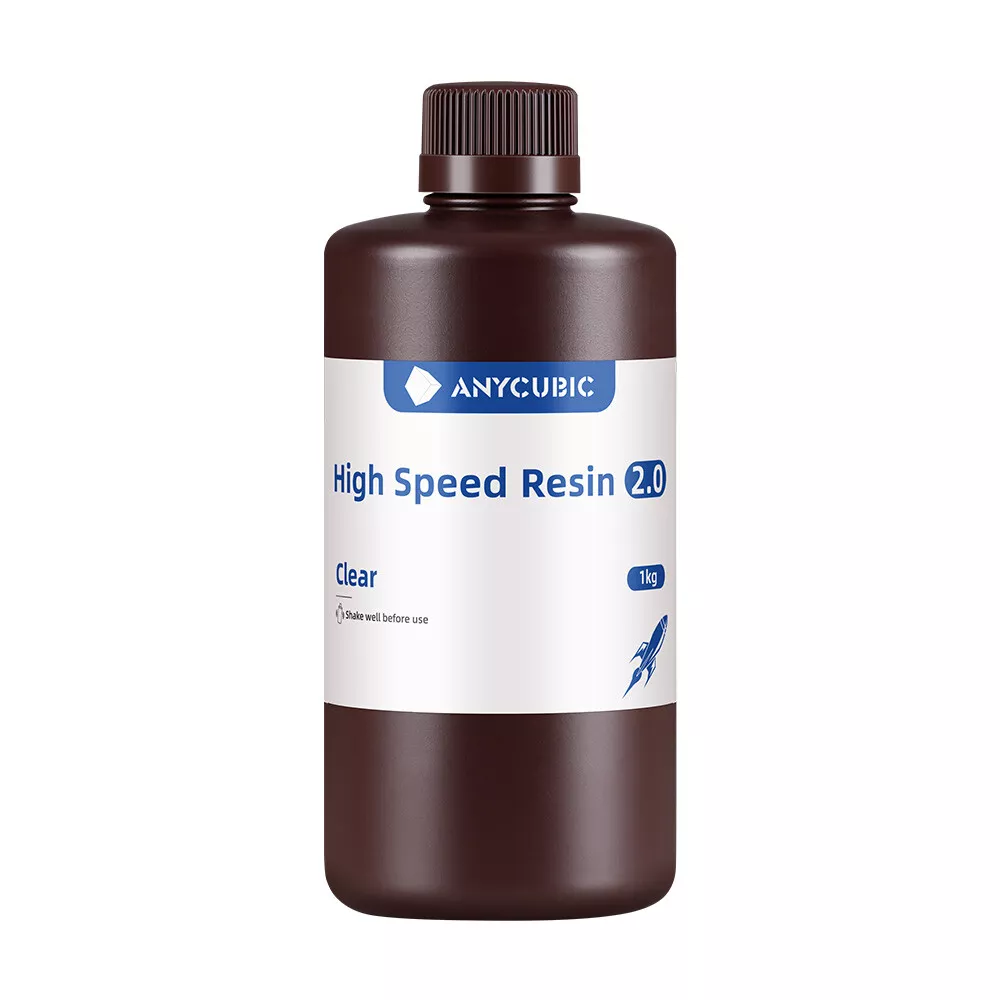

Anycubic High Speed Resin 2.0 Clear 1 kg

💎 Anycubic High Speed Resin 2.0 Clear 1 kg is a clear high-speed photopolymer resin for LCD, MSLA and DLP resin 3D printers. It is designed for faster printing of prototypes, display models, transparent housings, technical samples, decorative parts and models that require a clear visual effect.

The material combines low viscosity, fast curing, stable detail reproduction and convenient post-processing. With a viscosity of 75-85 mPa·s at 25 ℃, the resin flows back into the printing area more efficiently after each platform lift, helping reduce print time on compatible resin 3D printers.

Clear color is useful for models where visible internal geometry, light transmission, volume, shape or decorative transparency is important. After washing, drying and proper UV curing, printed parts can be sanded, polished, coated with clear varnish or tinted with transparent dyes to improve the final visual result.

---

⭐ Key Benefits of Anycubic High Speed Resin 2.0 Clear

• ⚡ High-speed printing — formulated for accelerated resin 3D printing and shorter production time.
• 💧 Low viscosity — improves resin flow, backflow and washing efficiency.
• 💎 Clear visual effect — suitable for decorative, display, technical and design models with a transparent appearance.
• 🎯 Good detail reproduction — helps maintain readable geometry, relief and surface definition.
• 🧱 Improved damage resistance — designed for more reliable printed models compared with brittle standard resins.
• 🧼 Easy cleaning — recommended cleaning with 95% IPA.
• 🧩 Wide application range — rapid prototypes, clear parts, cosplay elements, structural samples and small-batch printing.
• 🌬️ Lower odor — less noticeable odor, while ventilation, gloves and eye protection are still required.

---

📦 Product Information

Product name	Anycubic High Speed Resin 2.0 Clear 1 kg
Color	Clear
Color HEX	not specified by the manufacturer
Net weight	1 kg
Material type	Photopolymer Resin
Printing technology	LCD / MSLA / DLP
Working wavelength	365-405 nm
Cleaning	95% IPA
Post-curing	405 nm, around 3 minutes

---

🚀 Product Description

Anycubic High Speed Resin 2.0 Clear is a transparent photopolymer resin for users who need both high print speed and a clear visual effect. It is suitable for display models, transparent prototypes, housings, decorative parts, light-transmitting elements, mockups and parts where internal structure or volume should remain visible.

The low-viscosity formula helps the resin return to the printing area more quickly, which is especially important for large models and parts with larger layer cross-sections. It helps reduce waiting time between layers and works well with modern monochrome LCD/MSLA printers using optimized high-speed profiles.

Clear resin requires more careful post-processing than gray, white or black resin. For a cleaner transparent result, avoid excessive washing, dry the model completely before UV curing and control the final curing time. Sanding, polishing and clear varnish can improve the visual transparency of printed parts.

💎 Practical note: the Clear version is useful for transparent housings, display models, decorative parts, light-transmitting elements, technical prototypes and models that benefit from visible internal volume.

---

✅ 3D Printer Compatibility

This resin is compatible with LCD, MSLA and DLP resin 3D printers using photopolymer resin in the 365-405 nm range or standard 405 nm UV curing. Before production printing, run an exposure test and adjust the profile for your printer.

• ✅ Anycubic Photon P1, Photon Mono M7, Photon Mono M7 Pro, Photon Mono M7 Max
• ✅ Anycubic Photon Mono M5, Mono M5s, Mono M5s Pro, Photon Mono 4, Photon Mono 4 Ultra
• ✅ Anycubic Photon Mono 2, Photon Mono X2, Photon Mono X 6K, Photon Mono X6Ks
• ✅ Anycubic Photon M3, Photon M3 Plus, Photon M3 Premium, Photon M3 Max
• ✅ Elegoo Mars, Saturn and Jupiter series
• ✅ Phrozen Sonic Mini, Sonic Mighty and Sonic Mega series
• ✅ Creality HALOT ONE, HALOT SKY, HALOT LITE, HALOT MAGE, HALOT MAGE PRO and HALOT R6
• ✅ Uniformation GKtwo, GK3 and other GK series printers
• ✅ Nova3D Bene, Elfin and Whale series
• ✅ Peopoly Phenom, Forge and Moai series
• ✅ other LCD/MSLA/DLP printers supporting 365-405 nm or 405 nm photopolymer resin

Important: compatibility depends on wavelength, UV power, layer height, exposure time, FEP / NFEP / ACF film condition, resin temperature, build plate calibration, model cross-section and support geometry.

Not suitable for FDM/FFF 3D printers because it is a liquid photopolymer resin, not plastic filament.

---

📊 Technical Specifications

Pre-print preparation	Shake well before use
Print environment	20-40 ℃
First layer exposure duration	15-25 s
Normal exposure duration	1.5-2.8 s
Print temperature	20-50 ℃
Material	Photopolymer Resin
Wavelength	365-405 nm
Viscosity	75-85 mPa·s at 25 ℃
Density	1.14 g/cm³
Hardness	83-85 HD
Tensile Strength	37-47 MPa
Elongation at Break	16-20%
Bending Modulus	52-65 MPa
Bending Strength	1700-3300 MPa
Young's Modulus	1300-1500 MPa
Izod Impact Strength	87 J/m
Volume Shrinkage Rate	5-6%
Cleaning	95% IPA
Washing duration	≥3 mins
Post-curing UV Wavelength	405 nm
Curing Temperature	18-30 ℃
UV Intensity	25000-30000 uW/c㎡
Curing time	3 mins
Disposal	Post-UV-curing resin is treated as plastic waste

---

⚙️ Recommended Printing Parameters

The settings below are starting profiles for Anycubic High Speed Resin 2.0. For clear resin, exposure testing is especially important because underexposure or overexposure may affect detail, transparency, yellowing, rigidity and surface quality.

Printer Model	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Z Lift Distance	Z Lift Speed	Z Retract Speed	Anti-Aliasing	Layer Thickness
Photon P1	1.5 s	2 s	15 s	1	5 mm	3 mm/s	3 mm/s	4	0.05 mm
Photon Mono M7	1.4 s	0.5 s	15 s	5	4 mm	15 mm/s	15 mm/s	1	0.1 mm
Photon Mono M7 Pro	1.4 s	0.5 s	15 s	5	4 mm	15 mm/s	15 mm/s	1	0.1 mm
Photon Mono M7 Max	1.8 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.1 mm
Photon Mono M5	2 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s	1	0.1 mm
Photon Mono M5s	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s	1	0.1 mm
Photon Mono M5s Pro	3.6 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s	1	0.1 mm
Photon Mono 4	2.2 s	1 s	30 s	5	6 mm	4 mm/s	6 mm/s	1	0.1 mm
Photon Mono 4K	2 s	0.5 s	25 s	6	5 mm	4 mm/s	6 mm/s	1	0.1 mm
Photon Mono 4 Ultra	2 s	1 s	30 s	5	5 mm	8 mm/s	8 mm/s	1	0.1 mm
Photon Mono 2	2.5 s	0.5 s	18 s	5	5 mm	4 mm/s	6 mm/s	1	0.1 mm
Photon Mono X2	2.5 s	0.5 s	18 s	5	6 mm	2 mm/s	6 mm/s	1	0.1 mm
Photon Mono X 6K	2 s	0.5 s	18 s	6	6 mm	4 mm/s	6 mm/s	1	0.1 mm
Photon Mono X6Ks	2.5 s	0.5 s	15 s	5	6 mm	4 mm/s	6 mm/s	1	0.1 mm
ANYCUBIC Photon M3 Max	2 s	0.5 s	18 s	5	5 mm	4 mm/s	6 mm/s	1	0.1 mm
ANYCUBIC Photon M3 Premium	1.5 s	0.5 s	18 s	5	6 mm	6 mm/s	6 mm/s	1	0.1 mm

---

🧪 Color Type

Color	HEX	Visual reference
Clear	not specified	💎 transparent effect for display and decorative models

---

🛠️ Instructions for Use

1. 🔄 Shake the resin bottle thoroughly before use.
2. 🧽 Clean the resin vat and build plate.
3. 🔍 Make sure the vat bottom is transparent and the release film is not damaged.
4. ⚙️ Verify exposure, bottom layers, layer height, lift speed and retract speed in your slicer.
5. 🌡️ For stable results, use the resin at a temperature above 20 ℃.
6. 🧴 Pour resin into the vat without exceeding the maximum fill line.
7. 🧼 After printing, remove the model from the build plate, remove supports and wash the part with 95% IPA.
8. 💨 Dry the model completely before final UV curing.
9. 🔆 Post-cure at 405 nm. For clear models, avoid excessive curing time unless required.
10. ♻️ Filter used resin through a 100-mesh sieve before returning it to the bottle.

---

💎 Tips for Clear Resin Models

• Do not overwash the model in alcohol, as this may make the surface matte or dry-looking.
• Dry the model completely before post-curing, especially inside recesses and hollow areas.
• For a cleaner transparent effect, use progressive sanding, polishing or clear varnish.
• Run exposure tests: overexposure can reduce clarity and increase yellowing.
• For thicker clear parts, increase post-curing time gradually to avoid overheating and unnecessary yellowing.

---

🧯 Safety and Storage

• 🧤 Wear nitrile gloves and eye protection.
• 🌬️ Work in a well-ventilated area.
• 🚫 Avoid contact with skin, eyes and clothing.
• 🌑 Store the bottle tightly closed, away from sunlight, heat and UV exposure.
• 👶 Keep uncured resin away from children, pregnant women and pets.
• 🧴 Do not pour uncured resin or contaminated cleaner into drains.
• ♻️ Fully cure resin waste with UV light before disposal.

---

📄 File Download

• 📘 MSDS / SDS — Safety Data Sheet
• 📗 TDS — Technical Data Sheet
• 📙 REACH — chemical safety and SVHC report
• 📕 RoHS — restricted substances report

---

🎯 Best Applications for Anycubic High Speed Resin 2.0 Clear

• 💎 transparent display models;
• ⚡ rapid prototypes and test samples;
• 🧩 clear housings, covers and technical elements;
• 💡 decorative light-transmitting parts and visual elements;
• 🏗️ architectural mockups and design models;
• 🧪 engineering prototypes with visible internal geometry;
• 🎭 cosplay parts and decorative inserts;
• 📦 small batches of clear parts.

---

❓ FAQs



Is Anycubic High Speed Resin 2.0 Clear suitable for fast printing?

Yes. It belongs to the High Speed Resin 2.0 series and is designed for accelerated resin printing on compatible LCD, MSLA and DLP printers.

Will clear resin look exactly like glass?

No. Without additional post-processing, clear photopolymer parts may have slight haze, visible layer lines or a subtle tint. For a cleaner transparent effect, use careful washing, complete drying, controlled UV curing, polishing or clear varnish.

Can I use this resin for housings and technical parts?

Yes. It is suitable for clear housings, covers, display parts, prototypes and technical samples, but final strength and fit should be verified with a test print.

What should I use to clean printed models?

Use 95% IPA, then dry the model completely before UV post-curing.

Can I use it with Elegoo, Phrozen or Creality HALOT printers?

Yes, if the printer supports 405 nm photopolymer resin. Exposure testing and profile adjustment are recommended before production printing.

Is this resin suitable for FDM printers?

No. It is a liquid photopolymer resin for LCD/MSLA/DLP printers, not a plastic filament for FDM/FFF printing.

Why can clear parts become yellowish?

Yellowing can be caused by excessive exposure, long post-curing, high UV intensity or improper drying. For clear parts, tune exposure and curing time gradually.



---
