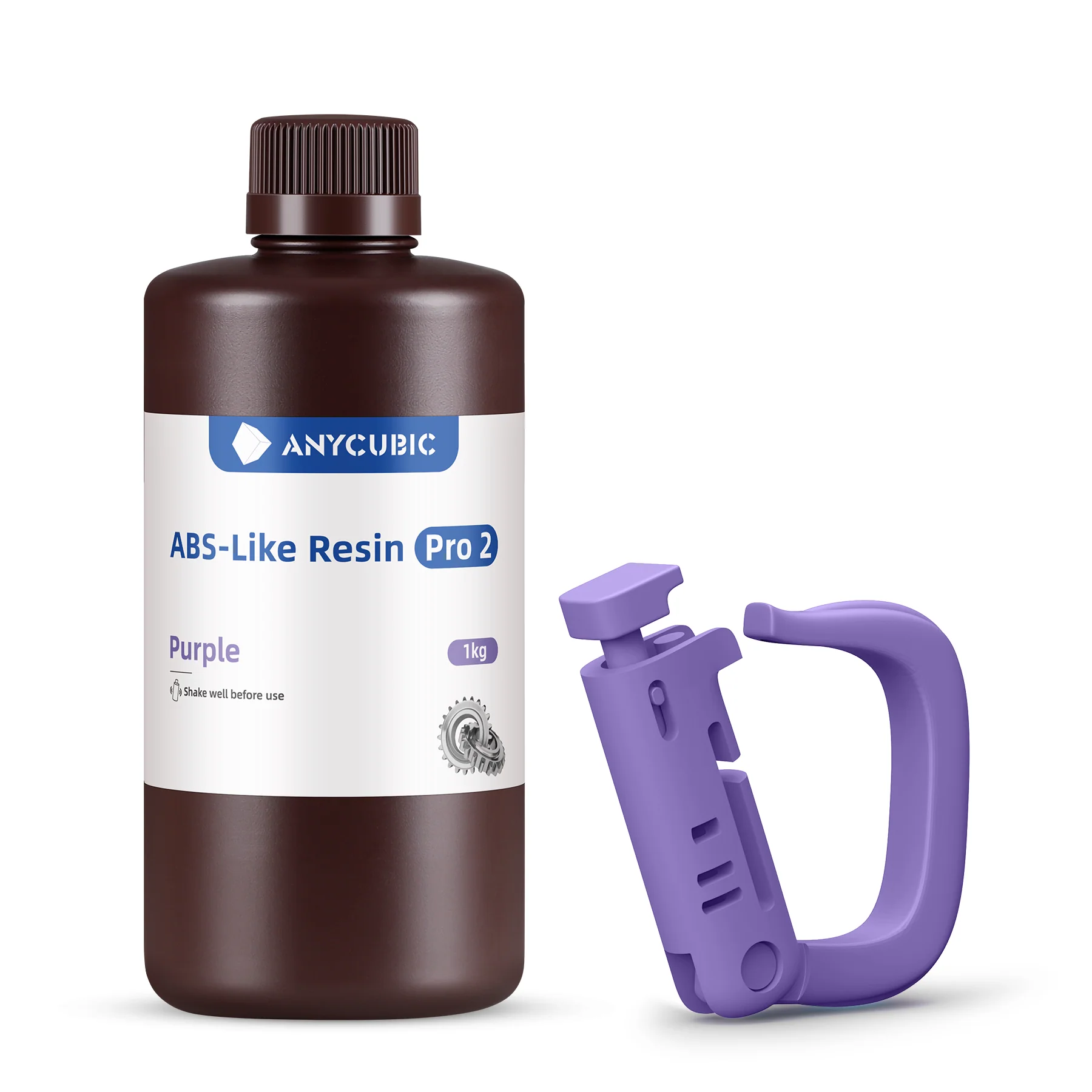

Anycubic ABS-Like Resin Pro 2 Purple 1 kg
Anycubic ABS-Like Resin Pro 2 Purple 1 kg is a purple functional photopolymer resin for LCD, MSLA and DLP resin 3D printers using 365-405 nm UV light. It is designed for strong, accurate and more impact-resistant prints, including prototypes, housings, engineering parts, miniatures, fixtures, architectural models and functional components.
The Purple color is suitable for decorative models, game miniatures, display prototypes, concept parts and models that need a vivid appearance without mandatory painting. The ABS-like formulation combines toughness, resilience, low shrinkage and stable detail reproduction.
🟣 Key Advantages of Anycubic ABS-Like Resin Pro 2 Purple
- ABS-like performance — balanced strength, rigidity and resilience for functional printing.
- Improved toughness — suitable for prototypes, housings, fixtures and technical parts.
- Good elongation — 35-40% elongation at break helps reduce brittleness.
- Low viscosity — 300-400 mPa·s at 25 ℃ for smooth flow and stable layer formation.
- High detail accuracy — 4.3-5.6% volume shrinkage helps preserve dimensions and fine geometry.
- Purple color — a vivid choice for miniatures, display models, prototypes and collectible figures.
- Low odor compared with many standard resins, while gloves, eye protection and ventilation are still required.
- Wide compatibility — works with LCD, MSLA and DLP resin 3D printers using 365-405 nm UV light.
📌 Best Applications
- functional prototypes and engineering parts;
- electronic housings and appearance prototypes;
- snap-fit parts, clips, brackets and mounting components;
- load-bearing structural parts;
- tooling fixtures, jigs and production aids;
- game miniatures, character figures and collectible models;
- architectural models and display samples;
- parts for silicone molding;
- structural R&D prototypes and functional models.
🎨 Color and Appearance
| Official color | Purple |
| HEX code | #825DC7 |
| Surface after printing | Smooth, detailed, suitable for sanding, priming and painting |
⚙️ Technical Specifications
| Material type | Photopolymer resin |
| Resin type | ABS-like functional resin |
| Color | Purple |
| Net weight | 1 kg |
| UV wavelength | 365-405 nm |
| Viscosity | 300-400 mPa·s at 25 ℃ |
| Density | 1.05-1.25 g/cm³ |
| Hardness | 82-84 HD / Shore D |
| Tensile strength | 35-45 MPa |
| Elongation at break | 35-40% |
| Flexural modulus | 40-45 MPa |
| Flexural strength | 1400-1800 MPa |
| Young’s modulus | 1600-1800 MPa |
| Izod impact strength | 212 J/m according to the product page |
| Volume shrinkage | 4.3-5.6% |
| Printing temperature | 20-50 ℃ |
| Recommended print environment | 20-40 ℃ |
| Cleaning | 95% IPA / isopropyl alcohol |
| Washing duration | ≥3 min |
| Post-curing UV wavelength | 405 nm |
| Curing temperature | 18-30 ℃ |
| UV intensity | 25000-30000 uW/c㎡ |
| Post-curing time | 3 min |
⚙️ Recommended Printing Parameters
The settings below are official starting parameters for 0.05 mm layer height. Final exposure values may vary depending on resin temperature, LCD screen condition, model geometry, support structure and the exact printer configuration. A calibration exposure test is recommended before production printing.
| Printer Model | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layer(s) | Z Lift Distance | Z Lift Speed | Z Retract Speed | Anti-Aliasing Level | Layer Thickness |
|---|---|---|---|---|---|---|---|---|---|
| Photon P1 | 2 s | 2 s | 25 s | 1 | 5 mm | 3 mm/s | 3 mm/s | 4 | 0.05 mm |
| Photon Mono M7 | 2.2 s | 0.5 s | 35 s | 4 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M7 Pro | 2 s | 0.5 s | 25 s | 4 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M7 Max | 2 s | 0.5 s | 30 s | 5 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M5 | 2.8 s | 0.5 s | 25 s | 5 | 8 mm | 5 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M5s | 2.8 s | 0.5 s | 25 s | 5 | 8 mm | 5 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono M5s Pro | 3.6 s | 0.5 s | 30 s | 5 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono 4 | 2.8 s | 1 s | 30 s | 5 | 6 mm | 4 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono 4K | 2 s | 0.5 s | 40 s | 6 | 6 mm | 4 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono 4 Ultra | 2.6 s | 1 s | 30 s | 5 | 5 mm | 8 mm/s | 8 mm/s | 1 | 0.05 mm |
| Photon Mono 2 | 2.5 s | 1 s | 25 s | 5 | 6 mm | 4 mm/s | 6 mm/s | 1 | 0.05 mm |
| Photon Mono X2 | 2.5 s | 0.5 s | 20 s | 5 | 8 mm | 2 mm/s | 3 mm/s | 1 | 0.05 mm |
| Photon Mono X 6K | 2 s | 0.5 s | 23 s | 6 | 8 mm | 2 mm/s | 3 mm/s | 1 | 0.05 mm |
| Photon Mono X6Ks | 2.5 s | 0.5 s | 20 s | 5 | 8 mm | 3 mm/s | 4 mm/s | 1 | 0.05 mm |
| ANYCUBIC Photon M3 Max | 3 s | 2.5 s | 35 s | 6 | 10 mm | 2 mm/s | 3 mm/s | 1 | 0.05 mm |
| ANYCUBIC Photon M3 Premium | 2.5 s | 0.5 s | 25 s | 4 | 8 mm | 6 mm/s | 6 mm/s | 1 | 0.05 mm |
🧩 3D Printer Compatibility
Anycubic ABS-Like Resin Pro 2 Purple is compatible with LCD, MSLA and DLP resin 3D printers using 365-405 nm UV light. It is optimized for Anycubic Photon printers, but can also be used with other resin printers after exposure calibration.
🧪 Printing Recommendations
- Shake the bottle thoroughly before use.
- Clean the resin vat and build platform before printing.
- Check the condition of the release film before starting a print.
- Do not fill the resin vat above the maximum level.
- For functional parts, use proper orientation and sufficient support density.
- If the environment is below 20 ℃, exposure time may need adjustment.
- Run an exposure test after changing color, layer height, screen, release film or printer profile.
🧼 Cleaning and Post-Processing
- Remove the printed model from the build platform.
- Remove supports using suitable tools.
- Wash the model in 95% IPA or another compatible resin cleaner.
- Dry the model completely before final curing.
- Post-cure with 405 nm UV light for approximately 3 min.
🛡️ Safety and Storage
- Wear nitrile gloves and safety goggles when handling liquid resin.
- Work in a well-ventilated area.
- Avoid skin, eye and clothing contact.
- Store the bottle tightly closed, away from sunlight and UV exposure.
- Keep liquid resin away from children, pets and food-contact surfaces.
- Fully cure resin waste with UV light before disposal.
❓ FAQ
What is Anycubic ABS-Like Resin Pro 2 Purple used for?
It is used for functional prototypes, housings, brackets, fixtures, snap-fit parts, miniatures, architectural models, display samples and stronger technical prints.
Is this resin suitable for miniatures?
Yes. The Purple color is suitable for game miniatures, character figures, decorative parts and collectible models.
What UV wavelength is required?
The resin works with 365-405 nm UV light and is especially suitable for 405 nm LCD, MSLA and DLP resin printers.
Does the resin have odor?
It is described as low-odor compared with many standard resins, but ventilation, gloves and eye protection are still required.
How should printed models be cleaned?
Use 95% IPA / isopropyl alcohol, then dry the model before final UV curing.
✅ Why Buy Anycubic ABS-Like Resin Pro 2 Purple 1 kg
- vivid Purple color for models and prototypes;
- ABS-like strength for functional resin printing;
- balanced rigidity, resilience and impact resistance;
- low viscosity for stable printing and smooth flow;
- wide compatibility with LCD, MSLA and DLP resin printers;
- suitable for hobby use, prototyping and engineering applications.
