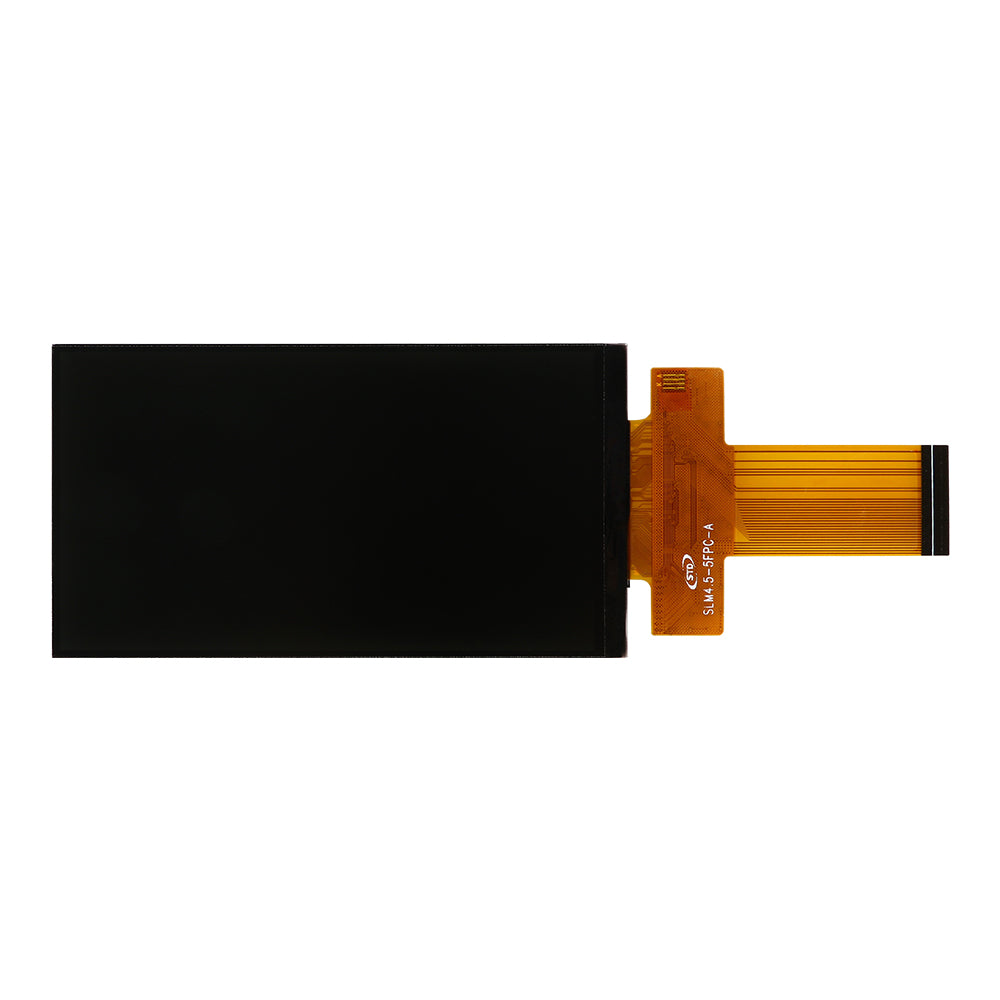

480P LCD Screen for Anycubic Photon Zero
Description
480P LCD Screen for Anycubic Photon Zero is a replacement screen for the Anycubic Photon Zero resin 3D printer. The screen is used in the layer exposure system and forms the image of each layer during printing.
During printing, UV light passes through the LCD screen and exposes photopolymer resin only in the required areas of each layer. The condition of the screen directly affects contour accuracy, exposure stability, fine detail quality, curing uniformity and overall print results.
LCD screen replacement may be required if lines, dark zones, spots, physical damage, cracks, uneven exposure or layer image failures appear. A new screen helps restore stable Anycubic Photon Zero operation and resin printing quality.
Advantages
- Compatible with Anycubic Photon Zero
- Replacement LCD screen for a resin 3D printer
- 480P 854 x 480 px resolution
- Used for layer image formation
- Helps restore correct UV resin exposure
- Suitable for repair and service maintenance
- Helps solve print defects caused by screen damage
- Suitable for miniatures, prototypes, decorative parts and small functional models
Technical Specifications
| Product name | 480P LCD Screen for Anycubic Photon Zero |
| Full product name | 480P LCD Screen for Photon Zero |
| SKU | S020021 |
| Part type | LCD screen, exposure screen, replacement screen for resin printer |
| Compatibility | Anycubic Photon Zero |
| Resolution | 480P 854 x 480 px |
| Printer technology | LCD based SLA |
| Printer light source | 405 nm UV light |
| Purpose | Layer image formation and UV exposure of photopolymer resin |
| Printer type | LCD resin 3D printer |
| Category | LCD screens for Anycubic resin 3D printers |
When to Replace the LCD Screen
- Printed models show lines, spots or repeated defects
- Part of the model does not print because of dead zones on the screen
- The screen has been damaged after resin leakage
- Cracks or dark areas appear on the screen
- Resin exposure becomes uneven
- The printer does not show the correct layer image during exposure test
- Print quality becomes worse with the same resin settings
- Diagnostics confirm an LCD screen fault
Compatibility
This 480P LCD screen is intended for Anycubic Photon Zero. Before ordering, check the printer model, product name and SKU S020021. Anycubic Photon, Photon S, Photon Mono, Photon Mono SE, Photon Mono 4K, Photon Mono 2 and other models use different screens.
Important Difference
This product is the LCD screen for Anycubic Photon Zero. It is not the touch control display, not a screen protector, not FEP film for the resin vat and not the UV LED module. Before ordering, check the printer model and SKU S020021.
Installation Recommendations
- Turn off the printer completely and disconnect power before replacement
- Remove the resin vat and build platform
- Clean the working area from dust and resin residue
- Take a photo of ribbon cable connections before removing the old screen
- Do not bend the screen ribbon cable or pull it with force
- Do not touch the screen surface with dirty or wet hands
- After installation, check that all connections are correct
- Run an exposure test before printing
- If you do not have electronics repair experience, contact a qualified technician
Usage Recommendations
- Always check the vat FEP film condition before printing
- Do not allow resin to leak onto the LCD screen
- Use a screen protector for additional protection
- Do not clean the screen with sharp tools
- After a failed print, check the vat bottom for cured resin residue
- Clean the working area from dust regularly
- Use correct exposure settings for the selected resin
Suitable Applications
- Repair of Anycubic Photon Zero
- Replacement of a damaged LCD screen
- Restoring correct layer exposure
- Printing miniatures and figures
- Printing small prototypes
- Printing master models and decorative parts
- Service maintenance of a resin 3D printer
FAQ
Is this LCD screen compatible with Anycubic Photon Zero
Yes, this LCD screen is intended for Anycubic Photon Zero.
What is the SKU of 480P LCD Screen for Photon Zero
The SKU of this part is S020021.
What is the screen resolution of Photon Zero
The screen resolution is 480P 854 x 480 px.
Is this the touch control display
No, this is the LCD exposure screen for layer image formation. The touch control display is a different part.
Is this a screen protector
No, this is the LCD screen itself. A screen protector is a separate consumable accessory.
Is this FEP film for the resin vat
No, this is not FEP film. FEP film is installed in the resin vat, while the LCD screen is located under the exposure area.
When should the LCD screen be replaced
The LCD screen should be replaced if cracks, dead zones, lines, spots, uneven exposure, resin leakage damage or confirmed diagnostic faults appear.
