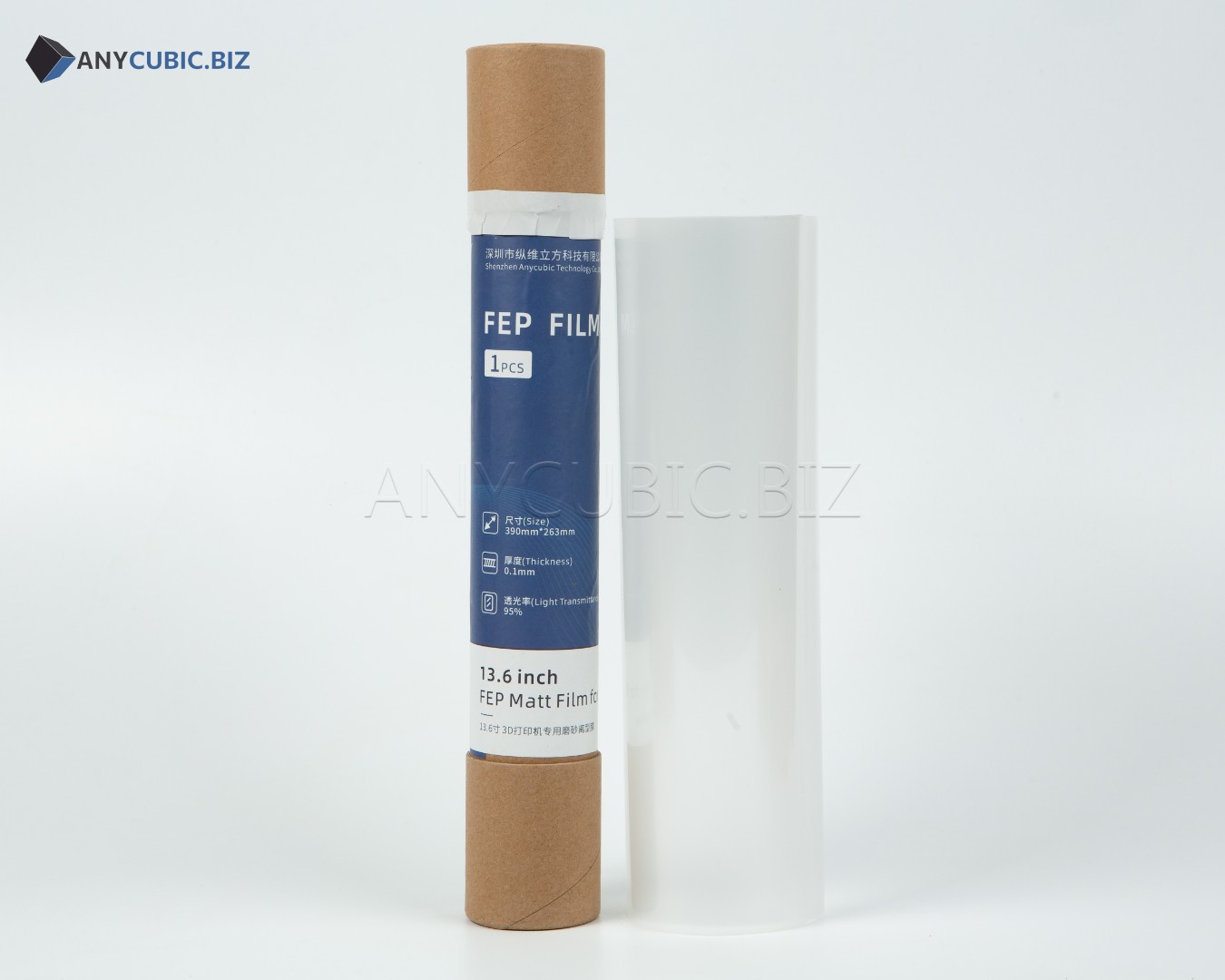

1pcs FEP Matt Film for Anycubic Photon M3 Max 390 x 263 mm
Description
1pcs FEP Matt Film for Anycubic Photon M3 Max 390 x 263 mm is a replacement release film for the resin vat of the Anycubic Photon M3 Max resin 3D printer. The film is installed at the bottom of the resin vat and works as a transparent release layer between liquid photopolymer resin, the LCD screen and the printed model.
During resin printing, each layer is exposed through the LCD screen and FEP film. After exposure, the cured layer must separate from the film surface and lift with the build platform. For this reason, the condition of the FEP film directly affects print stability, model surface quality, layer accuracy and resin vat service life.
FEP Matt film is used for stable layer release when printing large models on Anycubic Photon M3 Max. If the old film becomes cloudy, scratched, stretched, damaged or begins to release the model poorly, it should be replaced. A new film helps reduce the risk of failed prints, model sticking to the vat bottom and resin leakage onto the LCD screen.
Advantages
- Compatible with Anycubic Photon M3 Max
- FEP Matt film for resin 3D printer vat
- Film size 390 x 263 mm
- 13.6″ format
- Package includes 1 pcs
- Used for replacing the film at the bottom of the resin vat
- Helps provide stable layer separation
- Suitable for large models, prototypes, master models and functional parts
- Helps reduce model sticking to the vat bottom
- Suitable for regular Anycubic Photon M3 Max maintenance
Technical Specifications
| Product name | 1pcs FEP Matt Film for Anycubic Photon M3 Max 390 x 263 mm |
| Full product name | 1pcs FEP Matt Film Anycubic Photon M3 Max 390 x 263 mm |

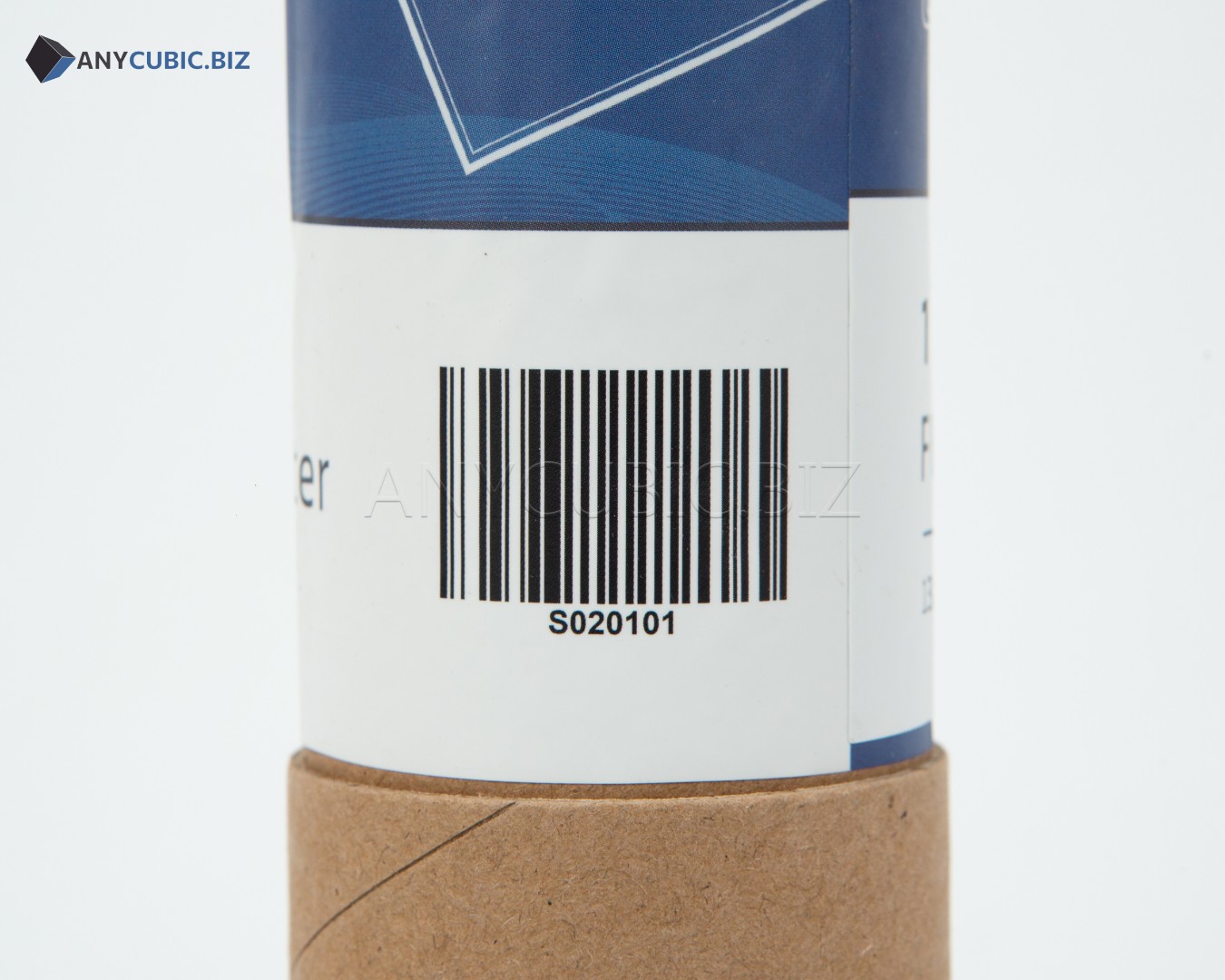

| SKU | S020101 |
| Part type | FEP film for resin vat |
| Surface | Matt |
| Compatibility | Anycubic Photon M3 Max |

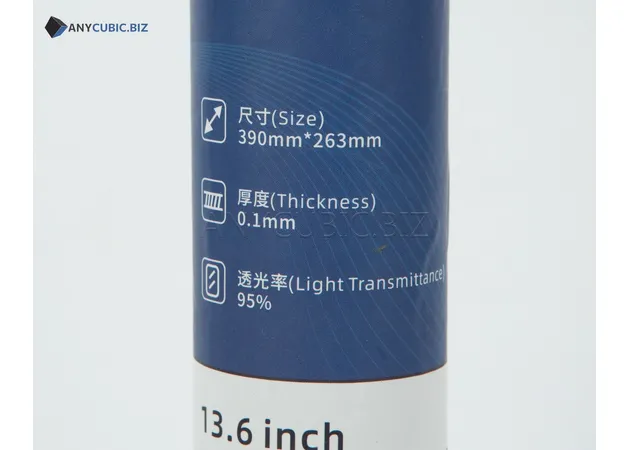

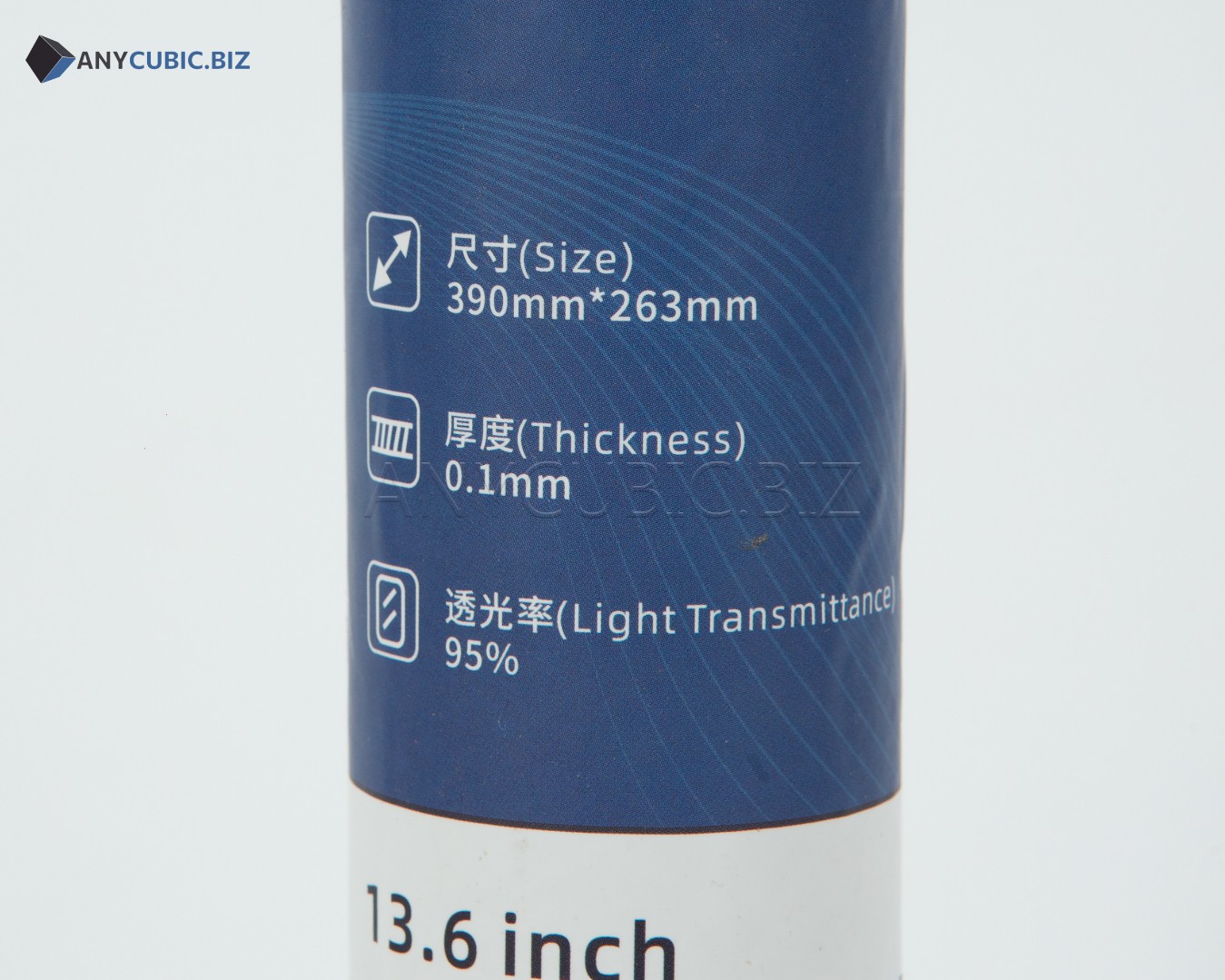

| Film size | 390 x 263 mm |
| Format | 13.6″ |
| Quantity | 1 pcs |
| Material | FEP |
| Purpose | Replacement film for the bottom of a resin vat |
| Category | FEP films for Anycubic resin 3D printers |
When to Replace the FEP Film
- The surface has scratches, punctures or dents
- The film becomes cloudy and transmits UV light worse
- The model does not release properly from the vat bottom
- Strong peeling forces appear during layer separation
- Printed models show bottom or intermediate layer defects
- The film is stretched and has lost even tension
- Cured resin marks remain on the film after a failed print
- There is a risk of resin leakage through the damaged vat bottom
Compatibility
This 390 x 263 mm FEP Matt film is intended for Anycubic Photon M3 Max. Before ordering, check the printer model, film size and SKU S020101. Anycubic Photon M3, Photon M3 Plus, Photon M3 Premium, Photon Mono X, Photon Mono X 6K and other models use films of different sizes.
Important Difference

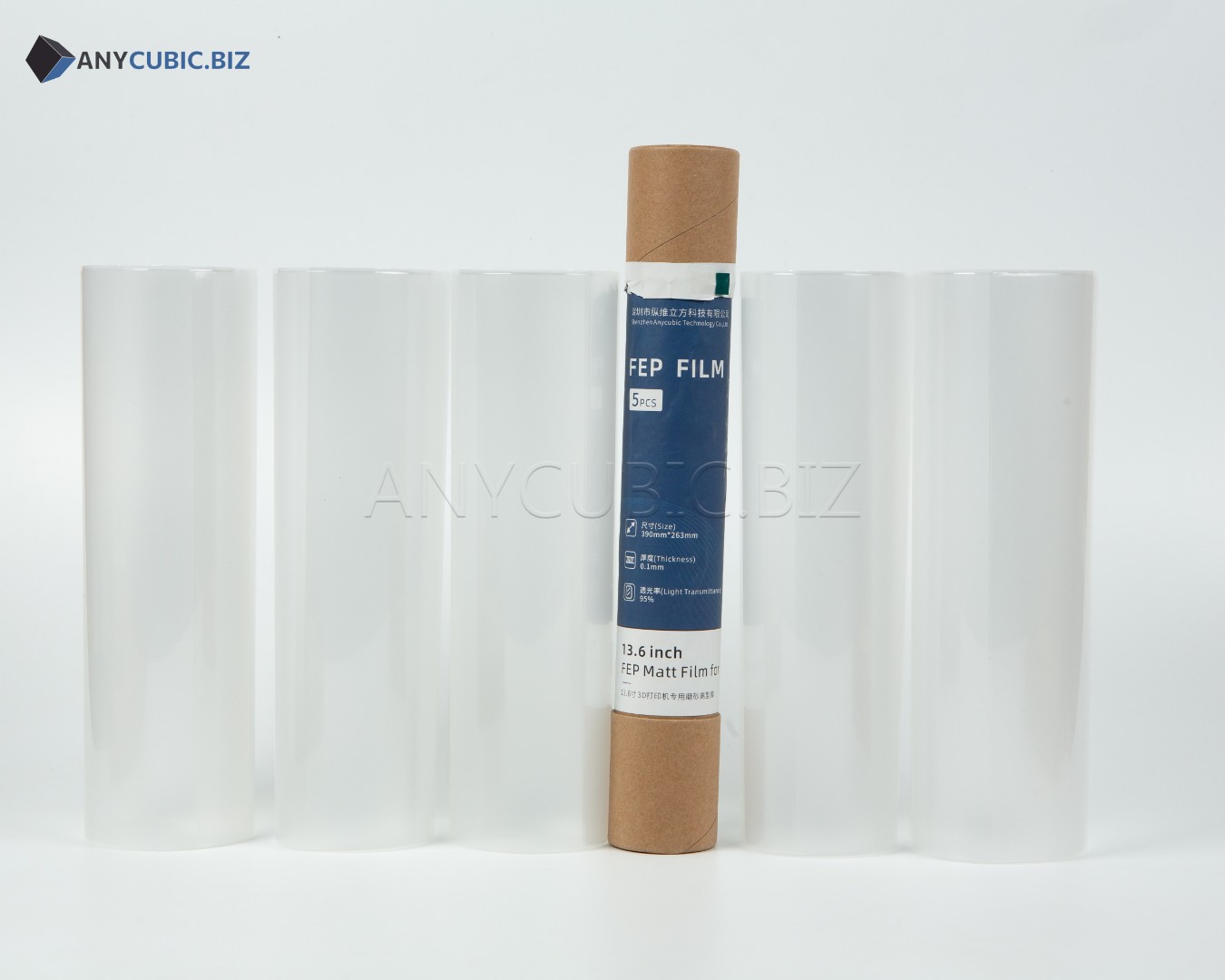

This product is FEP Matt film for the resin vat of a resin 3D printer. It is not an LCD screen protector and it is not the LCD screen itself. FEP film is installed in the resin vat, while an LCD screen protector is installed on top of the printer screen. The 1 pcs version uses SKU S020101, the 2 pcs version uses SKU S020100, and the 5 pcs version uses SKU S020099.
Installation Recommendations
- Drain all resin from the vat before replacement
- Clean the vat from liquid and cured resin residue
- Remove the old film carefully without damaging the frame and fasteners
- Before installation, make sure the new film is clean and undamaged
- Install the film evenly without misalignment or folds
- Keep film tension even across the whole area
- After installation, check the vat for leaks
- Before the first print, run a small resin test
- Do not use sharp tools on the active film surface
Usage Recommendations
- Check the film condition before every important print
- After a failed print, remove cured resin residue very carefully
- Do not press a scraper strongly against the film
- Filter resin after a failed print before reusing it
- Do not leave the vat with resin under direct UV light
- Do not continue printing with damaged film
- Store spare films in a clean and dry place
- Use correct exposure settings for the selected resin
Suitable Applications
- Replacing worn FEP film in Anycubic Photon M3 Max resin vat
- Preventive resin 3D printer maintenance
- Restoring stable layer release
- Printing large resin models
- Printing miniatures, figures and decorative parts
- Printing engineering prototypes and master models
- Regular work with UV photopolymer resins
FAQ
Is this FEP film compatible with Anycubic Photon M3 Max
Yes, this FEP Matt film is intended for Anycubic Photon M3 Max.
What is the film size
The film size is 390 x 263 mm.
How many films are included
The package includes 1 FEP film.
What is the SKU of the 1 pcs version
The SKU of the 1 pcs version is S020101.
Is this FEP Matt film
Yes, this is FEP Matt film for the Anycubic Photon M3 Max resin vat.
Can this film be used for Photon M3 Plus
No, this film is listed for Photon M3 Max. Photon M3 Plus requires a film of a different size.
Is this an LCD screen protector
No, this is FEP film for the resin vat. It is installed at the bottom of the resin vat, not on the LCD screen.
When should the FEP film be replaced
The film should be replaced when scratches, punctures, cloudiness, stretching, poor layer release, cured resin marks or resin leakage risk appear.
