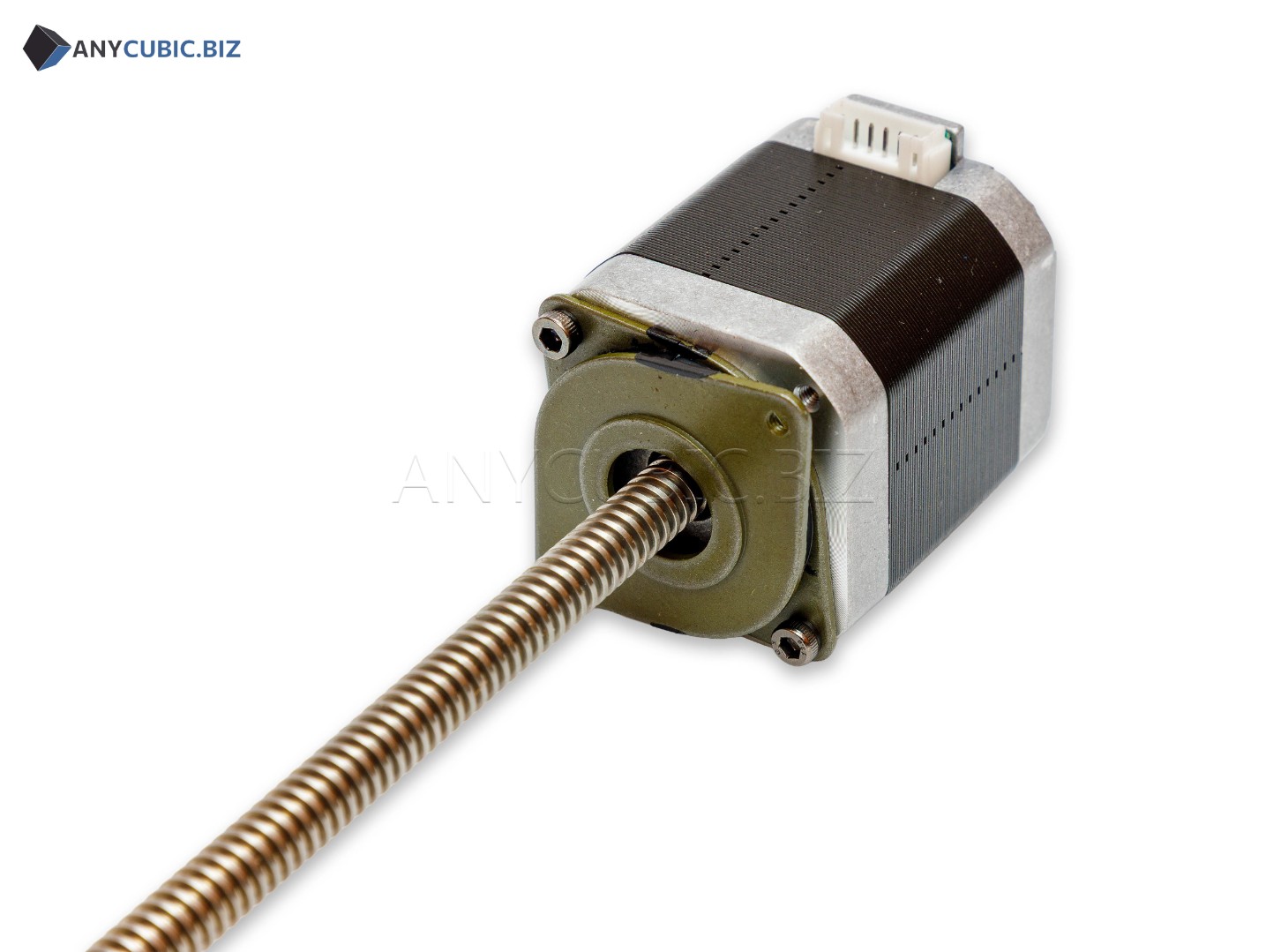

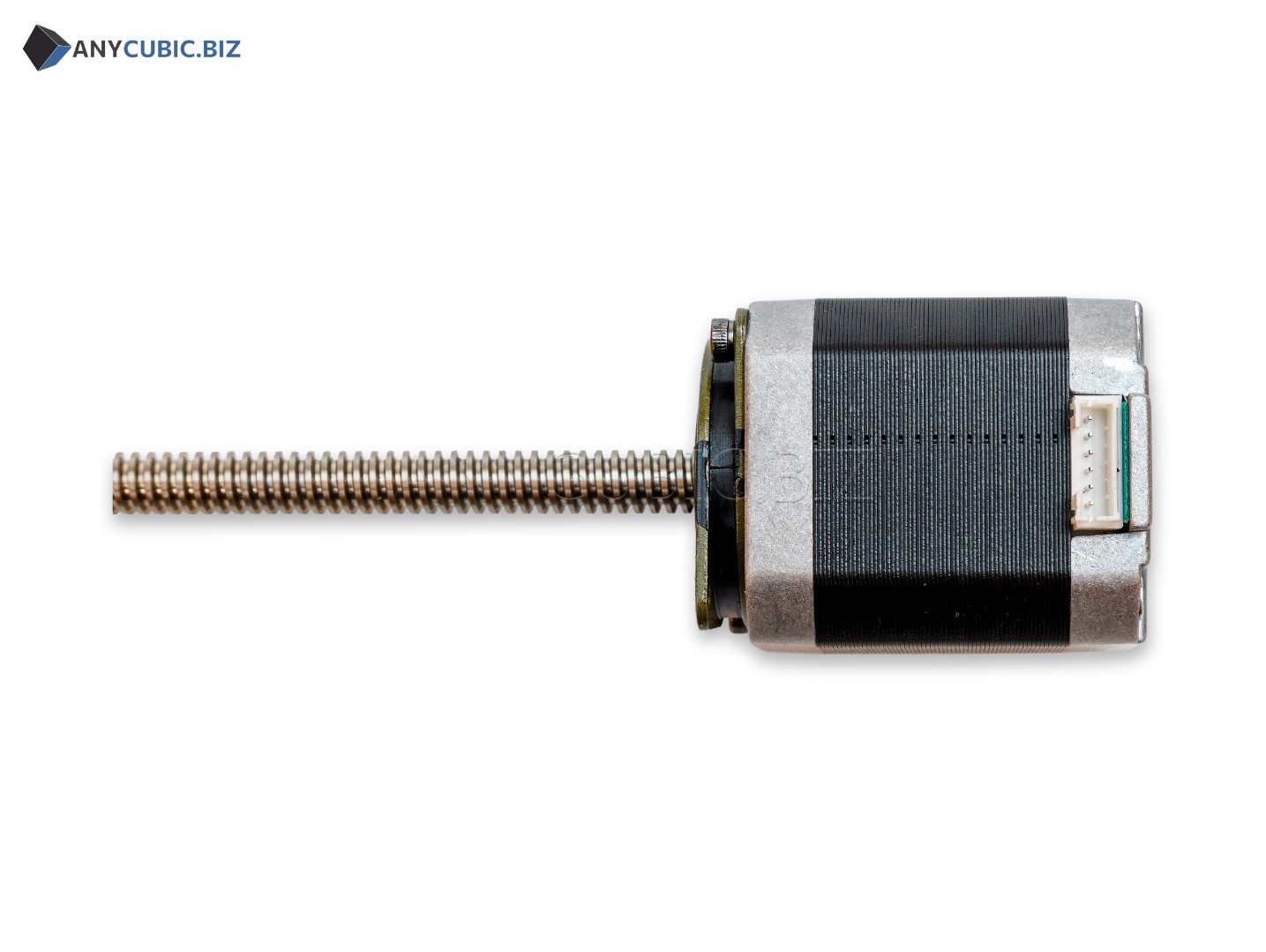

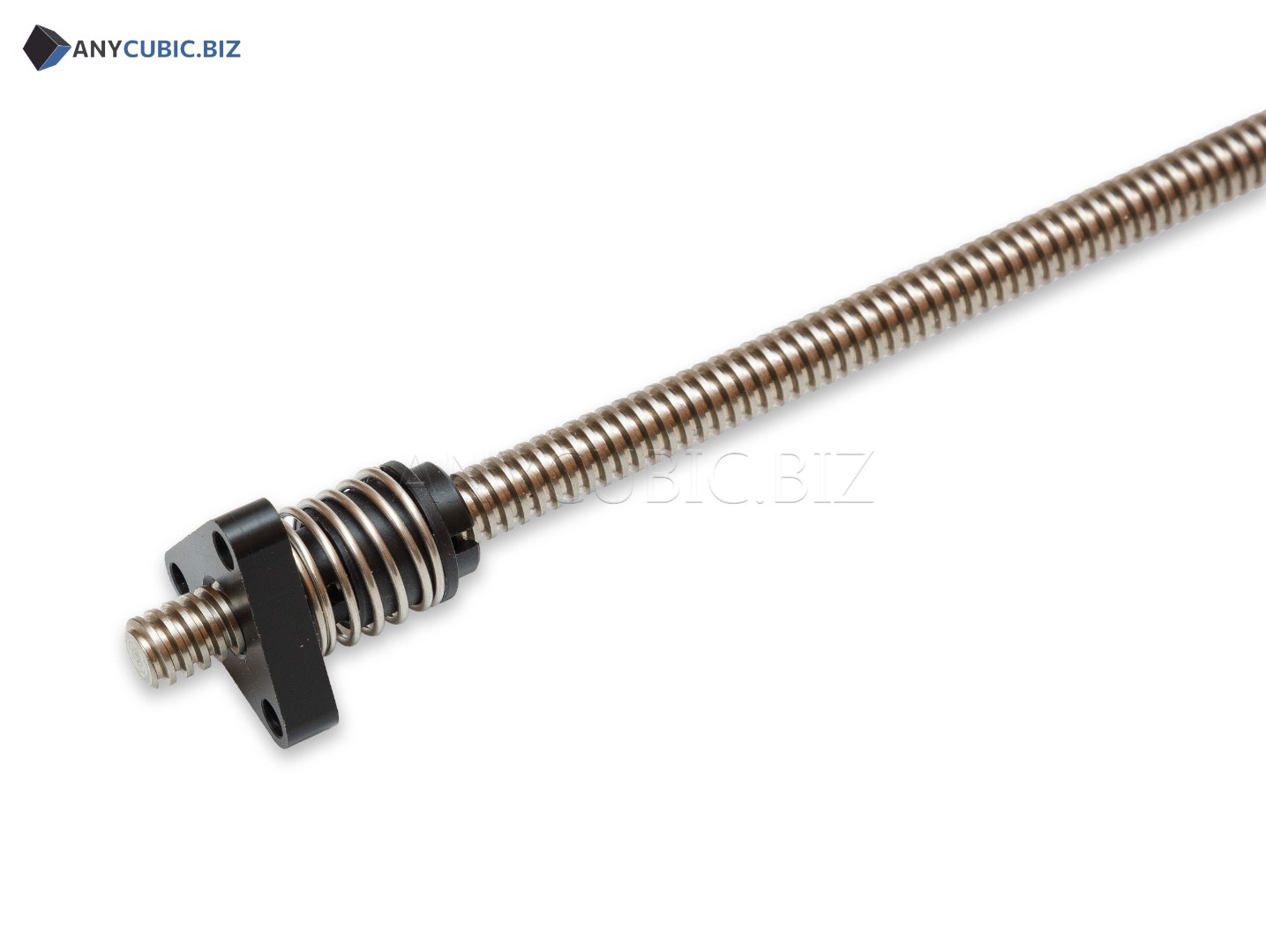

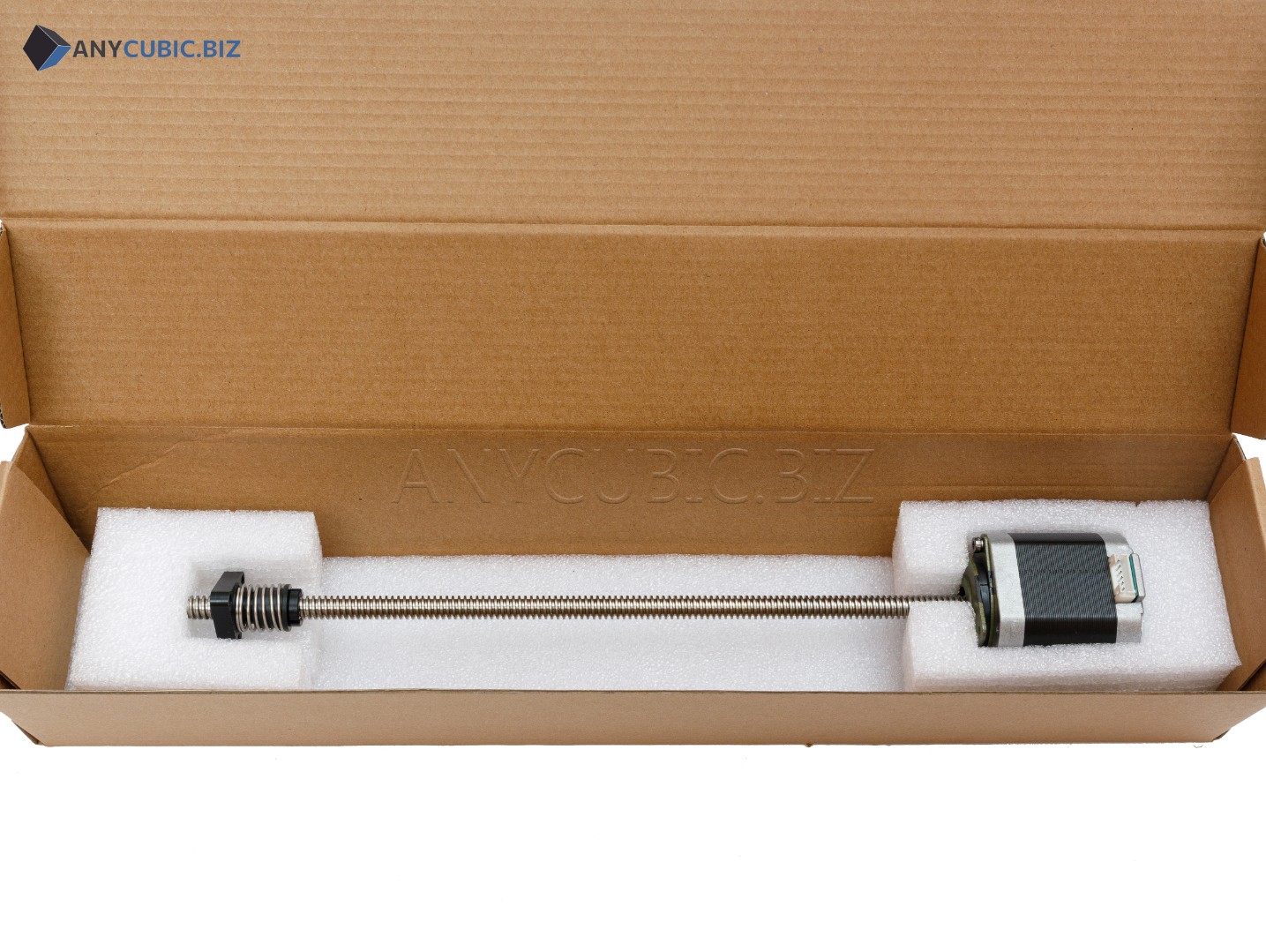

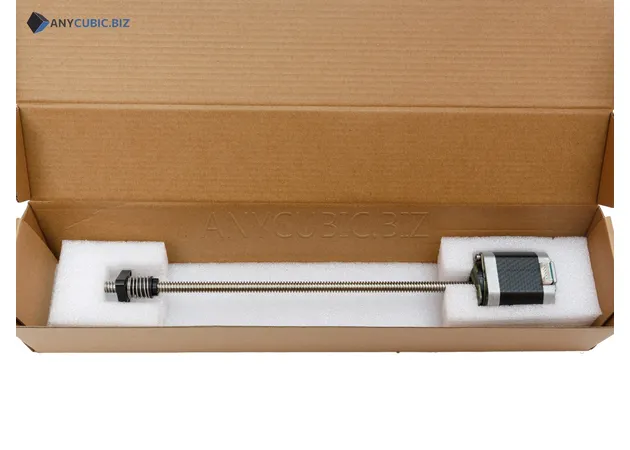

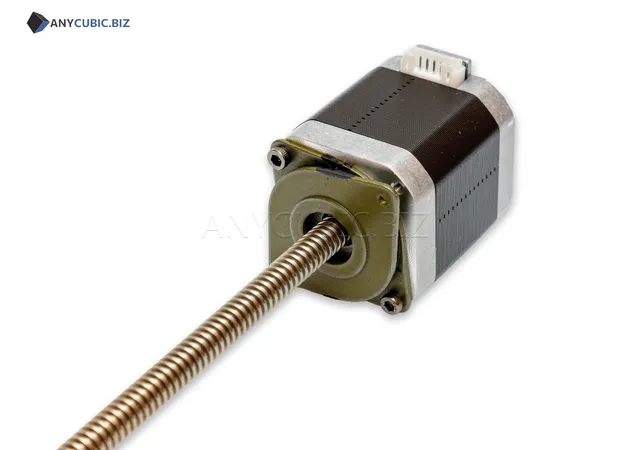

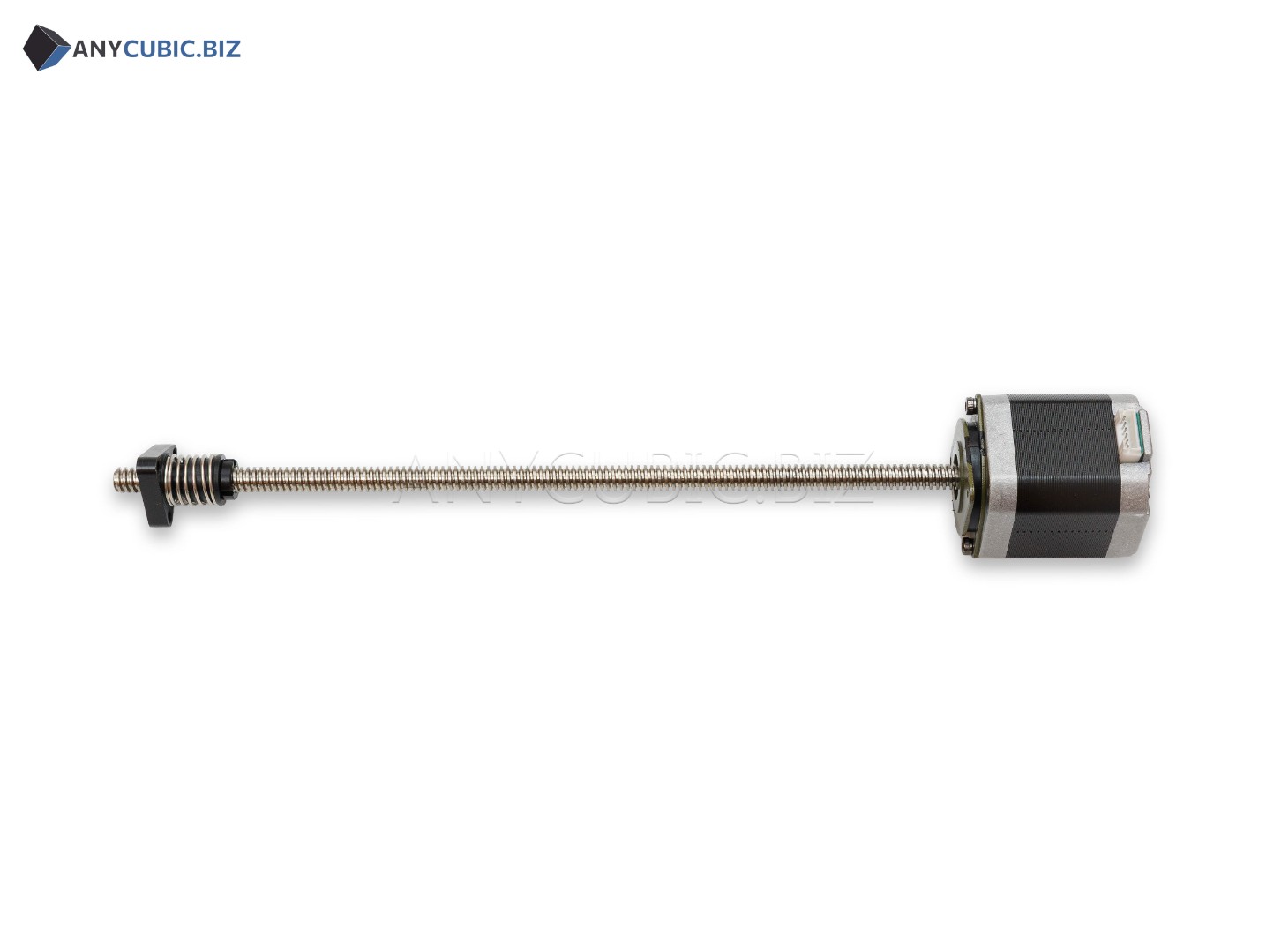

Lead Screw Motor for Anycubic Photon Mono 4 Ultra
Description
Lead Screw Motor for Anycubic Photon Mono 4 Ultra is a replacement mechanical and electrical spare part for the Anycubic Photon Mono 4 Ultra resin 3D printer. The part is responsible for moving the build platform along the Z axis during layer by layer resin printing.
During printing, each model layer is formed on the build platform, and then the platform must lift to the required height and return to the working position. Correct lead screw motor operation affects Z axis movement stability, layer uniformity, print accuracy and final model quality.
If the build platform moves with jerks, does not lift, gets stuck, makes unusual noise or the printer shows errors related to Z axis movement, diagnostics and lead screw motor replacement may be required.
Advantages
- Compatible with Anycubic Photon Mono 4 Ultra
- Replacement lead screw motor for the Z axis
- Used for build platform movement
- Helps restore stable platform movement
- Suitable for printer repair and service maintenance
- Important spare part for stable resin 3D printing
- Helps solve platform lifting and lowering problems
- Suitable for replacing a damaged or faulty motor
Technical Specifications
| Product name | Lead Screw Motor for Anycubic Photon Mono 4 Ultra |
| Full product name | Lead Screw Motor Photon Mono 4 Ultra |
| SKU | S020270 |
| Part type | Z axis lead screw motor |
| Compatibility | Anycubic Photon Mono 4 Ultra |
| Purpose | Moving the build platform along the Z axis |
| Application | Mechanical repair and maintenance of a resin 3D printer |
| Printer type | LCD resin 3D printer |
| Category | Spare parts for Anycubic resin 3D printers |
When to Replace the Lead Screw Motor
- The build platform does not lift or lower
- The platform moves with jerks
- Unusual noise appears during Z axis movement
- The platform gets stuck at a certain height
- Model layers become uneven because of unstable movement
- The printer does not position the platform correctly
- Diagnostics confirm a motor fault
- The lead screw or motor assembly is mechanically damaged
Compatibility
This lead screw motor is intended for Anycubic Photon Mono 4 Ultra. Before ordering, check the printer model, old part, connector and SKU S020270. Anycubic Photon Mono 4, Photon Mono 2, Photon Mono X2, Photon M3, Photon M3 Max, Photon Mono M7 and other models may use different motors and mechanical assemblies.
Important Difference
This product is the lead screw motor for moving the build platform along the Z axis. It is not a build platform, not a resin vat, not an LCD screen, not a UV LED module, not a motherboard and not a touch display. Before ordering, check the printer model and SKU S020270.
Installation Recommendations
- Turn off the printer completely before replacement
- Disconnect the power cable from the mains
- Remove the resin vat and build platform
- Clean the working area from resin residue
- Take a photo of the old motor connection before removal
- Do not pull wires and connectors with force
- After installation, check platform movement smoothness
- Before printing, perform calibration and a Z axis movement test
- If you do not have 3D printer repair experience, contact a qualified technician
Usage Recommendations
- Keep the Z axis area clean
- Do not allow photopolymer resin to get on the motor or lead screw
- Do not move the platform manually with excessive force
- Check platform movement smoothness after maintenance
- If noise or jerking appears, stop printing and run diagnostics
- Use correct lift and retract settings in the slicer
- Check mechanical fasteners regularly
Suitable Applications
- Repair of Anycubic Photon Mono 4 Ultra
- Replacement of a faulty lead screw motor
- Restoring build platform movement along the Z axis
- Solving platform lifting and lowering issues
- Service maintenance of a resin 3D printer
- Preparing the printer for stable photopolymer resin printing
FAQ
Is this motor compatible with Anycubic Photon Mono 4 Ultra
Yes, this lead screw motor is intended for Anycubic Photon Mono 4 Ultra.
What is the SKU of Lead Screw Motor Photon Mono 4 Ultra
The SKU of this part is S020270.
What is the lead screw motor used for
It is responsible for moving the build platform along the Z axis during resin printing.
Is this a build platform
No, this is not a build platform. This is the lead screw motor that moves the platform.
Is this a motherboard or UV module
No, this is not a motherboard and not a UV LED module. It is a mechanical and electrical Z axis assembly.
When should the lead screw motor be replaced
The motor should be replaced if the platform does not move, moves with jerks, gets stuck, Z axis errors appear or diagnostics confirm a motor fault.
