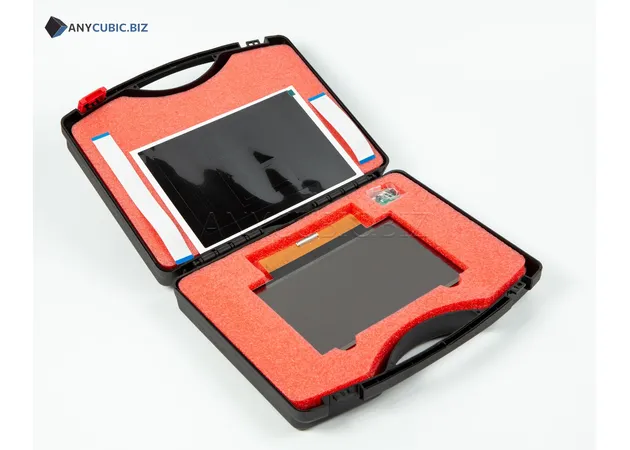

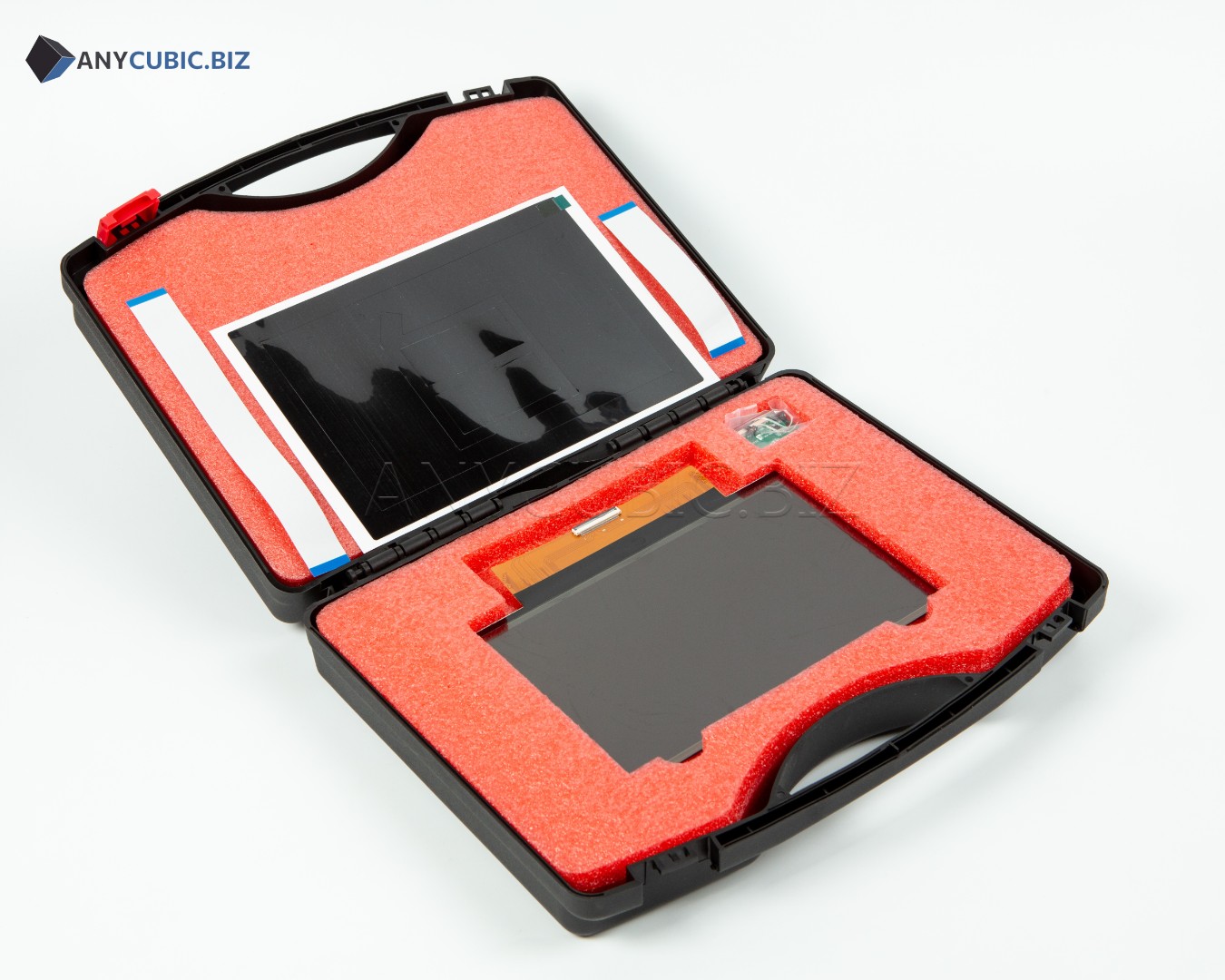

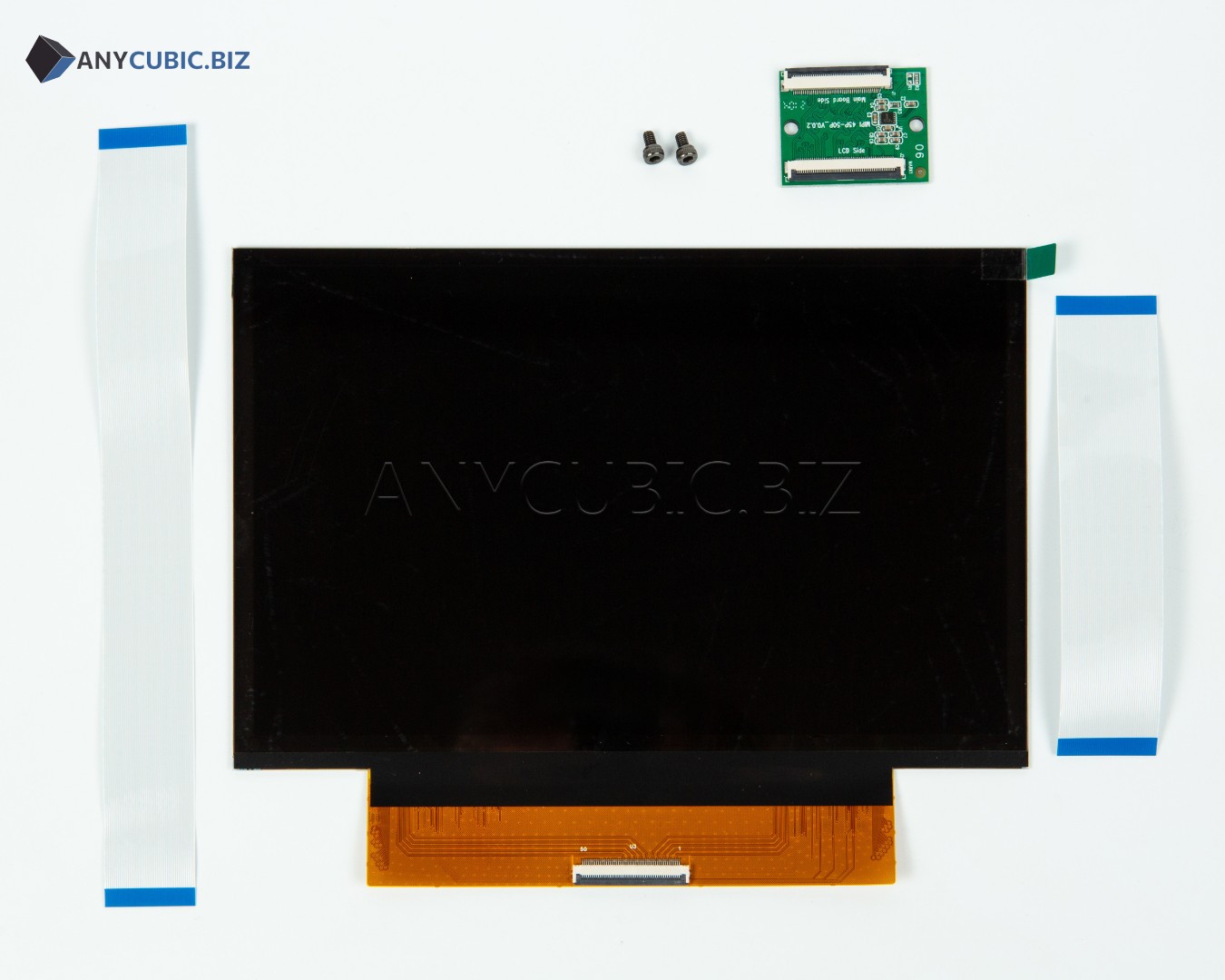

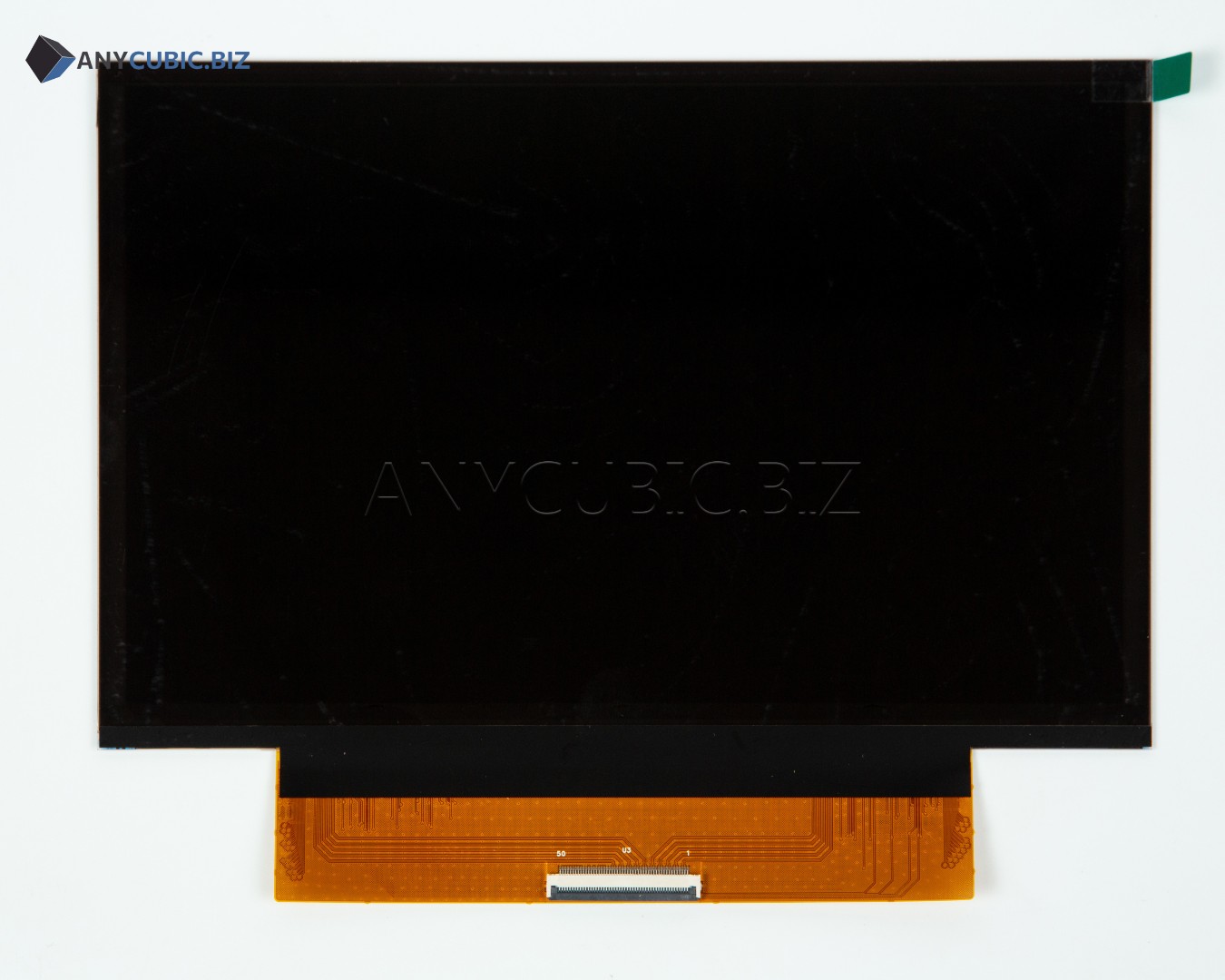

LCD Screen for Anycubic Photon Mono X
LCD Screen for Anycubic Photon Mono X is a replacement 8.9″ 4K monochrome screen for the Anycubic Photon Mono X resin 3D printer. The screen works as the masking module in LCD based SLA printing and controls the UV light pattern for each printed layer.
Description
This LCD screen is designed for replacing a damaged, worn or degraded screen in the Anycubic Photon Mono X. The monochrome LCD matrix supports accurate UV light transmission, stable resin curing and high model detail during resin 3D printing.
Key Benefits
- Compatible with Anycubic Photon Mono X
- 8.9″ monochrome 4K LCD screen
- Resolution 3840 x 2400 px
- Designed for resin 3D printer screen replacement
- Helps restore print quality when the old screen is worn
- Supports precise layer masking and detailed model output
Technical Specifications
| Product Name | LCD Screen for Anycubic Photon Mono X |
| Compatible Model | Anycubic Photon Mono X |
| Screen Type | Monochrome LCD Screen |
| Screen Size | 8.9″ |
| Resolution | 3840 x 2400 px |
| Resolution Class | 4K |
| Purpose | Replacement screen for resin 3D printer |
| Printer Technology | LCD based SLA |
| Printing Material | 405 nm UV Resin |
Compatibility
This screen is intended for the Anycubic Photon Mono X. Do not confuse it with screens for Photon Mono X 6K, Photon Mono X2, Photon Mono 4K or other Photon series printers, because screen size, cable layout and technical specifications may be different.
When to Replace the LCD Screen
- Printed models show missing areas, lines or repeated defects
- The screen no longer transmits UV light evenly
- The screen was damaged after a resin leak
- The printer does not form layers correctly
- The screen has reached the end of its service life after long use
Installation Recommendations
- Turn off the printer and disconnect the power before replacement
- Remove the old screen carefully to avoid damaging the cables and connectors

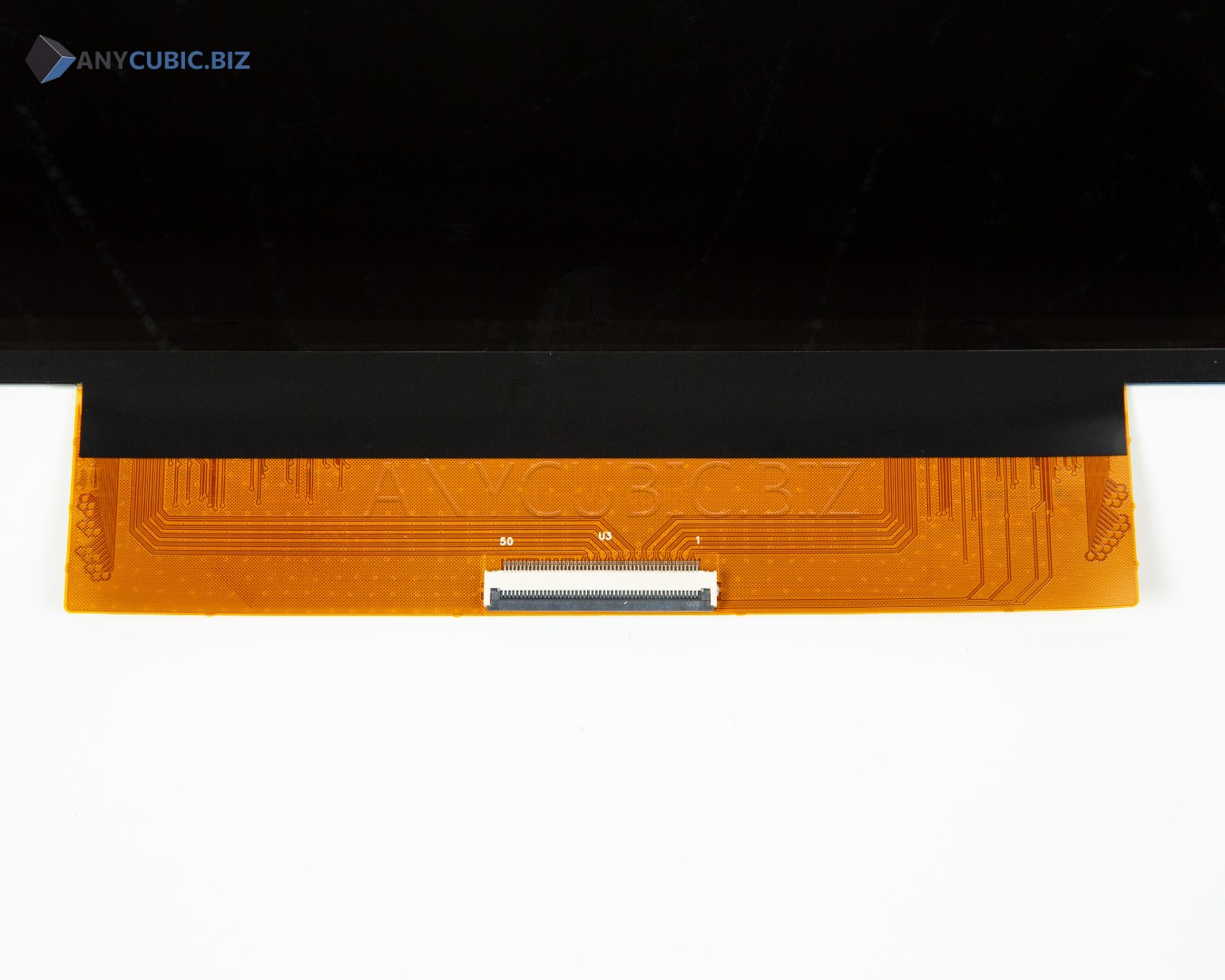

- Check the FPC cable connection after installation
- Run an exposure test before the first print
- Use a screen protector to reduce the risk of damage from resin leaks
FAQs
Is this LCD screen compatible with Anycubic Photon Mono X
Yes, this LCD screen is designed for Anycubic Photon Mono X.
What is the screen size of Photon Mono X
The Anycubic Photon Mono X uses an 8.9″ monochrome LCD screen.
What is the resolution of the Photon Mono X screen
The screen resolution is 3840 x 2400 px, which corresponds to 4K resolution class.
Can I use this screen for Photon Mono X 6K
No, Photon Mono X 6K requires a different screen. Always check the exact printer model before ordering.
Should I use a screen protector
Yes, a screen protector helps reduce the risk of damage if resin leaks from the vat.
