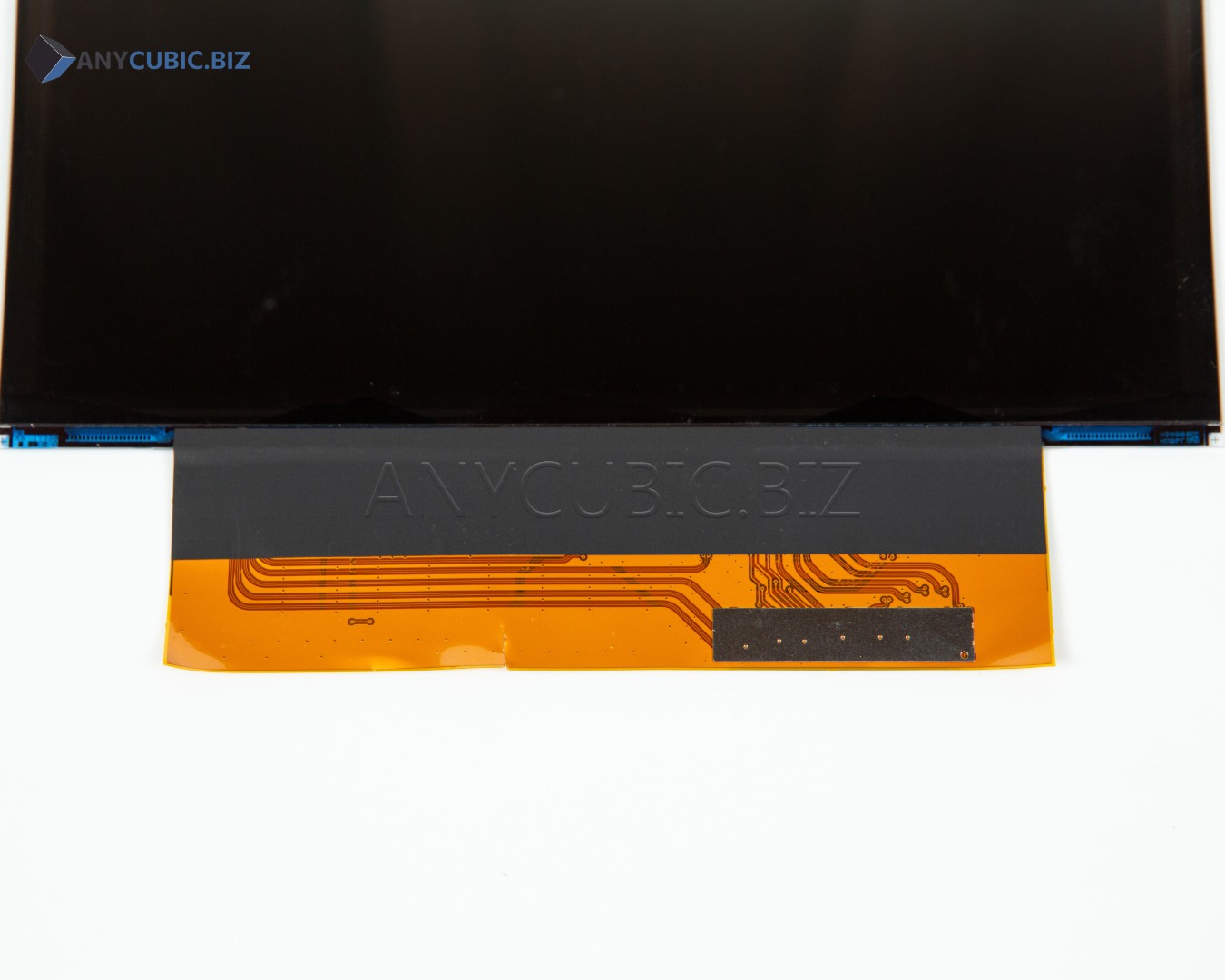

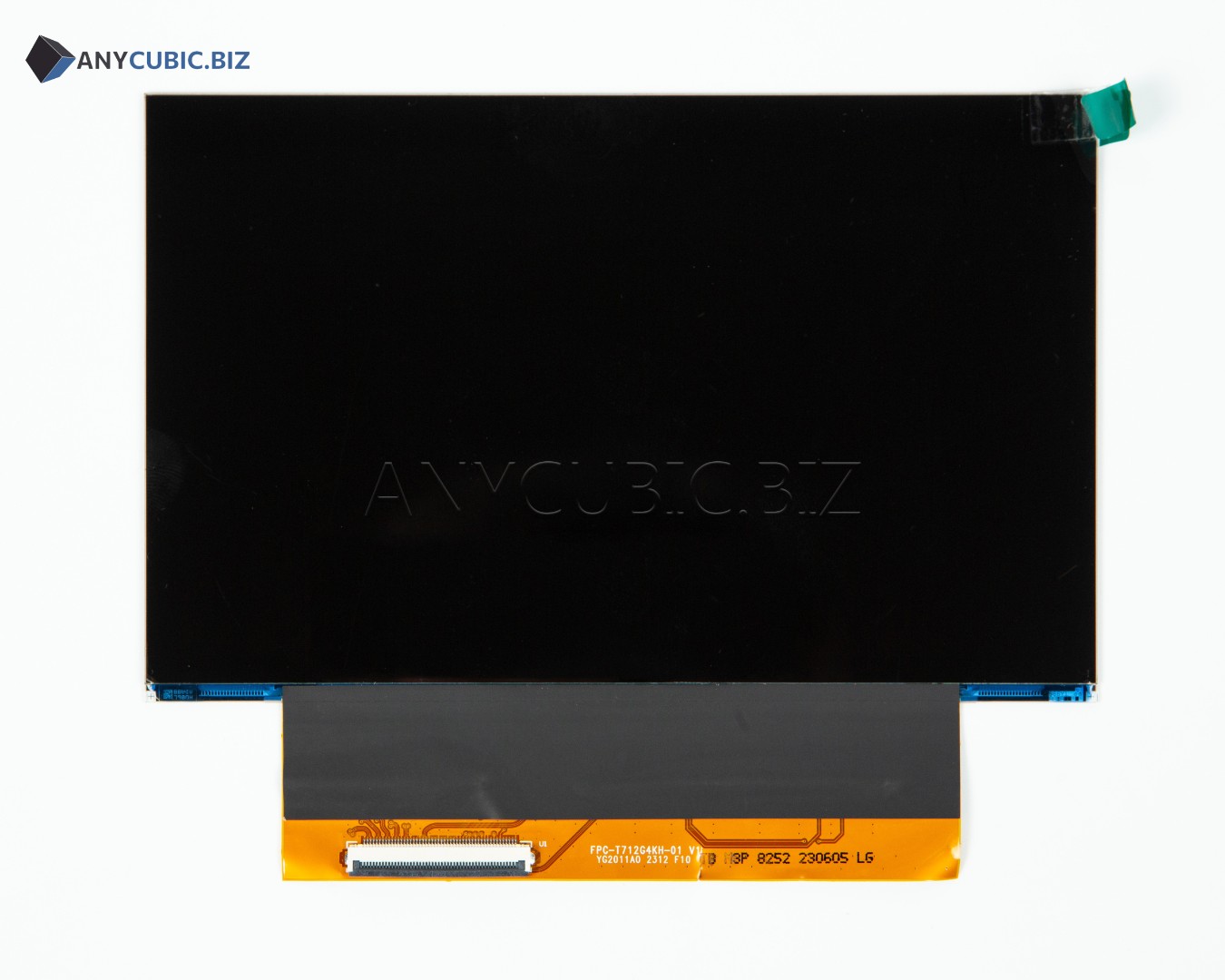

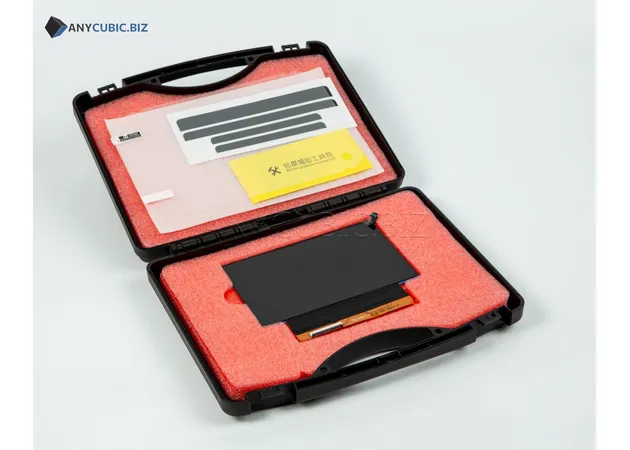

LCD Screen for Anycubic Photon Mono 2
Description
LCD Screen for Anycubic Photon Mono 2 is a replacement monochrome screen for the Anycubic Photon Mono 2 resin 3D printer. The screen is used in the layer exposure system and forms the image of each layer during printing.
LCD Screen for Photon Mono 2 is suitable for replacing a damaged, worn or faulty screen. Replacement may be required if printed models show exposure defects, dead zones, lines, spots, uneven resin curing or if the screen has been damaged after resin leakage.
The LCD screen is one of the key parts of a resin 3D printer. Print detail, contour sharpness, exposure stability and final model quality depend on its condition. A properly working screen helps produce accurate miniatures, prototypes, decorative parts, master models and functional components.
Advantages
- Compatible with Anycubic Photon Mono 2
- Used for layer by layer exposure of photopolymer resin
- Helps restore print quality after screen damage
- Suitable for repair and service maintenance
- Important spare part for accurate resin LCD 3D printing
- Helps solve exposure defects, spots, lines and dead zones
- Suitable for restoring detail accuracy and stable resin curing
Technical Specifications
| Product name | LCD Screen for Anycubic Photon Mono 2 |
| Full product name | LCD Screen for Photon Mono 2 |
| SKU | S020135 |
| Part type | LCD screen, monochrome screen, exposure screen |
| Compatibility | Anycubic Photon Mono 2 |
| Screen type | Monochrome LCD screen |
| Screen diagonal | 6.6″ |
| Resolution | 4096 x 2560 |
| Printer type | LCD resin 3D printer |
| Purpose | Layer image formation and UV exposure of photopolymer resin |
| Category | LCD screens for Anycubic resin 3D printers |
When to Replace the LCD Screen
- Printed models show lines, spots or repeated defects
- Part of the model does not print because of dead zones on the screen
- Resin exposure becomes uneven
- The screen has been damaged after resin leakage
- The screen has cracks, dark zones or mechanical damage
- The printer does not form a layer image during the exposure test
- Diagnostics confirm an LCD screen fault
Compatibility
This LCD screen is intended for Anycubic Photon Mono 2. Before ordering, check the printer model and part number S020135. Anycubic Photon Mono, Photon Mono 4K, Photon Mono 4, Photon Mono 4 Ultra, Photon Mono X, Photon Mono X2 and other models use different screens.
Installation Recommendations
- Turn off the printer completely and disconnect the power cable before replacement
- Remove the resin vat and build platform
- Clean the working area from resin residue and dust
- Take a photo of ribbon cable and wire connections before disassembly
- Do not bend the screen ribbon cable or pull it with force
- Do not touch the screen surface with dirty or wet hands
- Run an exposure test after installation
- If you do not have electronics repair experience, contact a qualified technician
Usage Recommendations
- Always check the vat film condition before printing
- Do not allow resin to leak onto the LCD screen
- Use a screen protector to reduce damage risk
- Do not clean the screen with sharp tools
- After a failed print, check the vat bottom for cured resin residue
- Clean dust from the screen regularly with a soft wipe
- If print defects appear, run an exposure test before replacing other parts
Suitable Applications
- Repair of Anycubic Photon Mono 2
- Replacement of a damaged LCD screen
- Restoration of even photopolymer resin exposure
- Service maintenance of a resin 3D printer
- Solving layer defects, spots and dead zones
- Restoring print quality for miniatures, prototypes and functional parts
FAQ
Is this LCD screen compatible with Anycubic Photon Mono 2
Yes, LCD Screen for Photon Mono 2 is intended for the Anycubic Photon Mono 2 3D printer.
What is the SKU of LCD Screen for Photon Mono 2
The SKU of this part is S020135.
What is the screen diagonal of Photon Mono 2
Photon Mono 2 uses a 6.6″ monochrome LCD screen.
What is the screen resolution of Photon Mono 2
The screen resolution is 4096 x 2560.
When should the LCD screen be replaced
The screen should be replaced if cracks, dead zones, lines, spots, uneven exposure, resin leakage damage or confirmed diagnostic faults appear.
Is this screen compatible with Photon Mono 4K
No, this screen is listed for Photon Mono 2. Photon Mono 4K requires a separately compatible screen.
Should I run an exposure test after screen replacement
Yes, after installing a new LCD screen, run an exposure test and a test print to check exposure uniformity and correct printer operation.
